Model # 141-265 Official Century 10-amp 12/24-v deep cycle battery charger

Here are the diagrams and repair parts for Official Century 141-265 10-amp 12/24-v deep cycle battery charger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

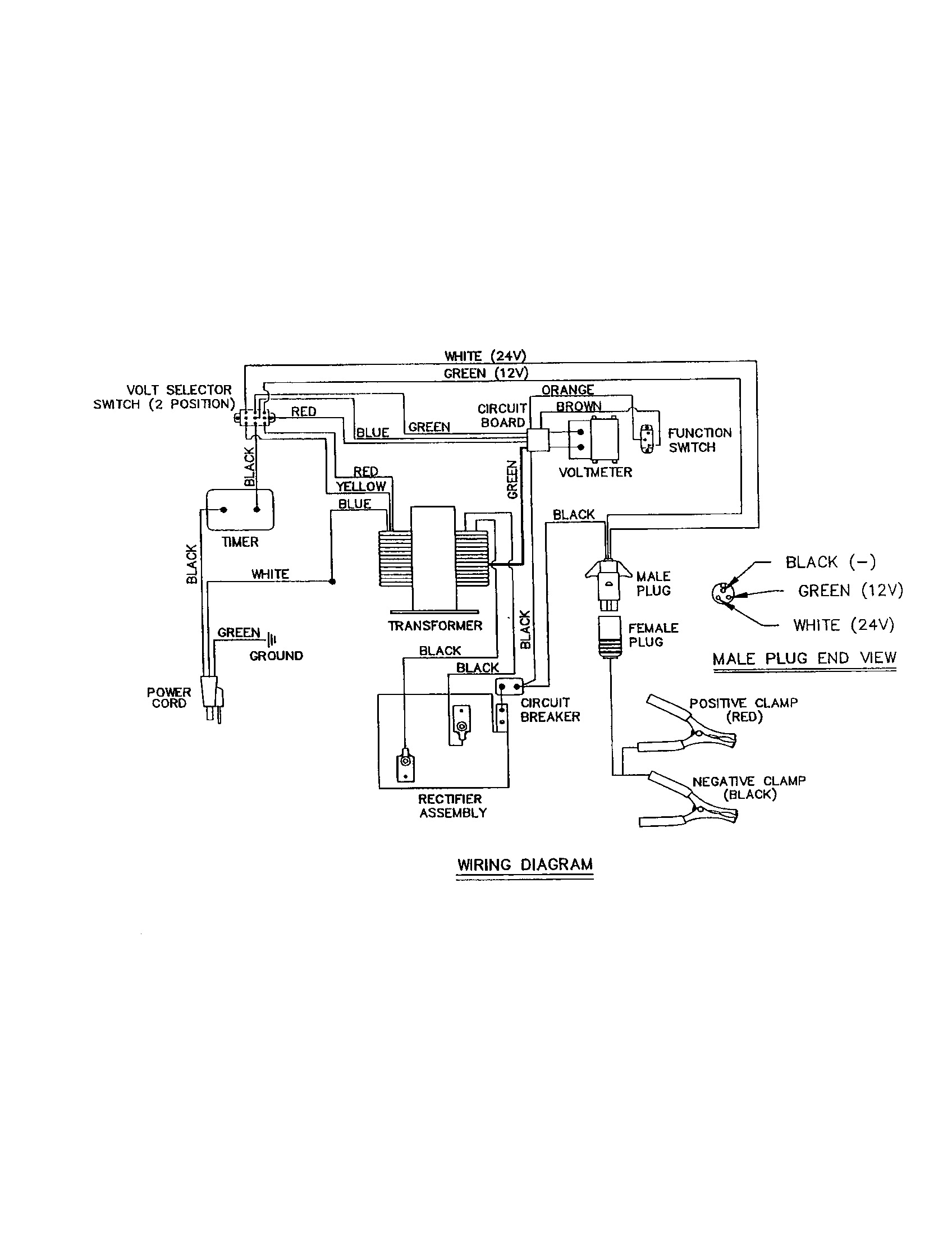

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Meter W/c.board 865-750-666
#1

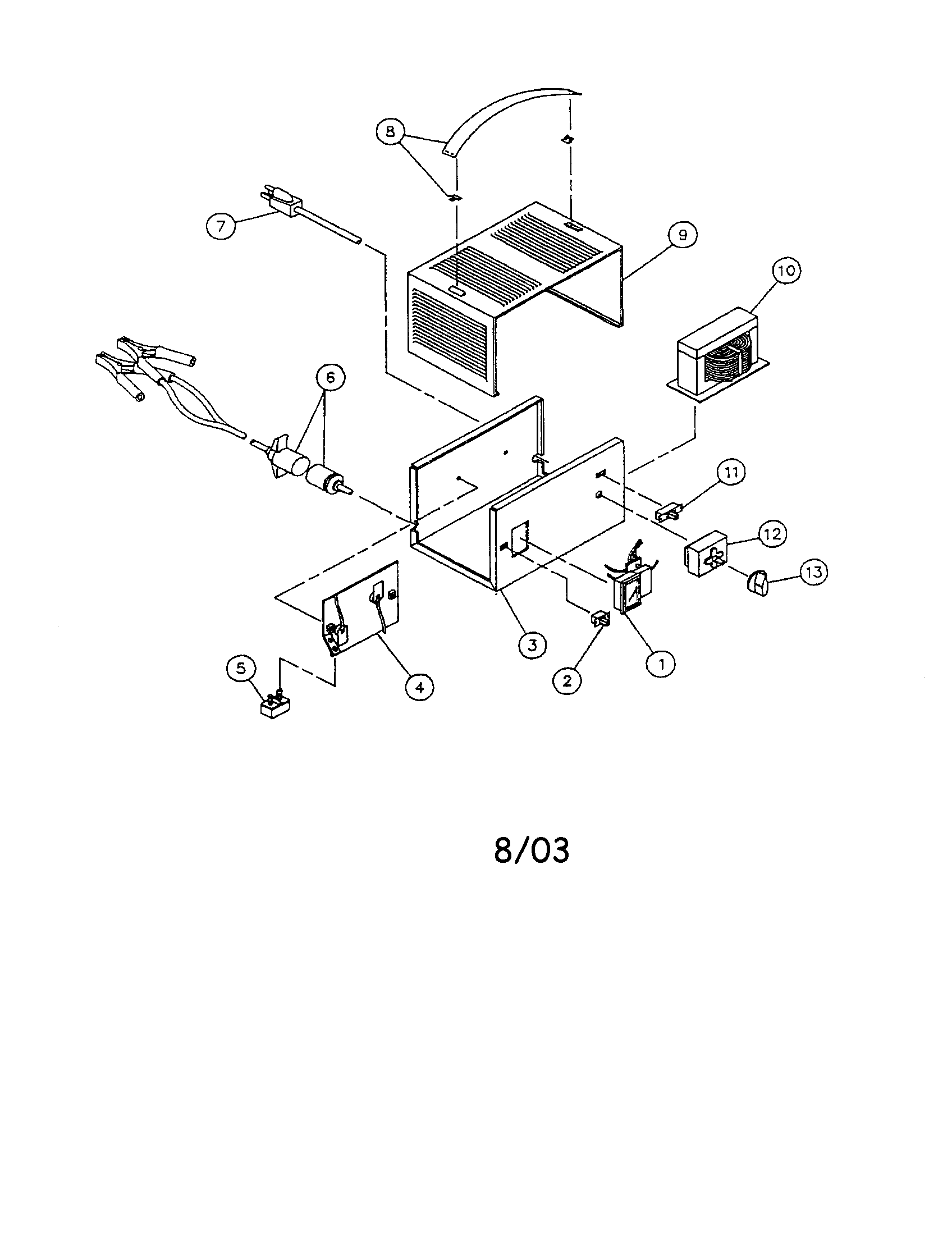

Deep cycle charger diagram

Meter w/c.board

Part #865-750-666

The manufacturer no longer makes this part, and there's no substitute part

Circuit Breaker 246-183-666
#5

Deep cycle charger diagram

Circuit breaker

Part #246-183-666

The manufacturer no longer makes this part, and there's no substitute part

Switch (momentary) 246-205-666
#2

Deep cycle charger diagram

Switch (momentary)

Part #246-205-666

The manufacturer no longer makes this part, and there's no substitute part

Handle W/clips 412-260-666
#8

Deep cycle charger diagram

Handle w/clips

Part #412-260-666

The manufacturer no longer makes this part, and there's no substitute part

Base 440-334-020
#3

Deep cycle charger diagram

Base

Part #440-334-020

The manufacturer no longer makes this part, and there's no substitute part

Volt Selector Switch 246-297-666
#11

Deep cycle charger diagram

Volt selector switch

Part #246-297-666

The manufacturer no longer makes this part, and there's no substitute part

Welder Selector Switch Knob 246-041-666
#13

Deep cycle charger diagram

Welder selector switch knob

Part #246-041-666

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 246-248-666
#7

Deep cycle charger diagram

Power cord

Part #246-248-666

The manufacturer no longer makes this part, and there's no substitute part

Cover 440-247-030
#9

Deep cycle charger diagram

Cover

Part #440-247-030

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 865-754-666
#6

Deep cycle charger diagram

Cable assembly

Part #865-754-666

The manufacturer no longer makes this part, and there's no substitute part
