Jenn-Air
Range Hood

Model # JVW0330LS0 Official Jenn-Air range hood/ventilation

Here are the diagrams and repair parts for Official Jenn-Air JVW0330LS0 range hood/ventilation, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Electronic Control W11099805
#7

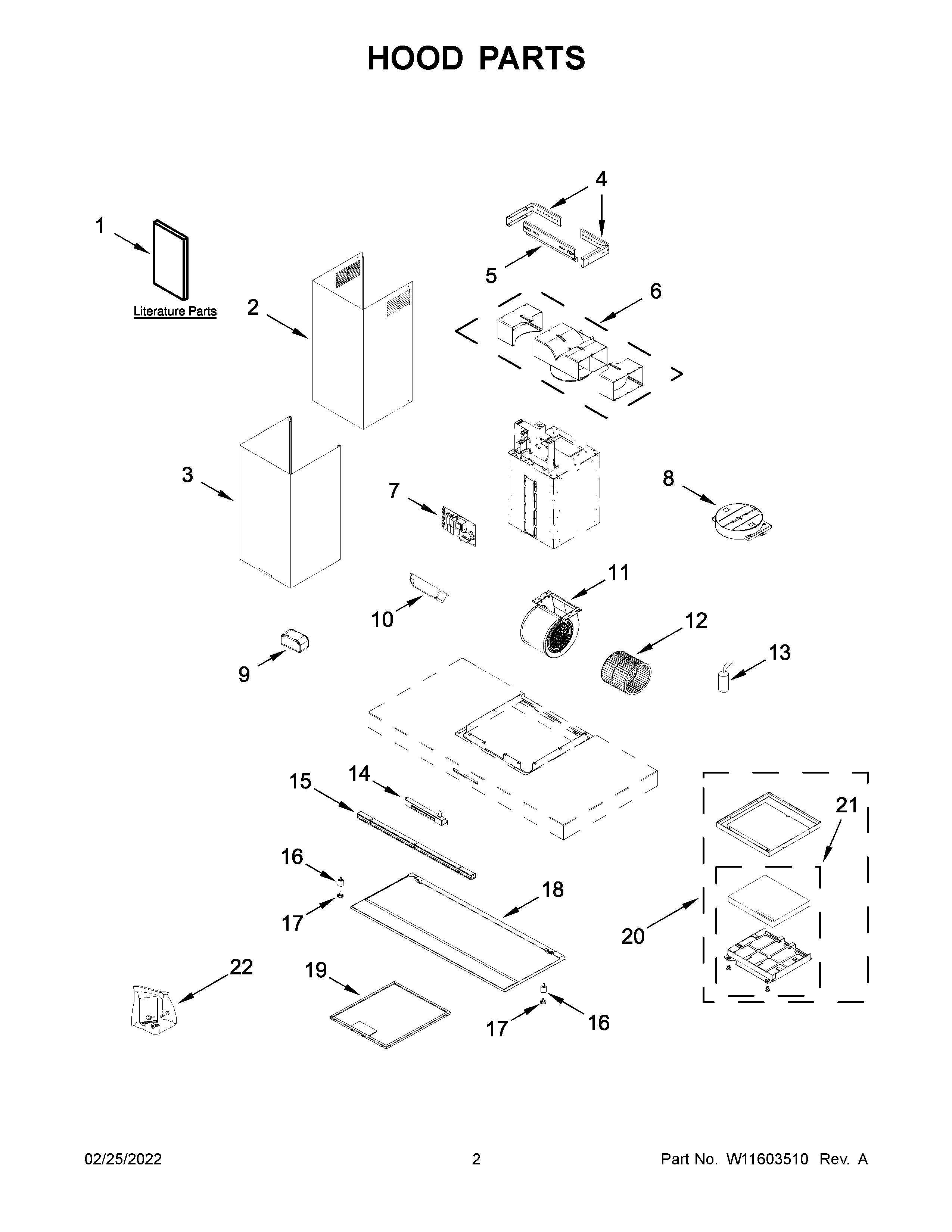

Hood parts diagram

Electronic control

Part #W11099805

Replaced by #W11100663

?
Manufacturer substitution
This part replaces W11099805. Substitute parts can look different from the original.
$178.19
In Stock
Light Strip, Led W11601124
#15

Hood parts diagram

Light strip, led

Part #W11601124

$197.35
In Stock
Filter, Noise W11601123
#9

Hood parts diagram

Filter, noise

Part #W11601123

$119.34
In Stock
Charcoal Fil W11522797
#21

Hood parts diagram

Charcoal fil

Part #W11522797

$70.80
In Stock
Wheel, Fan W11601121
#12

Hood parts diagram

Wheel, fan

Part #W11601121

$177.38
In Stock
Chimney, Lower W11601126
#3

Hood parts diagram

Chimney, lower

Part #W11601126

$380.35
In Stock
Jenn-air Capacitor 8186687
#13

Hood parts diagram

Jenn-air capacitor

Part #8186687

$55.58
In Stock
Panel, Perimetric (30" Model) W11601131
#18

Hood parts diagram

Panel, perimetric (30" model)

Part #W11601131

$338.20
In Stock
Damper W11601117
#8

Hood parts diagram

Damper

Part #W11601117

$157.89
In Stock
Recirc Kit - W11522798
#20

Hood parts diagram

Recirc kit -

Part #W11522798

$126.13
In Stock
