Model # RT20DKXEN10 Official Roper refrigerator
Here are the diagrams and repair parts for Official Roper RT20DKXEN10 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forRT20DKXEN10 Refrigerators
- #19

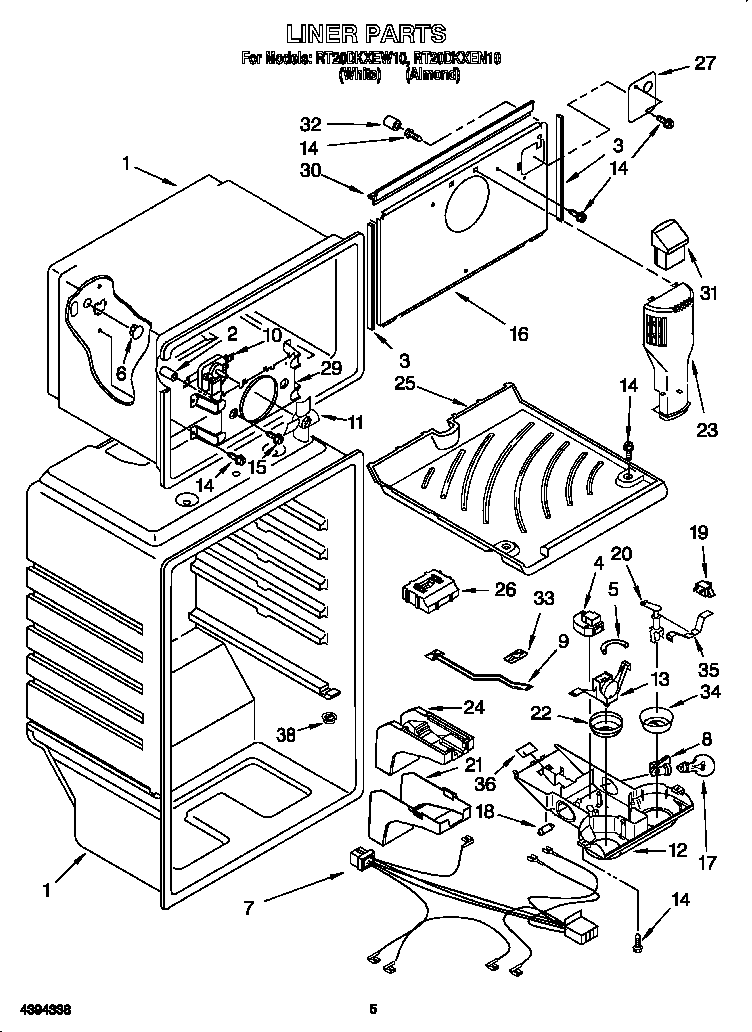

Liner diagram
Refrigerator light switchPart #1118894
Replaced by #W11384469
?Manufacturer substitutionThis part replaces 1118894. Substitute parts can look different from the original.$21.10 |22% OFF Phone Price : $27.10In Stock - #29

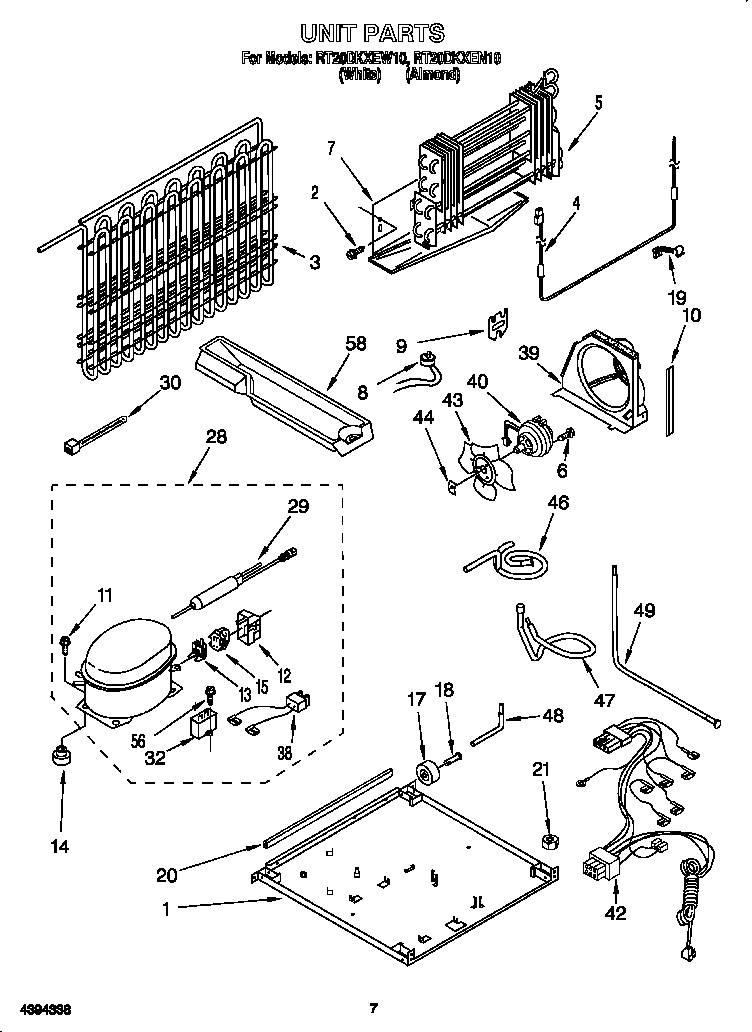

Unit diagram
Drier tubePart #2174865
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 2174865. Substitute parts can look different from the original.$30.51 |16% OFF Phone Price : $36.51In Stock - #24

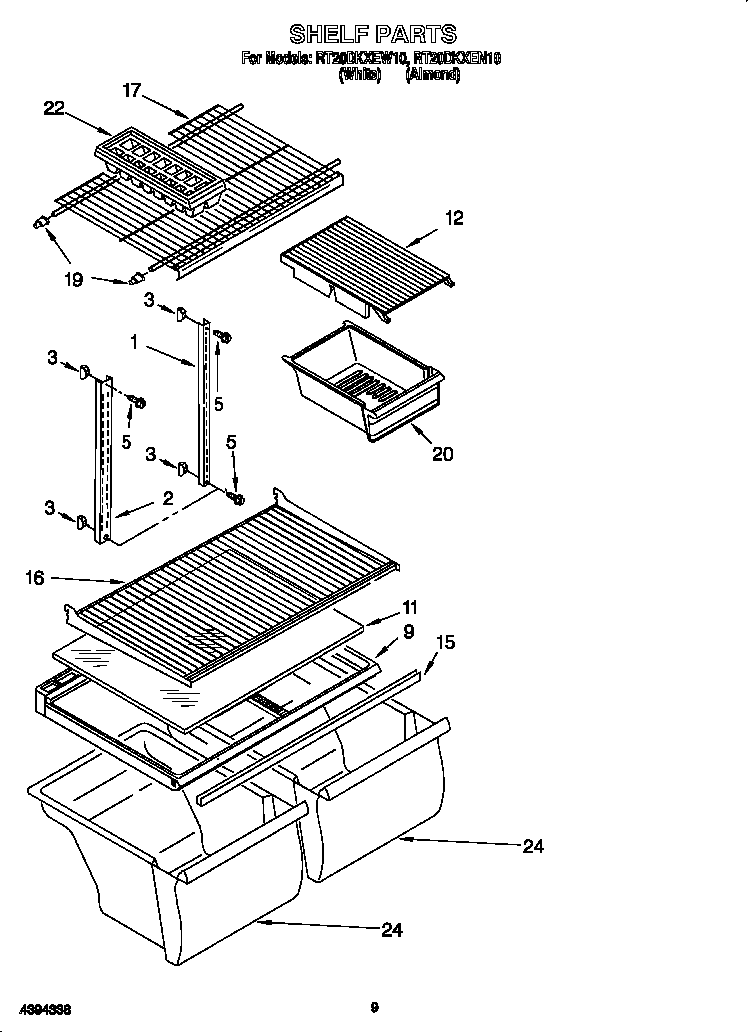

Shelf diagram
Refrigerator crisper panPart #2166256
Replaced by #W10854037
?Manufacturer substitutionThis part replaces 2166256. Substitute parts can look different from the original.$84.90 |7% OFF Phone Price : $90.90In Stock - #8
Unit diagram
Refrigerator defrost bi-metalPart #2182380
Replaced by #WP4387503
?Manufacturer substitutionThis part replaces 2182380. Substitute parts can look different from the original.$37.34 |14% OFF Phone Price : $43.34In Stock - #40
Unit diagram
Condenser motorPart #2176336
Replaced by #W10822259
?Manufacturer substitutionThis part replaces 2176336. Substitute parts can look different from the original.$141.84 |8% OFF Phone Price : $153.84In Stock - #8

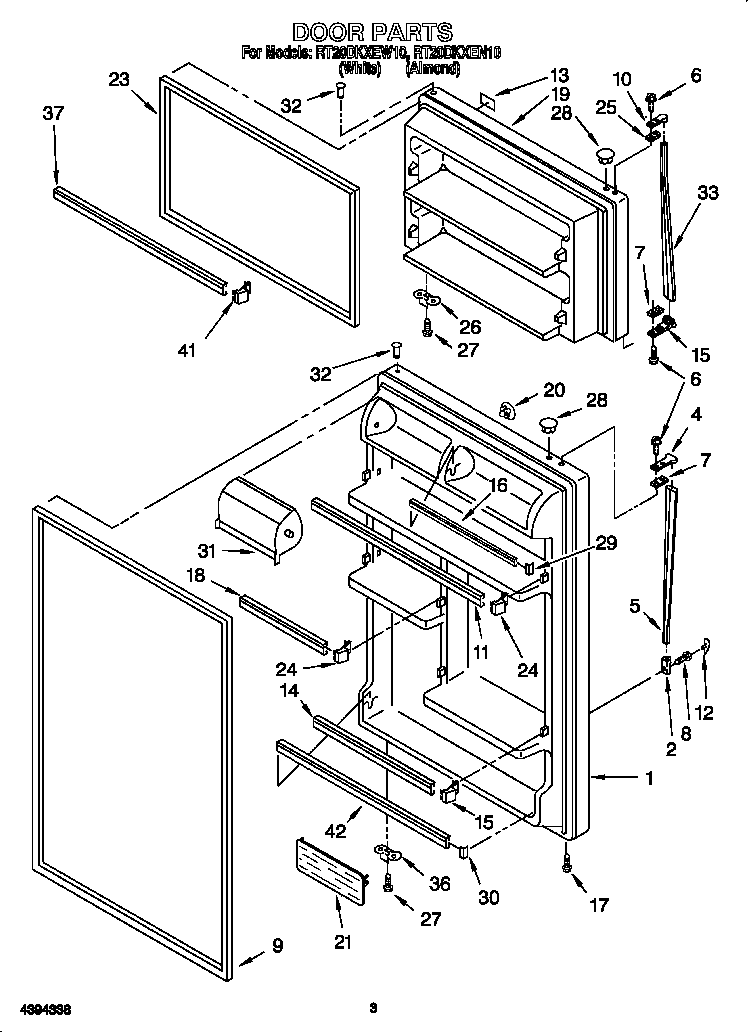

Door diagram
ScrewPart #487909
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 487909. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock #NI
All parts diagram
Appliance silicone lubricantPart #542638
Replaced by #WP542638
?Manufacturer substitutionThis part replaces 542638. Substitute parts can look different from the original.$31.44 |16% OFF Phone Price : $37.44In Stock- #11
Shelf diagram
Refrigerator glass shelfPart #2173300
Replaced by #WP2176225
?Manufacturer substitutionThis part replaces 2173300. Substitute parts can look different from the original.$123.27 |9% OFF Phone Price : $135.27In Stock - #41
Door diagram
Refrigerator door shelf trim end capPart #2156003
Replaced by #WP2156003
?Manufacturer substitutionThis part replaces 2156003. Substitute parts can look different from the original.$9.48 |10% OFF Phone Price : $10.48In Stock - #16

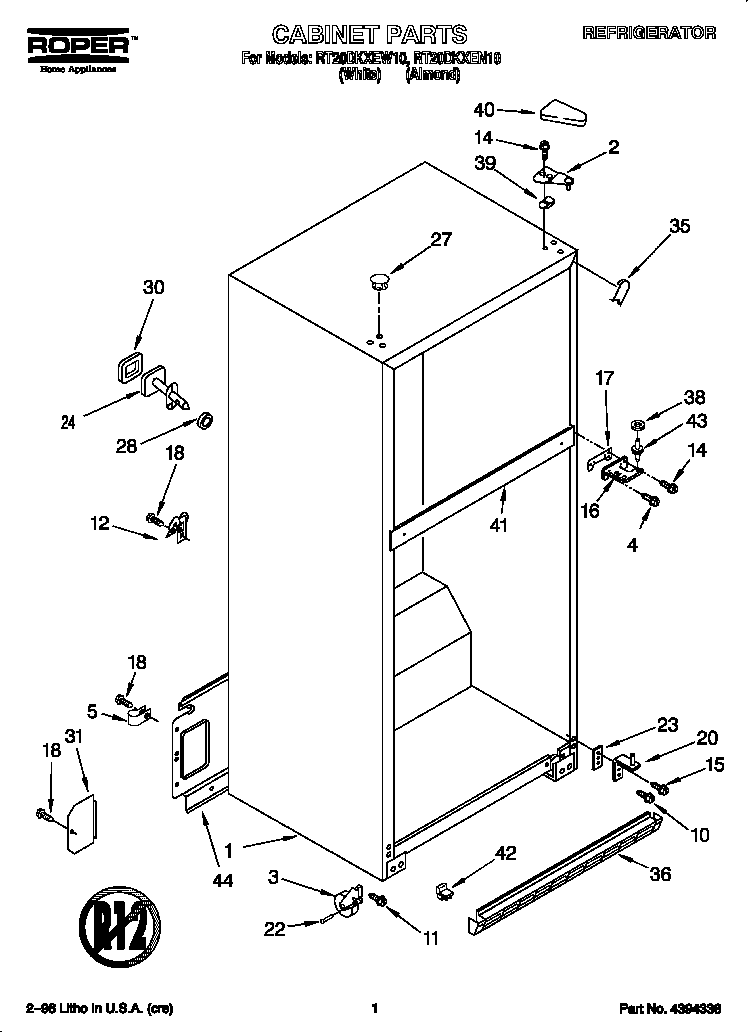

Cabinet diagram
Refrigerator door hingePart #2183064
Replaced by #WP2254618
?Manufacturer substitutionThis part replaces 2183064. Substitute parts can look different from the original.$32.98 |15% OFF Phone Price : $38.98In Stock
