How to replace the seat on a riding lawn mower
This DIY riding mower repair guide gives step-by-step instructions for replacing the seat on a riding lawn mower. For safety, a switch in the riding mower seat allows the mower to run only when it senses that someone is on the seat. If the seat is cracked or the foam cushioning inside the seat is missing or broken down, the seat switch might not engage when you’re in the seat. In that case, the engine shuts off when you release the brake. To fix the problem, replace the seat with a manufacturer-approved riding mower part.
Use these steps to replace the seat on common Craftsman, Husqvarna, MTD, Troybilt, Toro, Murray, Snapper, Cub Cadet and Ariens riding lawn mowers and lawn tractors.

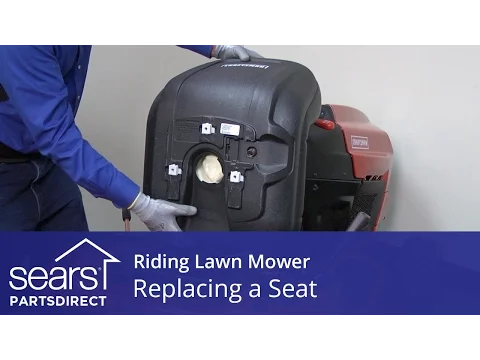

This video explains how to replace the seat on a riding lawn mower.
Instructions
- 01.
Disconnect the battery
Park the tractor on a level surface and set the parking brake.
Turn the ignition switch off and remove the key.
Wear work gloves to protect your hands.
Lift the seat.
Remove the bolt connecting the negative cable to the battery and tuck the cable away from the battery so it doesn't touch the battery post.

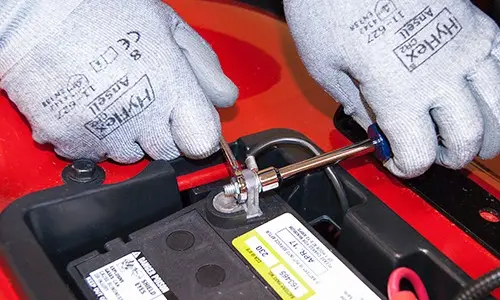

PHOTO: Disconnect the negative battery cable.
- 02.
Remove the old seat
Remove the retaining bolt and washer from the seat bottom.
Press the seat adjustment lever and slide the seat fully forward.
Release the locking tab and pull the seat off the bracket while supporting the seat adjustment lever.
Remove the seat adjustment lever.
Disconnect the wire harness from the seat switch.
Rotate the seat switch counterclockwise to release it and pull it off the seat.
Remove the old seat.
PHOTO: Release the seat locking tab.
- 03.
Install the new seat
Push the seat switch into the new seat's bottom and rotate the switch clockwise to lock it in place.
Connect the wire harness to the switch.
Install the adjustment lever and support it while you snap the new seat into the bracket.
Reinstall the retaining bolt and washer.

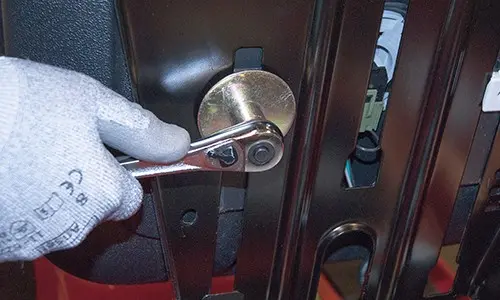

PHOTO: Reinstall the seat mounting bolt.
- 04.
Reconnect the battery
Reconnect the negative cable to the negative battery terminal.
Lower the seat.
