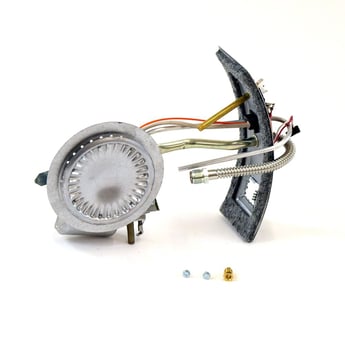

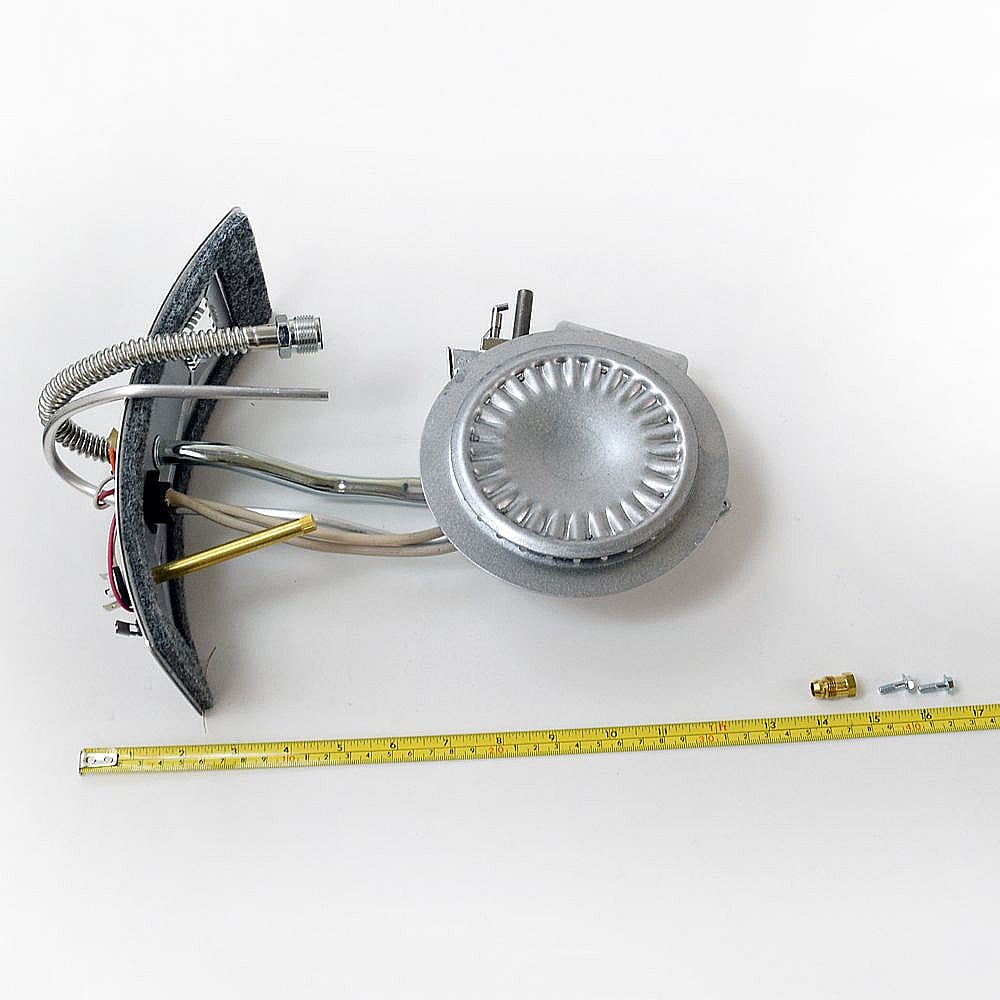

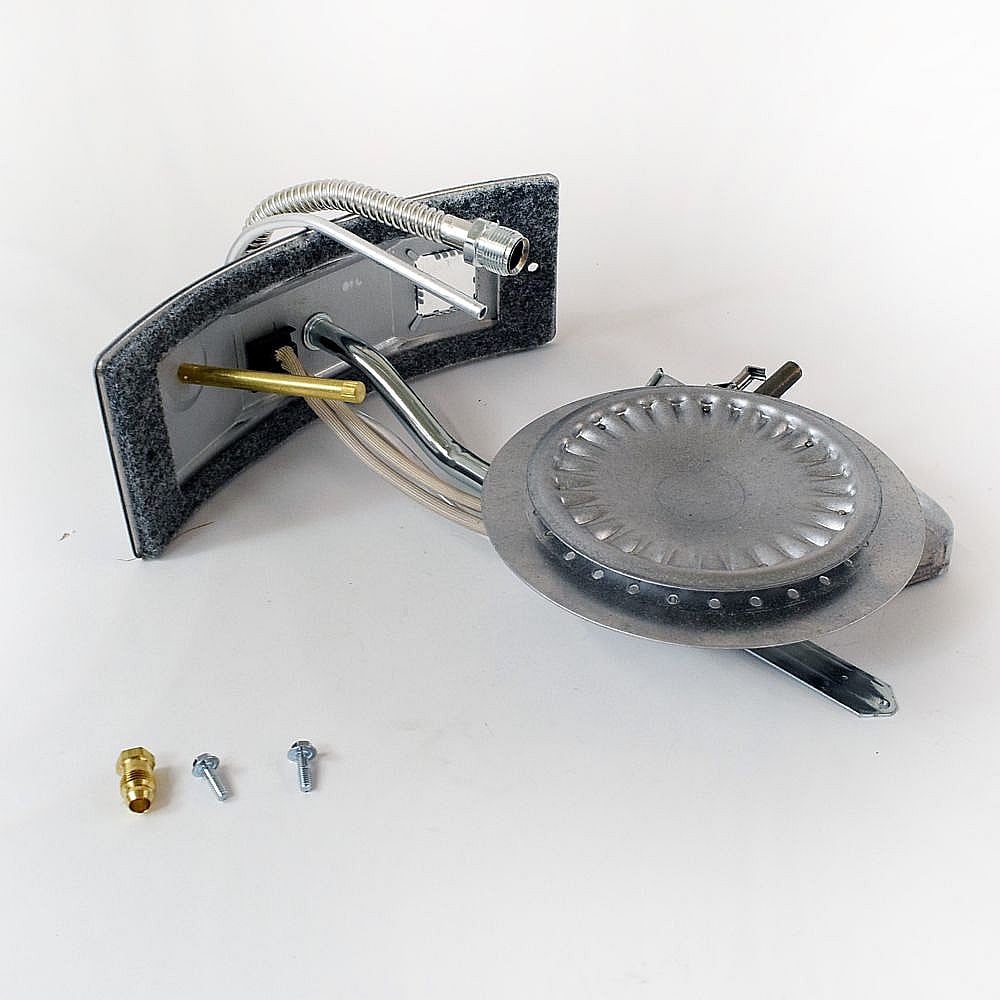

Water Heater Manifold Door and Burner Assembly 100093992
Part #100093992
Replaced by #6911155
?
Manufacturer substitution
This part replaces 100093992. Substitute parts can look different from the original.
Online Only Price
$108.84 |
10% OFF Phone Price : $120.84
In Stock
For ZIP codes near Edit
This part fits
Part Information
Basic Information
- Part Name: Water Heater Manifold Door and Burner Assembly
- Manufacturer: American Water Heaters
- Category: Water Heater Component
- Primary Function: Connects the main burner to the gas supply tube and securely holds the burner in place.
Technical Specifications
- Dimensions: Please refer to the manufacturer's official documentation for exact dimensions.
- Power Rating: Not applicable
- Material: Steel (assumed for durability and heat resistance)
Installation & Compatibility
- Compatible Models: Please verify specific model compatibility through the manufacturer?s guidelines or product support documentation.
- Installation Difficulty: Medium — Proper installation requires shutting off the gas supply and adherence to safety guidelines.
- Tools Required: Adjustable wrench, screwdriver, work gloves for hand protection
Additional Information
This manifold door and burner assembly includes critical components such as:
- Main Burner: Facilitates gas ignition and heating.
- Manifold Door: Acts as a protective housing for internal burner components.
- Pilot Burner with Thermocouple: Ensures steady ignition through the detection of pilot flame presence.
- High Temperature Sensor: Monitors and regulates the heat levels to prevent overheating.
Installation Tips: Ensure the gas supply is completely shut off before beginning installation to avoid potential hazards. Wear protective work gloves to safeguard your hands during the installation process. It is prudent to consult your water heater?s service manual for specific installation instructions and safety precautions.
Replacement Note: Part number 6911155 replaces the previous manufacturer part number 100093992. Ensure compatibility with your appliance model before purchase to avoid inconvenience.
This information is designed to assist DIY enthusiasts in understanding and effectively replacing the water heater manifold door and burner assembly. Please consult with a certified technician if you are unsure about any installation steps or compatibility concerns.
Frequently Used Together
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #N40T61-343 American Water Heaters gas water heater | N40T61-343 | Water heater |
