$20.38 |
23% OFF Phone Price : $26.38
CONFIRM THE PART FITS
Part Information

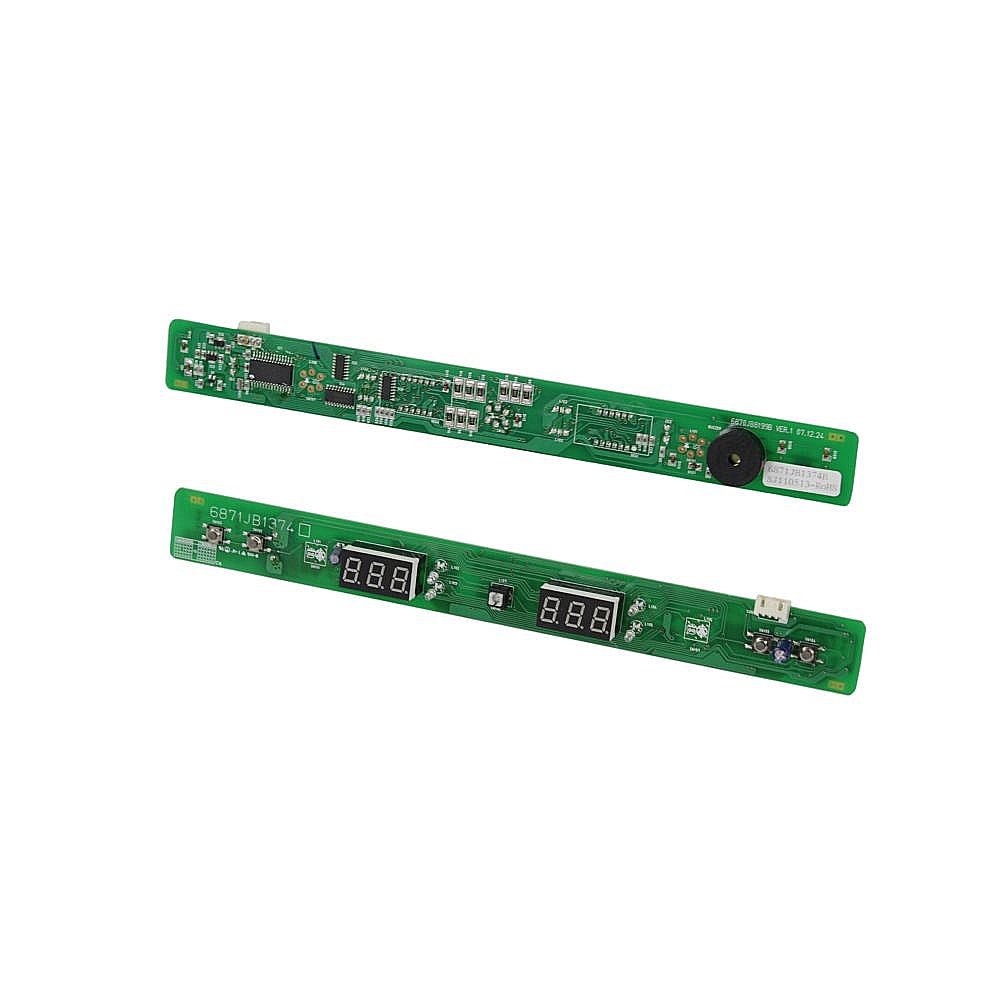

This display control board (part number 6871JB1374B) is for refrigerators.
Display control board 6871JB1374B controls and displays various settings for the refrigerator such as the temperature and dispenser settings.
Safely store any food that could deteriorate while the power is off and unplug the refrigerator before replacing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $101.04
- $32.09 |16% OFF Phone Price : $38.09
- $41.36
- $214.10 |5% OFF Phone Price : $226.10
- $32.21 |16% OFF Phone Price : $38.21
- $16.64 |11% OFF Phone Price : $18.64
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #LFC25760SB/00 LG bottom-mount refrigerator | LFC25760SB/00 | Case |
| Model #LFC25760SW/00 LG bottom-mount refrigerator | LFC25760SW/00 | Case |
| Model #LFC25760TT/00 LG bottom-mount refrigerator | LFC25760TT/00 | Case |
| Model #LFC25760ST/00 LG bottom-mount refrigerator | LFC25760ST/00 | Case |
| Model #LFC21760ST/00 LG bottom-mount refrigerator | LFC21760ST/00 | Case |
Reviews
Easy to install
It was easy to install. Together with the display cover, light cover and dispenser display cover it took about 40 minutes to install.
Ilya, Southampton, USA
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Incomplete Order
We only received one of the three parts we ordered for our refrigerator. Since we don't have all the parts, it's impossible to install them and it's been over 2 months since we placed the original order.
Heather, Big Bear, CA
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Display Control-Hidden Screws!
Not easy to install as there are 3 hidden screws under the front decal (one on each end and one in the center) that must be removed in order to replace the control board. You need to peel decal back very carefully to remove the screws. If you damage the decal in the process you may need to replace it. I did not replace the center screw as it has limited importance and I did not want to risk damaging the decal again.
paul g s, Orlando FL
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
Not the easiest to install at first glance
After detaching the light/display assembly and getting it on the workbench, there were several puzzles to be solved, which is what took most of the time. Installation eventually required gentle prying and removal of a thin, adhesively attached white plastic fascia mask over the display area, then removing three screws that were then exposed. Those screws attached the bezel that contained the circuit board. The bezel has to be moved straight back, then out, by releasing *both* top and bottom plastic retaining clips across the entire length of the bezel. You can't just rotate the bottom out and up, for example. It has to be moved straight back for a short distance before it can be removed. None of this is obvious from the exploded view of the parts. If you carefully pry off the fascia mask, it seemed to reattach without a problem. A couple of jewelers' screwdrivers was very useful in this work. Just don't try to force anything.
Central V P, Virginia
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
