CONFIRM THE PART FITS

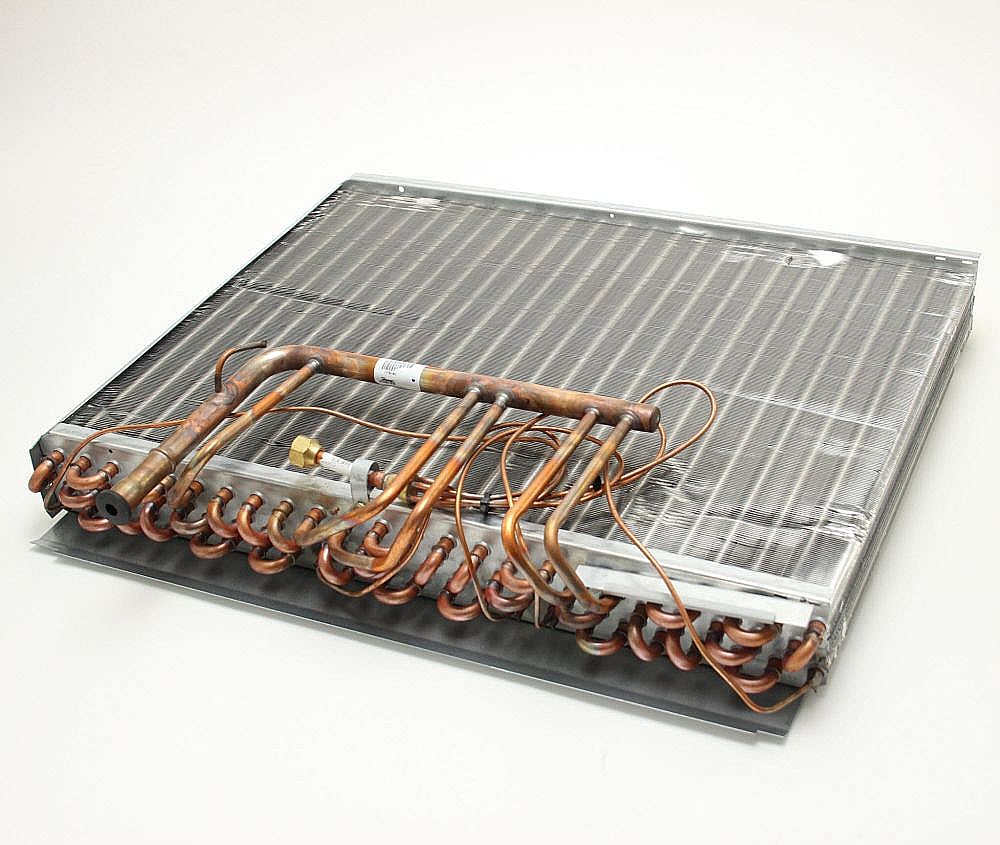

Central Air Conditioner Evaporator Coil Assembly 316224-771

Part #316224-771

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

Only ground shipment is available for this item.

This part fits

Part Information

This evaporator coil assembly (part number 316224-771) is for central air conditioners.

Evaporator coil assembly 316224-771 is a heat exchanger that cools the air in a central air conditioning system.

A service technician should do this repair because it involves recovering and recharging refrigerant in the sealed refrigerant system.

Top models using the same part

Model NameModel NumberDiagram Name
Model #PF1MNC030000AAAA Payne air handlerPF1MNC030000AAAA
Cabinet parts
Model #PF1MNC031000 Payne air handlerPF1MNC031000
Cabinet parts 1
Model #FC4DNF030000 Carrier air handlerFC4DNF030000
Cabinet parts
Model #FA4CNF030000AAAA Carrier air handlerFA4CNF030000AAAA
Cabinet parts
