Part Information

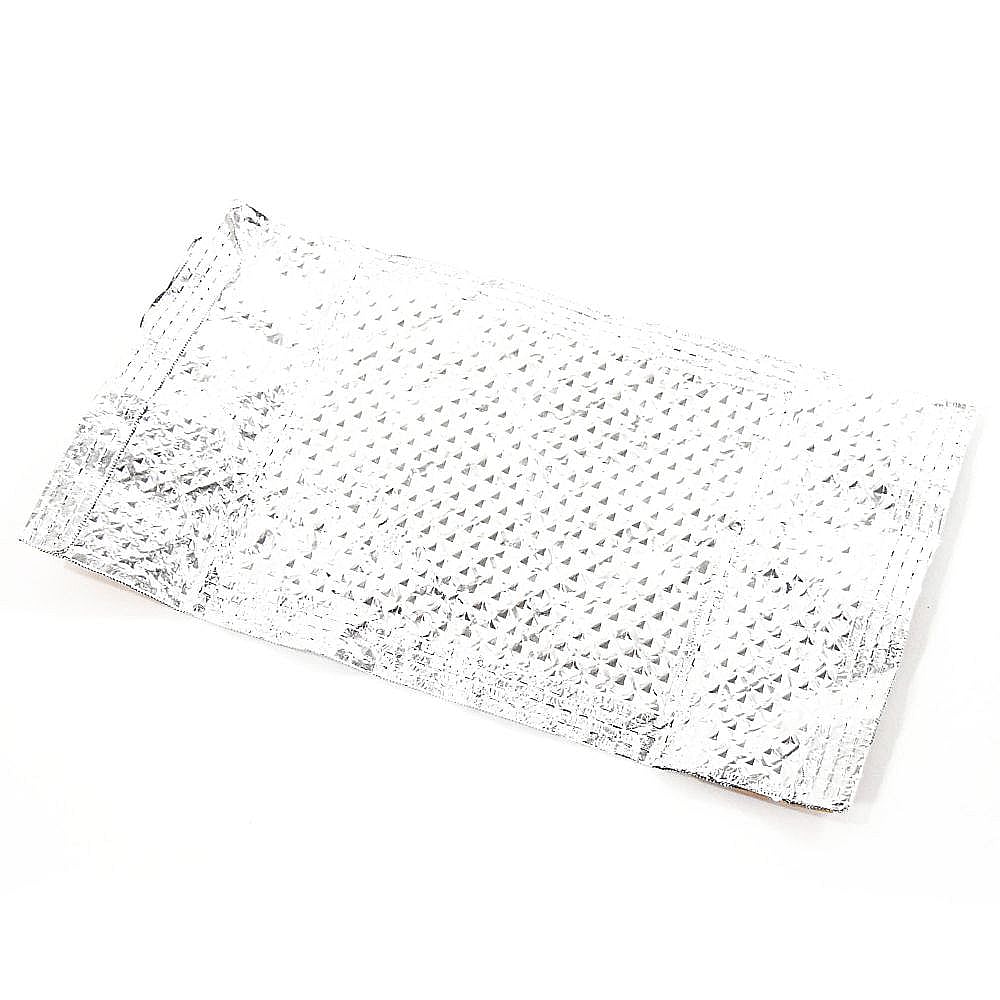

This side insulation heat shield (part number W10182346) is for ranges.
Side insulation heat shield W10182346 forms a heat barrier between the oven side panel and the oven insulation.
Shut off electrical power to the range before repair. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #KGRS205TBL5 KitchenAid gas range | KGRS205TBL5 | Chassis parts |
| Model #KGRS205TBL4 KitchenAid gas range | KGRS205TBL4 | Chassis parts |
| Model #KGRS205TWH4 KitchenAid gas range | KGRS205TWH4 | Chassis parts |
| Model #YKERS205TS4 KitchenAid electric range | YKERS205TS4 | Chassis parts |
| Model #KERS205TSS5 KitchenAid electric range | KERS205TSS5 | Chassis parts |
| Model #KERS205TBL5 KitchenAid electric range | KERS205TBL5 | Chassis parts |
| Model #KERS205TWH5 KitchenAid electric range | KERS205TWH5 | Chassis parts |
| Model #AER5845QAF17 Amana electric range | AER5845QAF17 | Chassis parts |
| Model #YKERS205TS5 KitchenAid electric range | YKERS205TS5 | Chassis parts |
| Model #KGRS205TSS5 KitchenAid gas range | KGRS205TSS5 | Chassis parts |
