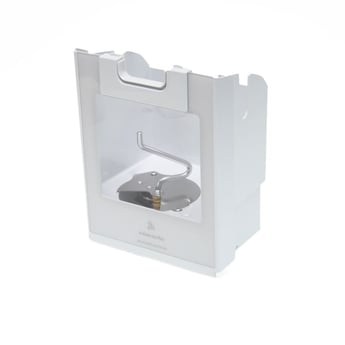

Refrigerator Ice Container (replaces W10258516, W10774957, W10859381, W11251049) W11347840
Part #W11347840
Online Only Price
$152.52 |Â
7% OFFÂ Phone Price : $164.52
In Stock
For ZIP codes near Edit
This part fits
Part Information
This ice container (part number W11347840) is for refrigerators.
Ice container W11347840 stores ice in the freezer compartment for dispensing.
Follow the instructions in the owner's manual when installing this part.
Frequently Used Together
- $15.69 |Â11% OFFÂ Phone Price : $17.69
- $19.37 |Â9% OFFÂ Phone Price : $21.37
- $23.99 |Â20% OFFÂ Phone Price : $29.99
- $14.29 |Â12% OFFÂ Phone Price : $16.29
- $7.29 |Â12% OFFÂ Phone Price : $8.29
- $26.80 |Â18% OFFÂ Phone Price : $32.80
- $17.49 |Â10% OFFÂ Phone Price : $19.49
- $13.09 |Â13% OFFÂ Phone Price : $15.09
- $113.06 |Â10% OFFÂ Phone Price : $125.06
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #KRSF705HBS04 KitchenAid side-by-side refrigerator | KRSF705HBS04 | Motor and ice container parts |
| Model #KRSF705HBS05 KitchenAid side-by-side refrigerator | KRSF705HBS05 | Motor and ice container parts |
| Model #KRSF705HPS05 KitchenAid side-by-side refrigerator | KRSF705HPS05 | Motor and ice container parts |
| Model #KRSF705HPS04 KitchenAid side-by-side refrigerator | KRSF705HPS04 | Motor and ice container parts |
| Model #GSS30C7EYY00 Whirlpool side-by-side refrigerator | GSS30C7EYY00 | |
| Model #GSS26C4XXA00 Whirlpool side-by-side refrigerator | GSS26C4XXA00 | Motor and ice container parts |
| Model #GSS26C4XXW03 Whirlpool side-by-side refrigerator | GSS26C4XXW03 | |
| Model #GSS26C5XXW00 Whirlpool side-by-side refrigerator | GSS26C5XXW00 | Motor and ice container parts |
| Model #MSS26C6MFW01 Maytag side-by-side refrigerator | MSS26C6MFW01 | Motor and ice container parts |
| Model #MSS26C6MFW00 Maytag side-by-side refrigerator | MSS26C6MFW00 | Motor and ice container parts |
Reviews
NOT Functional Without Drilling Holes in Bin
This fits BUT the ice the bin keeps filling and does not stop due to not being the exact same as original. The old one has cutouts on each side so that the sensors can detect when bin is full. The new one does not have these cutouts and results in icemaker continuing to make ice forever and causing other issues. For the price of this part, it should fit & work as it should.
Over-Iced & F _, New York
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Part does not match the image
The part does not have the slots for the electric eye to detect the need for more ice, so ice maker will not dump any ice because it thinks the bin is full. The part was wrong, and I had to drill holes for the electric eye to see through the bin.
Rich, Los Angeles
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Won't fit
Ice container sent didn't have holes on the side like the original part so I had to drill holes in the new part to make it work.
Cornbread1234, Baton Rouge
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
ice container
the correct photo and part number is on the website but have received the incorrect part 2 times. major problem. original part has slots on both sides of ice container to allow electric beam to pass through so ice production can continue. once ice has gotten to the height of the electric beam it will stop producing ice until it lowers by consumer use. concerned to return and reorder and would receive to same incorrect product. i was assured by sales person on internet it IS the correct one in stock and would be shipped ASAP. Same problem.
c357662, canton, ga
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Ice container
I had to drill holes in each side of the new container so the electric eye level would see through and the parts diagram shows no handle so I bought an extra handle thinking it didn't have one, so I have an extra $44 handle/latch, other then that works great!
daniel, murrieta
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Wrong Part:not the same as pictured/not compatible

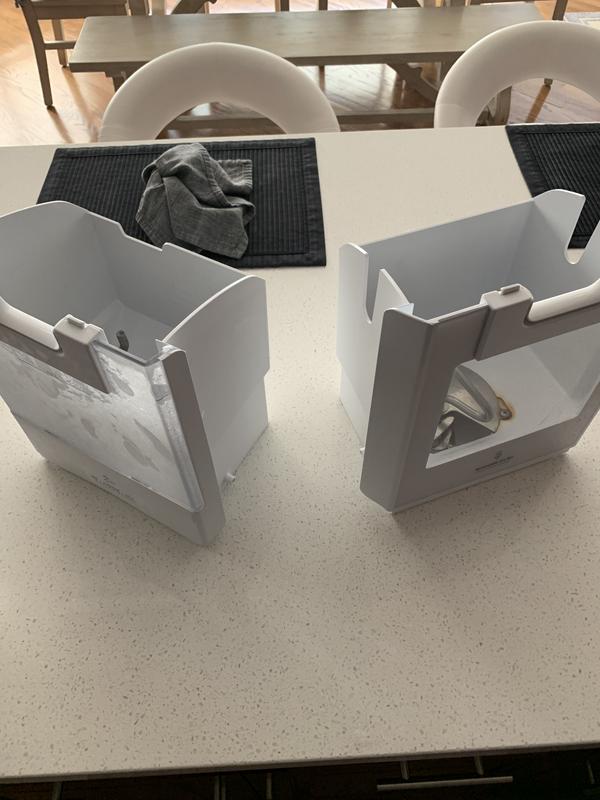

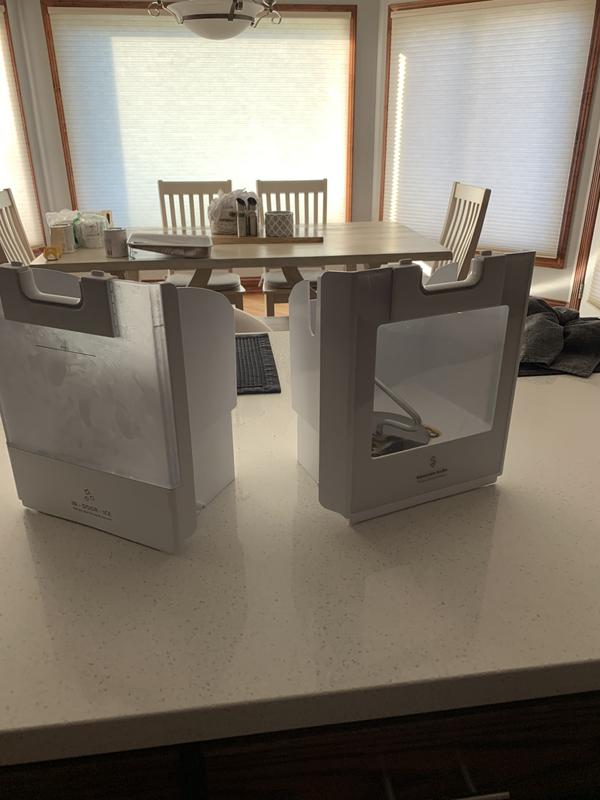

This is a hard part to find and expensive. The website says this part is compatible with my model fridge but it is not. Notice in the pictures that there is a notch on either side of the one on the right (original...notice rust as well, it's why I ordered new part). Anyway, those notches are needed so that the sensor "sees the other side" which is on/off switch, much like your garage doors safety sensors work. The new part, on the left, doesn't have these notches. Took me the better part of two days trying to figure this out thinking it was my new water filter I installed, or something more sinister! Will be returning..
John, Aurora, IL
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Ice box don't work
That Your fridge will not make ice cuz the sensors are blocked so I need to send mine back.
Reka, Atlanta
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
