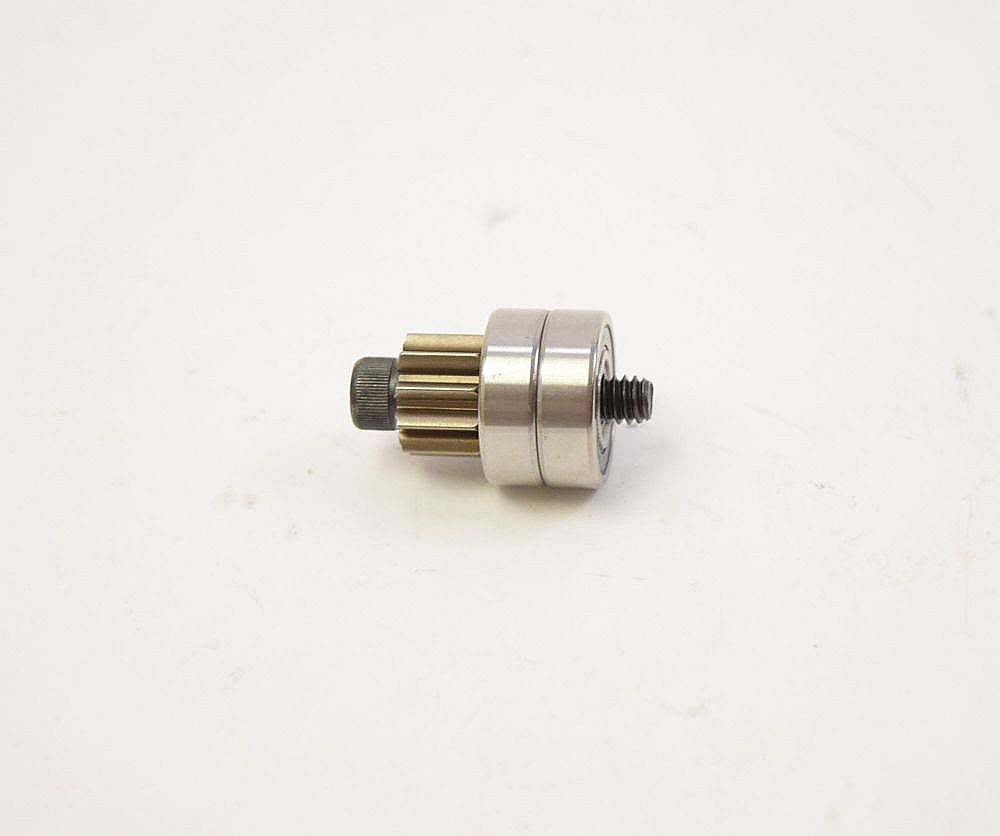

Hedge Trimmer Spur Gear 530096009

Hedge Trimmer Spur Gear 530096009

Part #530096009

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This spur gear (part number 530096009) is for hedge trimmers.

Spur gear 530096009 engages with the drum clutch shaft to move the hedge trimmer blades.

Let the engine cool before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #GHT220LE TYPE 4 Weed Eater hedge trimmerGHT220LE TYPE 4
Blade/handle/gear box
Shop Parts
Model #GHT225LE TYPE 1 Weed Eater hedge trimmerGHT225LE TYPE 1
Blade/handle
Shop Parts
Model #GHT225LE TYPE 4 Weed Eater hedge trimmerGHT225LE TYPE 4
Blade/handle
Shop Parts
Model #GHT220LE TYPE 3 Weed Eater hedge trimmerGHT220LE TYPE 3
Blade/handle/gear box
Shop Parts
Model #GHT225LE TYPE 2 Weed Eater hedge trimmerGHT225LE TYPE 2
Blade/handle
Shop Parts
Model #GHT225LE Weed Eater hedge trimmerGHT225LE
Clutch/drive gear/blade/handle
Shop Parts
Model #GHT220-TYPE 5 Weed Eater hedge trimmerGHT220-TYPE 5
Blade/hanlde/drum/clutch
Shop Parts
Model #GHT225LE TYPE 3 Weed Eater hedge trimmerGHT225LE TYPE 3
Blade/handle
Shop Parts
Model #GHT225LE TYPE 5 Weed Eater hedge trimmerGHT225LE TYPE 5
Blade/handle
Shop Parts
Model #GHT220-TYPE 4 Weed Eater hedge trimmerGHT220-TYPE 4
Blade/handle/clutch/drum
Shop Parts
