Model # GHT225LE TYPE 3 Official Weed Eater hedge trimmer

Here are the diagrams and repair parts for Official Weed Eater GHT225LE-TYPE-3 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#55

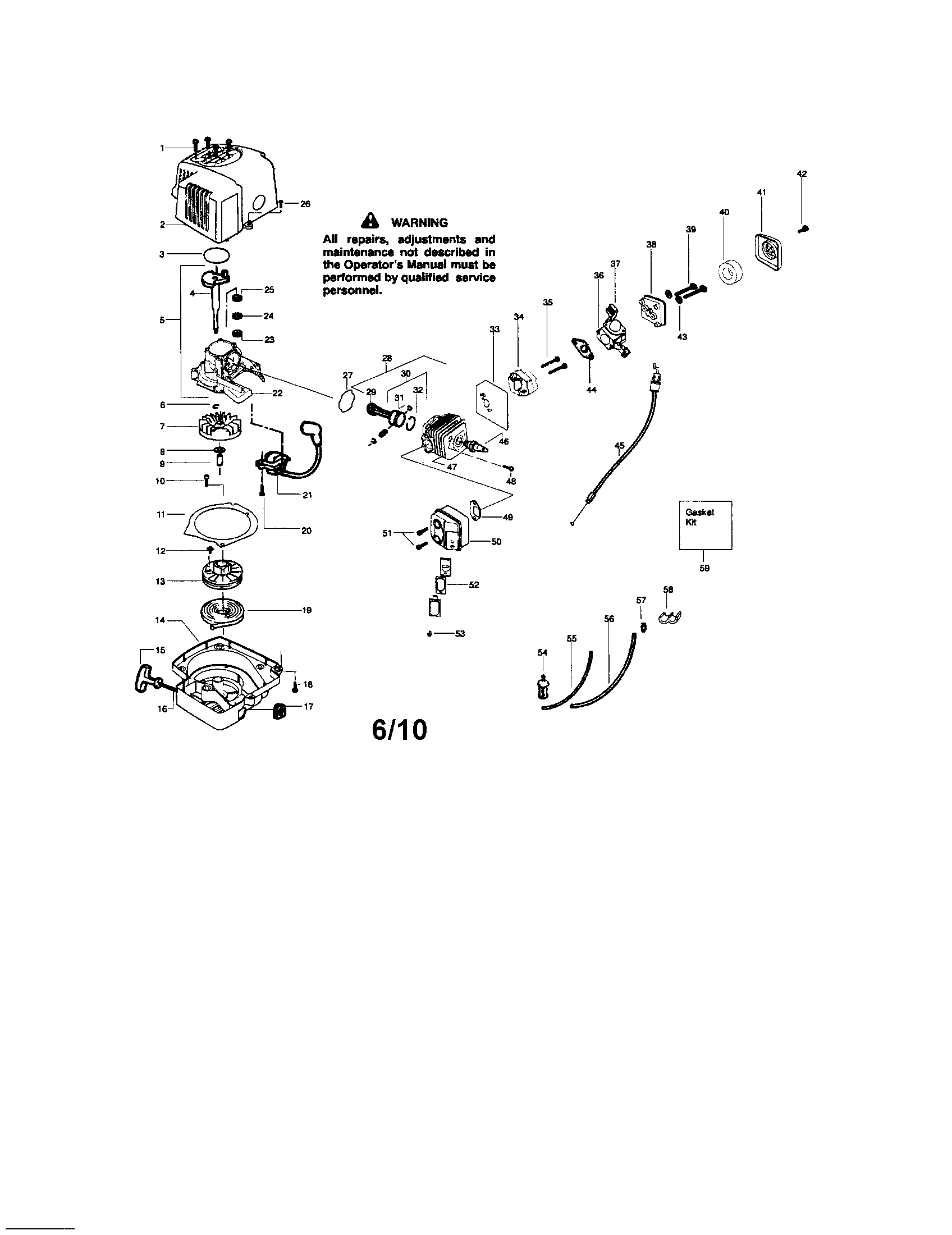

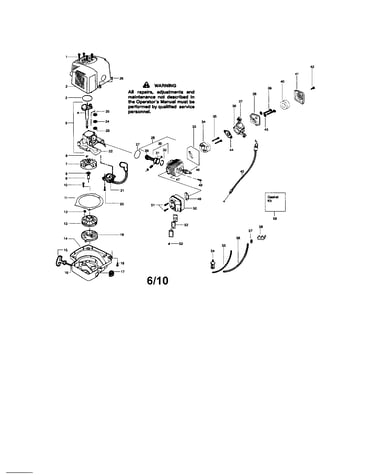

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#56

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#57

Cylinder/crankshaft/crankcase diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#16

Cylinder/crankshaft/crankcase diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Piston Ring 530055120
#32

Cylinder/crankshaft/crankcase diagram

Piston ring

Part #530055120

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530055120. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Gas Cap 530014871
#24

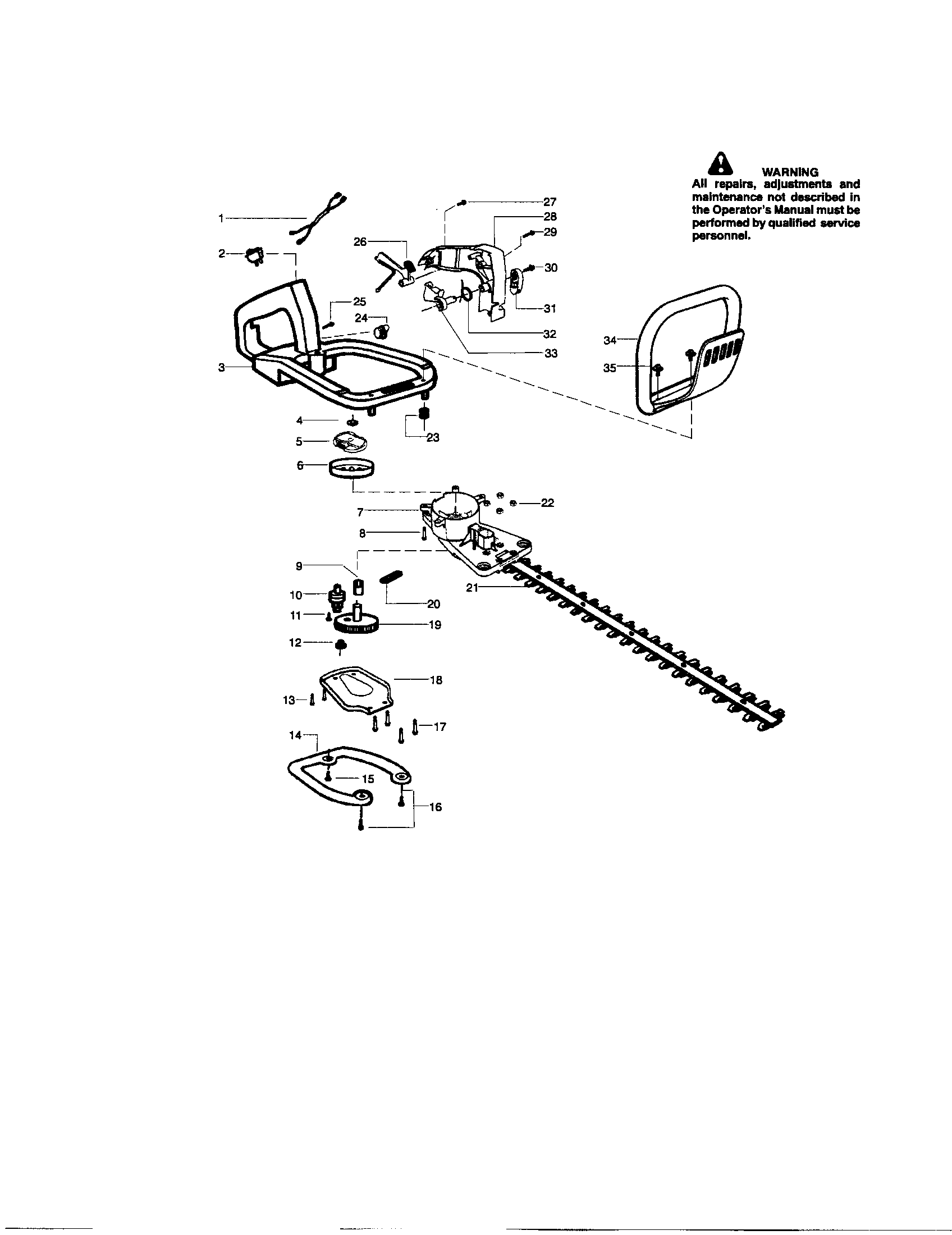

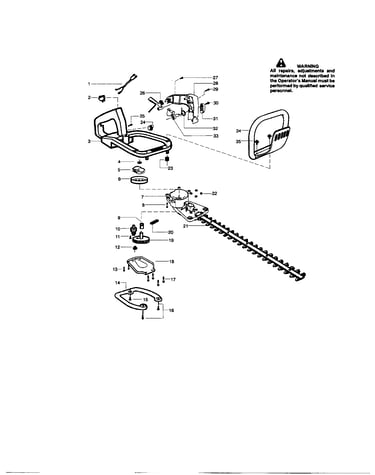

Blade/handle diagram

Gas cap

Part #530014871

Replaced by #577858601

?
Manufacturer substitution
This part replaces 530014871. Substitute parts can look different from the original.
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Flywheel Assembly 530071487
#7

Cylinder/crankshaft/crankcase diagram

Flywheel assembly

Part #530071487

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530071487. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Hedge Trimmer Fuel Filter 530095992
#54

Cylinder/crankshaft/crankcase diagram

Hedge trimmer fuel filter

Part #530095992

This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Engine Piston And Ring Kit (replaces 530071357) 530071833
#30

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment engine piston and ring kit (replaces 530071357)

Part #530071833

$30.33 |
17% OFF Phone Price : $36.33
In Stock
Hedge Trimmer Choke Lever 530071718
#37

Cylinder/crankshaft/crankcase diagram

Hedge trimmer choke lever

Part #530071718

This item is not returnable
$26.00
In Stock
