CONFIRM THE PART FITS
Part Information
Special details: Before ordering carburetor rebuild kit 951-12712, please read the detailed information below to ensure the kit will work with the calibration code on your carburetor.

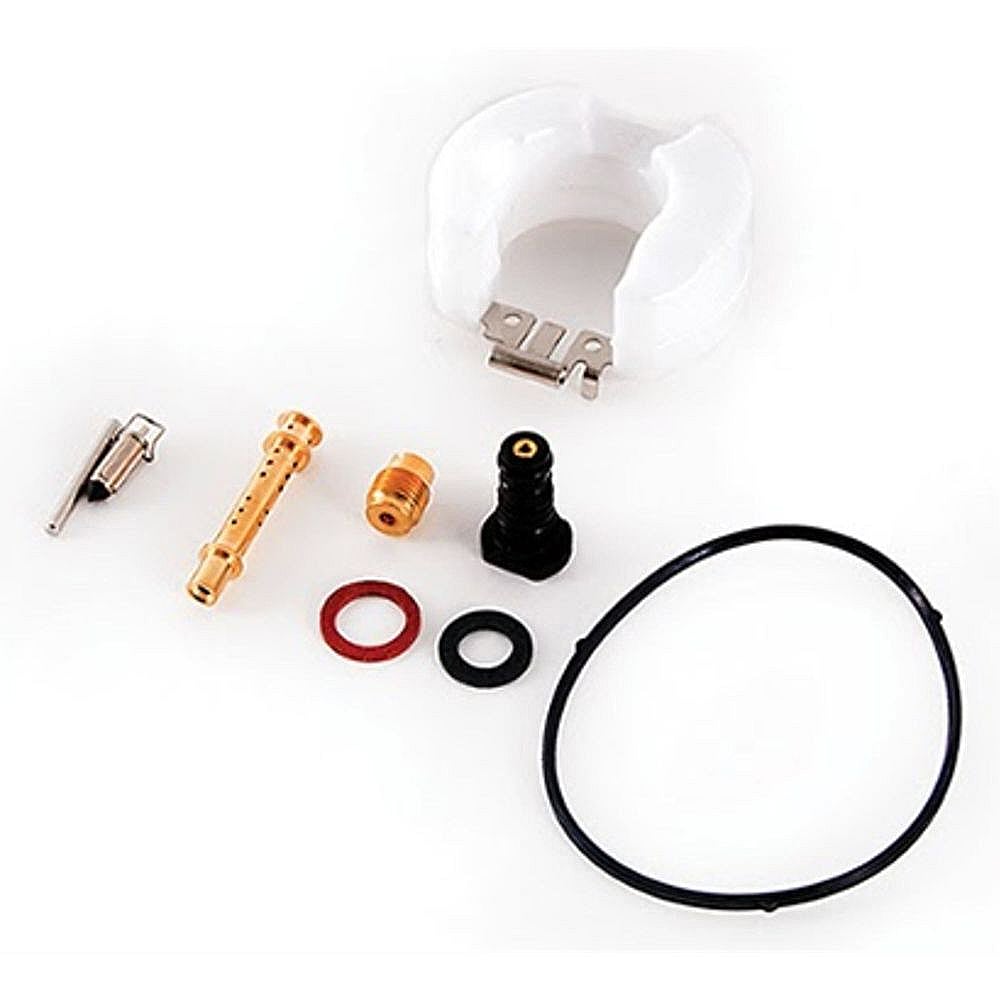

This carburetor rebuild kit (part number 951-12712) is for lawn and garden equipment engines.
Carburetor rebuild kit 951-12712 contains the parts needed to rebuild Deni carburetors with calibration code 165SB. If your original carburetor doesn't match the supplier and/or code, use this chart to find the correct part number.
The carburetor supplier name (Huayi or Deni) is stamped into the carburetor body, usually opposite the fuel inlet. The calibration code is the center series of numbers printed on the carburetor (starting with the 8th digit), and is sometimes also stamped into the carburetor body.
Let the engine cool and drain the fuel tank before installing this part. Work in a well-ventilated area and wear work gloves to protect your hands.
Frequently Used Together
- $7.53 |Â12% OFFÂ Phone Price : $8.53
- $19.56 |Â9% OFFÂ Phone Price : $21.56
- $21.16 |Â22% OFFÂ Phone Price : $27.16
- $74.45 |Â7% OFFÂ Phone Price : $80.45
- $64.52 |Â10% OFFÂ Was : $71.69
- $14.98 |Â12% OFFÂ Phone Price : $16.98
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #31AM2N1C799 MTD gas snowblower | 31AM2N1C799 | Engine |
| Model #ZS365-SUB MTD lawn & garden engine | ZS365-SUB | All parts |
| Model #752Z365-SUB MTD lawn & garden engine | 752Z365-SUB | All parts |
| Model #265-SU-11 MTD lawn & garden engine | 265-SU-11 | Carburetor |
| Model #265-JU MTD lawn & garden engine | 265-JU | All parts |
| Model #752Z265-JU MTD lawn & garden engine | 752Z265-JU | All parts |
| Model #265-SU MTD lawn & garden engine | 265-SU | All parts |
| Model #165-SUB-11 MTD lawn & garden engine | 165-SUB-11 | Carburetor |
| Model #752Z265-SU MTD lawn & garden engine | 752Z265-SU | All parts |
| Model #165-SUB MTD lawn & garden engine | 165-SUB | All parts |
Reviews
Not quite right
The float provided in this kit which was listed to fit this particular model snowblower did not fit. the flange that the pin goes through was slightly too wide to fit between the posts. I could have ground it down to fit but the old float was still good so used it instead. All othe parts fit correctly. Easy to install after watching YouTube videos. Snowblower started on first try after reassembly.
Markedman, Missouri
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Craftsman 24 in. Snow Thrower Model 247.889571
Used Carburetor Kit-substitution 951-12712 instead of Part No. 951-11020A from Sears. Had to use original white plastic float instead or new float because new float was tight in carburetor bowl. No gaskets came with carb. kit, except the bowl gasket. Reinstall carburetor in snow thrower and put all parts back together and started snow thrower on first pull. Unit runs rough, but will work.
Gene76, St. Peters, MO
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Float did not fit.
The original float uses an integral plastic tab for the hinge portion. This tab fits between two cast metal 'horns' on the carb and is held in place by a metal hinge pin. The supplied float uses a metal tab instead, however it was too wide (by a mm or two) to fit between the horns. As such, it was not a suitable substitute for the original part, and did not correct the problem.
ELars, MN
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Irrelevant parts
These carbs are not rebuildable since the gasoline corroded the one year old carburetor.
DYI D, Detroit
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Wrong part
I paid 40.00 for this part and what a joke. Spent the time taking the carburetor apart only to find out they were the wrong parts! Float wouldn't fit and the needle valve was way to short. No new gaskets for the rebuild. I suppose sears wanted 40.00 more for the gaskets This is the second time you did this to me and it's the last.
crusty61, NY
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Not exaclly the same parts
How the needle fit in the float was not the same as the original equipment. While the provided parts probably would have worked, no instructions were provided how to assemble the very tiny, but complex and essential parts. Decided to re-install the original float and needle since they seemed to be in good shape.
slrinmd, Baltimore
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
