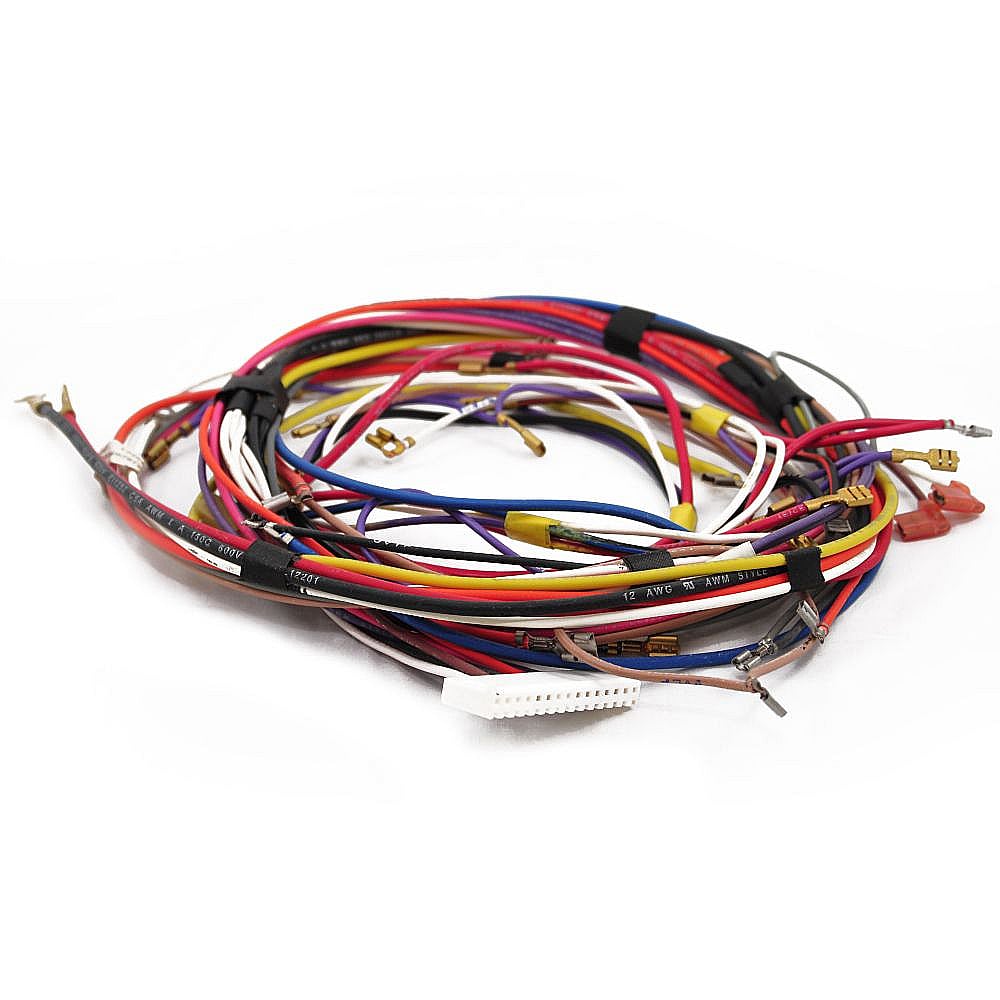

Range Wire Harness 316269502

Range Wire Harness 316269502

Part #316269502

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This wire harness (part number 316269502) is for ranges.

Wire harness 316269502 connects electrical components to circuits in the range.

Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #79094423300 Kenmore electric range79094423300
Body
Shop Parts
Model #79092420302 Kenmore electric range79092420302
Body
Shop Parts
Model #79094320301 Kenmore electric range79094320301
Body
Shop Parts
Model #79095322304 Kenmore electric range79095322304
Body
Shop Parts
Model #79095423301 Kenmore electric range79095423301
Body
Shop Parts
Model #79094329301 Kenmore electric range79094329301
Body
Shop Parts
Model #79092424301 Kenmore electric range79092424301
Body
Shop Parts
Model #79095324301 Kenmore electric range79095324301
Body
Shop Parts
Model #79094420301 Kenmore electric range79094420301
Body
Shop Parts
Model #79095320301 Kenmore electric range79095320301
Body
Shop Parts
