Model # 76981103 Official Kenmore condensing unit & evaporator

Here are the diagrams and repair parts for Official Kenmore 76981103 condensing unit & evaporator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Motor 1/4 Hp 8101-285
#9C

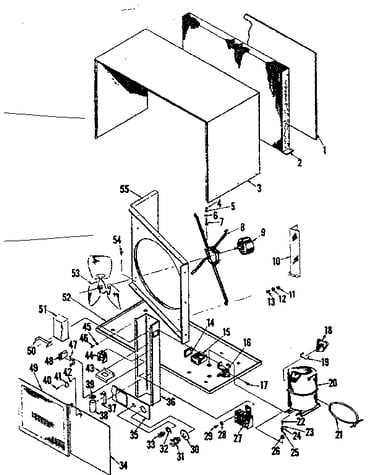

Condensing unit diagram

Motor 1/4 hp

Part #8101-285

Replaced by #45461

?
Manufacturer substitution
This part replaces 8101-285. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Motor 1/5 Hp 8101-274
#9B

Condensing unit diagram

Motor 1/5 hp

Part #8101-274

Replaced by #45461

?
Manufacturer substitution
This part replaces 8101-274. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Fan Motor 8101-193
#9A

Condensing unit diagram

Fan motor

Part #8101-193

Replaced by #45461

?
Manufacturer substitution
This part replaces 8101-193. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Contactor 8401-244
#27B

Condensing unit diagram

Contactor

Part #8401-244

Replaced by #90-170

?
Manufacturer substitution
This part replaces 8401-244. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
Contactor 8401-221
#27C

Condensing unit diagram

Contactor

Part #8401-221

Replaced by #90-170

?
Manufacturer substitution
This part replaces 8401-221. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
Contactor 8401-243
#27A

Condensing unit diagram

Contactor

Part #8401-243

Replaced by #90-244

?
Manufacturer substitution
This part replaces 8401-243. Substitute parts can look different from the original.
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Compressor 8000-311
#20D

Condensing unit diagram

Compressor

Part #8000-311

The manufacturer no longer makes this part, and there's no substitute part

Sticker 7952-1103

#NI

All parts diagram

Sticker

Part #7952-1103

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8552-3
#48

Condensing unit diagram

Capacitor

Part #8552-3

The manufacturer no longer makes this part, and there's no substitute part

Cover 7081-48
#18A

Condensing unit diagram

Cover

Part #7081-48

The manufacturer no longer makes this part, and there's no substitute part
