Kenmore
Chest Freezer

Model # 67519231794-C35H-GKUW252 Official Kenmore chest freezer

Here are the diagrams and repair parts for Official Kenmore 67519231794-C35H-GKUW252 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Drier 3-34960-001
#22

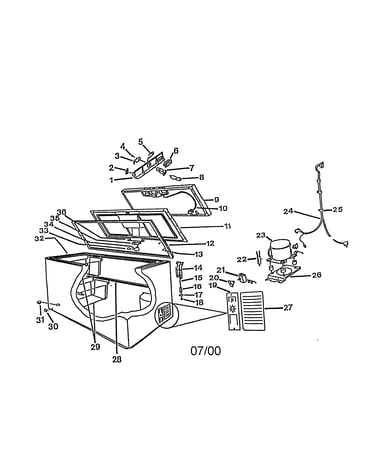

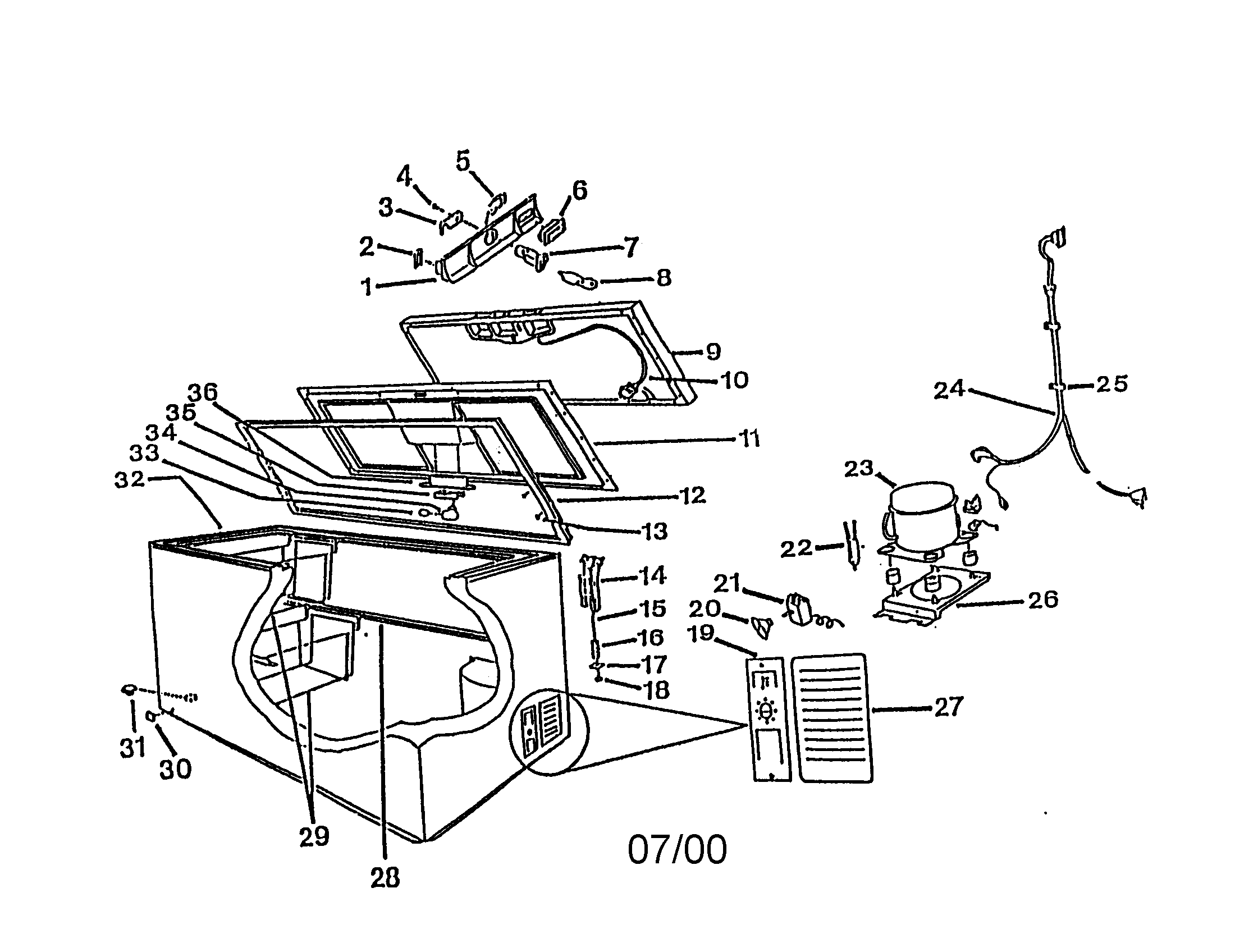

Freezer diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Kit 90003-003
#7

Freezer diagram

Lock kit

Part #90003-003

The manufacturer no longer makes this part, and there's no substitute part

Freezer Basket 4-33521-001
#29

Freezer diagram

Freezer basket

Part #4-33521-001

The manufacturer no longer makes this part, and there's no substitute part

Bolt 3-24004-100
#4

Freezer diagram

Bolt

Part #3-24004-100

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4-35235-001
#21

Freezer diagram

Thermostat

Part #4-35235-001

The manufacturer no longer makes this part, and there's no substitute part

Clamp 3-25095-022
#25

Freezer diagram

Clamp

Part #3-25095-022

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 1-24397-001
#33

Freezer diagram

Light bulb

Part #1-24397-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 3-24004-005
#14A

Freezer diagram

Screw

Part #3-24004-005

The manufacturer no longer makes this part, and there's no substitute part

Strip 4-35011-004
#32A

Freezer diagram

Strip

Part #4-35011-004

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2-35195-002
#3

Freezer diagram

Bolt

Part #2-35195-002

The manufacturer no longer makes this part, and there's no substitute part
