Model # GTDN550GD5WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE GTDN550GD5WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

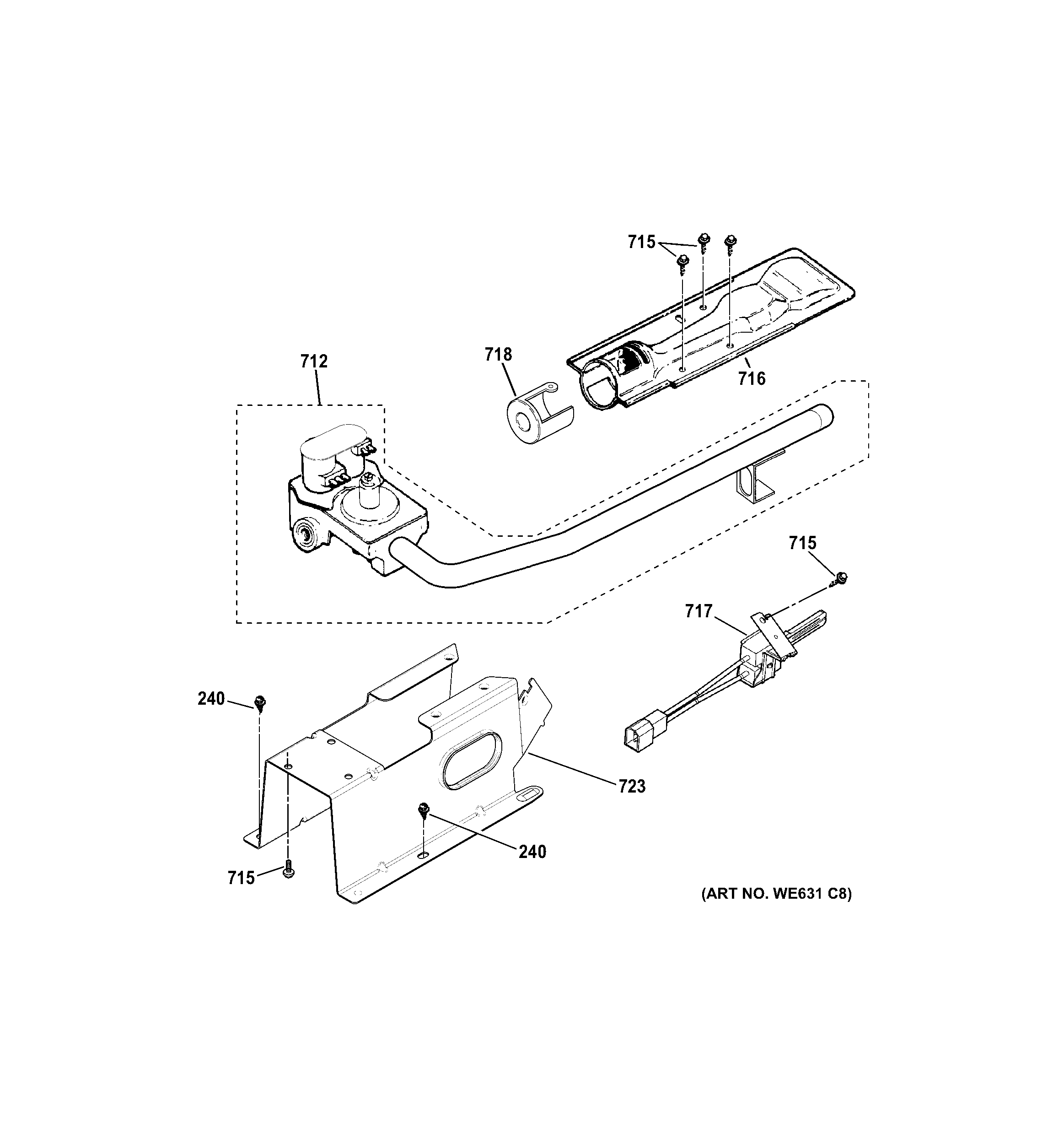

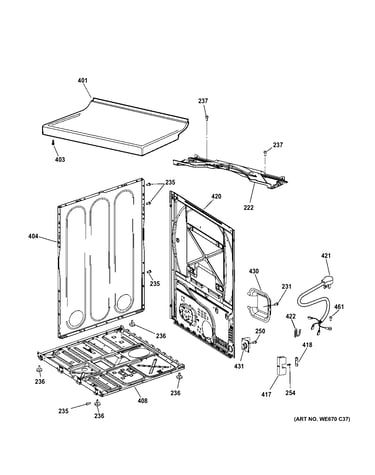

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Inlet Control WE4M333
#507

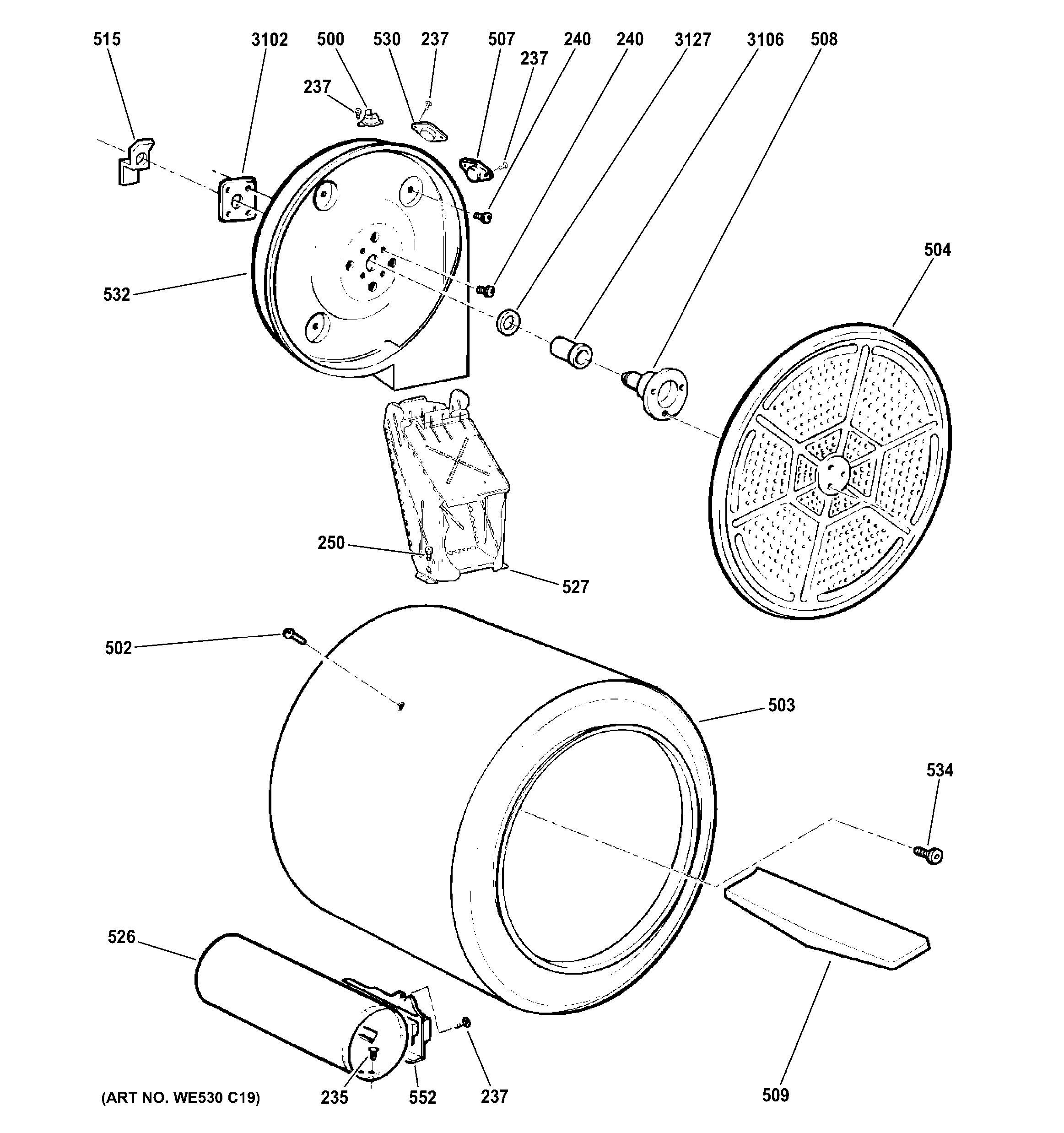

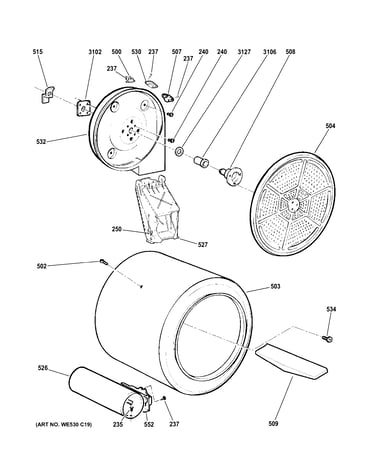

Drum diagram

Inlet control

Part #WE4M333

Replaced by #WE4M398

?
Manufacturer substitution
This part replaces WE4M333. Substitute parts can look different from the original.
BEST SELLER
$33.90 |
15% OFF Phone Price : $39.90
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Dryer Air Duct Assembly WE14X21334
#311

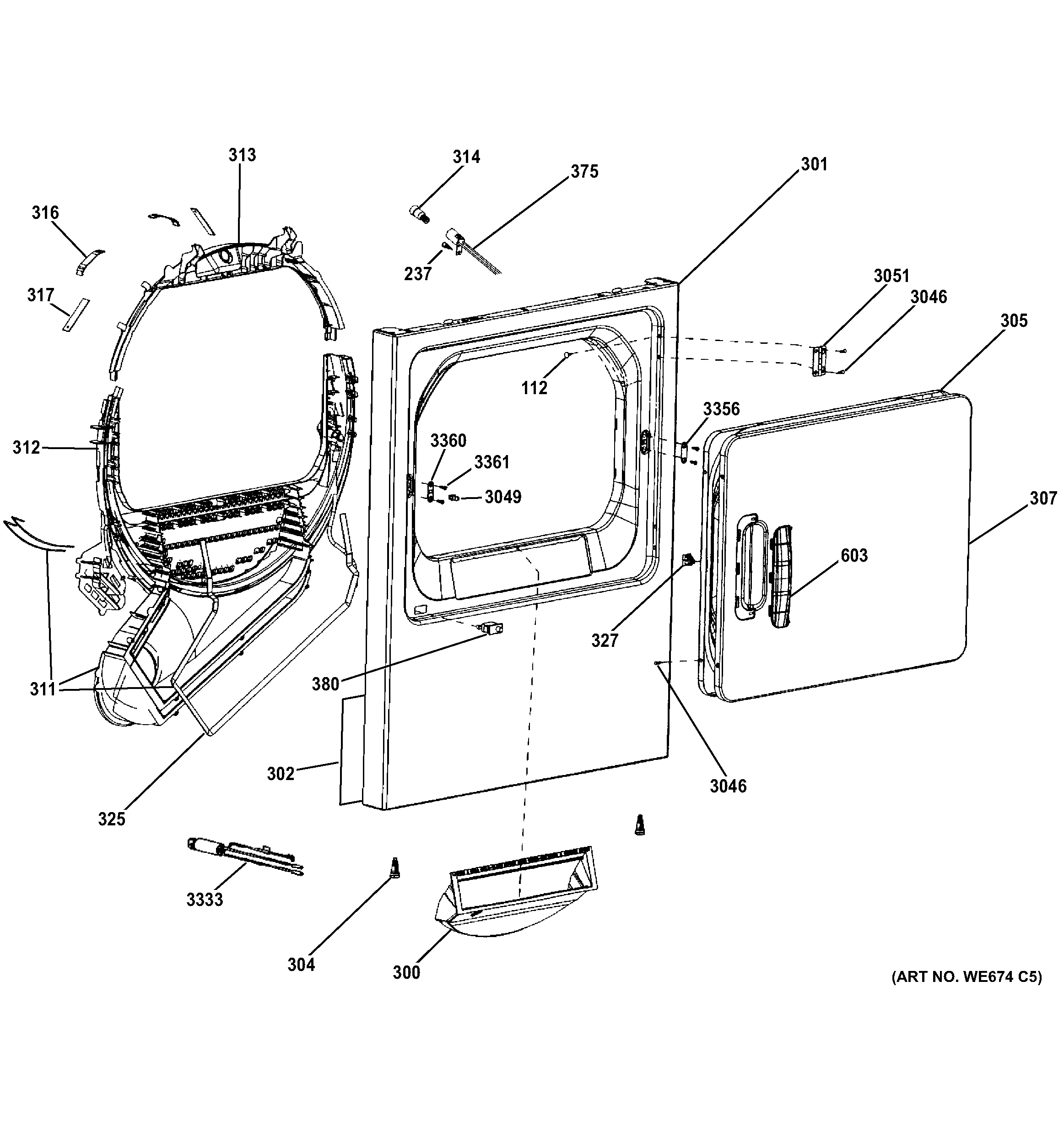

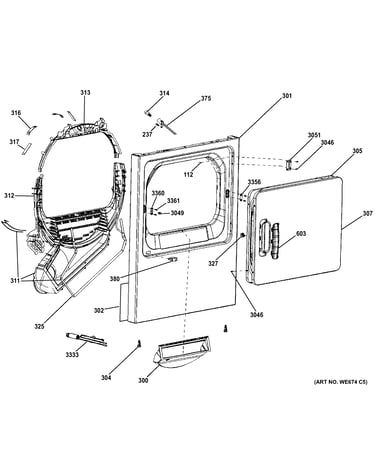

Front panel & door diagram

Dryer air duct assembly

Part #WE14X21334

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14X21334. Substitute parts can look different from the original.
BEST SELLER
$83.41 |
7% OFF Phone Price : $89.41
In Stock
Outlet Control WE4M391
#241

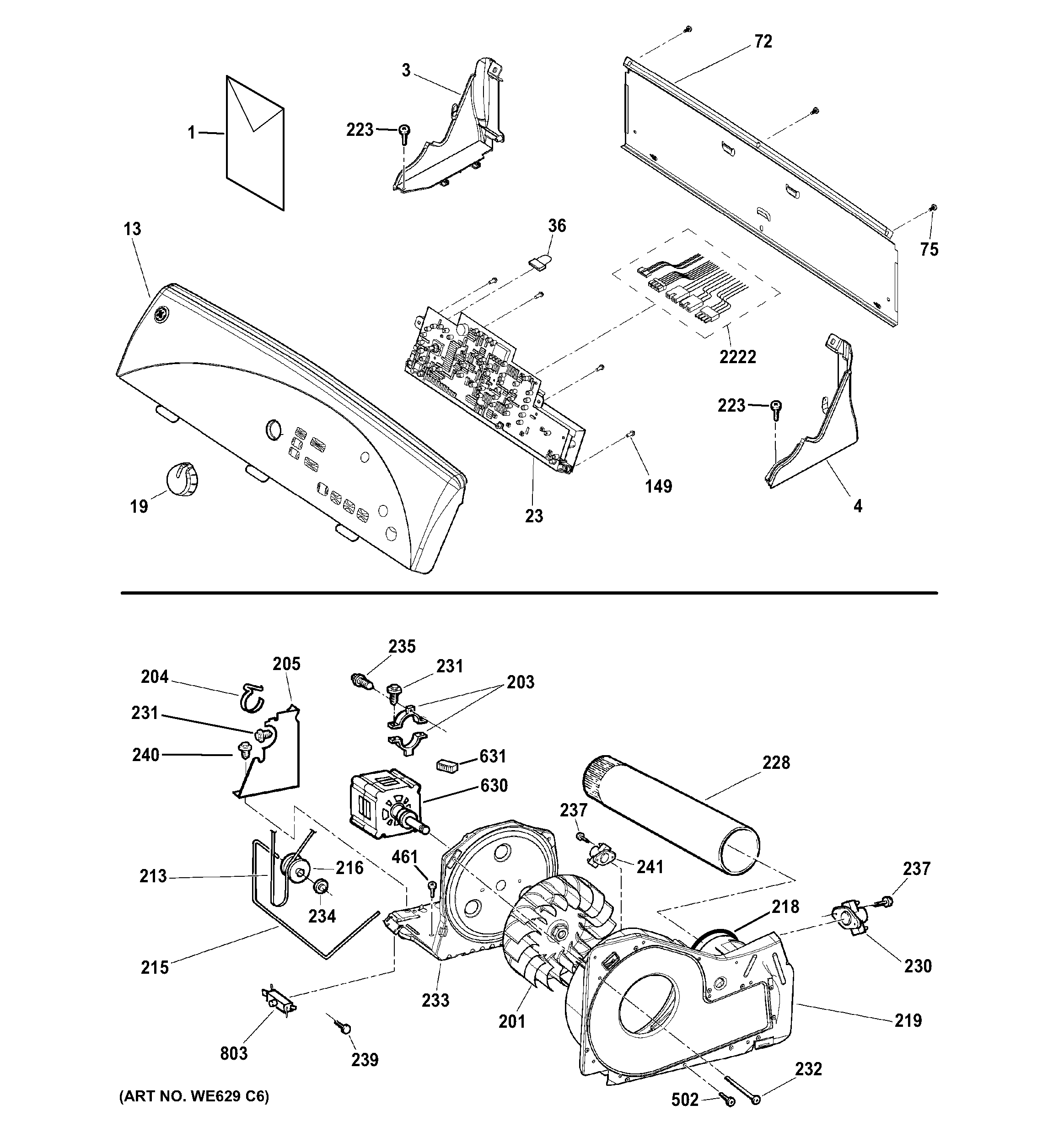

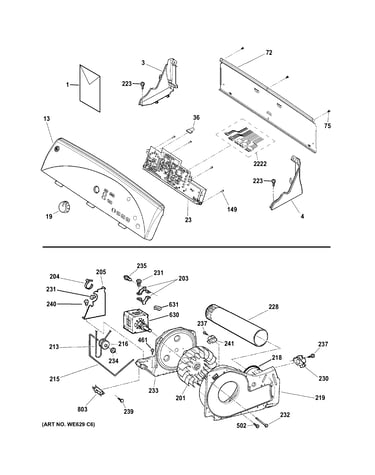

Backsplash, blower & motor assembly diagram
