Model # AZ65H07EBMW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AZ65H07EBMW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

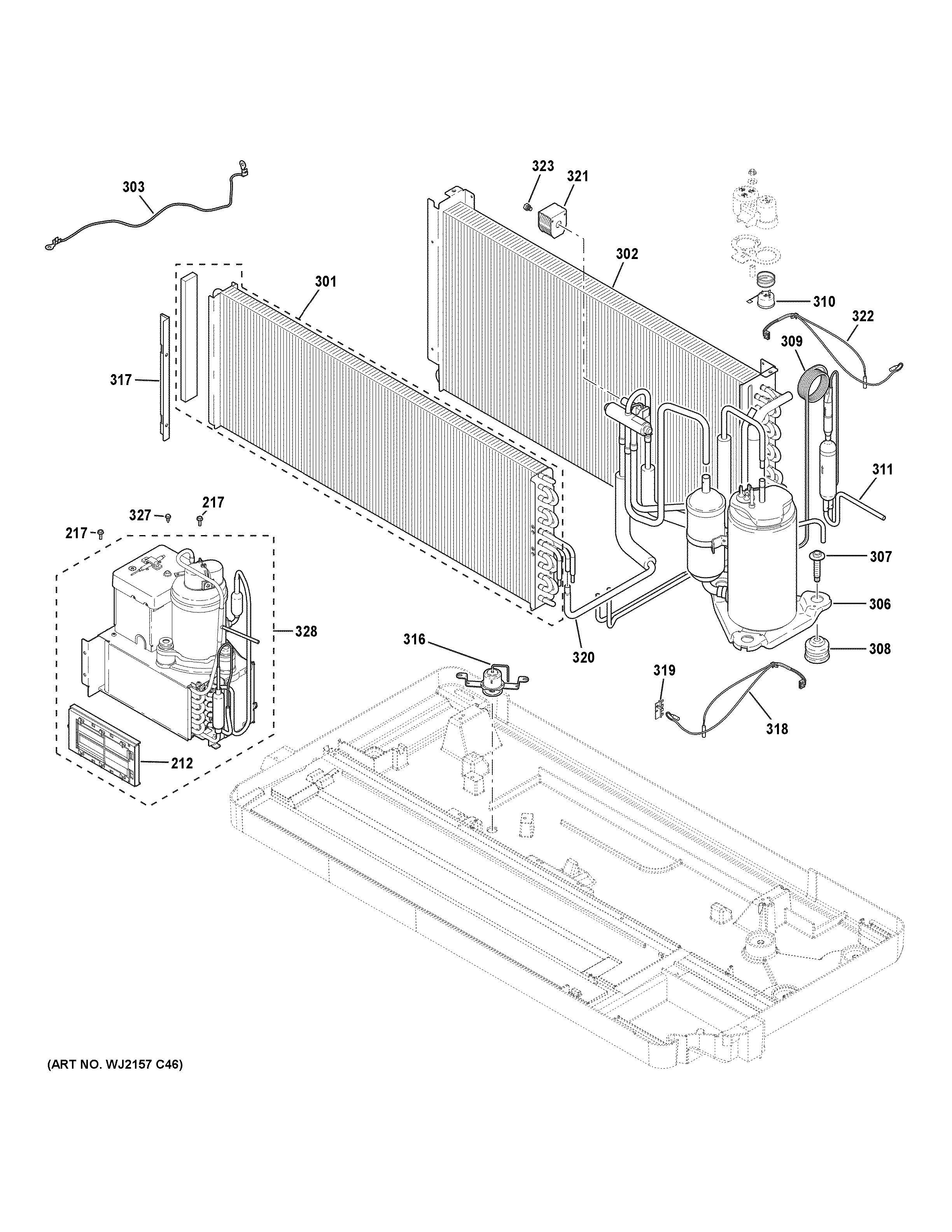

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Room Air Conditioner Evaporator Fan Blade WP73X20970
#221

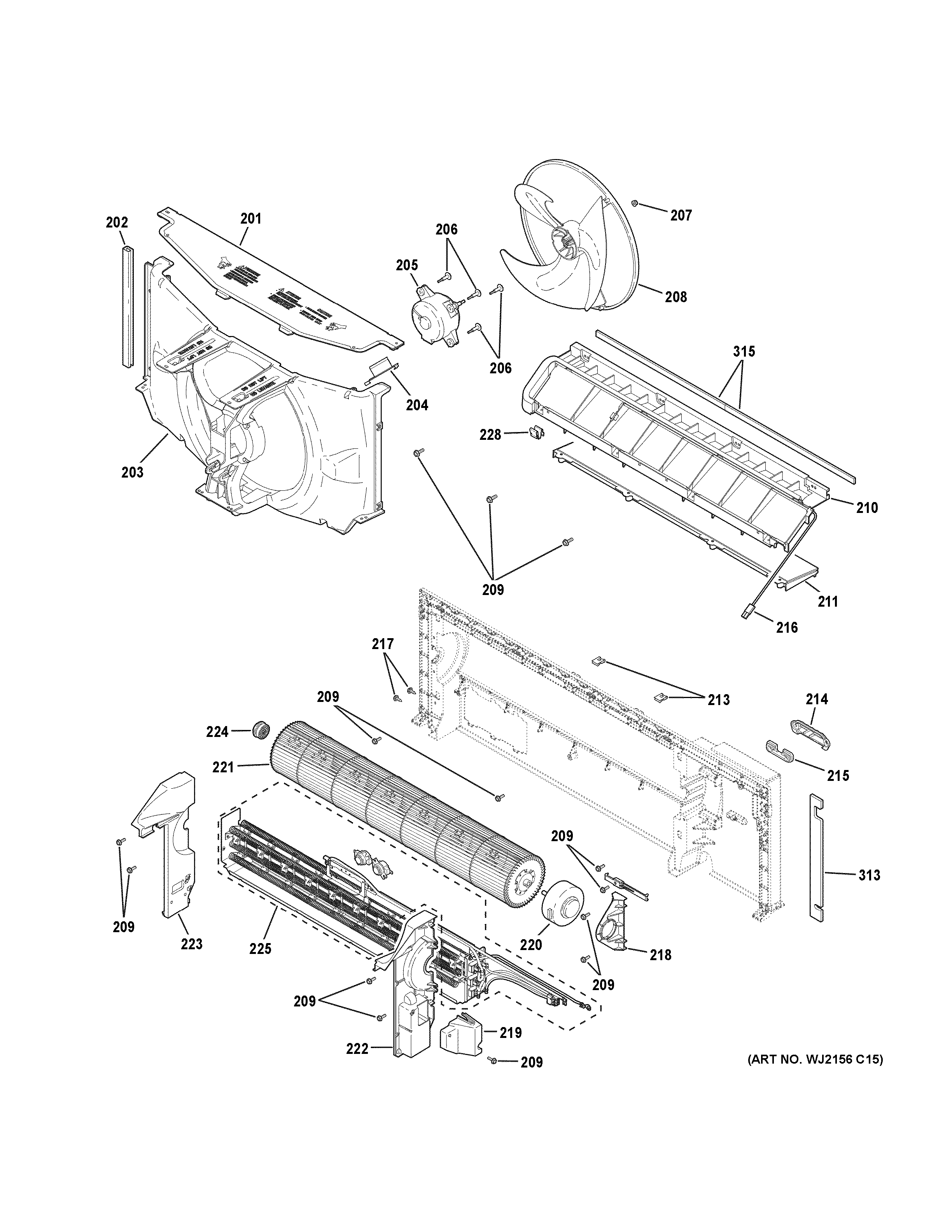

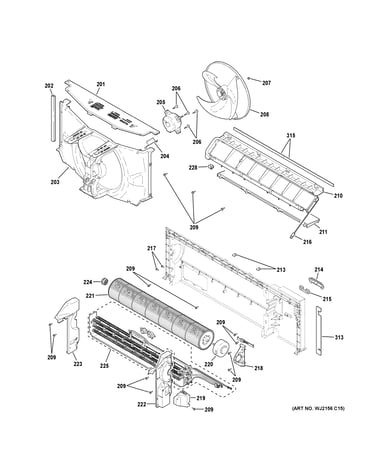

Motor & chassis parts diagram

Room air conditioner evaporator fan blade

Part #WP73X20970

$163.01 |
7% OFF Phone Price : $175.01
In Stock
Room Air Conditioner Control Panel Overlay WP71X20874
#117

Grille & control parts diagram

Room air conditioner control panel overlay

Part #WP71X20874

$20.49 |
23% OFF Phone Price : $26.49
In Stock
Room Air Conditioner Thermostat Wire Harness Assembly (replaces Wp26x20983) WP26X21585
#9998

Grille & control parts diagram

Room air conditioner thermostat wire harness assembly (replaces wp26x20983)

Part #WP26X21585

$20.18 |
23% OFF Phone Price : $26.18
In Stock
Room Air Conditioner Louver WP71X20866
#104

Grille & control parts diagram

Room air conditioner louver

Part #WP71X20866

$26.38 |
19% OFF Phone Price : $32.38
In Stock
Housing Assembly WP76X20864
#116

Grille & control parts diagram

Housing assembly

Part #WP76X20864

Replaced by #WP76X24978

?
Manufacturer substitution
This part replaces WP76X20864. Substitute parts can look different from the original.
$38.73 |
13% OFF Phone Price : $44.73
In Stock
End Cap WP76X20855
#222

Motor & chassis parts diagram

End cap

Part #WP76X20855

$102.84
In Stock
Clip Room Fr WP65X20848
#102

Grille & control parts diagram

Clip room fr

Part #WP65X20848

$8.11
In Stock
Wire Cover WP01X21023
#219

Motor & chassis parts diagram

Wire cover

Part #WP01X21023

This item is not returnable
$5.00
In Stock
Shroud WP65X20981
#202

Motor & chassis parts diagram

Shroud

Part #WP65X20981

$8.11
In Stock
Motor Id Dc WP94X22361
#220

Motor & chassis parts diagram

Motor id dc

Part #WP94X22361

$131.46
In Stock
