Hotpoint
Microwave/Hood Combo

Model # RVM5160DH8BB Official Hotpoint microwave/hood combo

Here are the diagrams and repair parts for Official Hotpoint RVM5160DH8BB microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

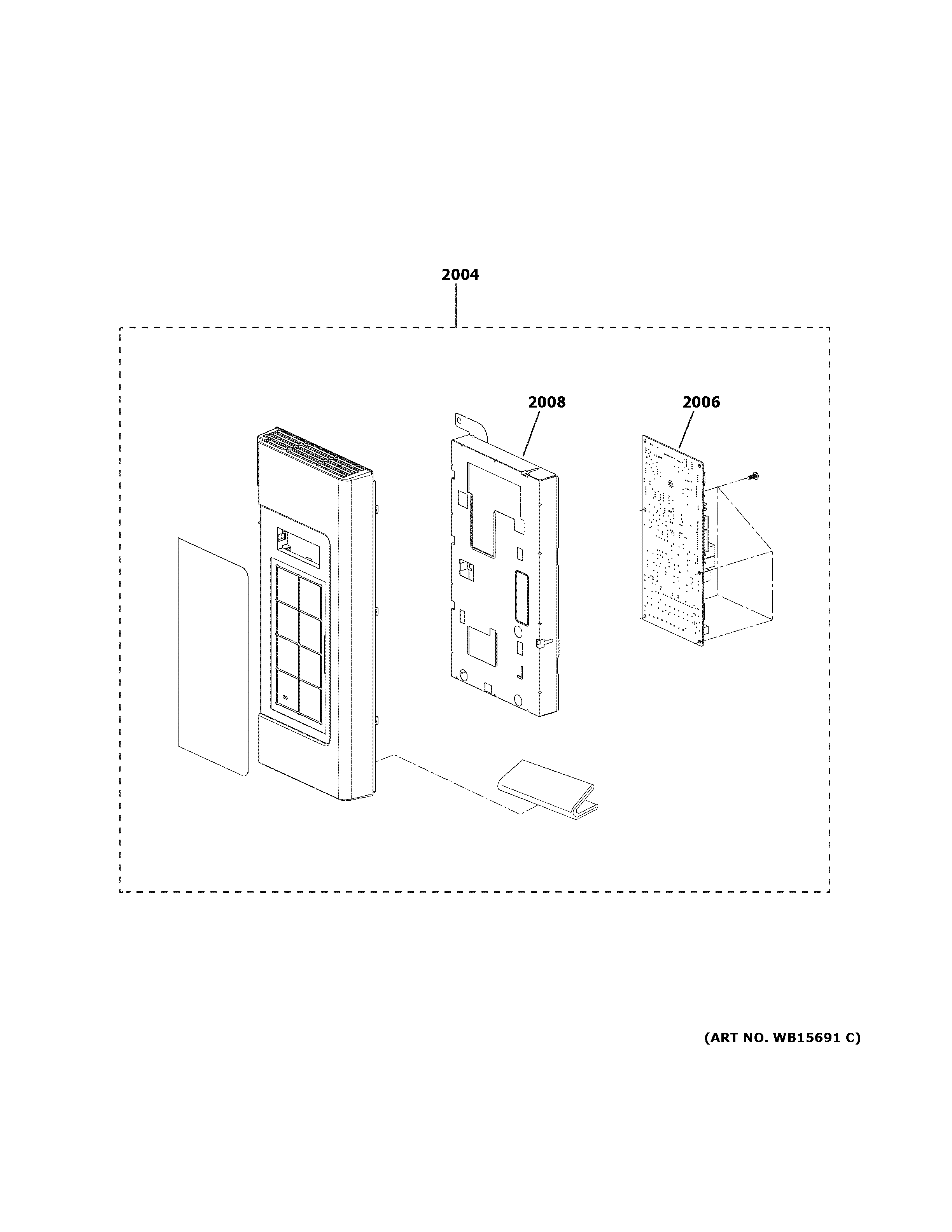

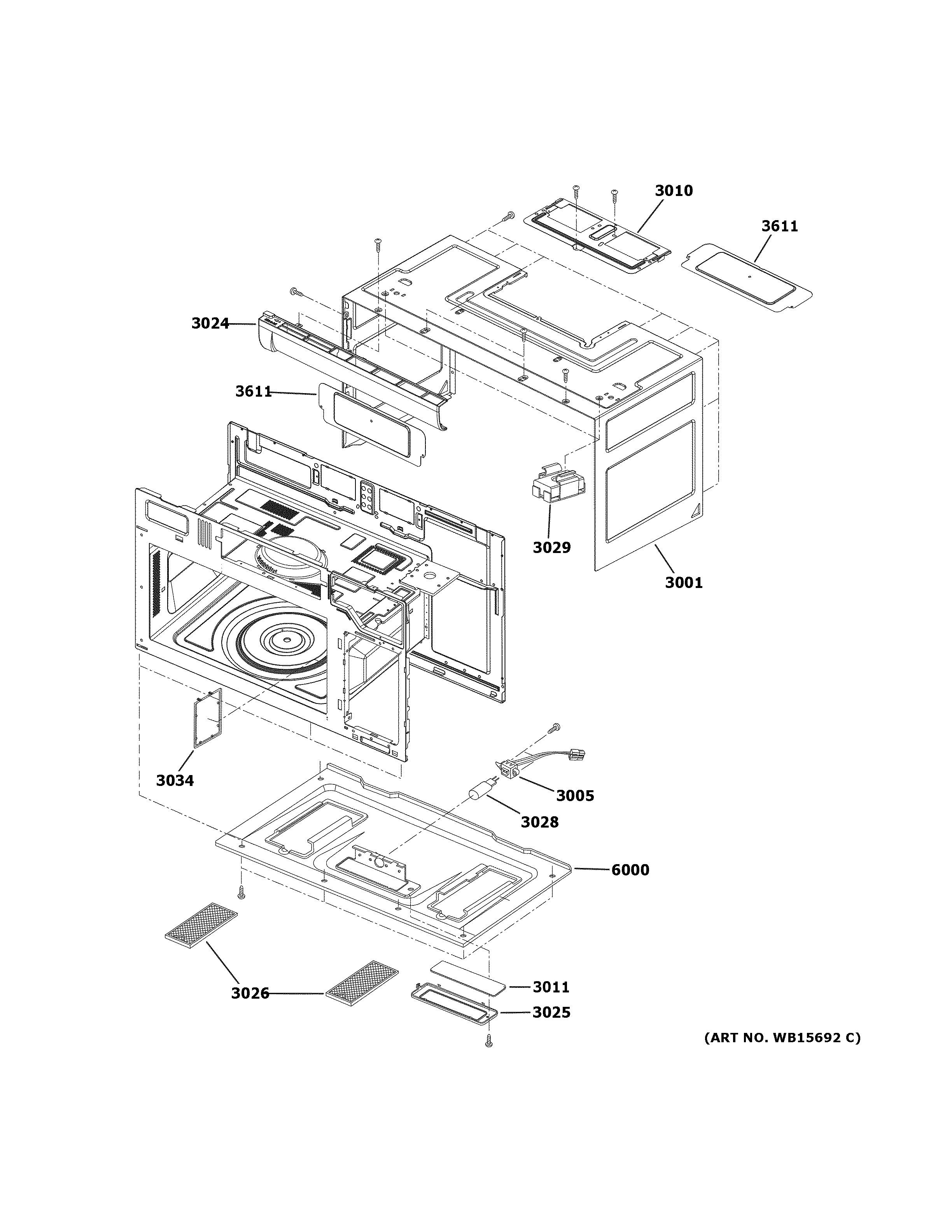

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Microwave Primary Interlock Switch (replaces Wb24x10029, Wb24x10113) WB24X10047
#4002

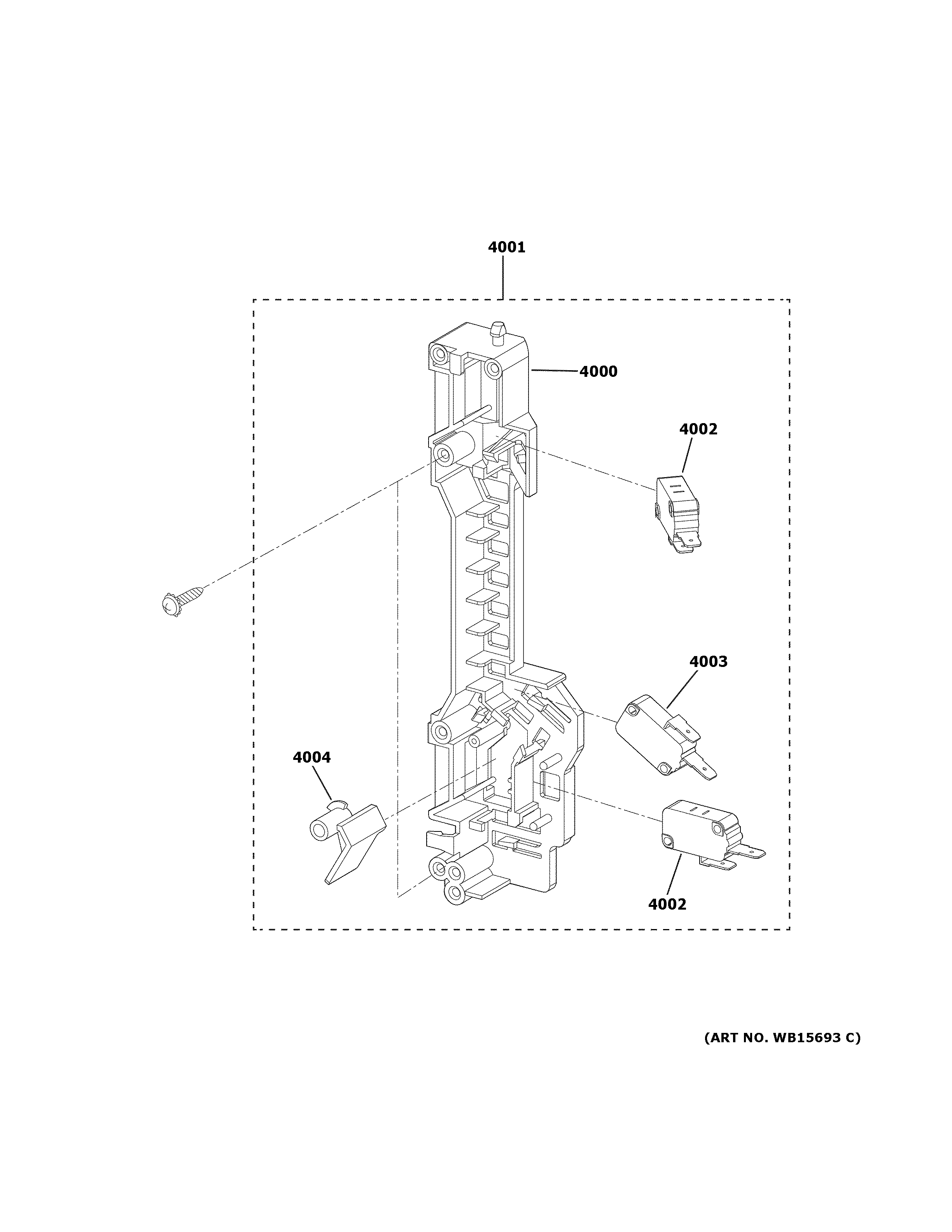

Latch board parts diagram

Microwave primary interlock switch (replaces wb24x10029, wb24x10113)

Part #WB24X10047

BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Microwave High-voltage Diode (replaces Wb18x10449) WB27X35382
#5018

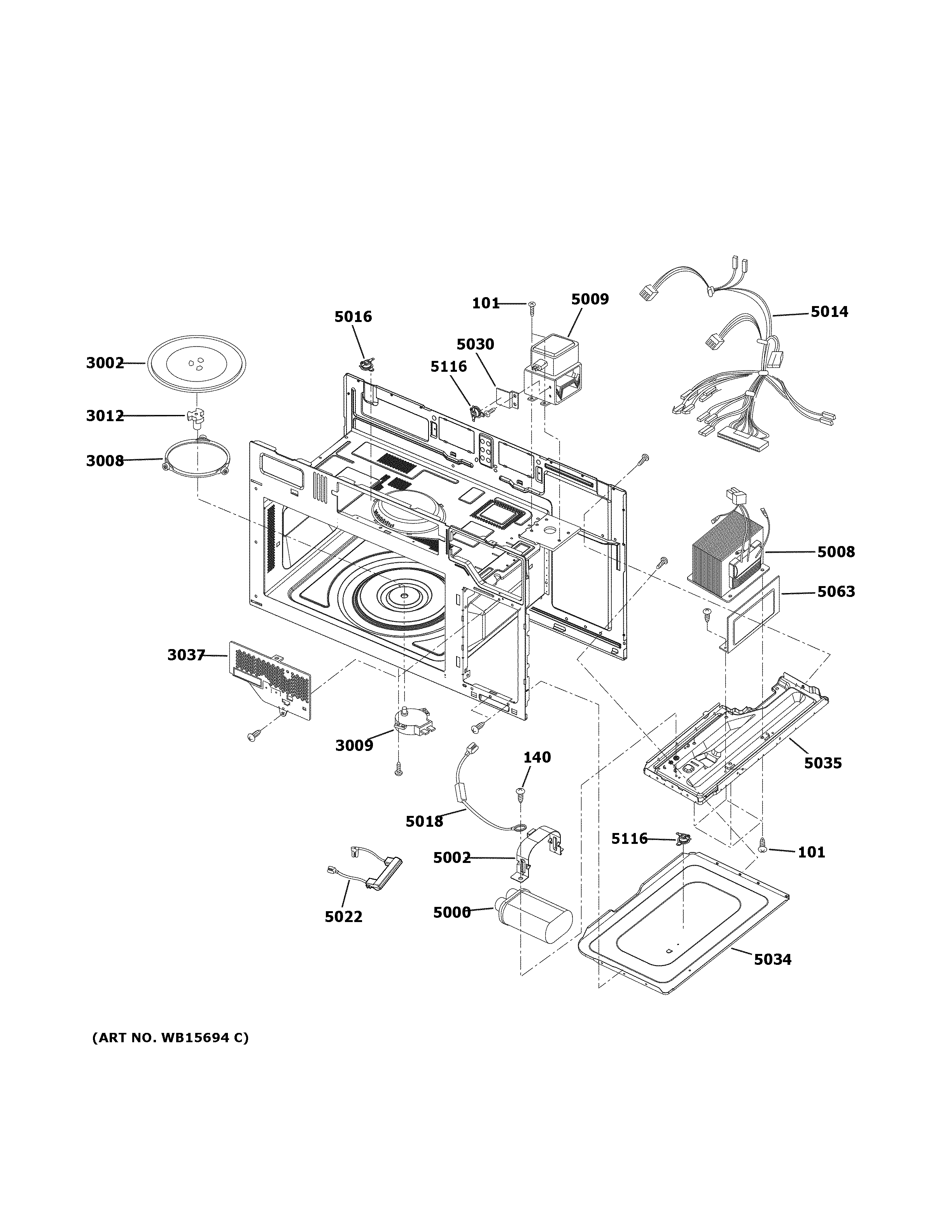

Interior parts (1) diagram

Microwave high-voltage diode (replaces wb18x10449)

Part #WB27X35382

BEST SELLER
$19.87
In Stock
Microwave Door Interlock Switch (replaces Wb24x817) WB24X25397
#4003

Latch board parts diagram

Microwave door interlock switch (replaces wb24x817)

Part #WB24X25397

BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Microwave Thermostat WB20X10048
#5116

Interior parts (1) diagram

Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Hi Capacitor WB27X11011
#5000

Interior parts (1) diagram

Hi capacitor

Part #WB27X11011

BEST SELLER
$68.29 |
8% OFF Phone Price : $74.29
In Stock
Body Latch Asm WB10X35573
#4001

Latch board parts diagram

Body latch asm

Part #WB10X35573

BEST SELLER
$41.44
In Stock
Motor WB26X10226
#3009

Interior parts (1) diagram

Motor

Part #WB26X10226

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Noise Filter WB02X35509
#5041

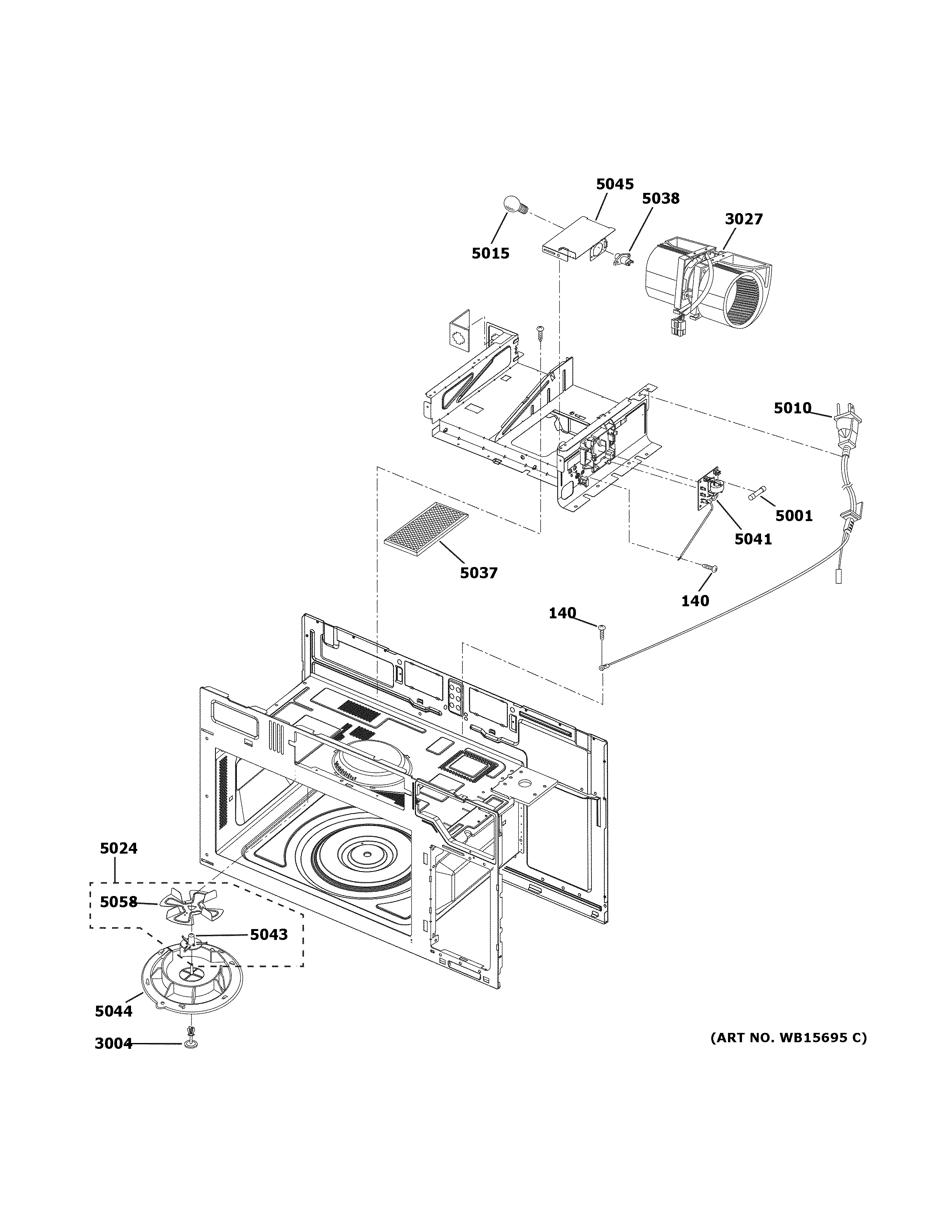

Interior parts (2) diagram

Noise filter

Part #WB02X35509

$41.91 |
13% OFF Phone Price : $47.91
In Stock
Microwave Door Latch Spring WB09X10017
#1007

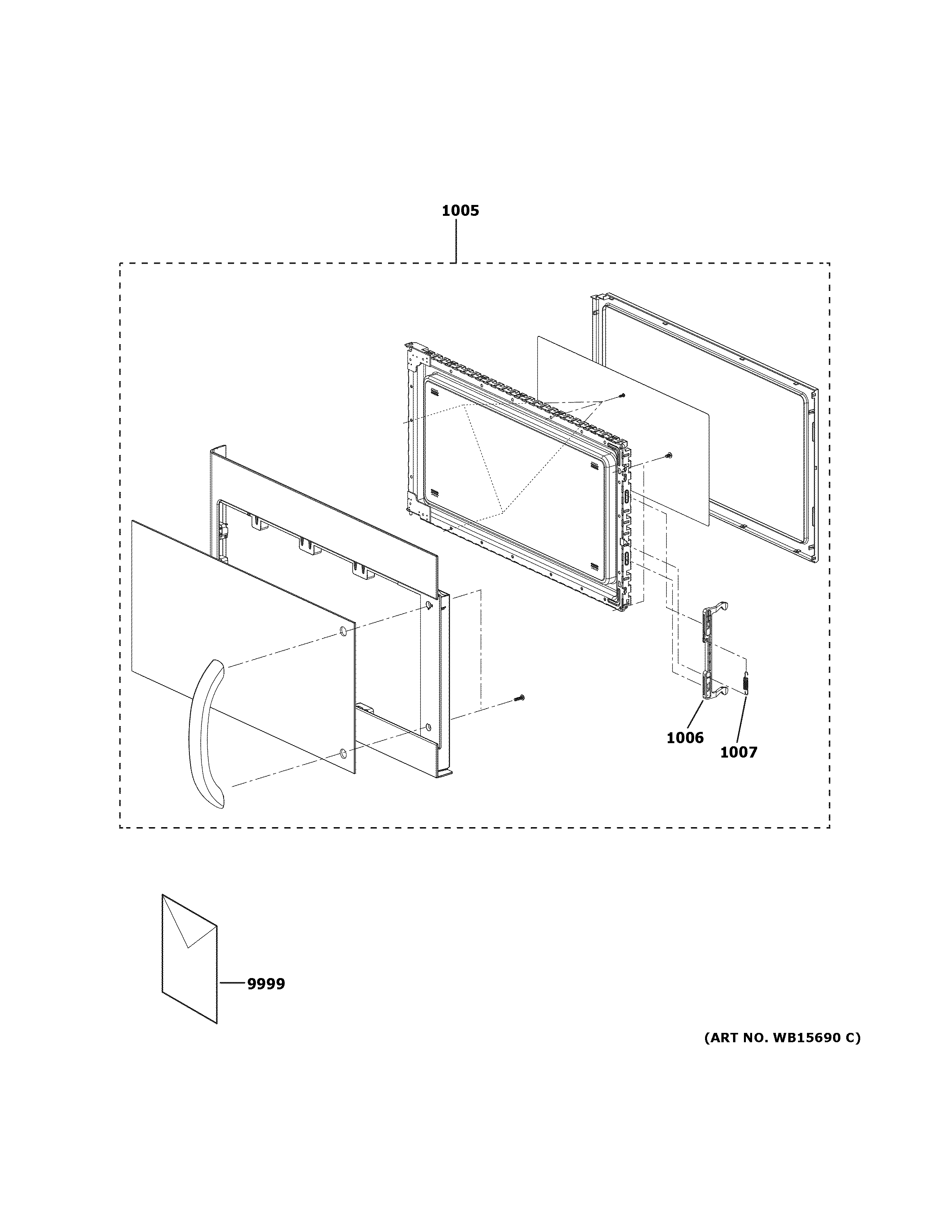

Door parts diagram

Microwave door latch spring

Part #WB09X10017

$8.69 |
10% OFF Phone Price : $9.69
Back Order
Microwave Mounting Plate (replaces Wb56x10669) WB56X35363
#6008

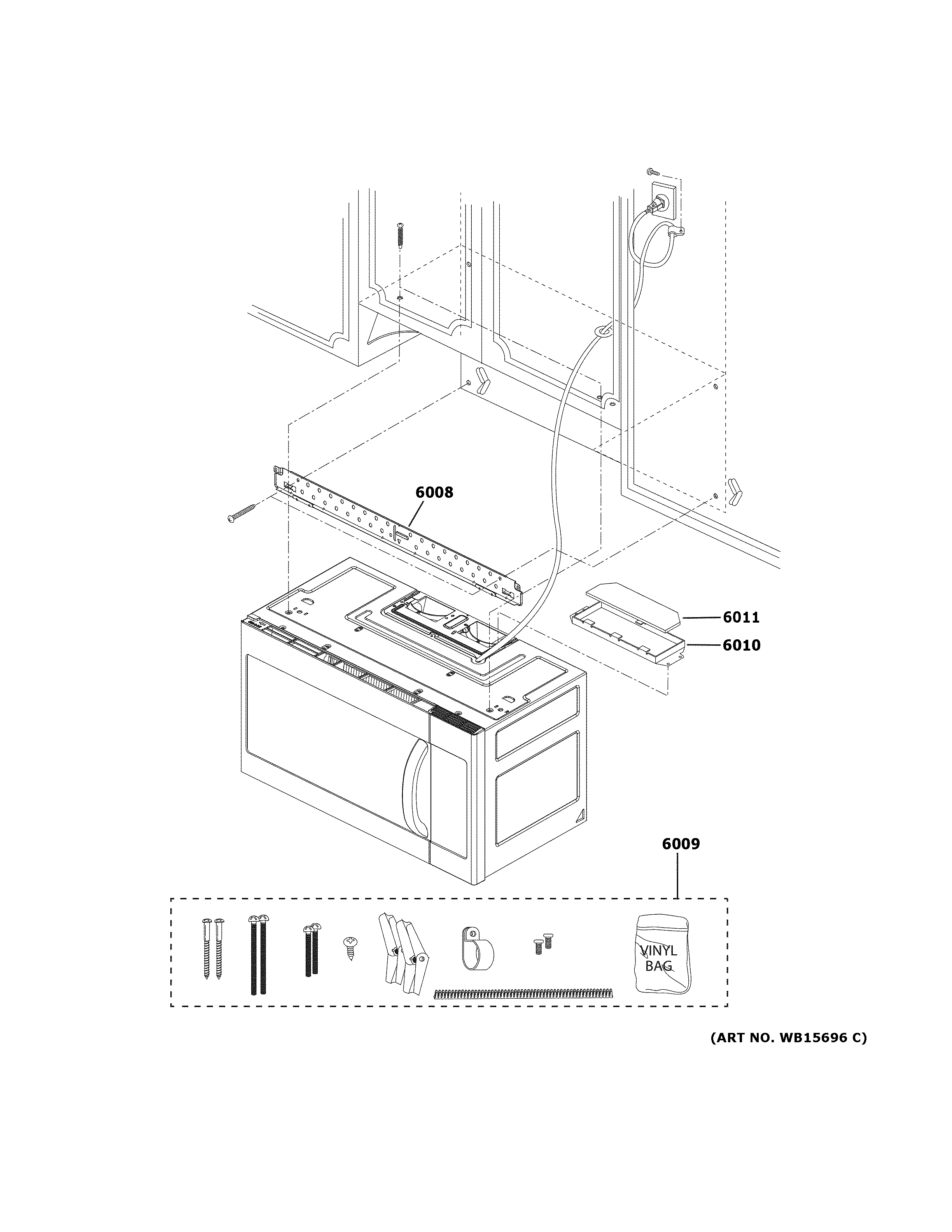

Installation parts diagram

Microwave mounting plate (replaces wb56x10669)

Part #WB56X35363

This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
