Model # A05LE2N1 Official Frigidaire room air conditioner - lf34090210

Here are the diagrams and repair parts for Official Frigidaire A05LE2N1 room air conditioner - lf34090210, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

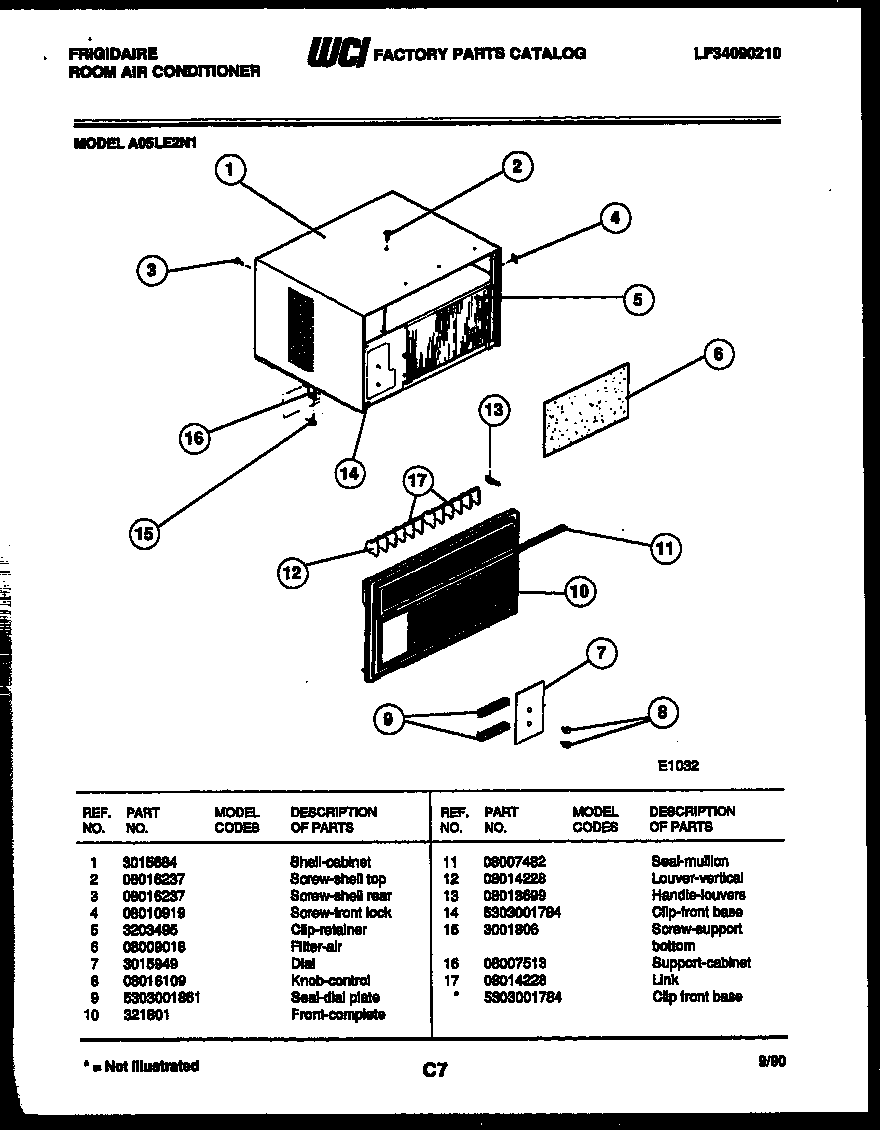

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Compressor 5308013813
#1

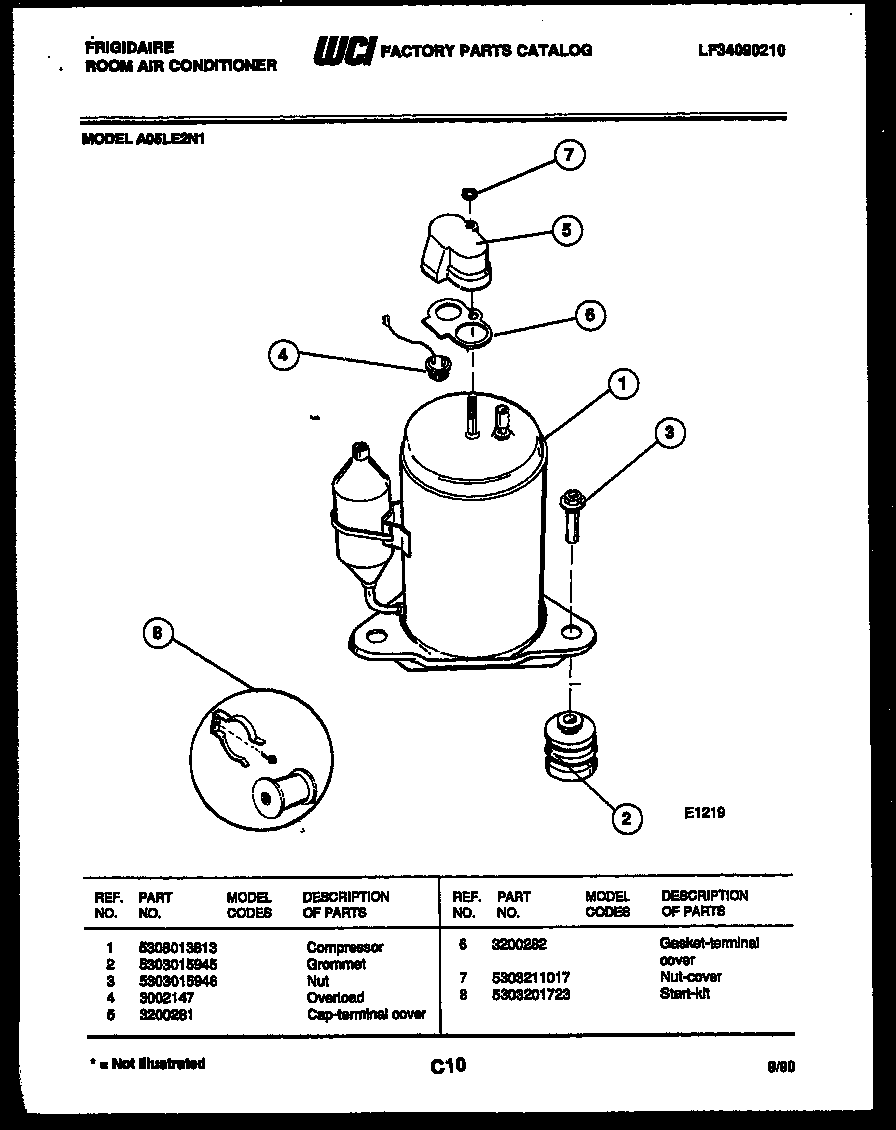

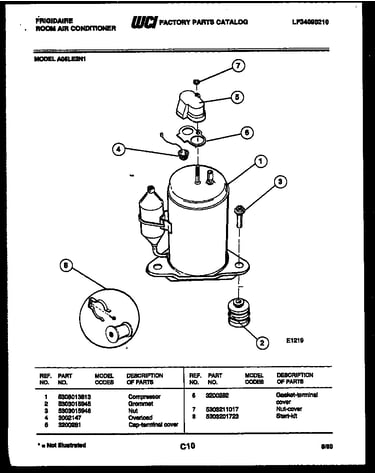

Compressor parts diagram

Compressor

Part #5308013813

$313.49
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#13

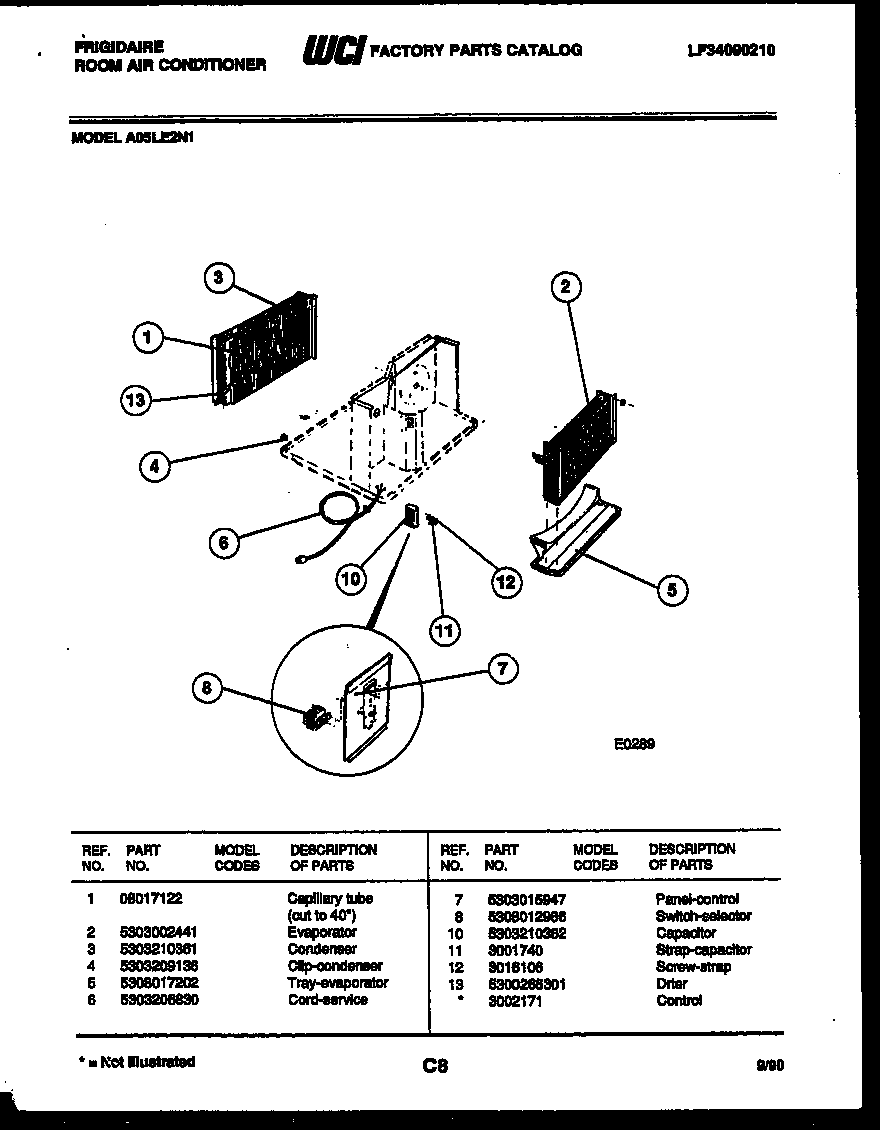

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Kenmore Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#5

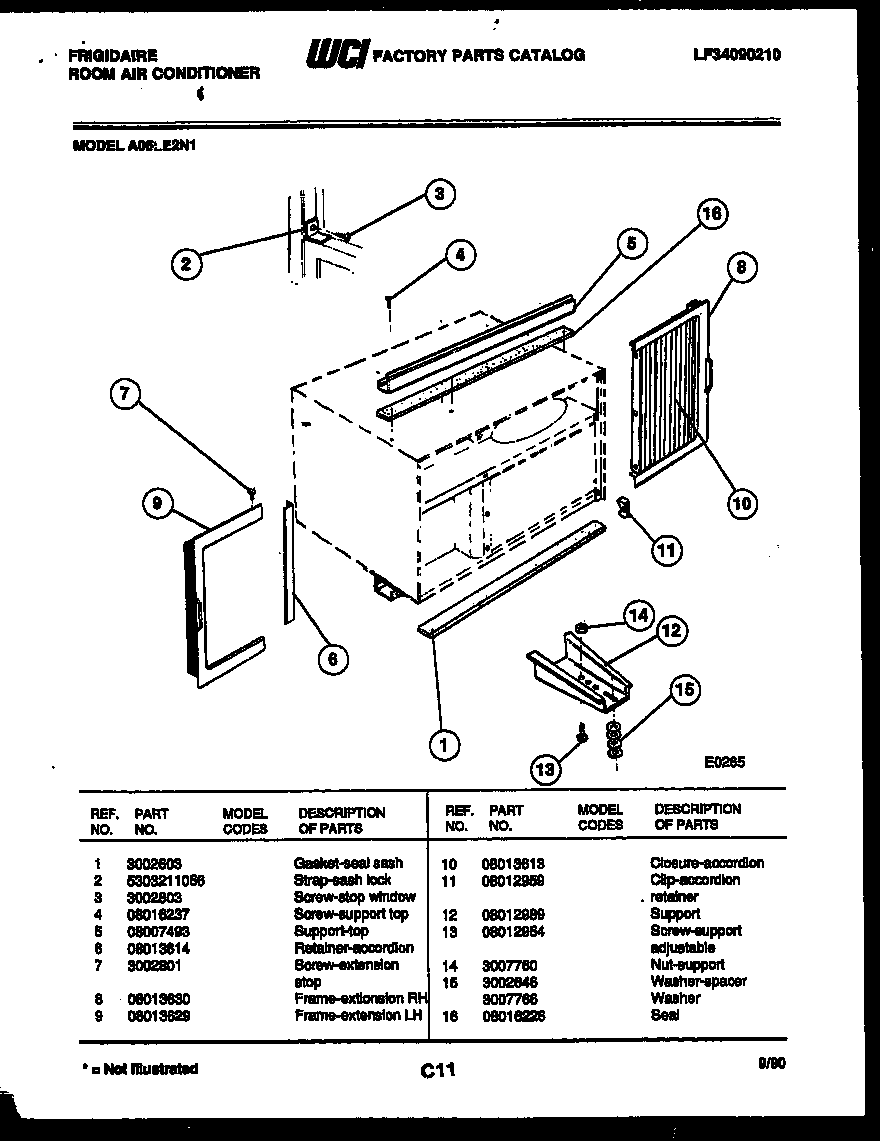

Window mounting parts diagram

Kenmore support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Screw 08012954
#13

Window mounting parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Washer 3007766
#15A

Window mounting parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Screw 5308007473
Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Gasket 3002603
#1

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Washer 3002646
#15

Window mounting parts diagram

Washer

Part #3002646

The manufacturer no longer makes this part, and there's no substitute part

Clip 3014763
#9B

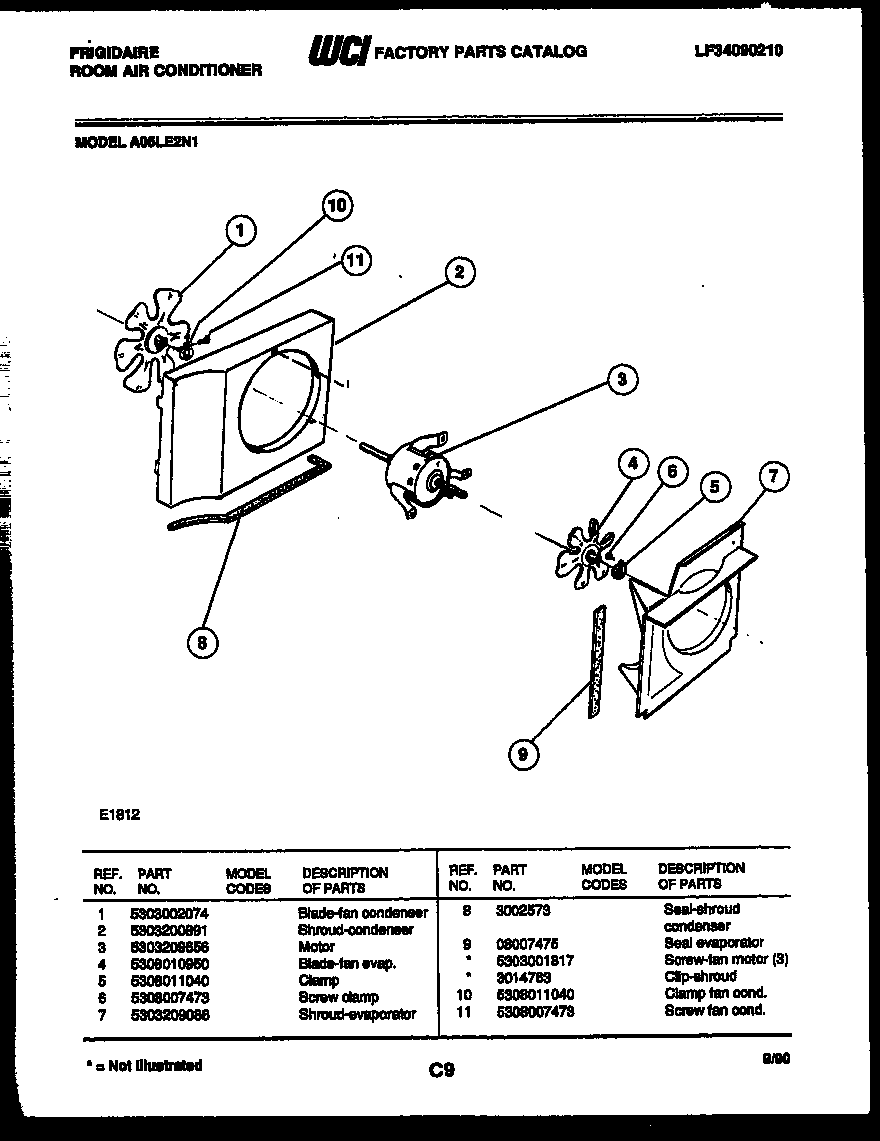

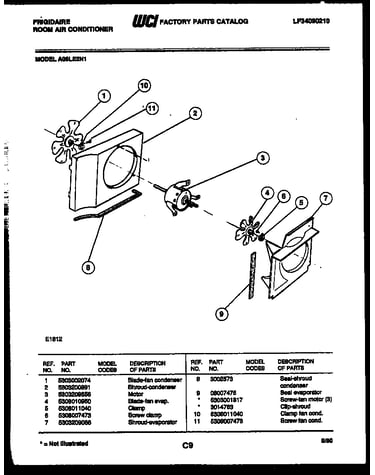

Air handling parts diagram

Clip

Part #3014763

The manufacturer no longer makes this part, and there's no substitute part

Compressor Grommet 5303015945
#2

Compressor parts diagram

Compressor grommet

Part #5303015945

The manufacturer no longer makes this part, and there's no substitute part
