Model # TFG28PFDBBB Official GE refrigerator - d series

Here are the diagrams and repair parts for Official GE TFG28PFDBBB refrigerator - d series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

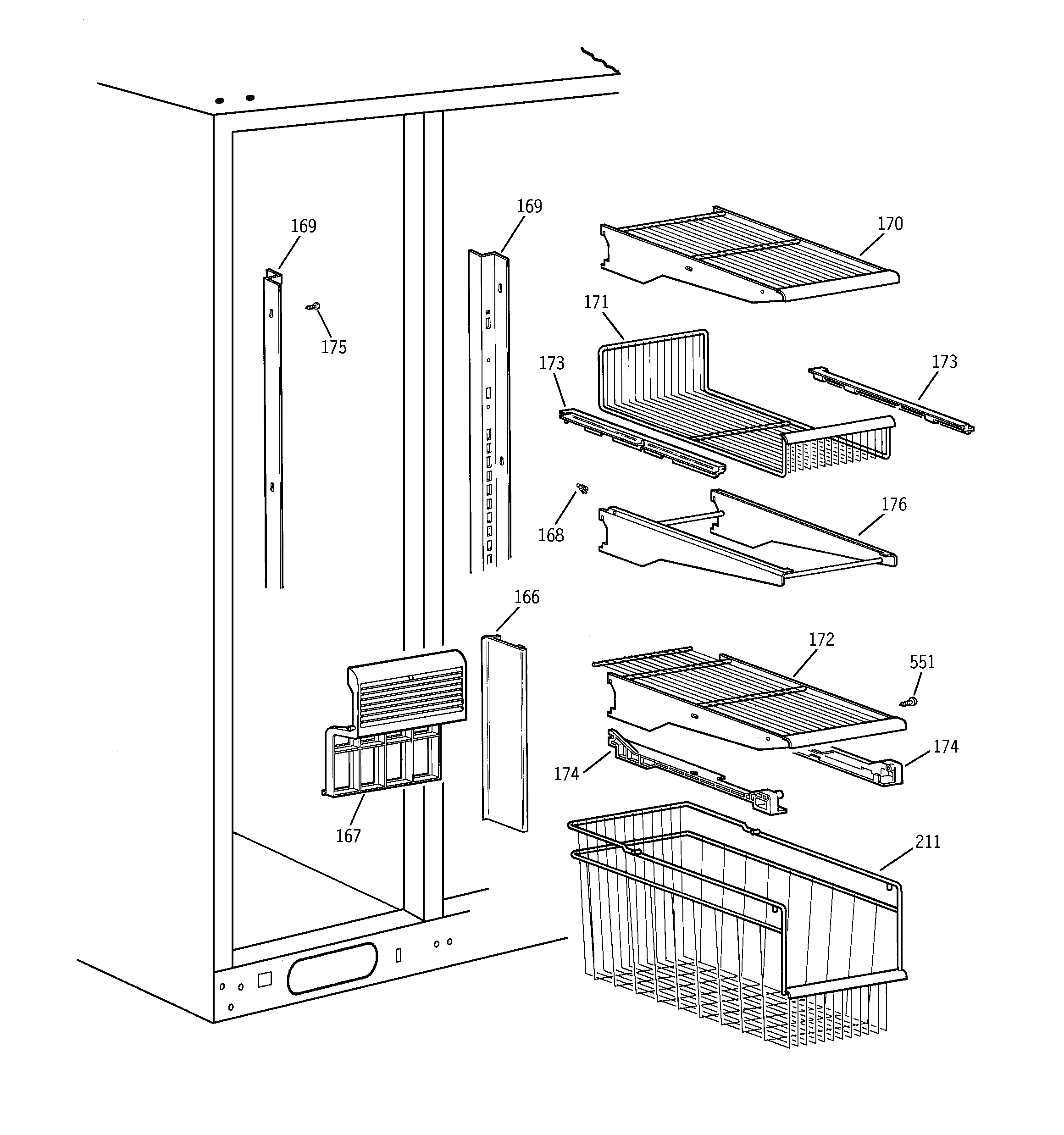

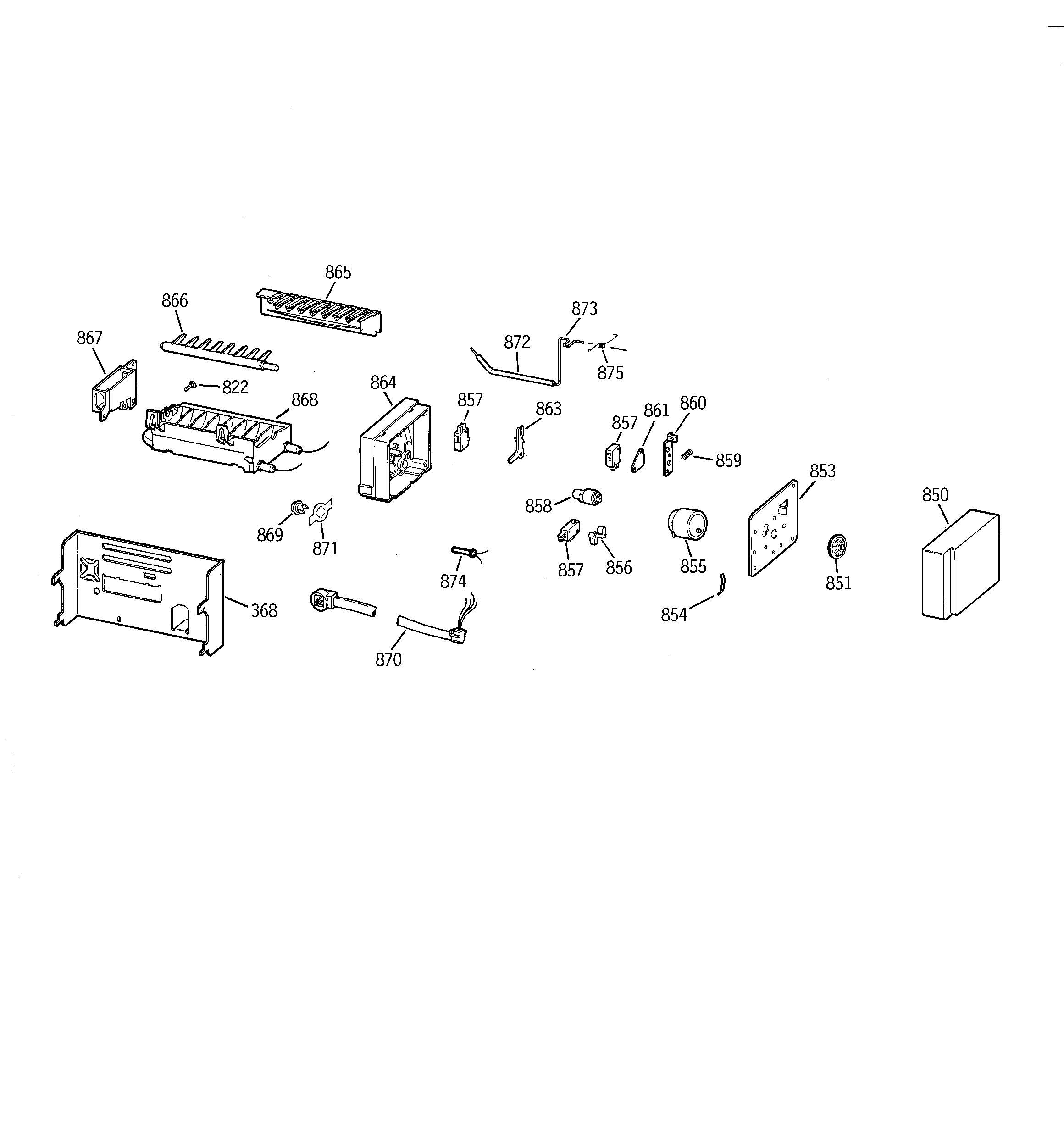

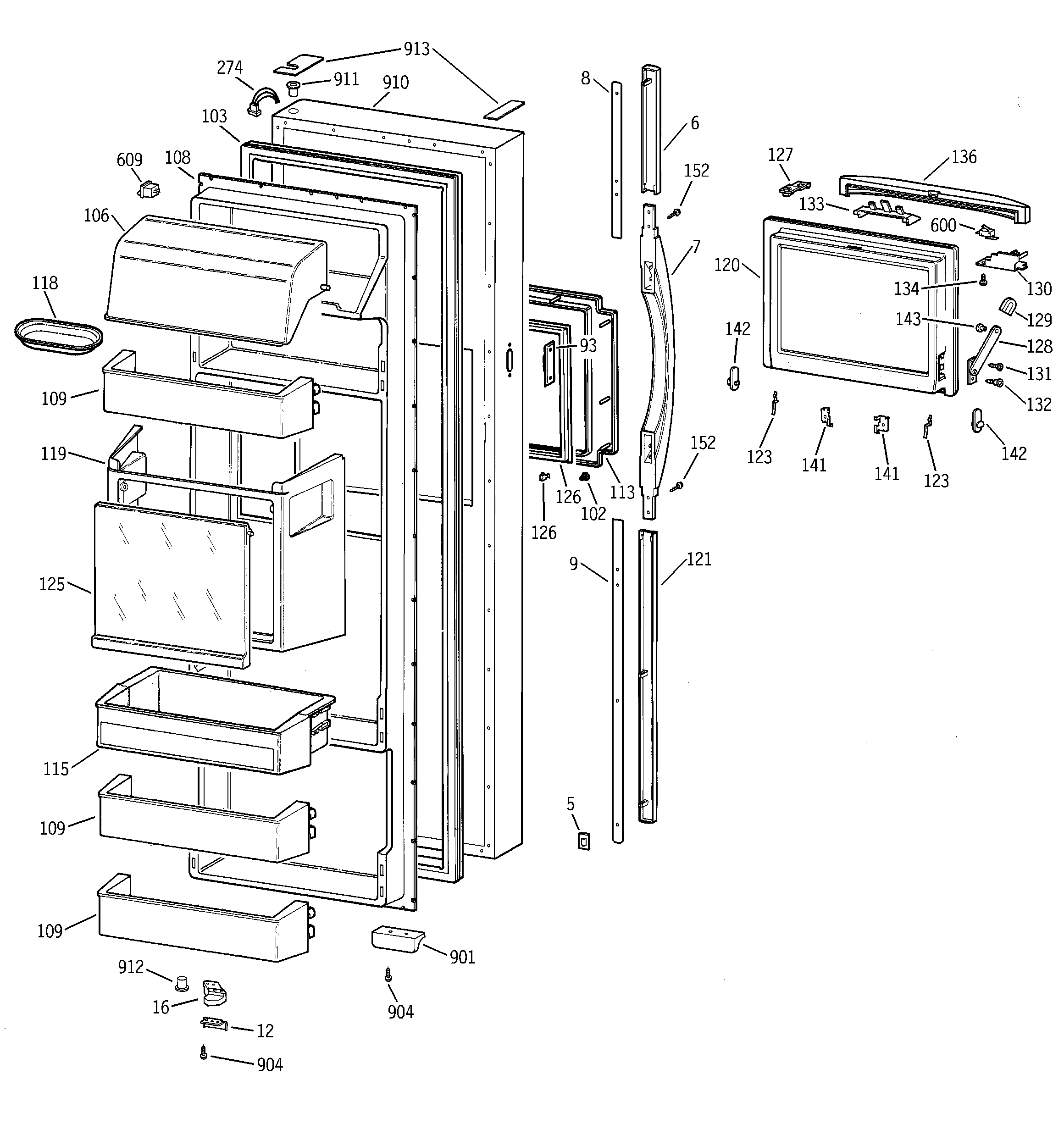

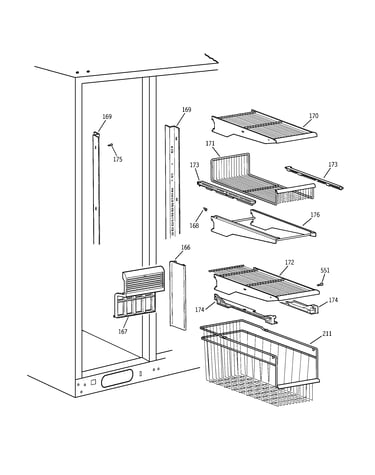

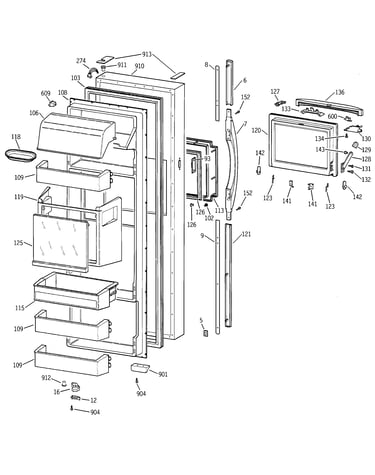

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 391 parts  |
Nut & Union WR02X4048
#807

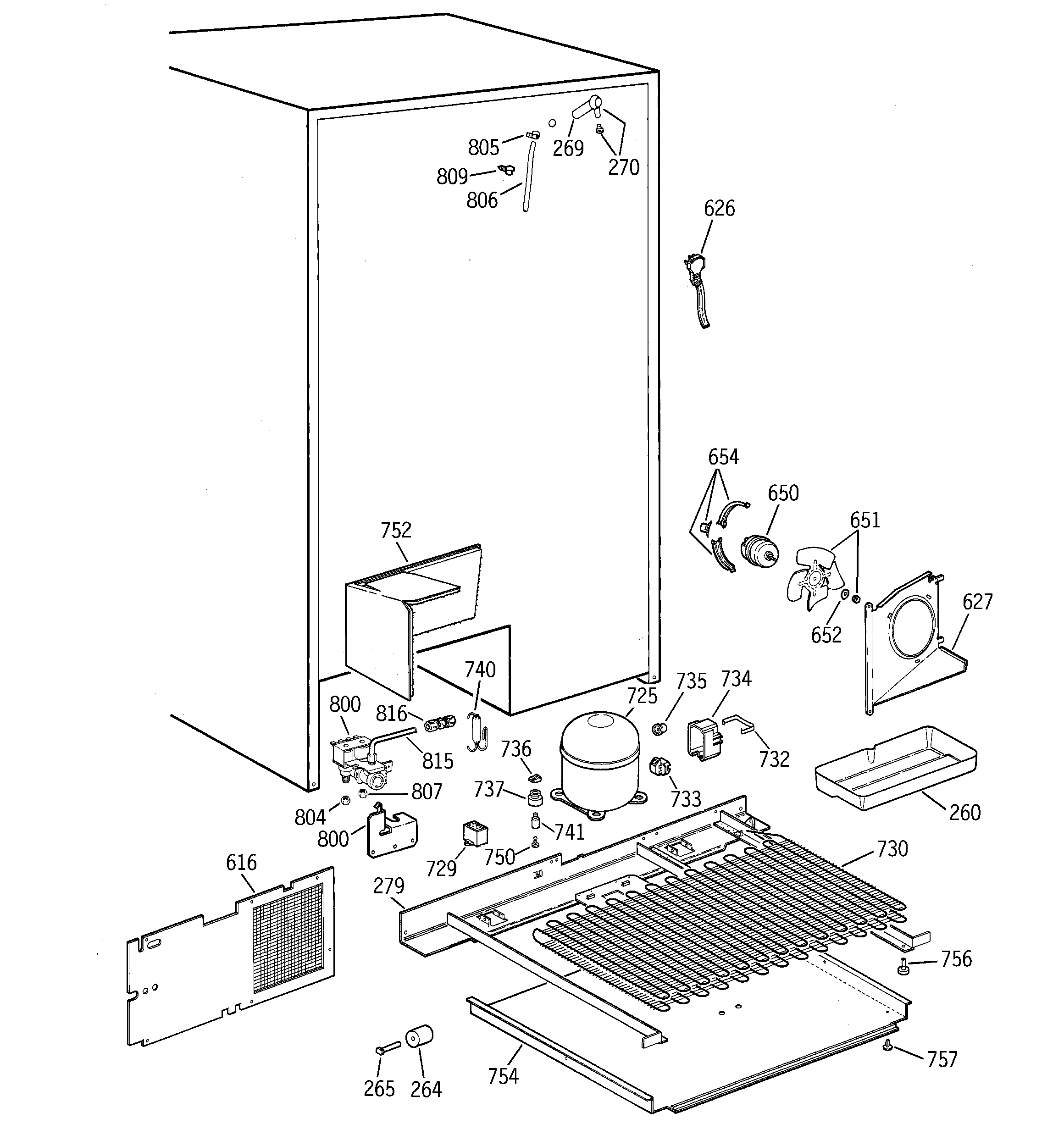

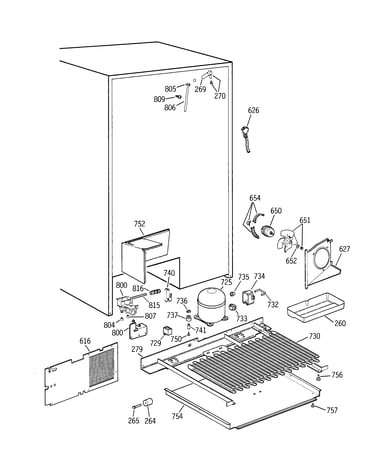

Unit parts diagram

Nut & union

Part #WR02X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Union Nut WR02X8545
#80

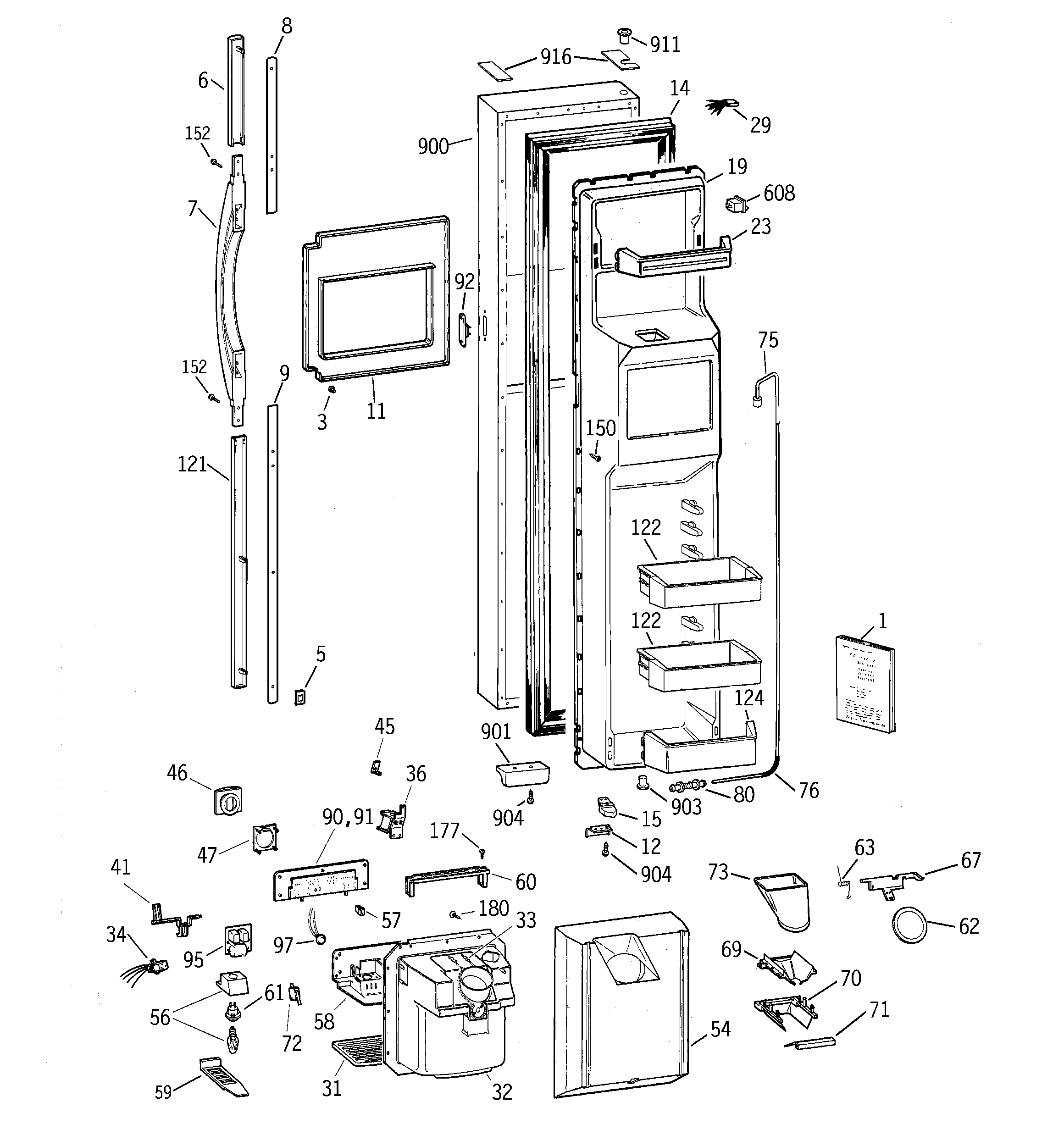

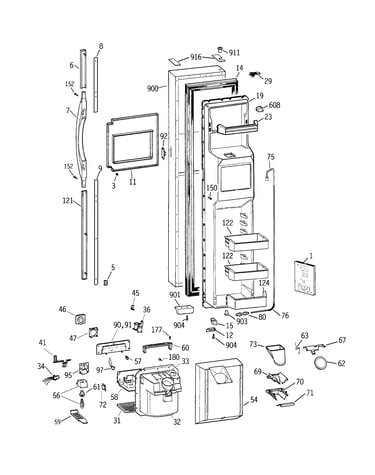

Freezer door diagram

Union nut

Part #WR02X8545

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X8545. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Dr Reces Asm WR17X3093
#62

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Thermostat WR50X10014
#240

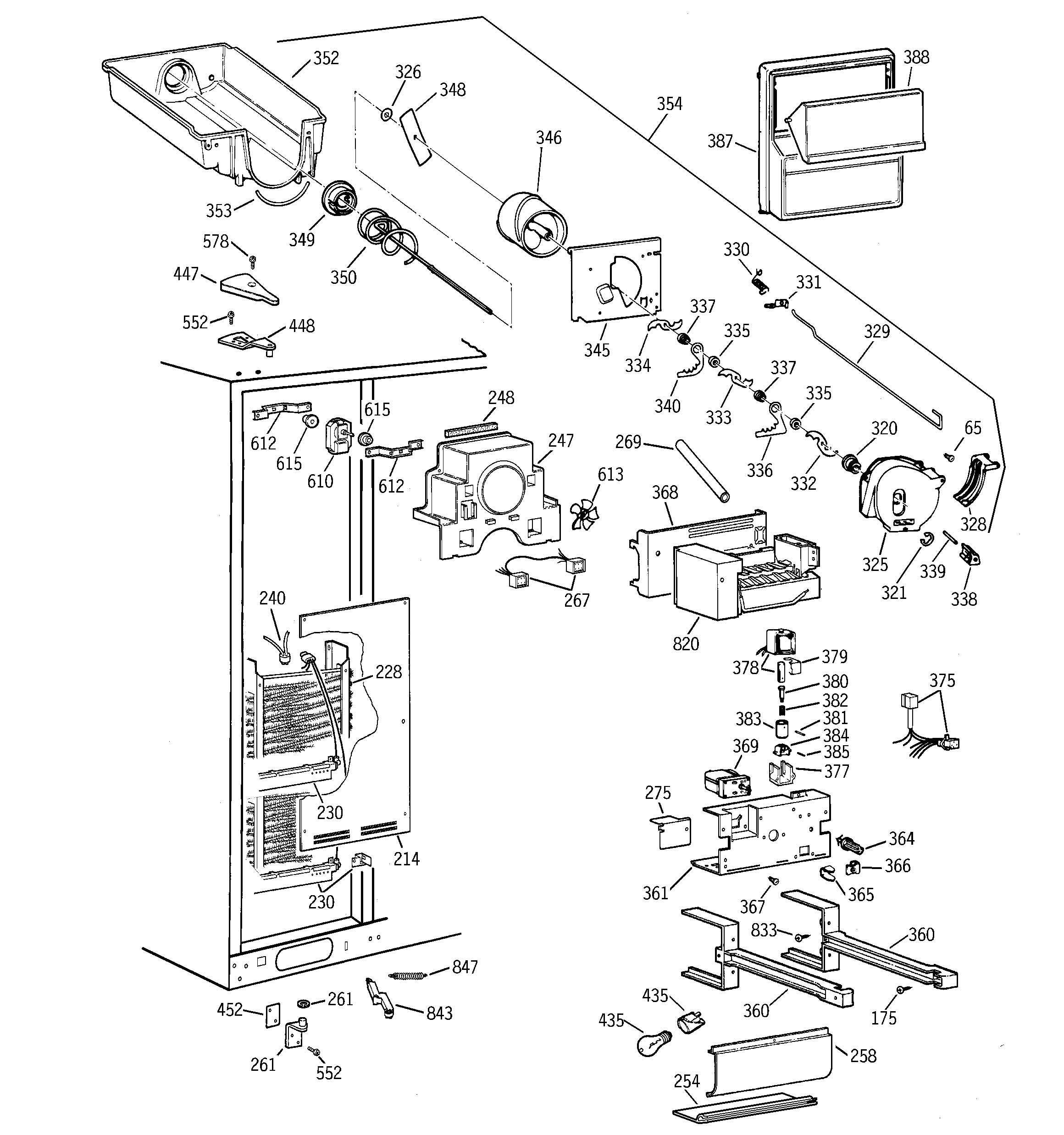

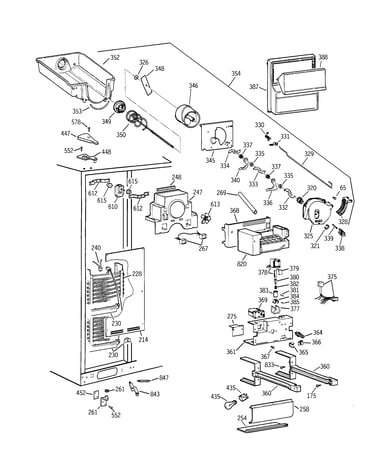

Freezer section diagram

Thermostat

Part #WR50X10014

Replaced by #WR50X122

?
Manufacturer substitution
This part replaces WR50X10014. Substitute parts can look different from the original.
BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#479

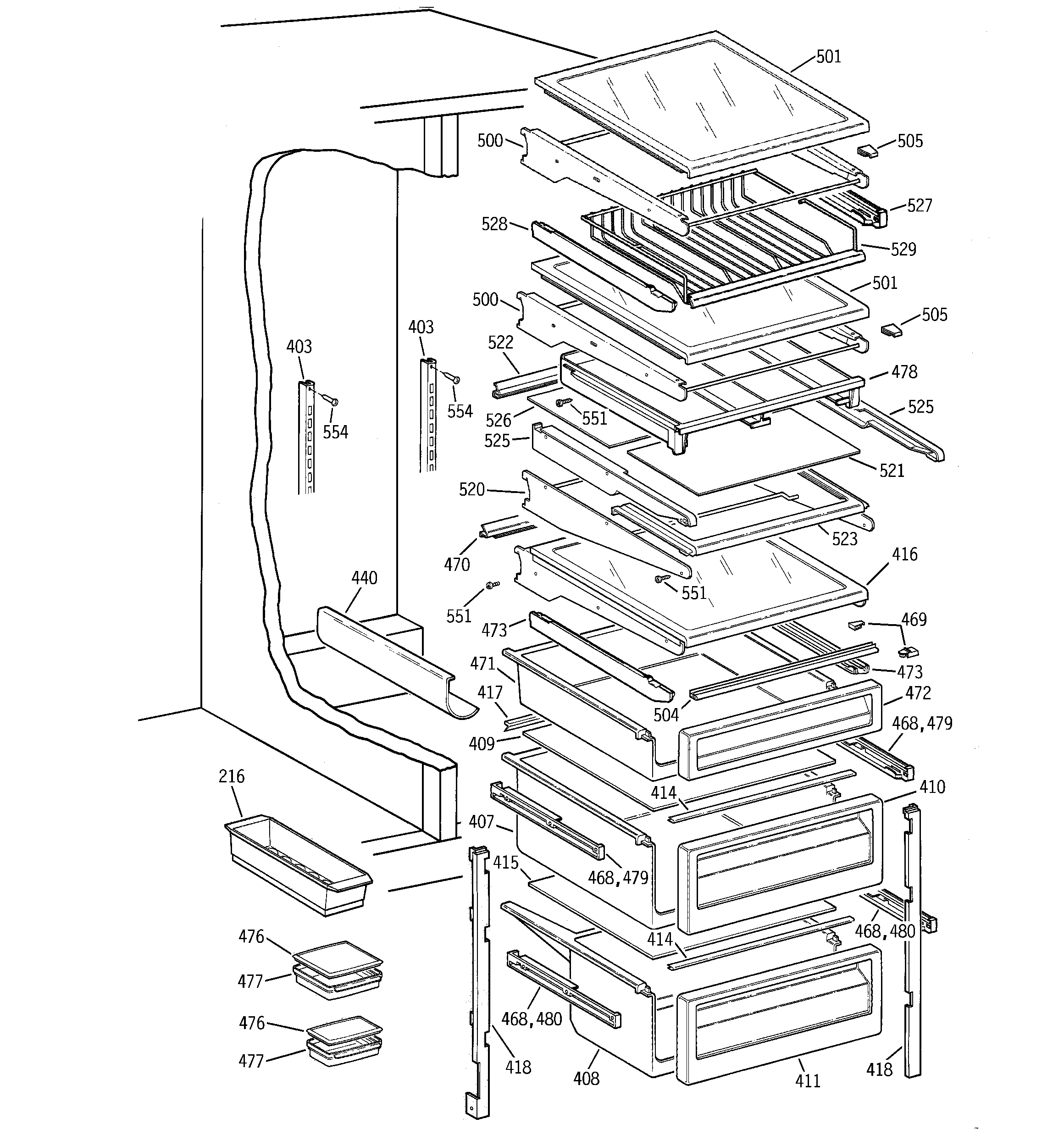

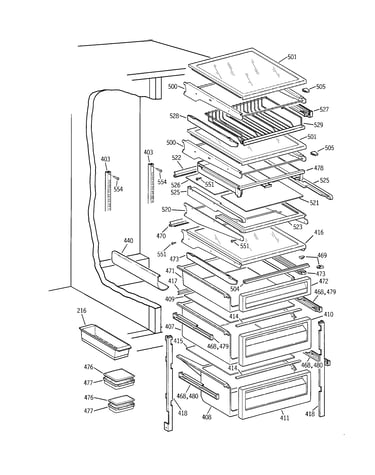

Fresh food shelves diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Bear Slide R WR01X2049
#469

Fresh food shelves diagram

Bear slide r

Part #WR01X2049

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR01X2049. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x10822, Wr2x10098) WR02X10098
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x10822, wr2x10098)

Part #WR02X10098

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Crisper Pan Rail Slide Bearing WR01X2048
#468

Fresh food shelves diagram

Refrigerator crisper pan rail slide bearing

Part #WR01X2048

Replaced by #WR1X2048

?
Manufacturer substitution
This part replaces WR01X2048. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Wtr Tank Dis WR17X3982
#810

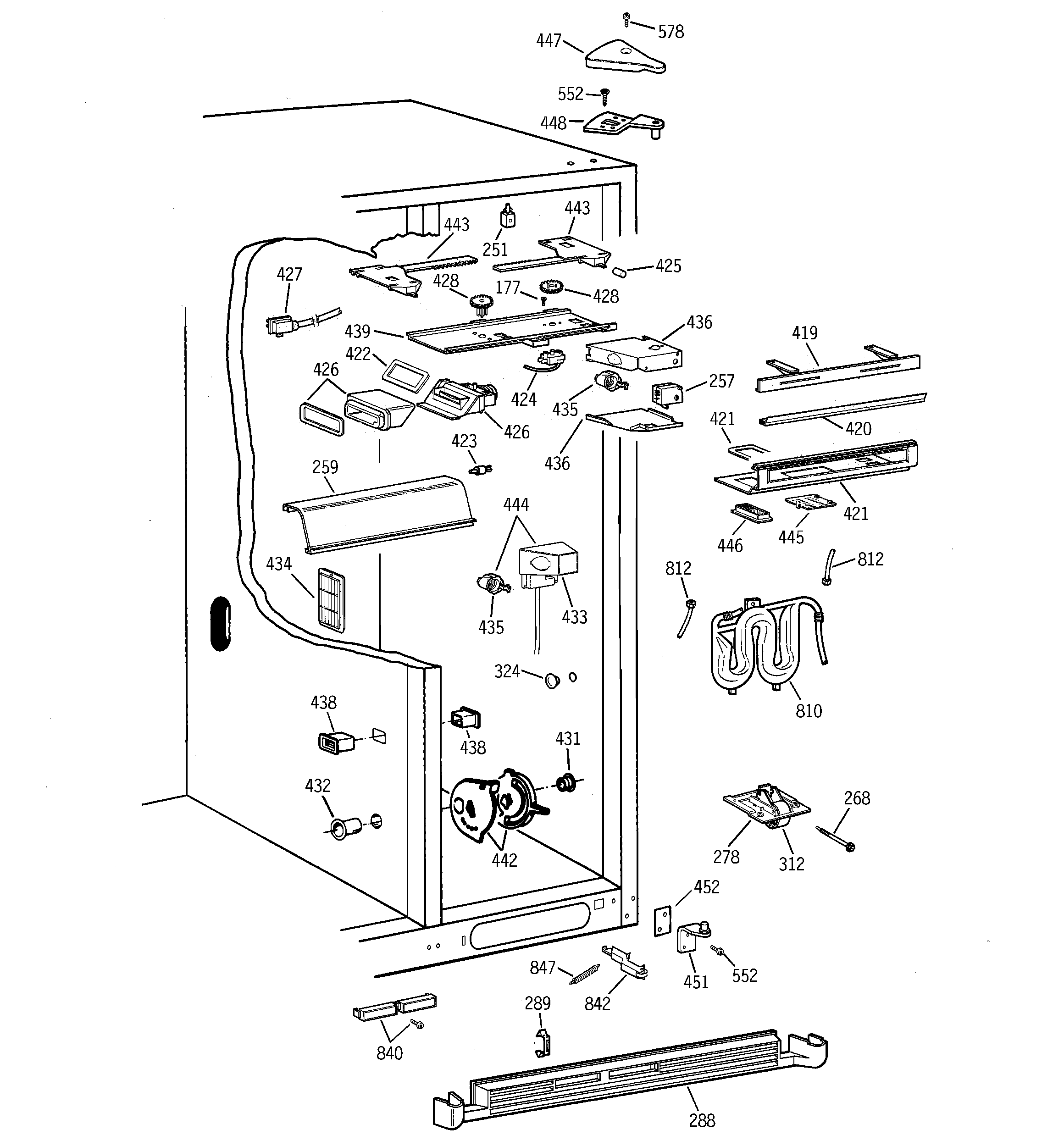

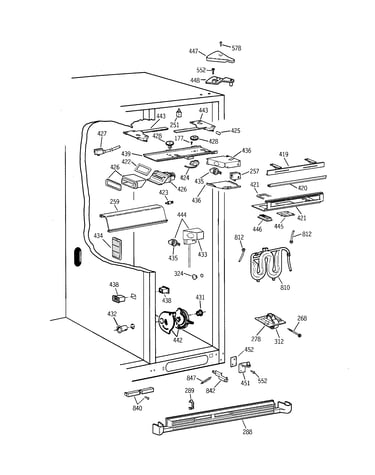

Fresh food section diagram

Wtr tank dis

Part #WR17X3982

Replaced by #WR17X4358

?
Manufacturer substitution
This part replaces WR17X3982. Substitute parts can look different from the original.
$59.68 |
9% OFF Phone Price : $65.68
In Stock
Scr 8-18 Ab WR01X10035
Scr 8-18 ab

Part #WR01X10035

Replaced by #WR01X10652

?
Manufacturer substitution
This part replaces WR01X10035. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
