Kenmore
Upright Vacuum

Model # 1163571290 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163571290 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Suppressor 4368663
#22

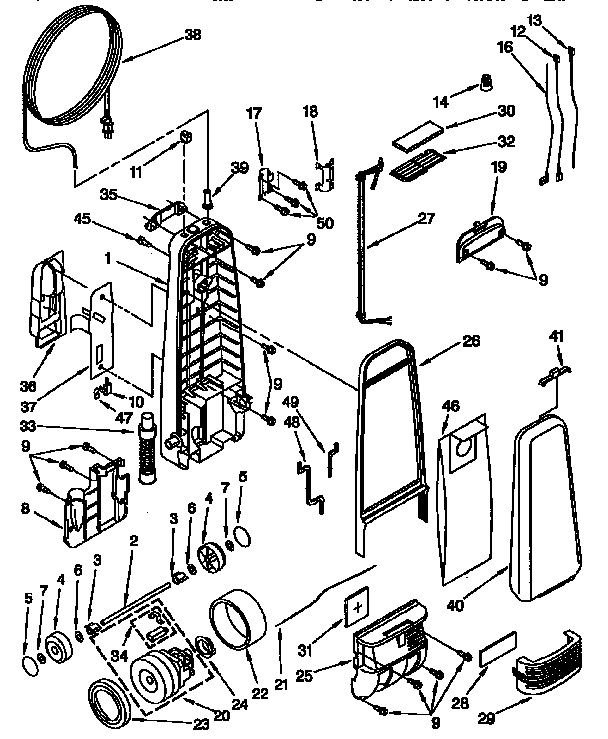

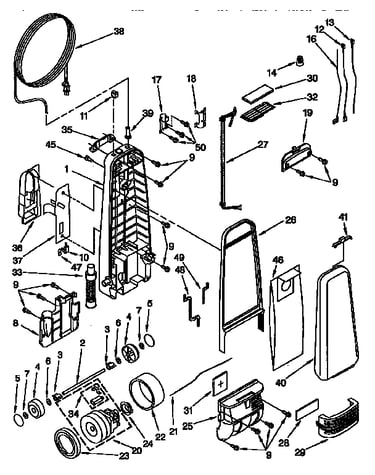

Dust compartment parts diagram

Suppressor

Part #4368663

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Hepa Bag, Type O, 2-pack 50690
#46A

Dust compartment parts diagram

Kenmore vacuum hepa bag, type o, 2-pack

Part #50690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#5

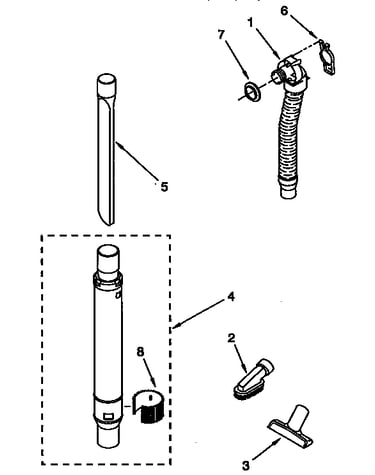

Hose and attachment parts diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#10

Dust compartment parts diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 4369066
#10

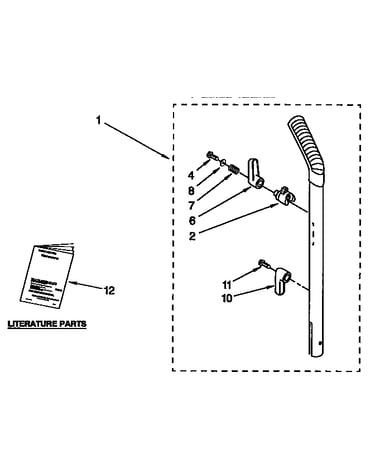

Handle parts diagram

Cord hook

Part #4369066

The manufacturer no longer makes this part, and there's no substitute part

Screen 4368673
#32

Dust compartment parts diagram

Screen

Part #4368673

The manufacturer no longer makes this part, and there's no substitute part

Motor Support 4368664
#23

Dust compartment parts diagram

Motor support

Part #4368664

The manufacturer no longer makes this part, and there's no substitute part

Reset Button 4369062
#38

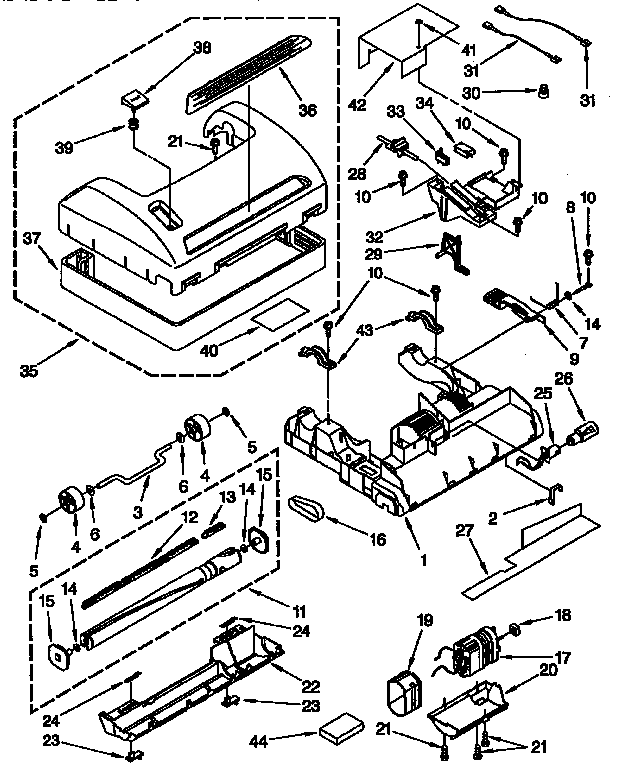

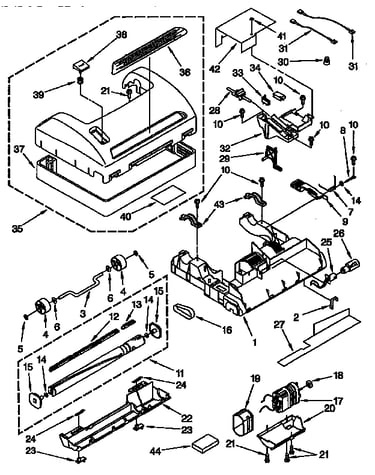

Nozzle and motor parts diagram

Reset button

Part #4369062

The manufacturer no longer makes this part, and there's no substitute part

Axle 4368648
#2

Dust compartment parts diagram

Axle

Part #4368648

The manufacturer no longer makes this part, and there's no substitute part
