Whirlpool
Side-By-Side Refrigerator

Model # GD22DKXHW02 Official Whirlpool side-by-side refrigerator

Here are the diagrams and repair parts for Official Whirlpool GD22DKXHW02 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

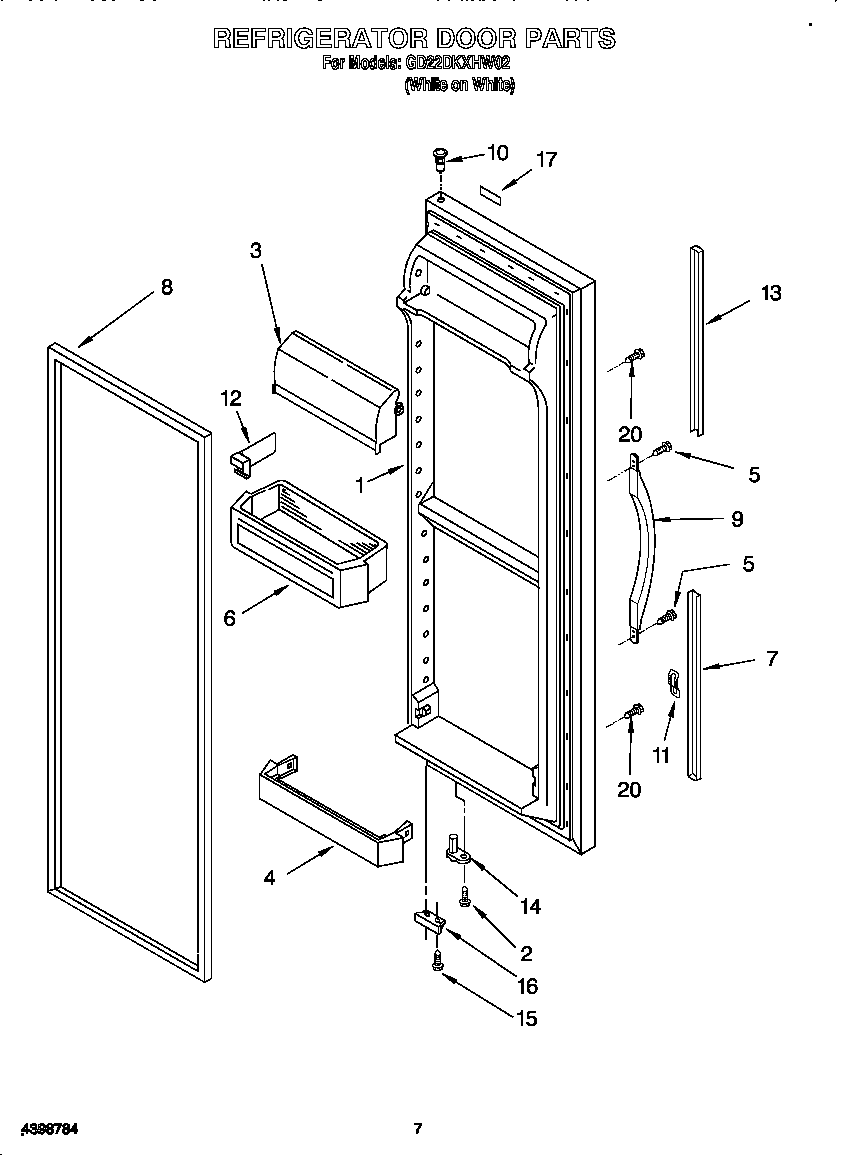

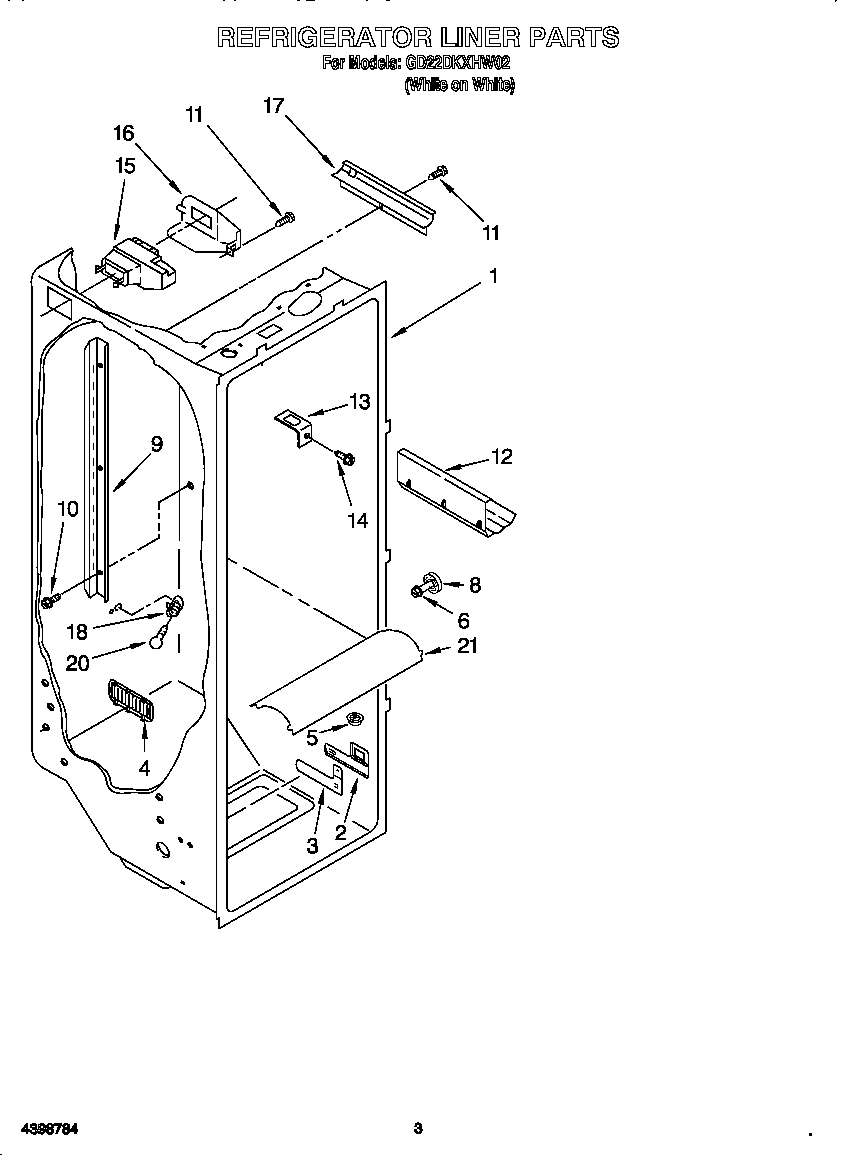

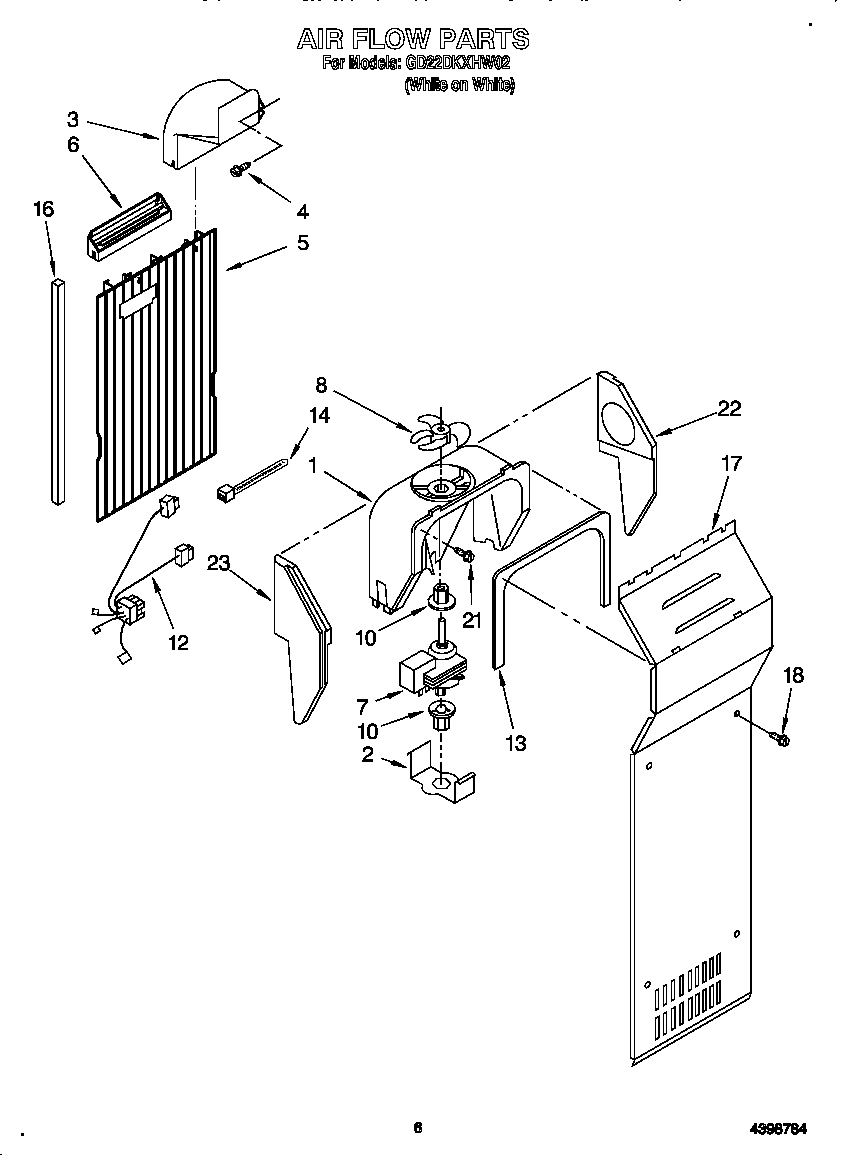

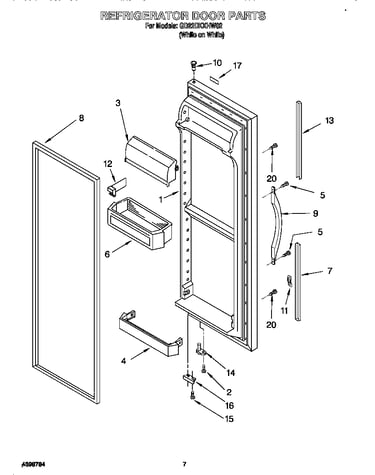

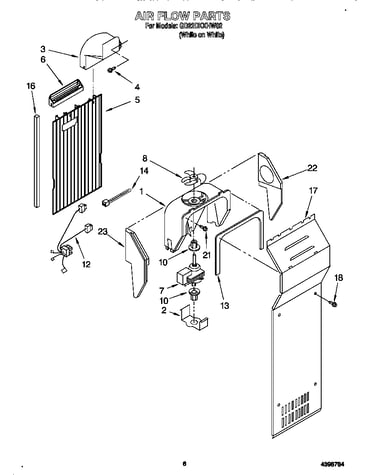

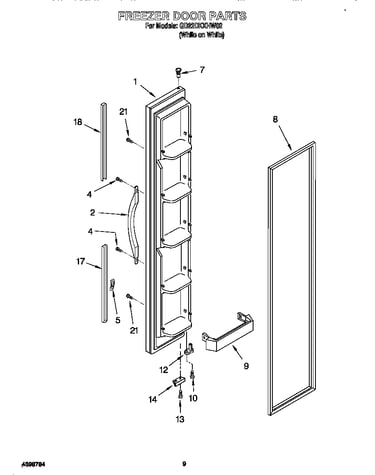

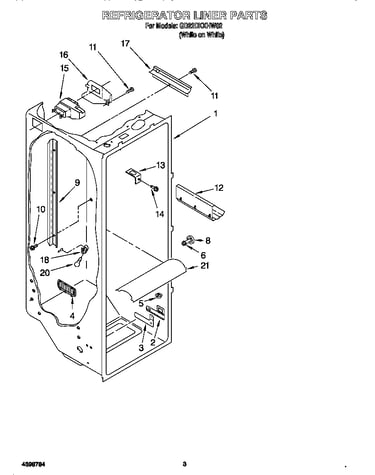

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Refrigerator Crisper Pan 2196160
#10

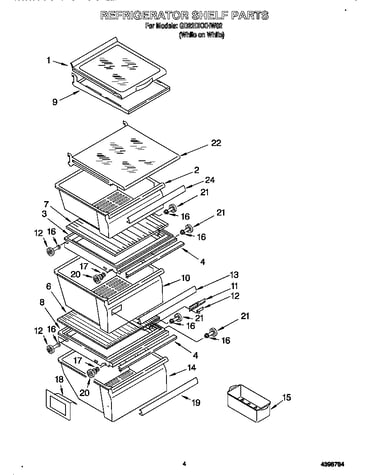

Refrigerator shelf diagram

Refrigerator crisper pan

Part #2196160

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2196160. Substitute parts can look different from the original.
BEST SELLER
$73.14 |
8% OFF Phone Price : $79.14
In Stock
Refrigerator Thermostat 2198202
#9

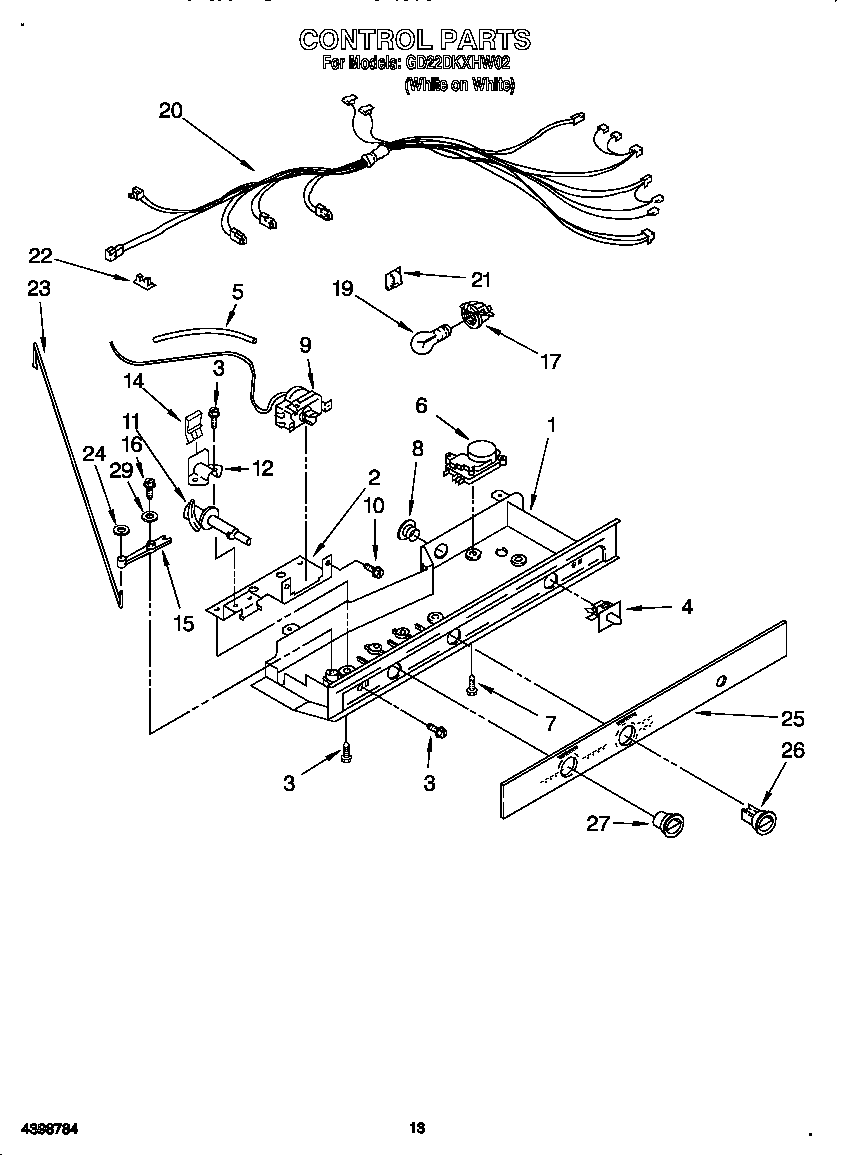

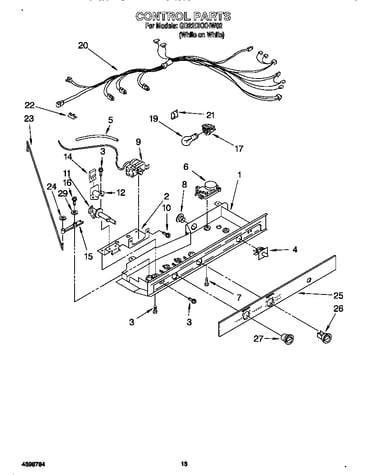

Control diagram

Refrigerator thermostat

Part #2198202

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2198202. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

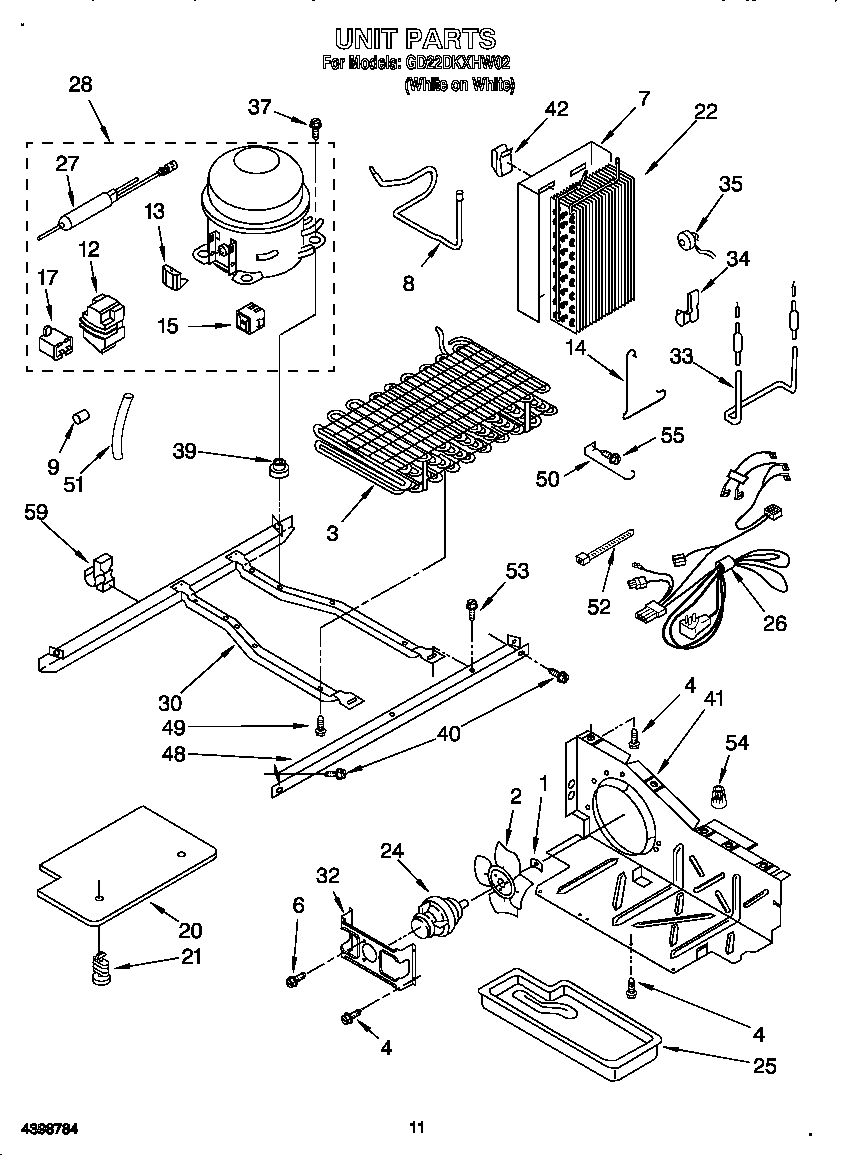

Unit diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Cam (black) 2182178
Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Meat Pan 2196162
#14

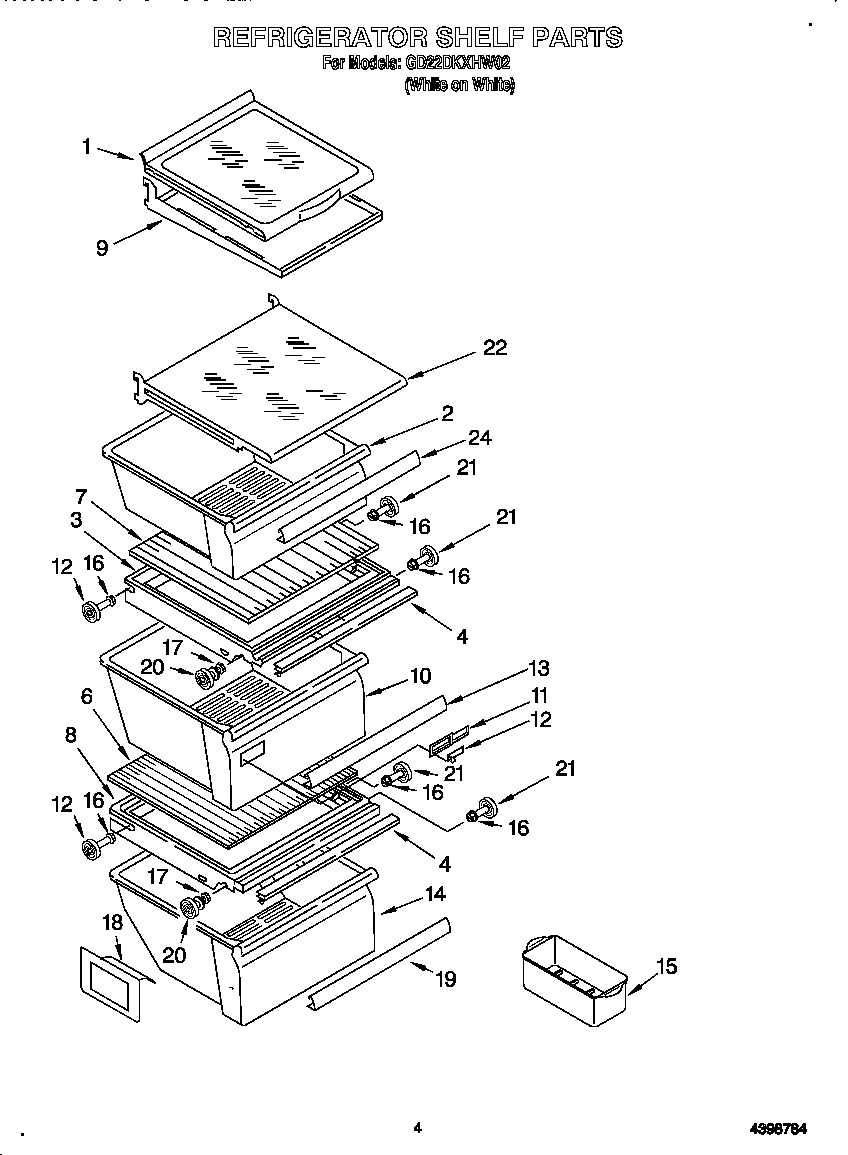

Refrigerator shelf diagram

Refrigerator meat pan

Part #2196162

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196162. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Door Closer Cam 2155311
#54

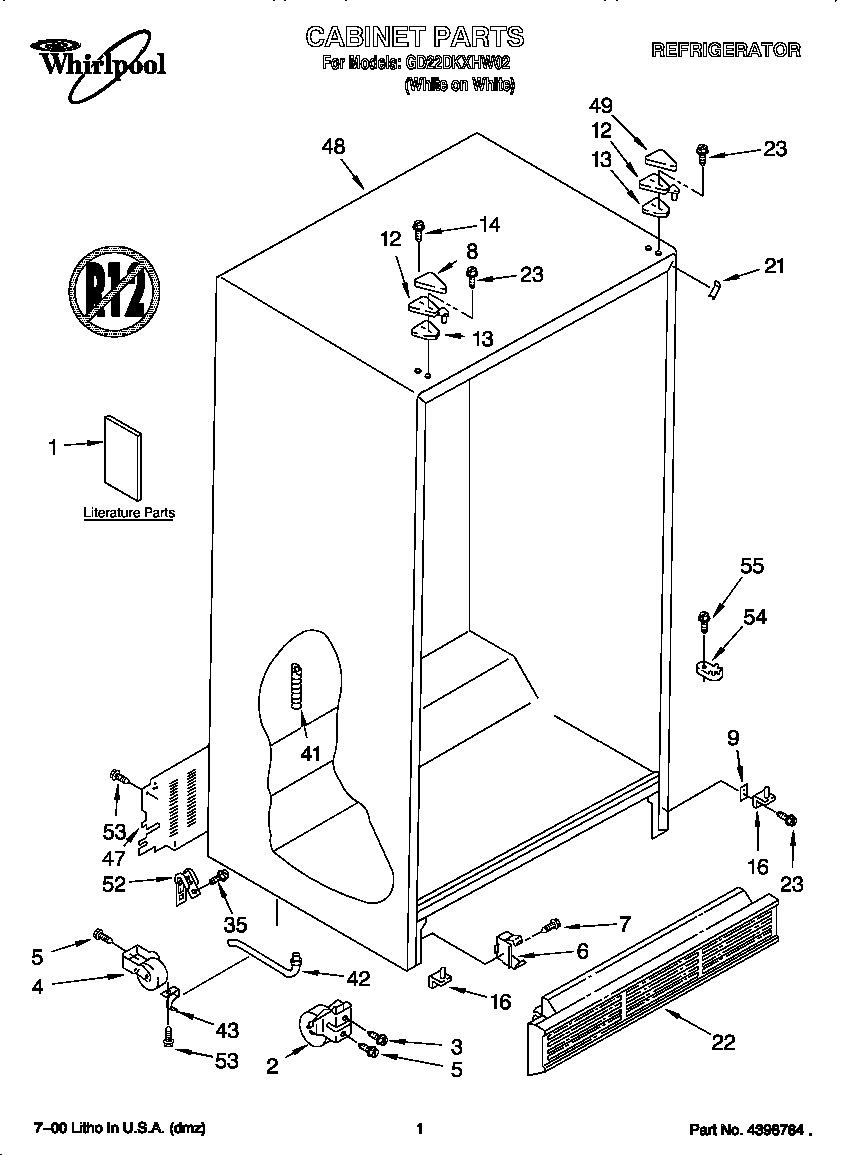

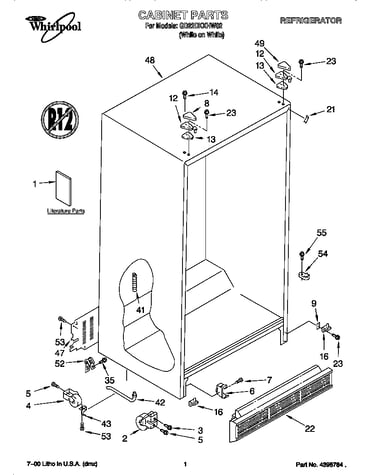

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Light Switch 1118894
#19

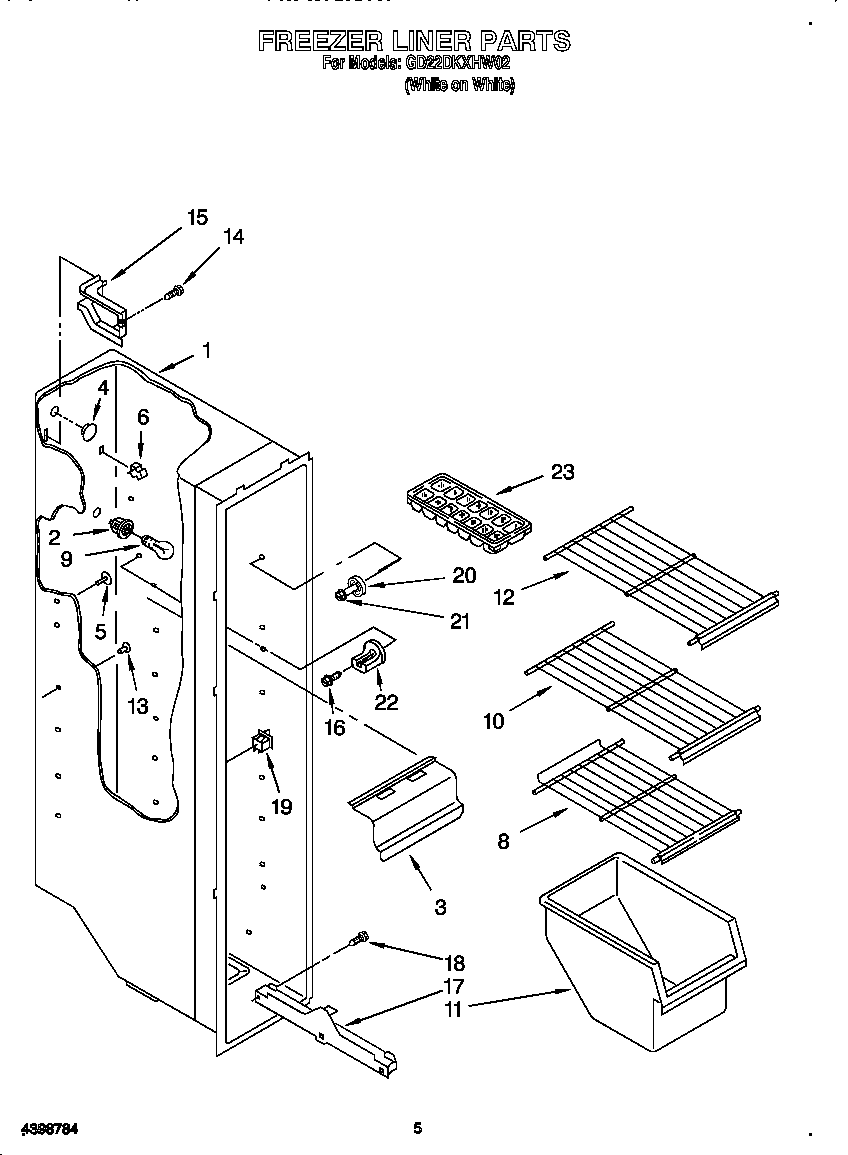

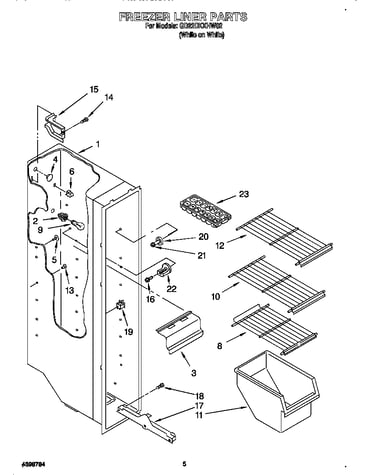

Freezer liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier-tue 2199167
#27

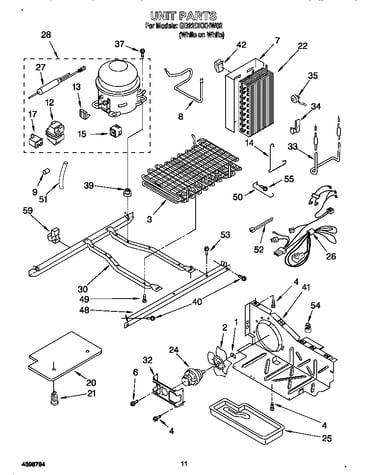

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2183453
#28

Unit diagram

Refrigerator compressor

Part #2183453

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 2183453. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
