Hoover
Upright Vacuum

Model # C1499020 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1499020 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Vacuum Spring 34572002
#29

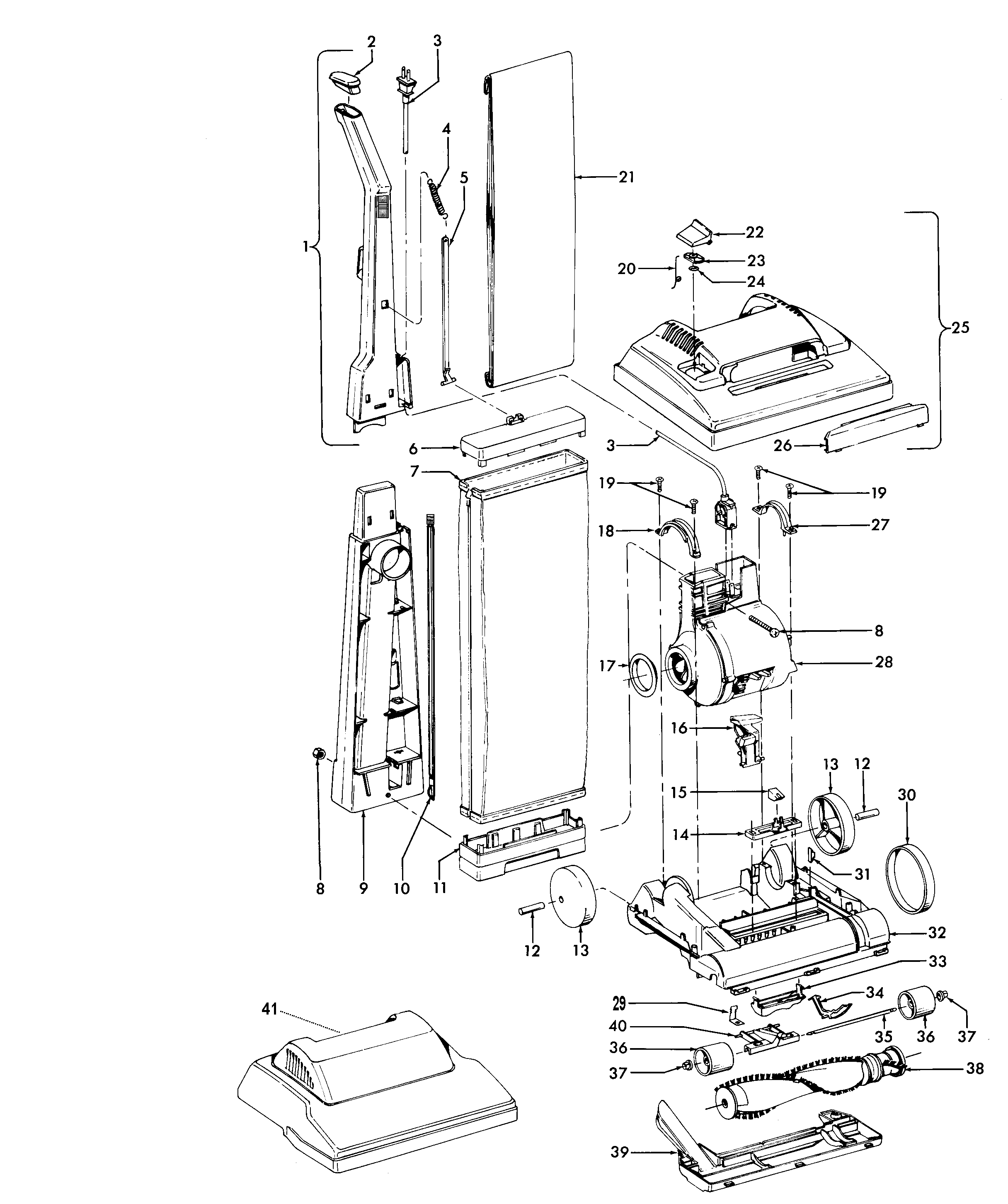

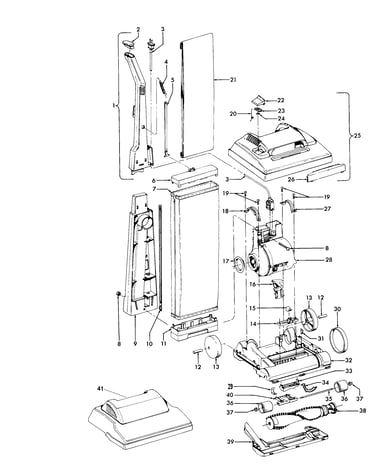

Handle, mainbody, outerbag, hood diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#13

Handle, mainbody, outerbag, hood diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Duct Seal 38783020
#17

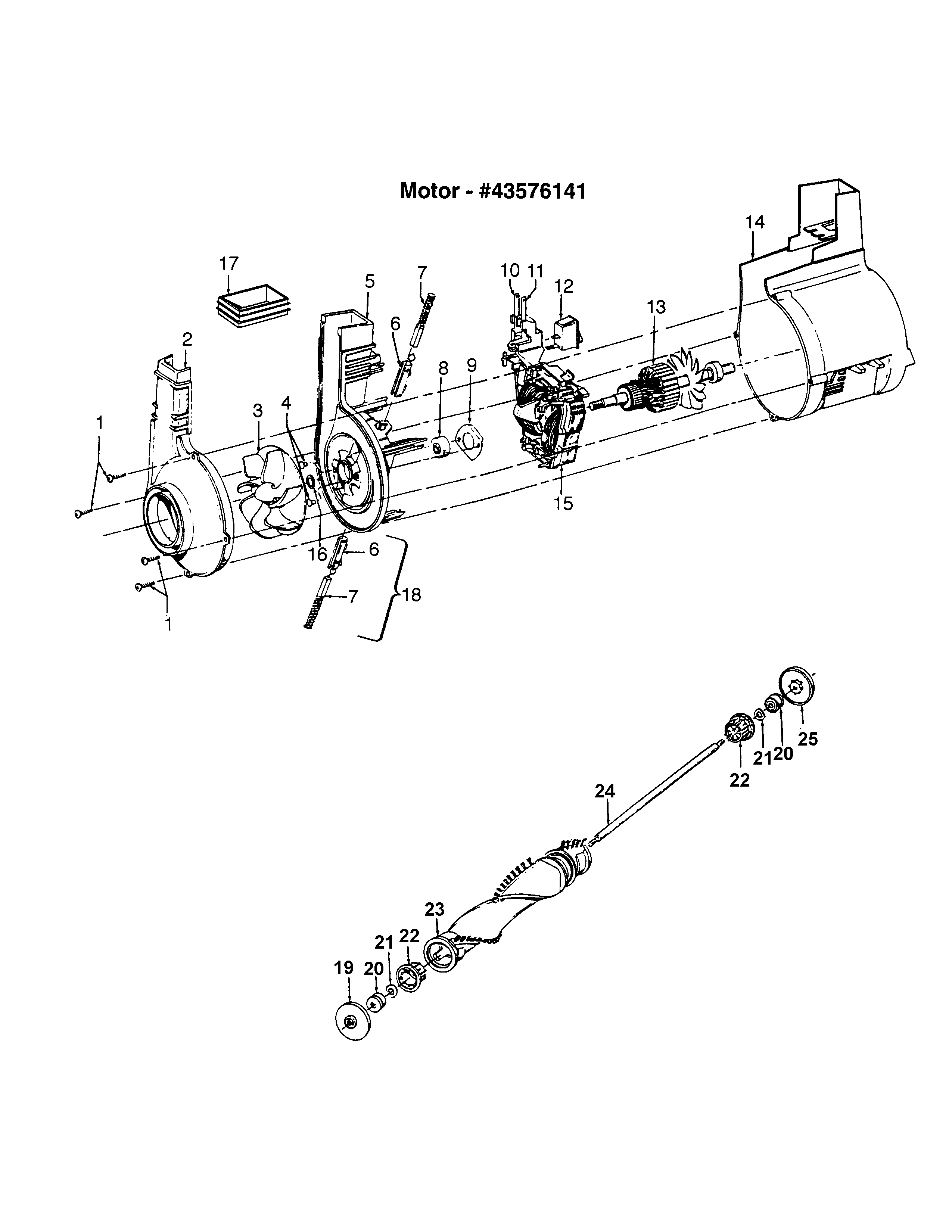

Agitator, motor assembly diagram

Kenmore duct seal

Part #38783020

The manufacturer no longer makes this part, and there's no substitute part

Spring 38335020
#4

Handle, mainbody, outerbag, hood diagram

Spring

Part #38335020

The manufacturer no longer makes this part, and there's no substitute part

Low Handle 48669017
#9

Handle, mainbody, outerbag, hood diagram

Low handle

Part #48669017

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#17

Handle, mainbody, outerbag, hood diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing 43267002
#20

Agitator, motor assembly diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Assembly 43576201
Vacuum motor assembly

Part #43576201

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 31531008
#12

Handle, mainbody, outerbag, hood diagram

Vacuum wheel axle

Part #31531008

The manufacturer no longer makes this part, and there's no substitute part

Bag Strap 36425072
#5

Handle, mainbody, outerbag, hood diagram

Bag strap

Part #36425072

The manufacturer no longer makes this part, and there's no substitute part
