Model # GCG1230S6WB Official GE compactor

Here are the diagrams and repair parts for Official GE GCG1230S6WB compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

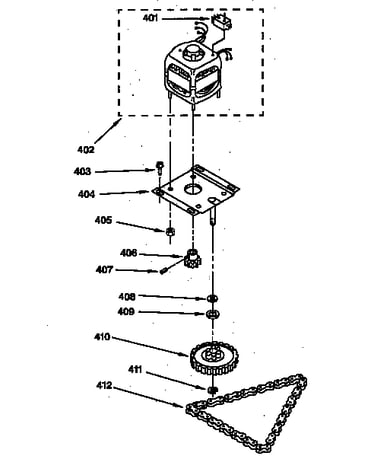

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 100 parts |

#227

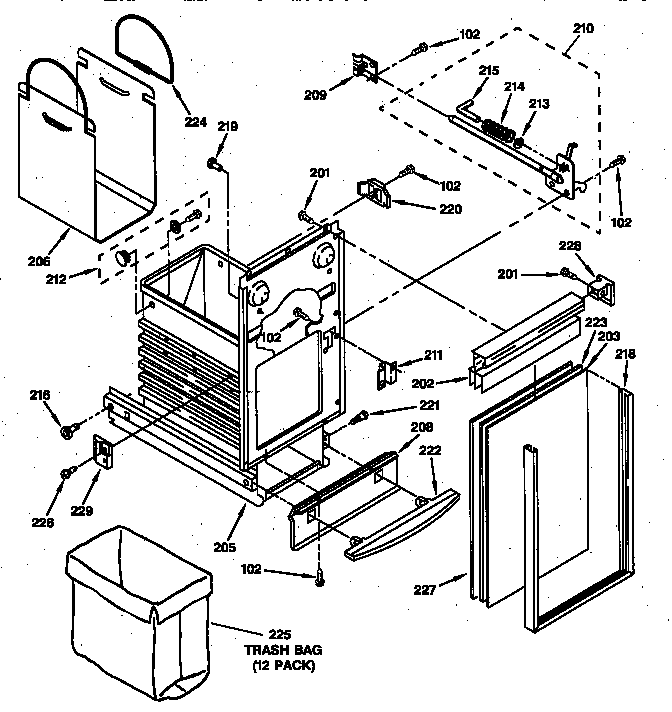

Container parts diagram

Spacer

Part #WC36X5108

$18.49 |

10% OFF Phone Price : $20.49

In Stock

Qty

#1C

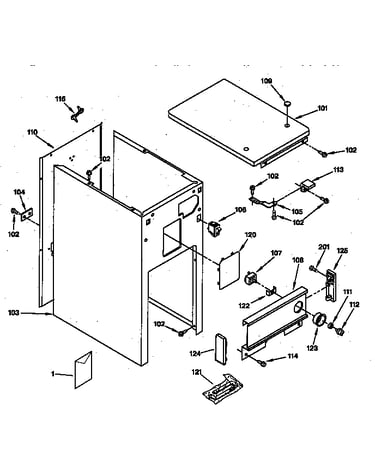

Cabinet & control parts diagram

Gcg1230 gcg

Part #49-5556

$8.49

In Stock

Qty

#1A

Cabinet & control parts diagram

Technical sheet

Part #31-3945

$21.99

In Stock

Qty

#105A

Cabinet & control parts diagram

Brkt ret lh

Part #WC36X5006

Replaced by #WC36X5006

$32.49

In Stock

Qty

#225

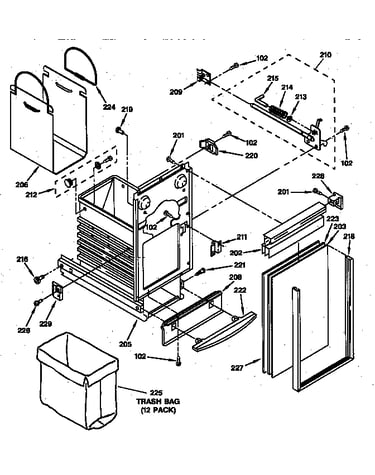

Container parts diagram

Bag pkg 12

Part #WC60X5017

Replaced by #WC60X5017

$64.22

In Stock

Qty

#221

Container parts diagram

Screw

Part #WC36X5038

Replaced by #WC36X5038

This item is not returnable

$7.49

In Stock

Qty

#303A

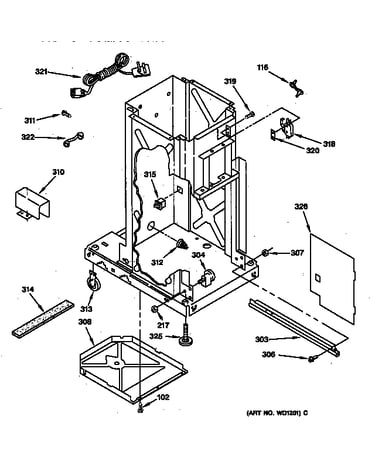

Frame parts diagram

Slide lh

Part #WC36X5042

The manufacturer no longer makes this part, and there's no substitute part

#505

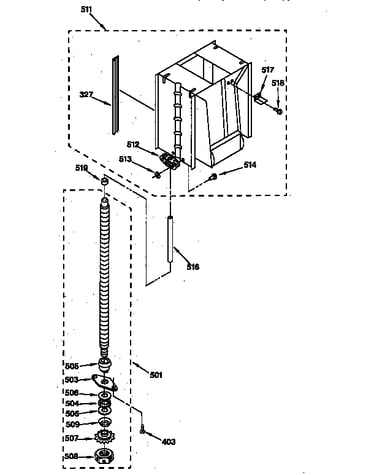

Powerscrew & ram parts diagram

Hub screw

Part #WC36X5077

The manufacturer no longer makes this part, and there's no substitute part

#325

Frame parts diagram

Foot leveler

Part #WC36X5059

The manufacturer no longer makes this part, and there's no substitute part

#209

Container parts diagram

Guide

Part #WC36X5026

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your trash compactors

Choose a symptom to see related trash compactor repairs.

View all

Why is the trash compactor's ram stuck in the down position?

Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…

Why won't my trash compactor stop running?

Main causes: stuck foot pedal, bad momentary start switch, power switch failure…

Why does my trash compactor run constantly with its ram in the up position?

Main cause: broken top limit and directional switch…

Why wont my trash compactor's ram go down?

Main cause: faulty drawer tilt switch …

Why does the trash compactor ram not move even though the motor runs?

Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…

Why is it hard to open the trash compactor drawer?

Main causes: bent drawer support rollers, damaged trash container…

Why won't my trash compactor start?

Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…

Most common repair guides to help fix your trash compactors

These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.

View all

How to replace a trash compactor motor centrifugal switch

If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…

Repair difficulty

Time required

45 minutes or less

How to replace a trash compactor momentary start switch

The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…

Repair difficulty

Time required

15 minutes or less

How to replace a trash compactor power switch

If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…

Repair difficulty

Time required

30 minutes or less

Effective articles & videos to help repair your trash compactors

Use the advice and tips in these articles and videos to get the most out of your trash compactor.

View all

How to enjoy all the online benefits we offer on our Sears PartsDirect website

Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…

Top questions about Sears and Sears PartsDirect

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…
