Model # 867764231 Official Kenmore gas-fired upflow furnace

Here are the diagrams and repair parts for Official Kenmore 867764231 gas-fired upflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Module 612919
#13

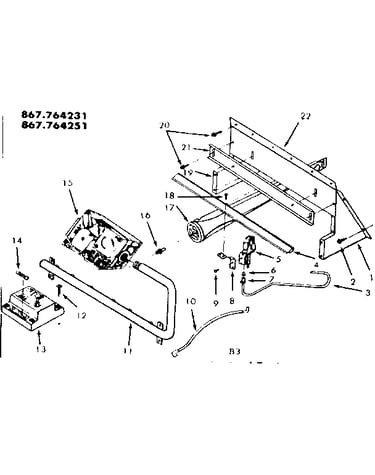

Gas burners and manifold diagram

Module

Part #612919

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2A

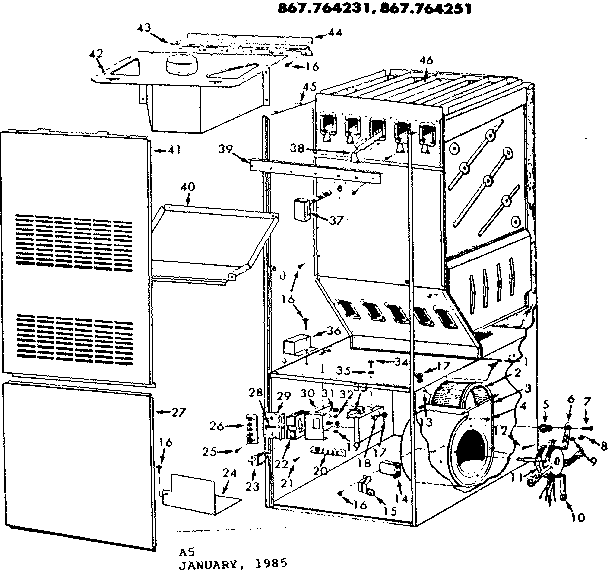

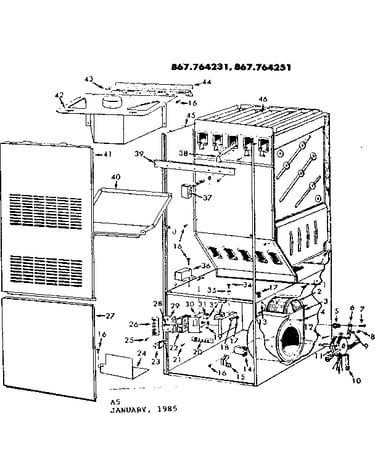

Functional replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Operator 604636
#7

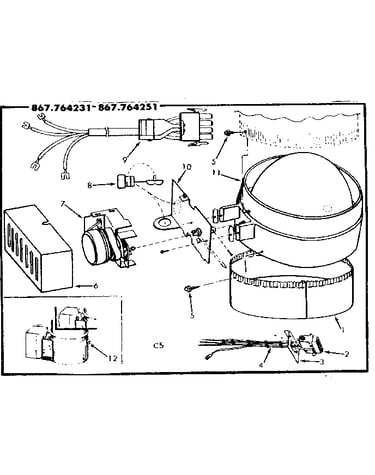

Damper assembly diagram

Operator

Part #604636

Replaced by #604967

?
Manufacturer substitution
This part replaces 604636. Substitute parts can look different from the original.
$185.71 |
6% OFF Phone Price : $197.71
Back Order
Capacitor 613531
#14B

Functional replacement parts diagram

Capacitor

Part #613531

Replaced by #12910

?
Manufacturer substitution
This part replaces 613531. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Furnace Blower Wheel 89726
#2B

Functional replacement parts diagram

Furnace blower wheel

Part #89726

$218.43 |
5% OFF Phone Price : $230.43
In Stock
Switch 611872
#23

Functional replacement parts diagram

Switch

Part #611872

$25.58
In Stock
Exchanger Ht 613815
#46B

Functional replacement parts diagram

Exchanger ht

Part #613815

$903.12
In Stock
Board Termin 612254
#26

Functional replacement parts diagram

Board termin

Part #612254

$20.06
In Stock
Bracket 96037
#8

Gas burners and manifold diagram

Bracket

Part #96037

Replaced by #521425

?
Manufacturer substitution
This part replaces 96037. Substitute parts can look different from the original.
$60.22
In Stock
Trans Former 613039
#22

Functional replacement parts diagram

Trans former

Part #613039

The manufacturer no longer makes this part, and there's no substitute part
