Model # 919152912 Official Craftsman lubricated air compressor

Here are the diagrams and repair parts for Official Craftsman 919152912 lubricated air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 64 parts |

Air Compressor Compression Nut SSP-7821-1

#31

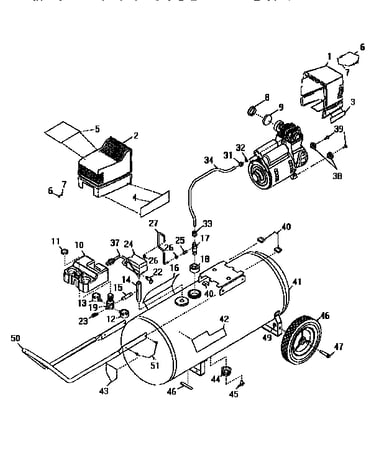

Air compressor diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Air Compressor Drain Petcock Bushing Reducer SSP-491

#44

Air compressor diagram

Porter cable air compressor drain petcock bushing reducer

Part #SSP-491

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Control Cover Mounting Ring CAC-61

#11

Air compressor diagram

Air compressor control cover mounting ring

Part #CAC-61

The manufacturer no longer makes this part, and there's no substitute part

#56

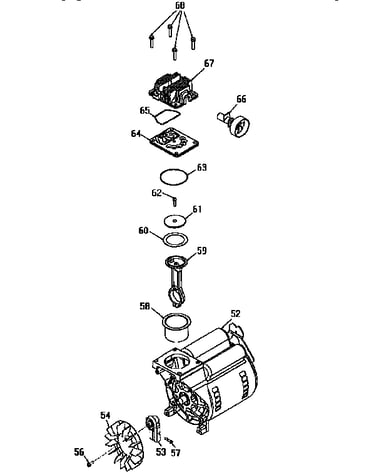

Compressor pump diagram

Air compressor fan blade screw

Part #SSF-586

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Outlet Tube O-ring SSG-3105

#32

Air compressor diagram

Air compressor outlet tube o-ring

Part #SSG-3105

The manufacturer no longer makes this part, and there's no substitute part

#47

Air compressor diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Safety Valve, 150-psi 97503734

#22

Air compressor diagram

Air compressor safety valve, 150-psi

Part #97503734

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Connecting Rod Screw SSF-3158-1

#62

Compressor pump diagram

Tower air compressor connecting rod screw

Part #SSF-3158-1

The manufacturer no longer makes this part, and there's no substitute part

#26

Air compressor diagram

Air compressor nut and sleeve

Part #SSP-7811

The manufacturer no longer makes this part, and there's no substitute part

#66

Compressor pump diagram

Air compressor muffler

Part #CAC-1371

The manufacturer no longer makes this part, and there's no substitute part
