Frigidaire
Electric Wall Oven

Model # CFEB30S5DS7 Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire CFEB30S5DS7 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

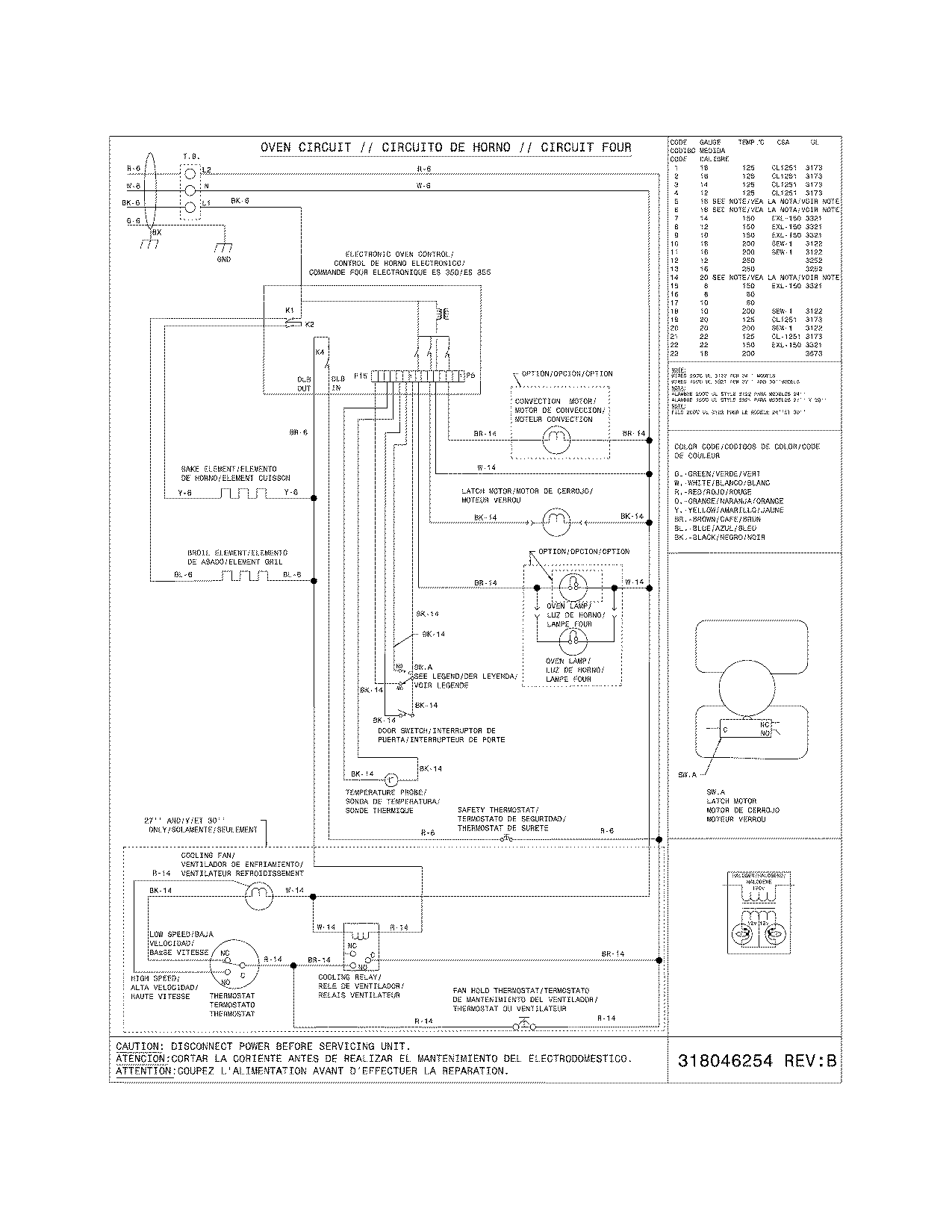

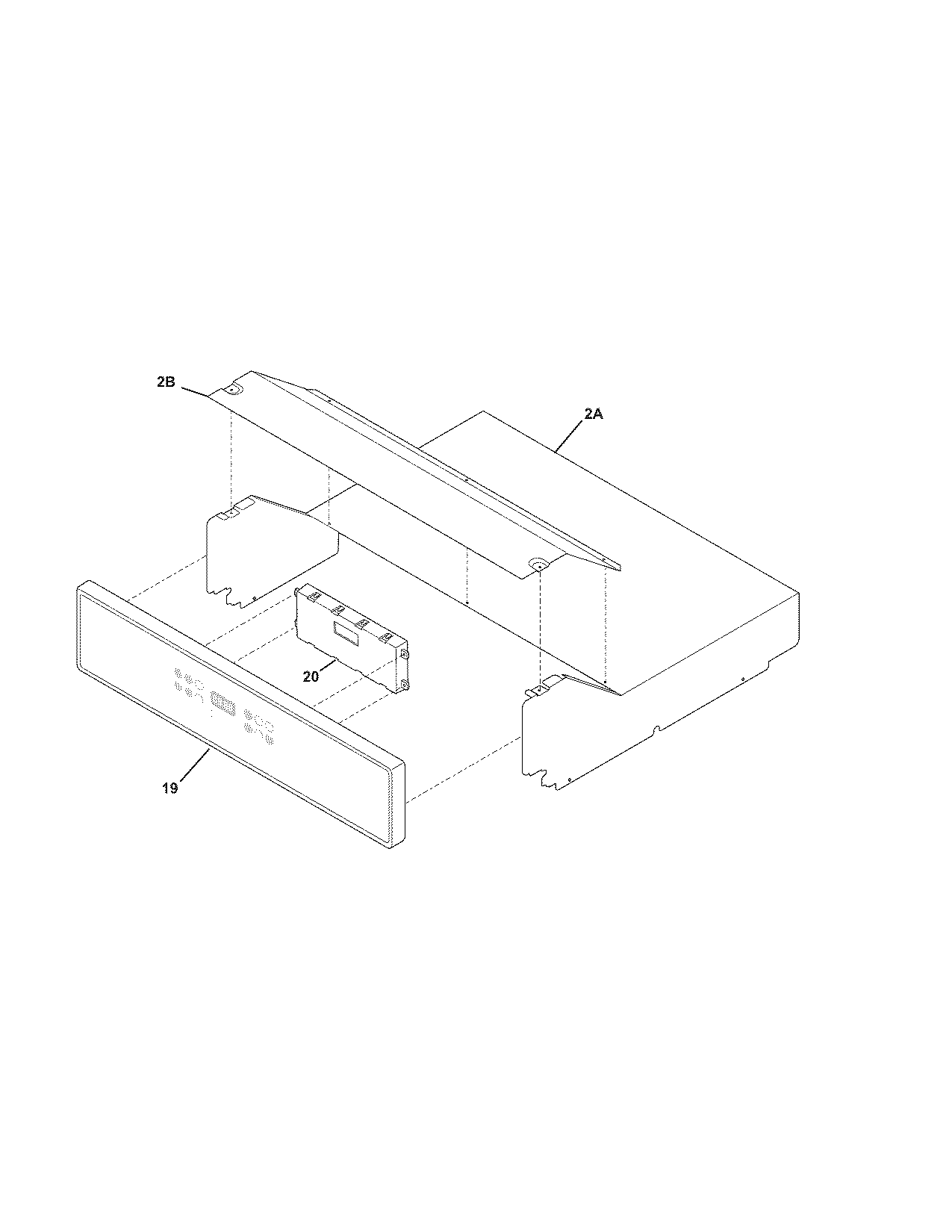

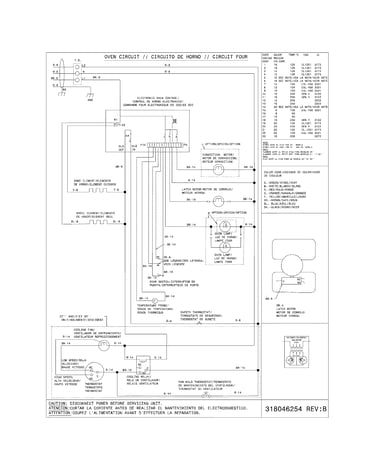

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Range Oven Light Bulb 5303013071
#15

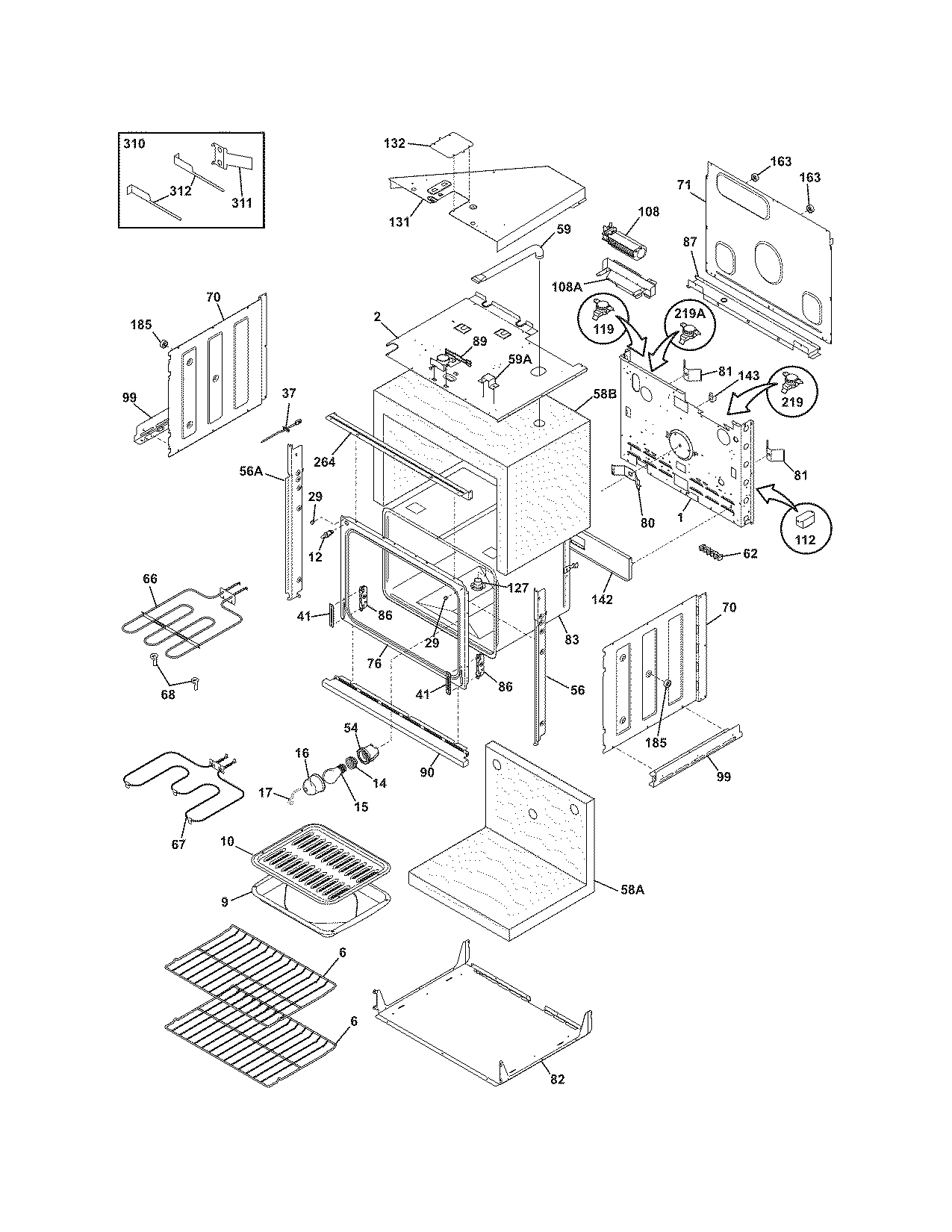

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Range Bake Element (replaces 318255402) 318255401
#67

Body diagram

Range bake element (replaces 318255402)

Part #318255401

BEST SELLER
$156.67 |
7% OFF Phone Price : $168.67
In Stock
Wall Oven Thermal Fuse 318004900
#119

Body diagram

Wall oven thermal fuse

Part #318004900

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Crosley Range High-limit Thermostat 318003614
#219

Body diagram

Crosley range high-limit thermostat

Part #318003614

BEST SELLER
$67.02 |
8% OFF Phone Price : $73.02
In Stock
Range Oven Door Handle (replaces 316108802, 316203000, 318231200) 316270200
#39

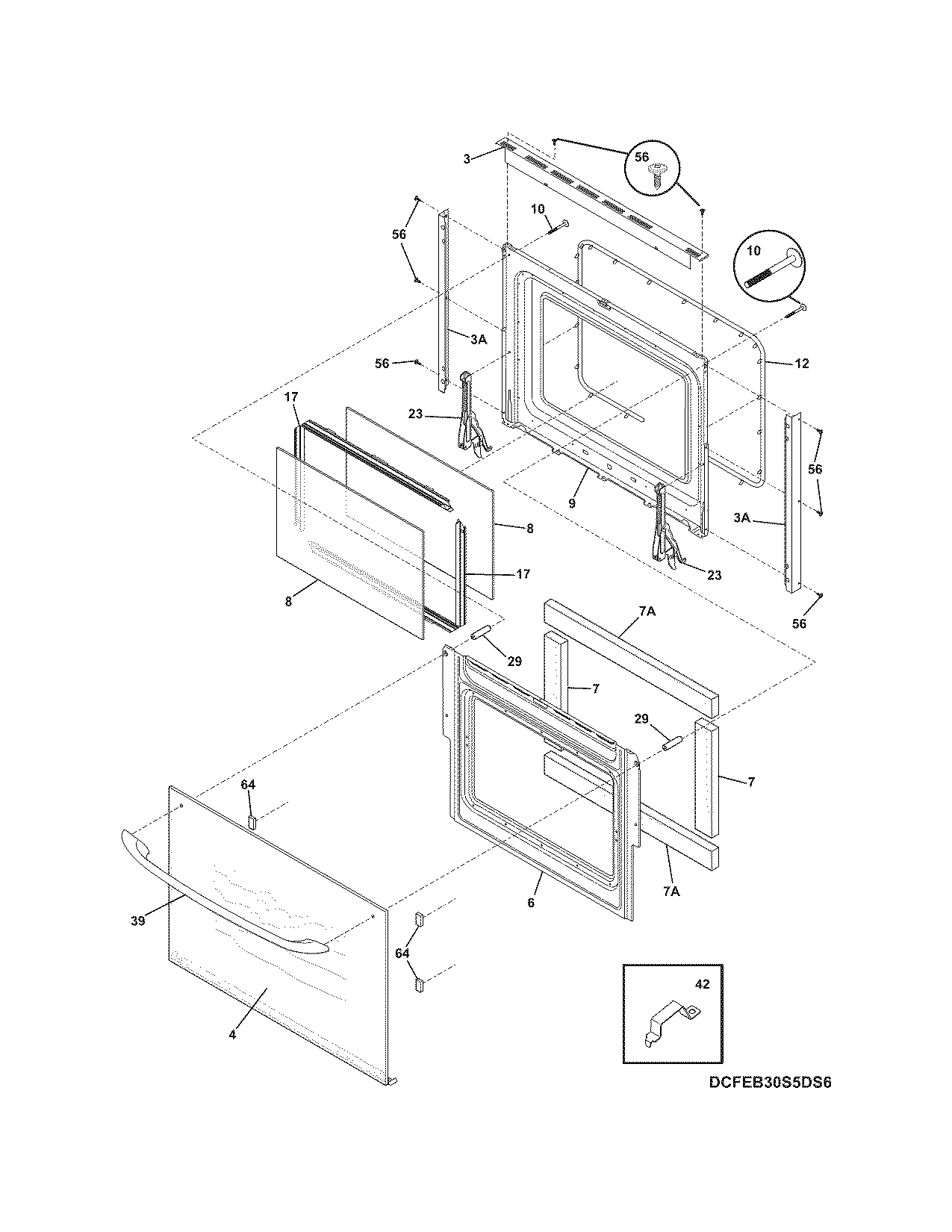

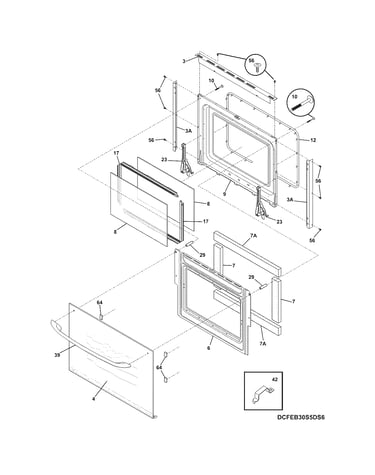

Door diagram

Range oven door handle (replaces 316108802, 316203000, 318231200)

Part #316270200

BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Wall Oven Removal Tool, Left (replaces 318246701, 7318246703) 318246703
#312

Body diagram

Wall oven removal tool, left (replaces 318246701, 7318246703)

Part #318246703

This item is not returnable
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Range Oven Rack Assembly 318345207
#6

Body diagram

Range oven rack assembly

Part #318345207

Replaced by #318262516

?
Manufacturer substitution
This part replaces 318345207. Substitute parts can look different from the original.
$112.36 |
10% OFF Phone Price : $124.36
In Stock
