Model # 919175960 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919175960 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 98 parts |

#43

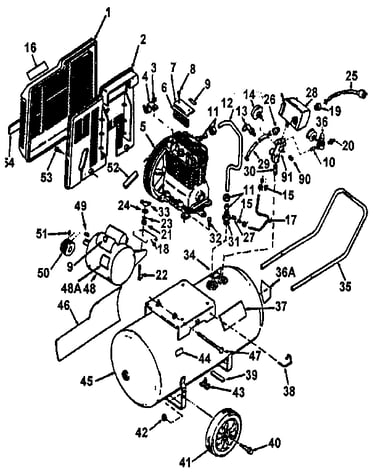

Air compressor diagram

Valve

Part #SS-2707

The manufacturer no longer makes this part, and there's no substitute part

#57

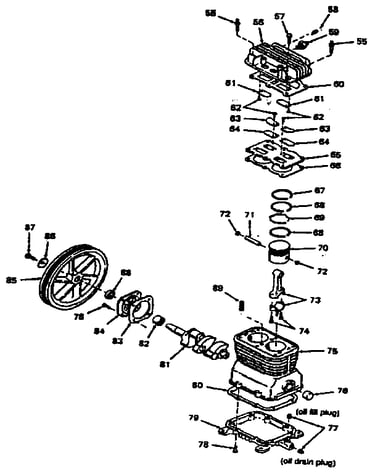

Compressor pump diagram

Unknown brand name #696 air compressor screw, 3/8-16 x 1-1/2-in

Part #SSF-955

The manufacturer no longer makes this part, and there's no substitute part

#16

Air compressor diagram

Label

Part #LA-2397

The manufacturer no longer makes this part, and there's no substitute part

#40

Air compressor diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

#86

Compressor pump diagram

Porter cable washer

Part #SSN-1014-ZN

The manufacturer no longer makes this part, and there's no substitute part

#90

Compressor pump diagram

Unknown brand name #696 pipe plug

Part #SS-3222-CD

The manufacturer no longer makes this part, and there's no substitute part

#25

Air compressor diagram

Unknown brand name #696 air compressor power cord

Part #SUDL-415-1

The manufacturer no longer makes this part, and there's no substitute part

#15

Air compressor diagram

Air compressor nut and sleeve

Part #SSP-7811

The manufacturer no longer makes this part, and there's no substitute part

#89

Compressor pump diagram

Unknown brand name #696 air compressor exhaust vent filter

Part #265-6

The manufacturer no longer makes this part, and there's no substitute part

#51

Compressor pump diagram

Unknown brand name #696 air compressor set screw

Part #SS-391

The manufacturer no longer makes this part, and there's no substitute part
