Amana
Countertop Microwave

Model # 2036.005 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 2036005 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Nut, Assembly Mtg M1D363
#41B

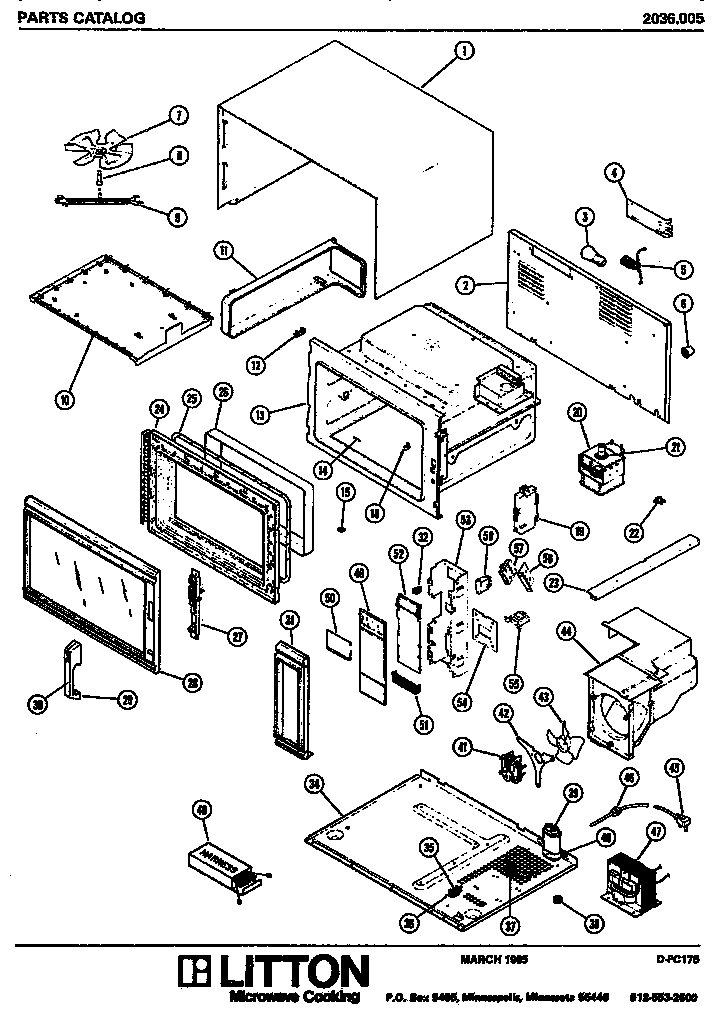

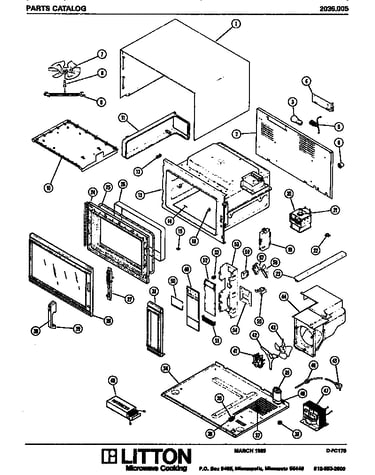

Microwave parts diagram

Nut, assembly mtg

Part #M1D363

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief M2D655
#46

Microwave parts diagram

Strain relief

Part #M2D655

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor M12D83
#41A

Microwave parts diagram

Blower motor

Part #M12D83

The manufacturer no longer makes this part, and there's no substitute part

Cavity Plug - Side M2D601
#18

Microwave parts diagram

Cavity plug - side

Part #M2D601

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hinge Mounting M1D384
#27B

Microwave parts diagram

Nut, hinge mounting

Part #M1D384

The manufacturer no longer makes this part, and there's no substitute part

Touch Panel Assembly (includes Ref. No. 50) M7D791
#49

Microwave parts diagram

Touch panel assembly (includes ref. no. 50)

Part #M7D791

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder M4D39
#36A

Microwave parts diagram

Fuse holder

Part #M4D39

The manufacturer no longer makes this part, and there's no substitute part

Scew, Duct Mounting M1D897
Scew, duct mounting

Part #M1D897

The manufacturer no longer makes this part, and there's no substitute part

Foot M2D179
#38A

Microwave parts diagram

Foot

Part #M2D179

The manufacturer no longer makes this part, and there's no substitute part

Display Window M2D688
#50

Microwave parts diagram

Display window

Part #M2D688

The manufacturer no longer makes this part, and there's no substitute part
