Model # 296A Official Eureka super broom vacuum cleaner
Here are the diagrams and repair parts for Official Eureka 296A super broom vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
296A Vacuum Cleaners
#7

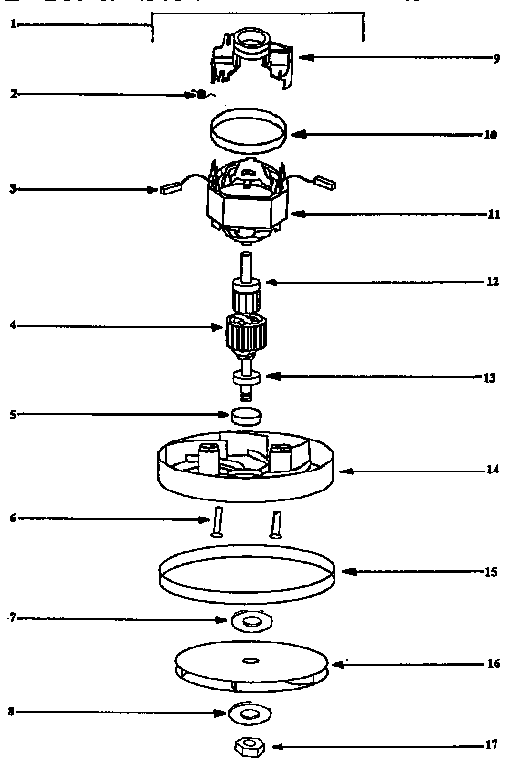

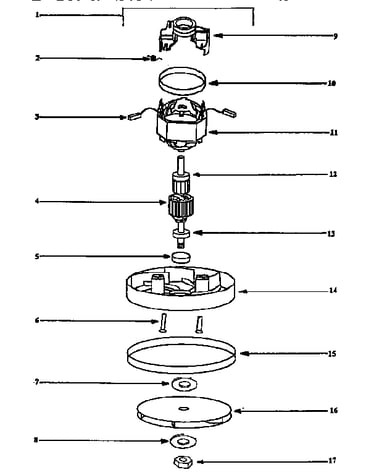

Motor assembly diagram
Spacer
Part #56453
The manufacturer no longer makes this part, and there's no substitute part
#14
Motor assembly diagram
Fan
Part #15214-1
The manufacturer no longer makes this part, and there's no substitute part
#10
Motor assembly diagram
Gasket
Part #57364
The manufacturer no longer makes this part, and there's no substitute part
#2
Motor assembly diagram
Brush spring
Part #38038
The manufacturer no longer makes this part, and there's no substitute part
#8
Motor assembly diagram
Washer
Part #56467
The manufacturer no longer makes this part, and there's no substitute part
#15

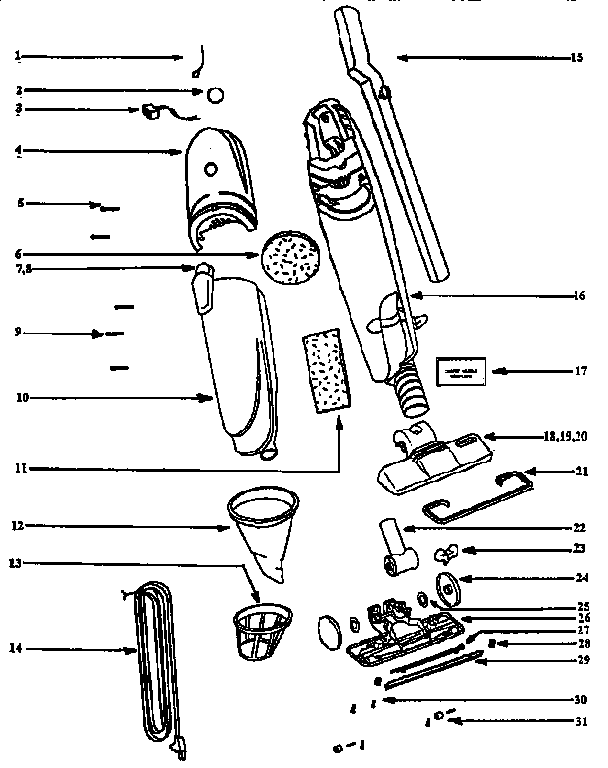

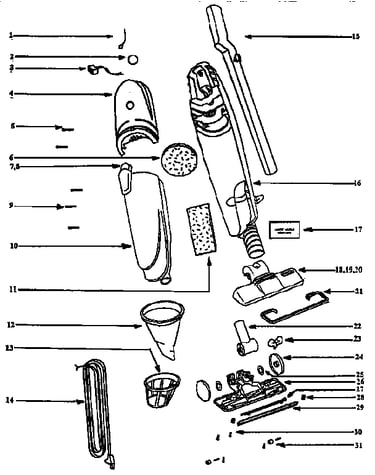

Unit parts diagram
Handle
Part #38649-1
The manufacturer no longer makes this part, and there's no substitute part
#11
Motor assembly diagram
Field
Part #60016-3
The manufacturer no longer makes this part, and there's no substitute part
#4
Motor assembly diagram
Armature
Part #60017-3
The manufacturer no longer makes this part, and there's no substitute part
#4
Unit parts diagram
Eureka motor
Part #60020-1
The manufacturer no longer makes this part, and there's no substitute part
#9
Motor assembly diagram
End cap
Part #15216
The manufacturer no longer makes this part, and there's no substitute part
