Model # SHE53TL2UC/07 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE53TL2UC-07 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

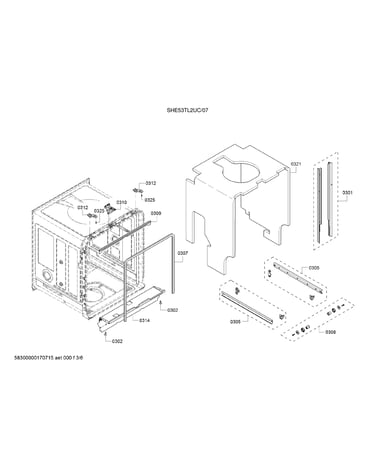

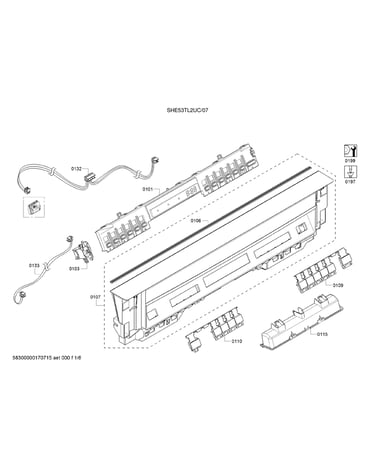

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Dishwasher Circulation Pump With Heater 12008381
#401

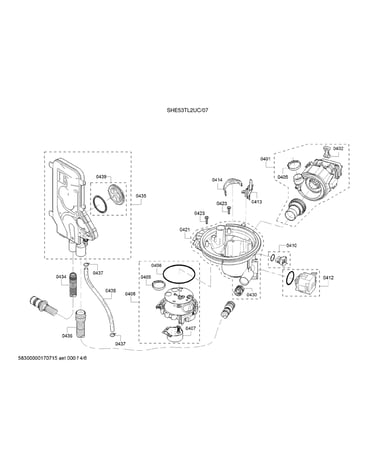

Water inlet system/heat pump/sump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$111.40 |
10% OFF Phone Price : $123.40
In Stock
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#521

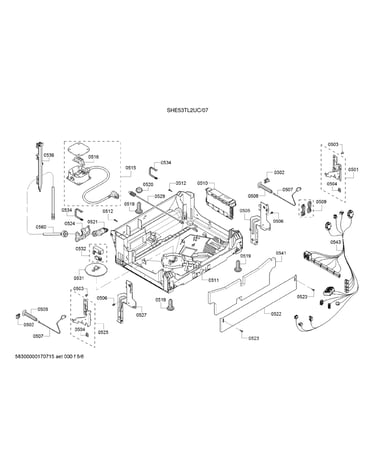

Base/power cord diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$26.44 |
18% OFF Phone Price : $32.44
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#406

Water inlet system/heat pump/sump diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$49.82 |
11% OFF Phone Price : $55.82
In Stock
Dishwasher Door Spring Kit (replaces 00623540, 00627230, 00628833, 00659339, 00751392, 623540, 627230, 659339, 751392, 754866) 00754866
#508

Base/power cord diagram

Dishwasher door spring kit (replaces 00623540, 00627230, 00628833, 00659339, 00751392, 623540, 627230, 659339, 751392, 754866)

Part #00754866

BEST SELLER
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#405

Water inlet system/heat pump/sump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Spray Arm, Upper (replaces 745856) 00745856
#603

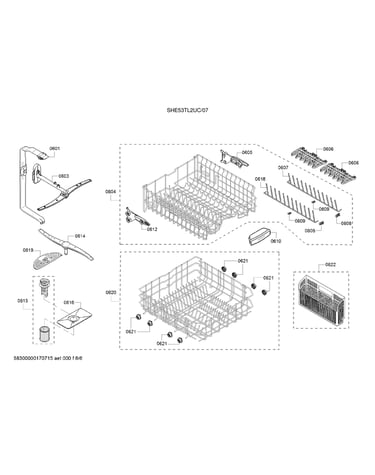

Spray arms/racks diagram

Dishwasher spray arm, upper (replaces 745856)

Part #00745856

BEST SELLER
$27.51 |
18% OFF Phone Price : $33.51
In Stock
Dishwasher Fill Funnel Assembly (replaces 744882) 00744882
#435

Water inlet system/heat pump/sump diagram

Dishwasher fill funnel assembly (replaces 744882)

Part #00744882

BEST SELLER
$34.58 |
15% OFF Phone Price : $40.58
In Stock
Dishwasher Dishrack Assembly, Lower 00689997
#620

Spray arms/racks diagram

Dishwasher dishrack assembly, lower

Part #00689997

Replaced by #20000533

?
Manufacturer substitution
This part replaces 00689997. Substitute parts can look different from the original.
BEST SELLER
$119.85 |
9% OFF Phone Price : $131.85
Back Order
Dishwasher Float Switch Assembly (replaces 751391) 00751391
#532

Base/power cord diagram

Dishwasher float switch assembly (replaces 751391)

Part #00751391

BEST SELLER
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Dishwasher Sump 00752078
#421

Water inlet system/heat pump/sump diagram

Dishwasher sump

Part #00752078

Replaced by #00668102

?
Manufacturer substitution
This part replaces 00752078. Substitute parts can look different from the original.
BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
