Model # SGE63E06UC/51 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SGE63E06UC-51 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Hose Clamp 172272
#451

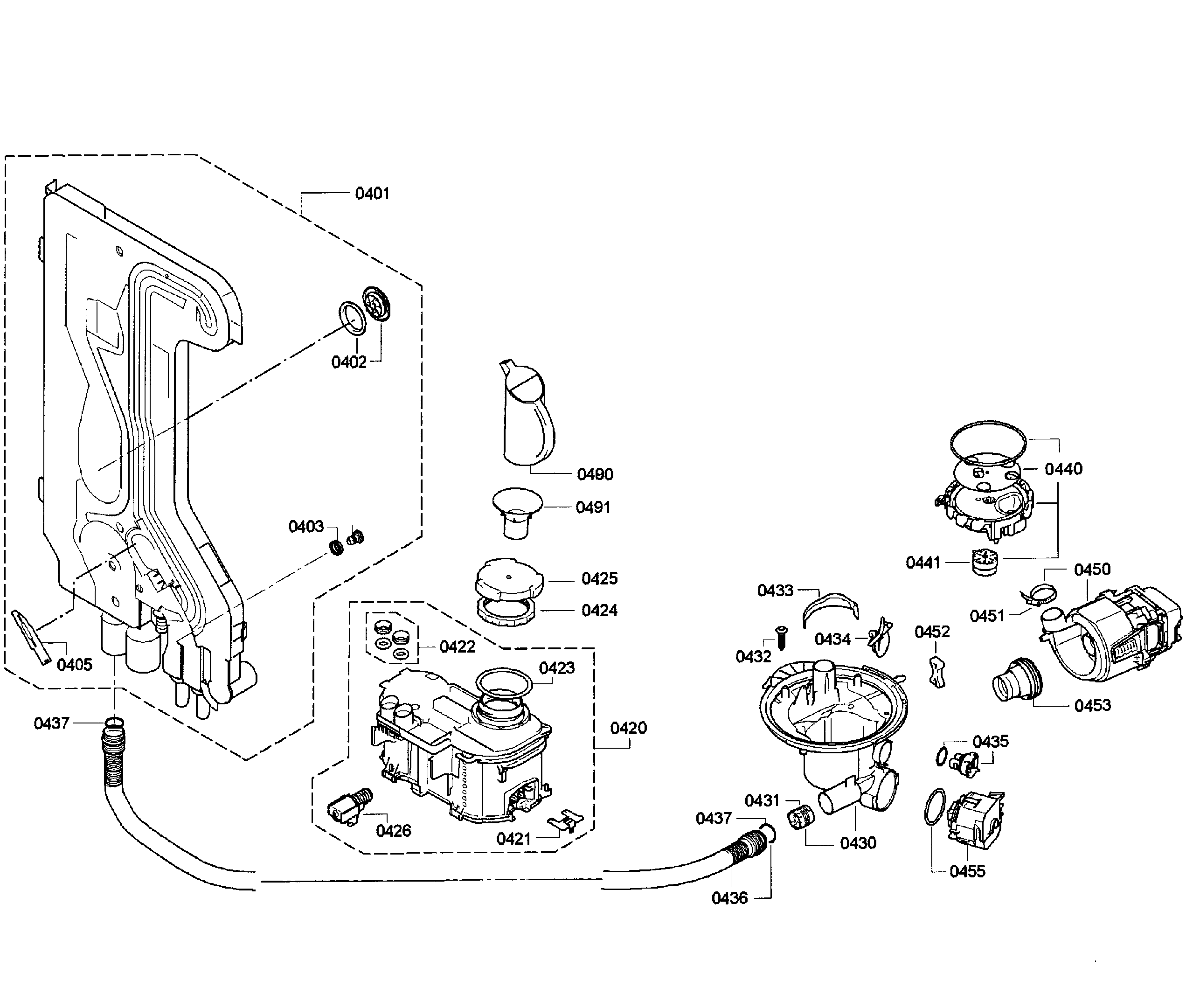

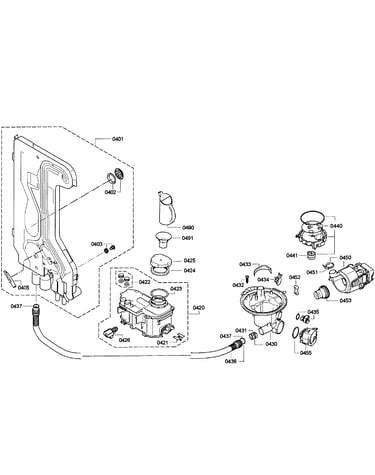

Pump assy diagram

Hose clamp

Part #172272

Replaced by #00172272

?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Drain Pump 620774
#455

Pump assy diagram

Dishwasher drain pump

Part #620774

Replaced by #00620774

?
Manufacturer substitution
This part replaces 620774. Substitute parts can look different from the original.
BEST SELLER
$66.09 |
8% OFF Phone Price : $72.09
In Stock
Wheel 611475
#621

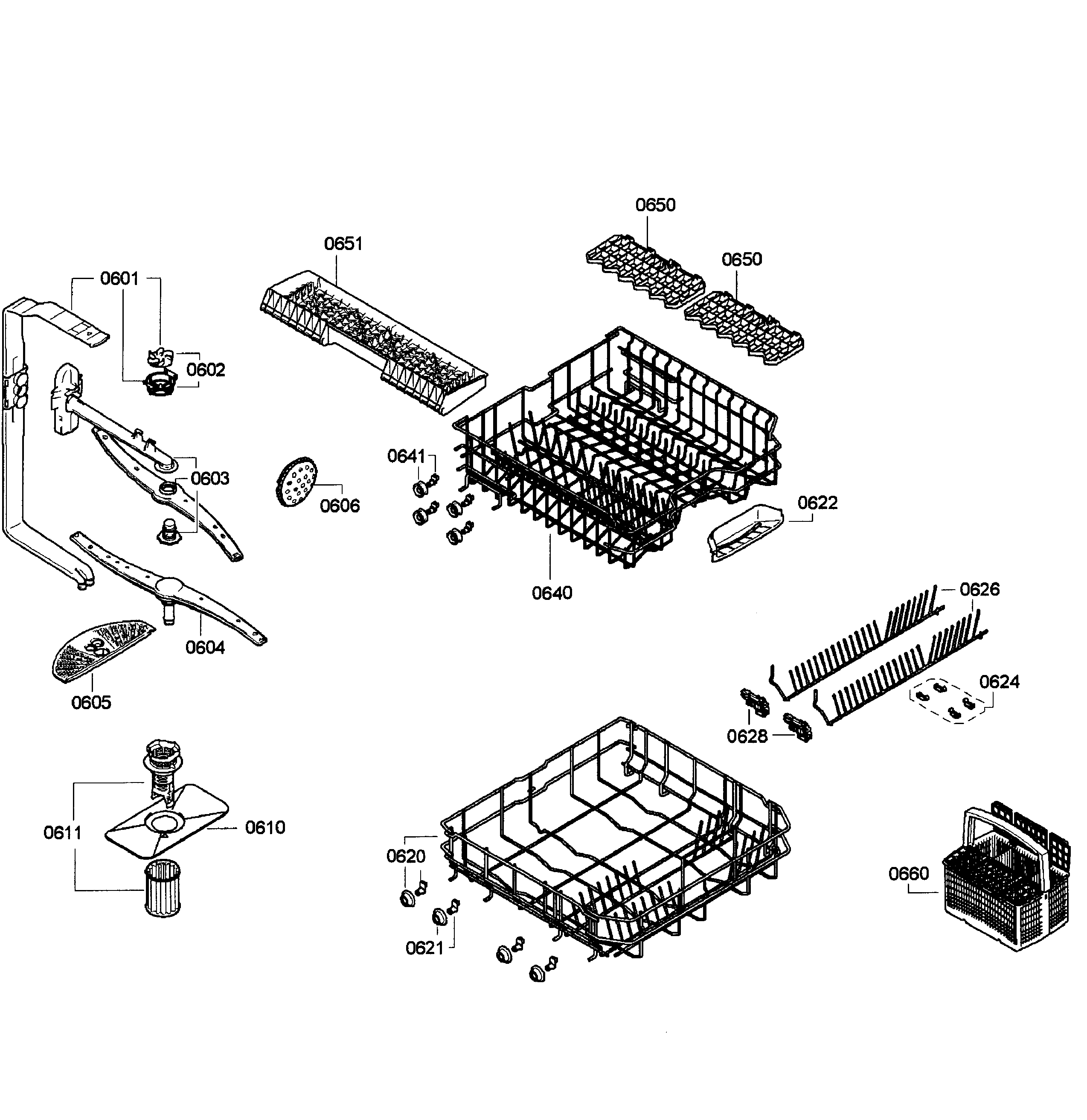

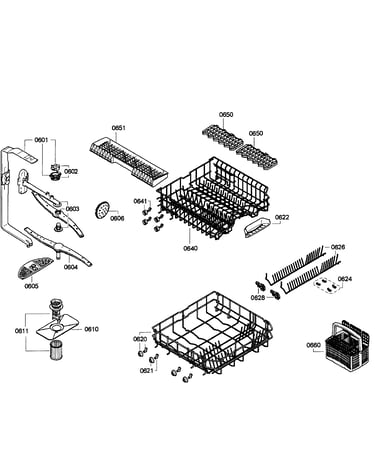

Baskets diagram

Wheel

Part #611475

Replaced by #00611475

?
Manufacturer substitution
This part replaces 611475. Substitute parts can look different from the original.
BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Sump 668102
#430

Pump assy diagram

Sump

Part #668102

Replaced by #00668102

?
Manufacturer substitution
This part replaces 668102. Substitute parts can look different from the original.
BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Guide 611372
#555

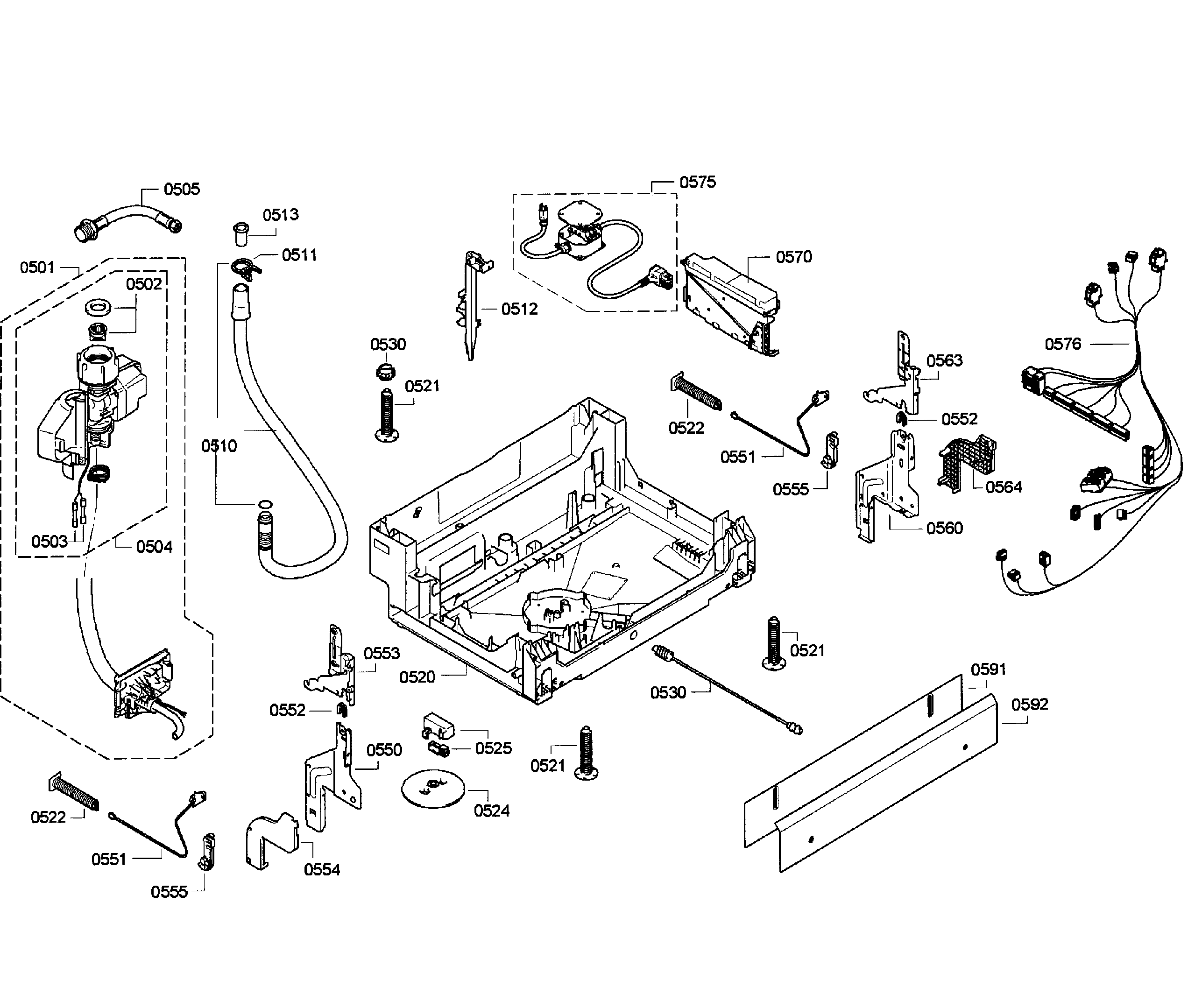

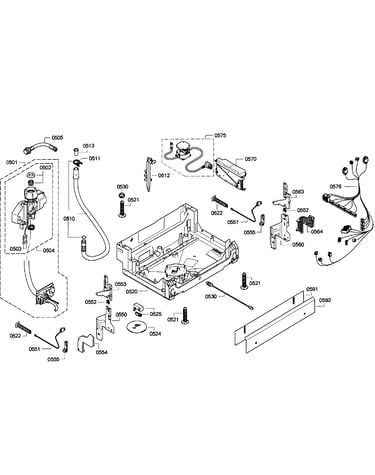

Base assy diagram

Guide

Part #611372

Replaced by #00623536

?
Manufacturer substitution
This part replaces 611372. Substitute parts can look different from the original.
BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
On Off Main 620775
#113

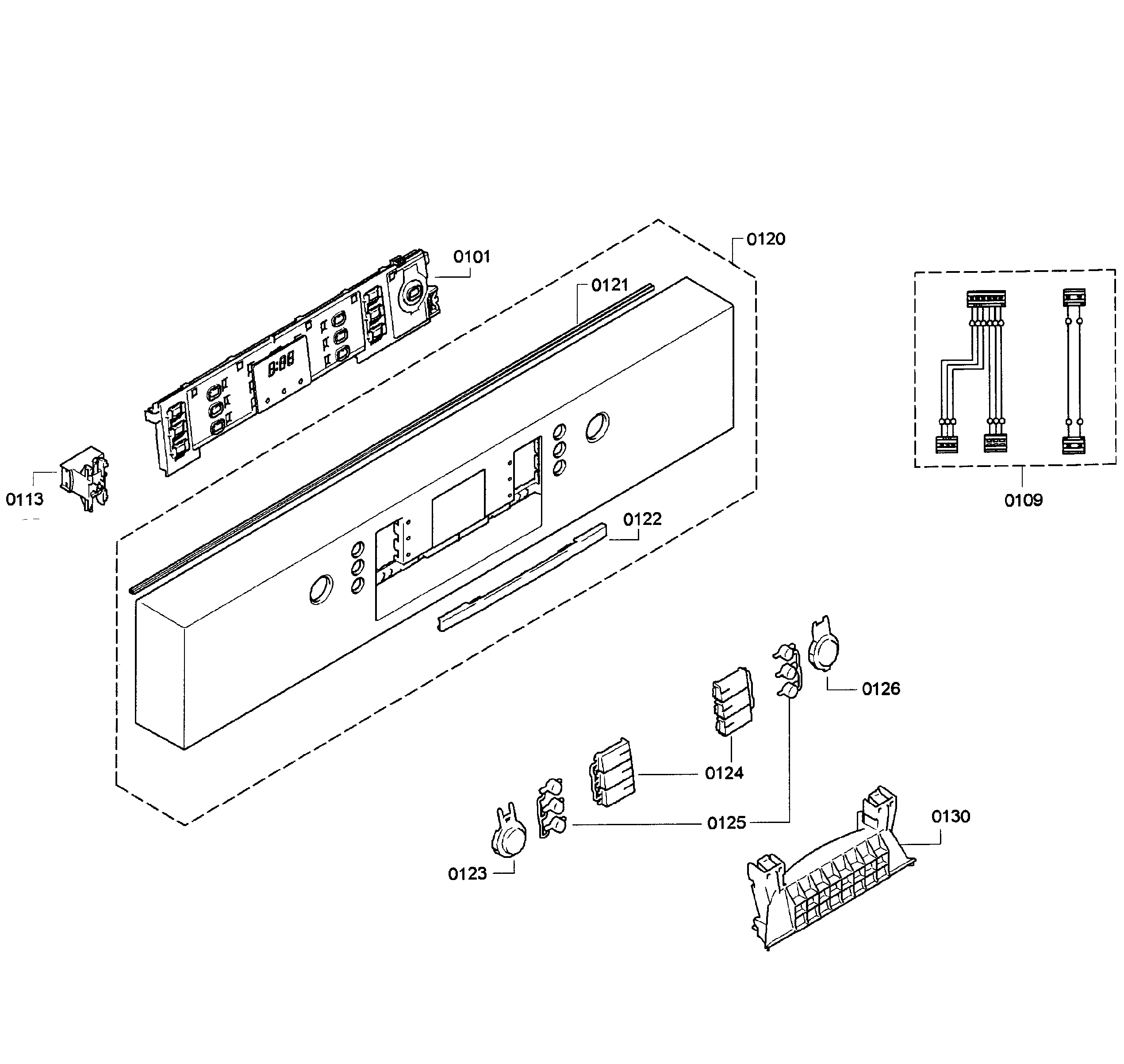

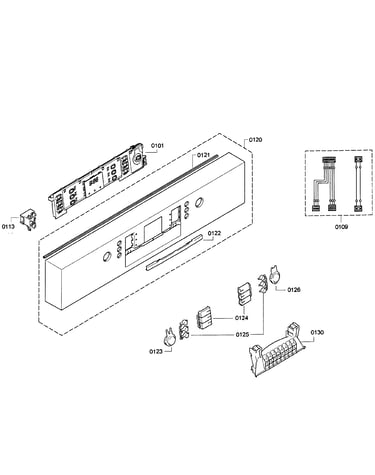

Control panel diagram

On off main

Part #620775

Replaced by #00620775

?
Manufacturer substitution
This part replaces 620775. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dishwasher Screw 151703
#242

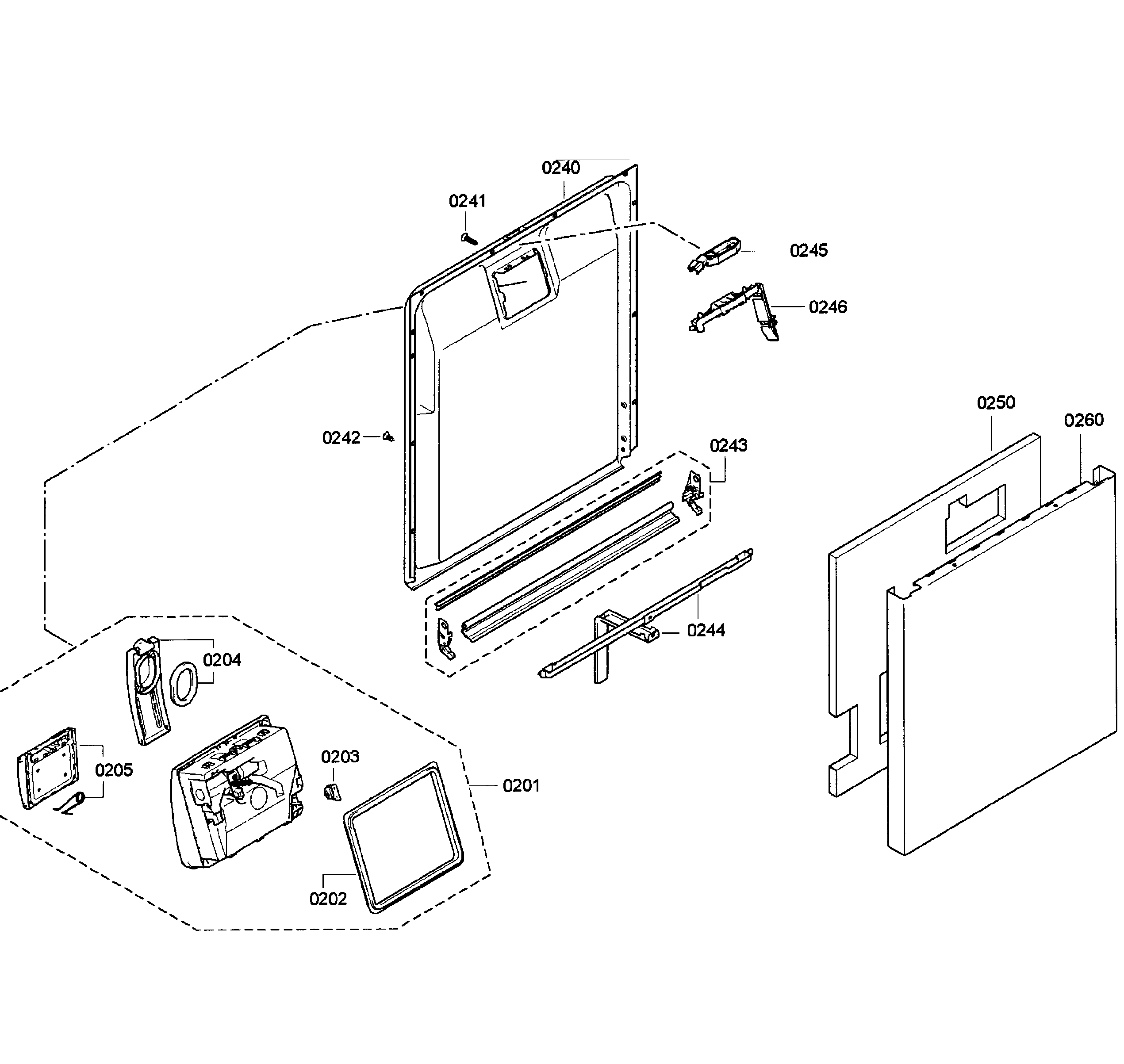

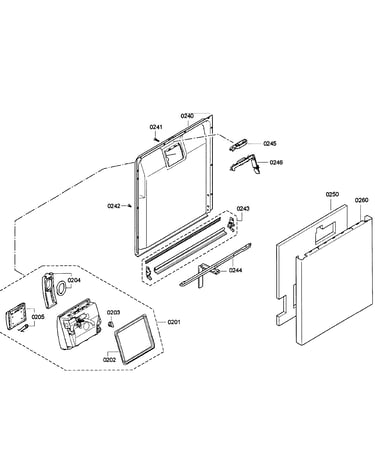

Door assy diagram

Dishwasher screw

Part #151703

Replaced by #00151703

?
Manufacturer substitution
This part replaces 151703. Substitute parts can look different from the original.
This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Bearing 165296
#552

Base assy diagram

Bearing

Part #165296

Replaced by #00165296

?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Door Gasket 263096
#331

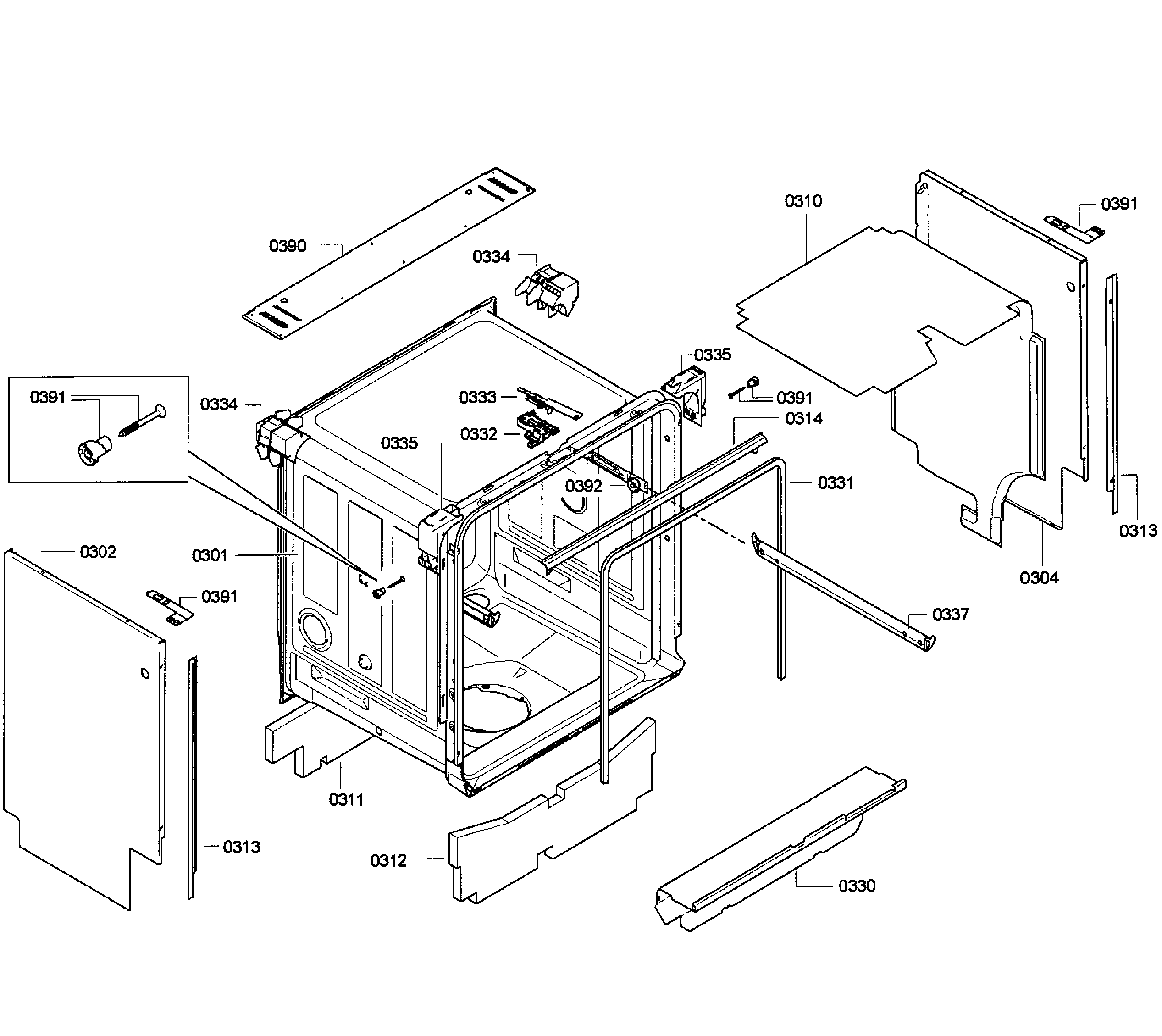

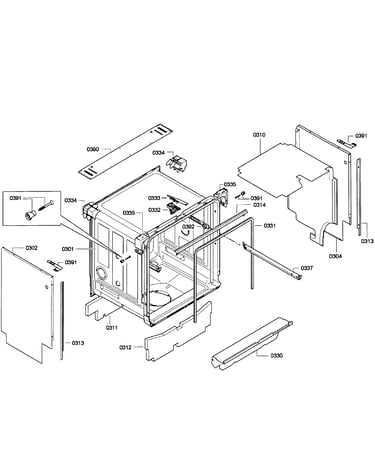

Cabinet assy diagram
