Model # FES366ECH Official Frigidaire range

Here are the diagrams and repair parts for Official Frigidaire FES366ECH range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

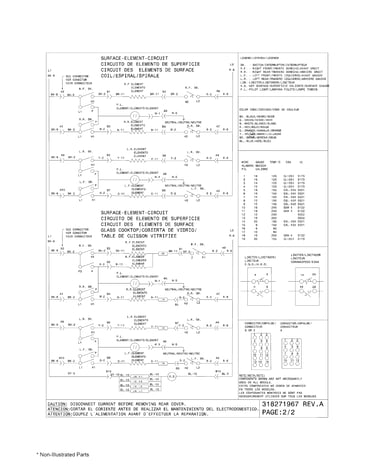

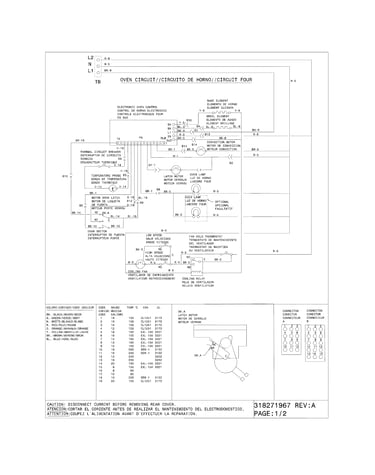

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Range Oven Light Bulb 5303013071
#15

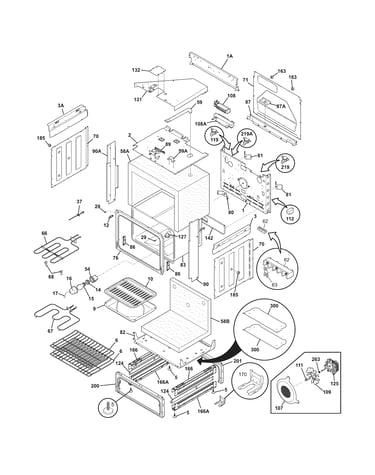

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Element 318198830
#15B

Top/drawer diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Range Dual Radiant Surface Element 316418401
#15

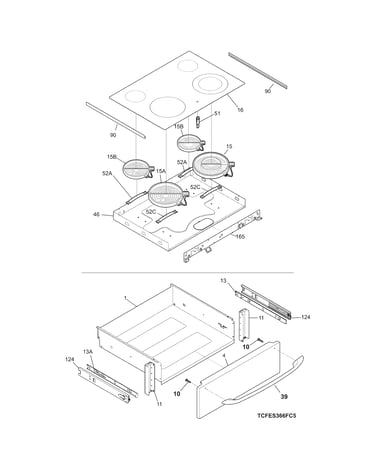

Top/drawer diagram

Range dual radiant surface element

Part #316418401

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316418401. Substitute parts can look different from the original.
BEST SELLER
$159.22 |
7% OFF Phone Price : $171.22
In Stock
Range Oven Door Inner Glass 316117500
#8

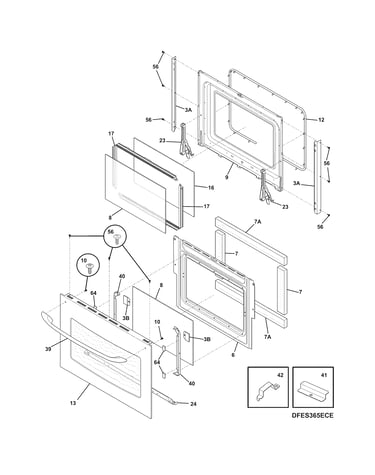

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Dual Element Infinite Switch 318191027
#54B

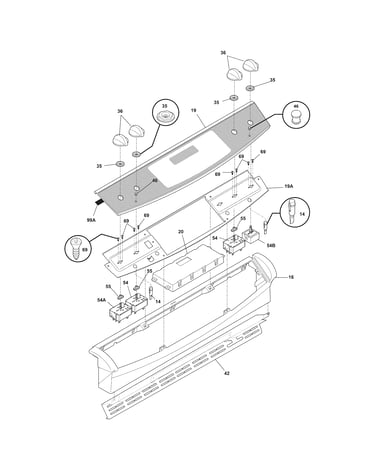

Backguard diagram

Range dual element infinite switch

Part #318191027

Replaced by #318191023

?
Manufacturer substitution
This part replaces 318191027. Substitute parts can look different from the original.
BEST SELLER
$62.73 |
9% OFF Phone Price : $68.73
In Stock
Fan Blade 318398300
#109

Body diagram

Fan blade

Part #318398300

Replaced by #318398302

?
Manufacturer substitution
This part replaces 318398300. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Range Surface Element Control Switch 318293830
#54

Backguard diagram

Range surface element control switch

Part #318293830

BEST SELLER
$57.18 |
9% OFF Phone Price : $63.18
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
