Sharp
Countertop Microwave

Model # R-590BW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-590BW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

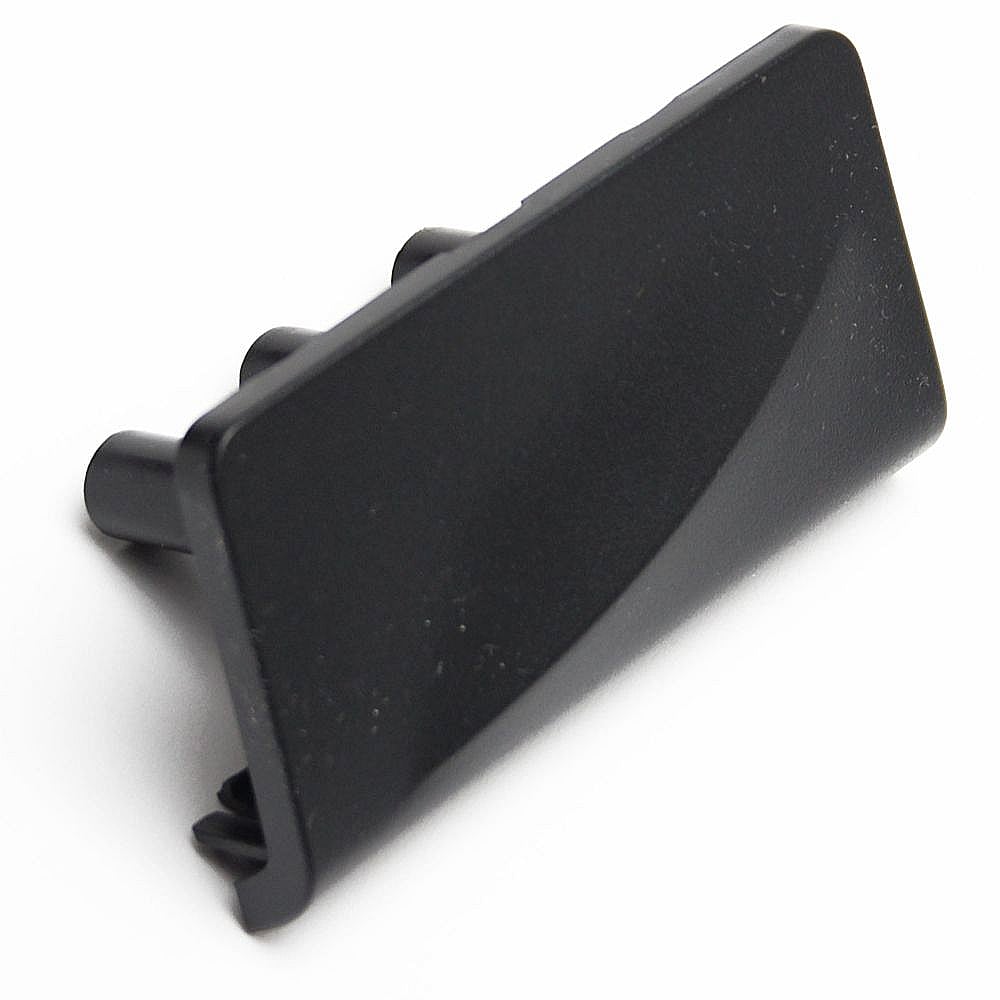

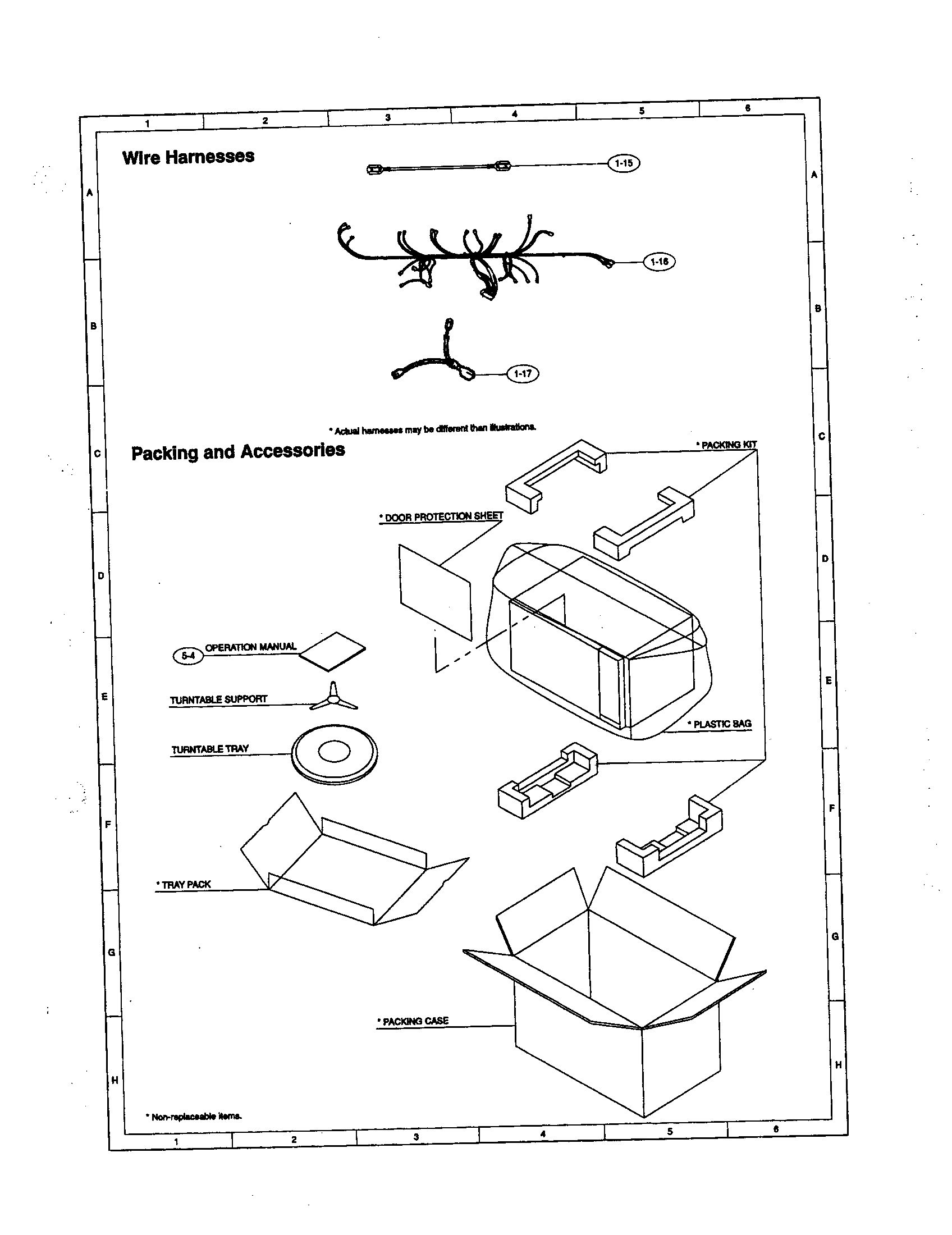

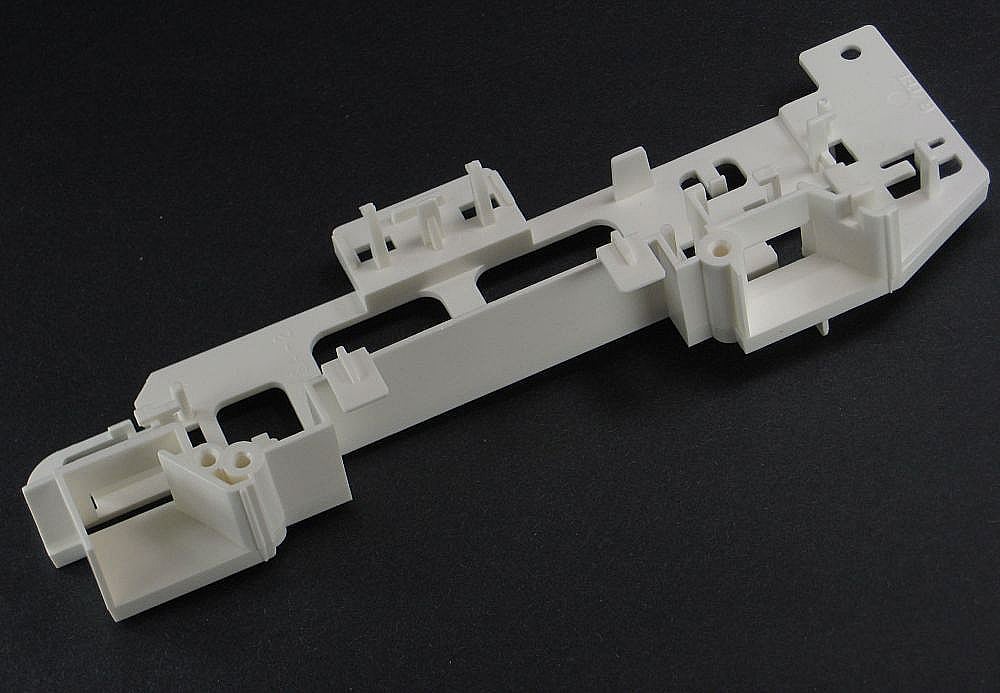

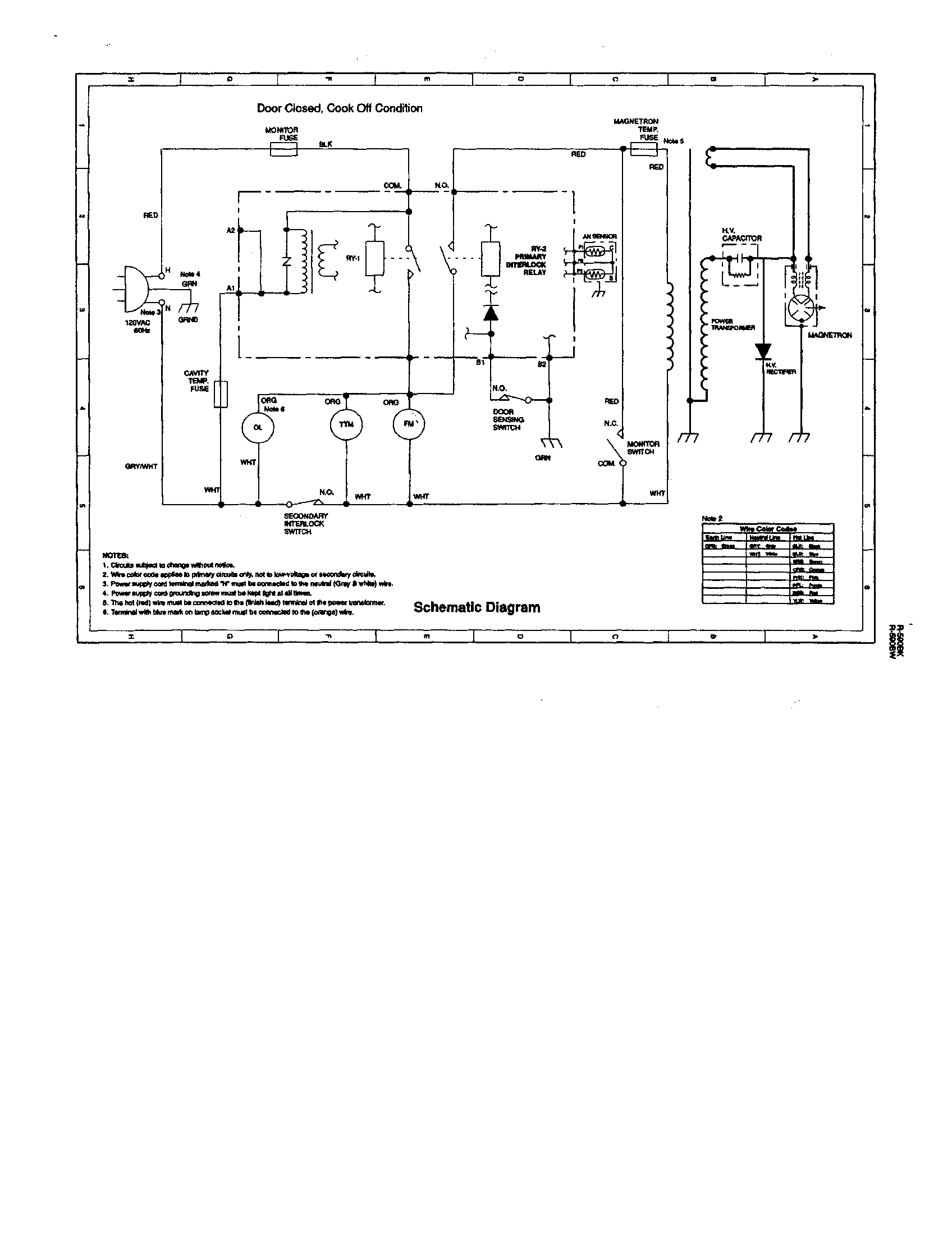

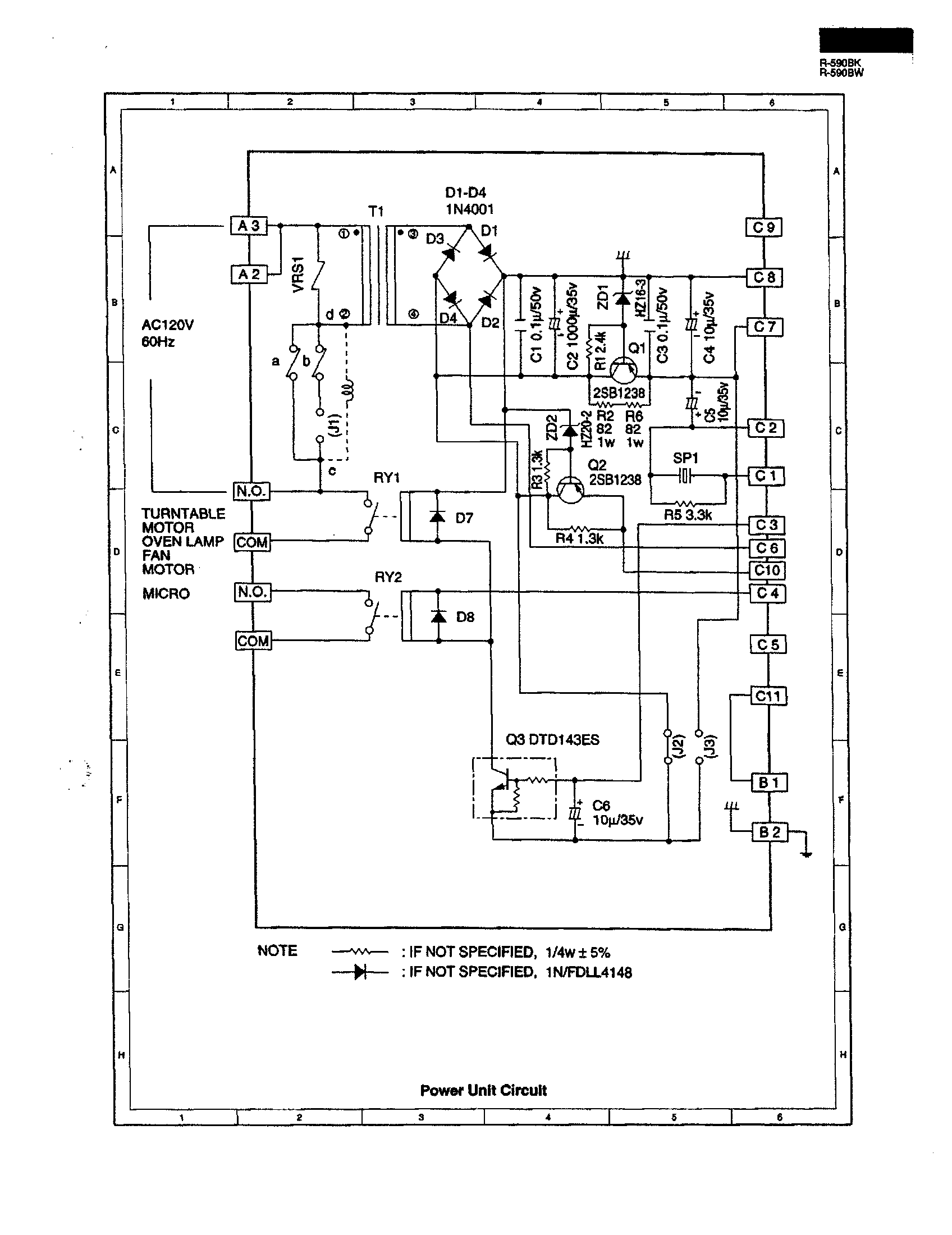

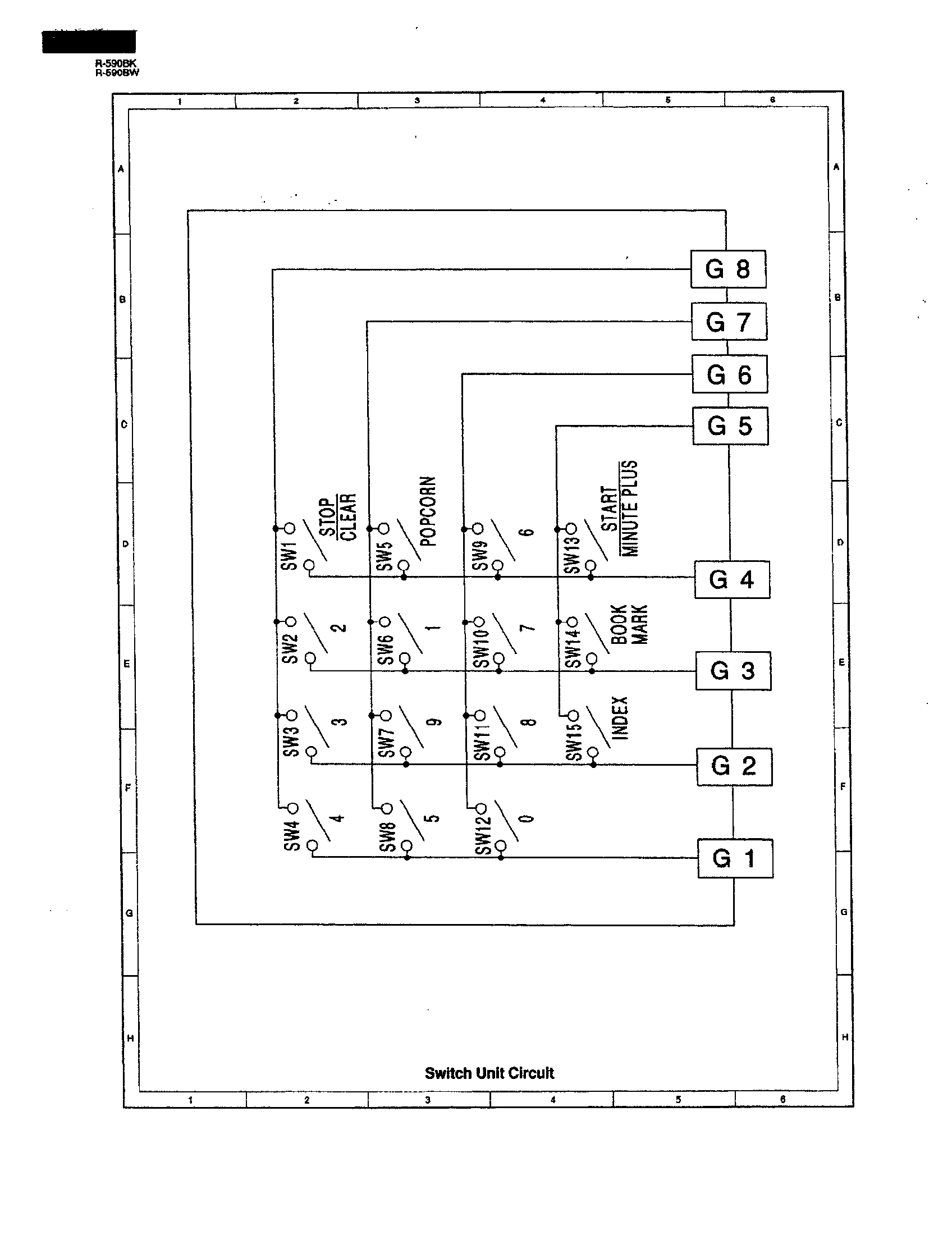

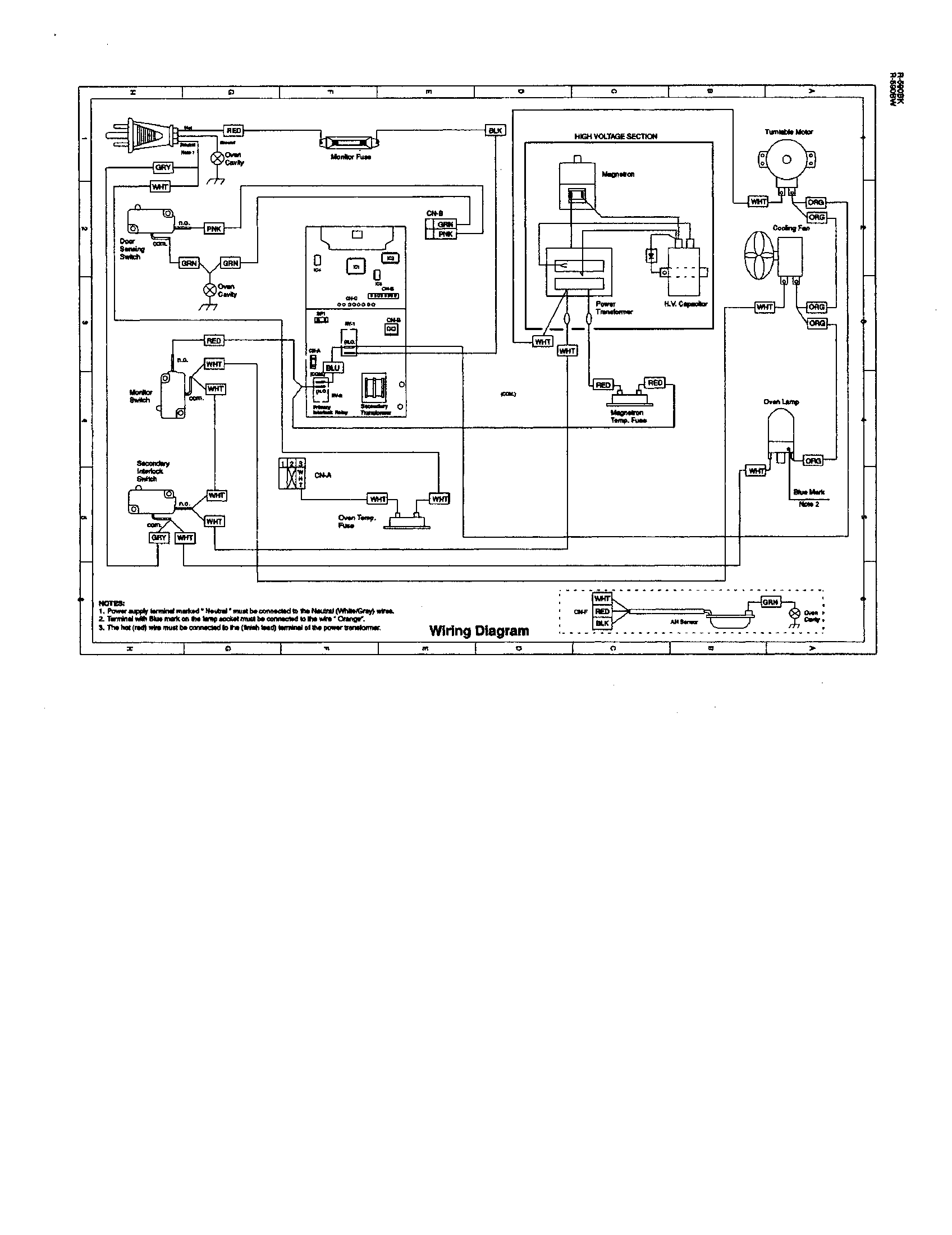

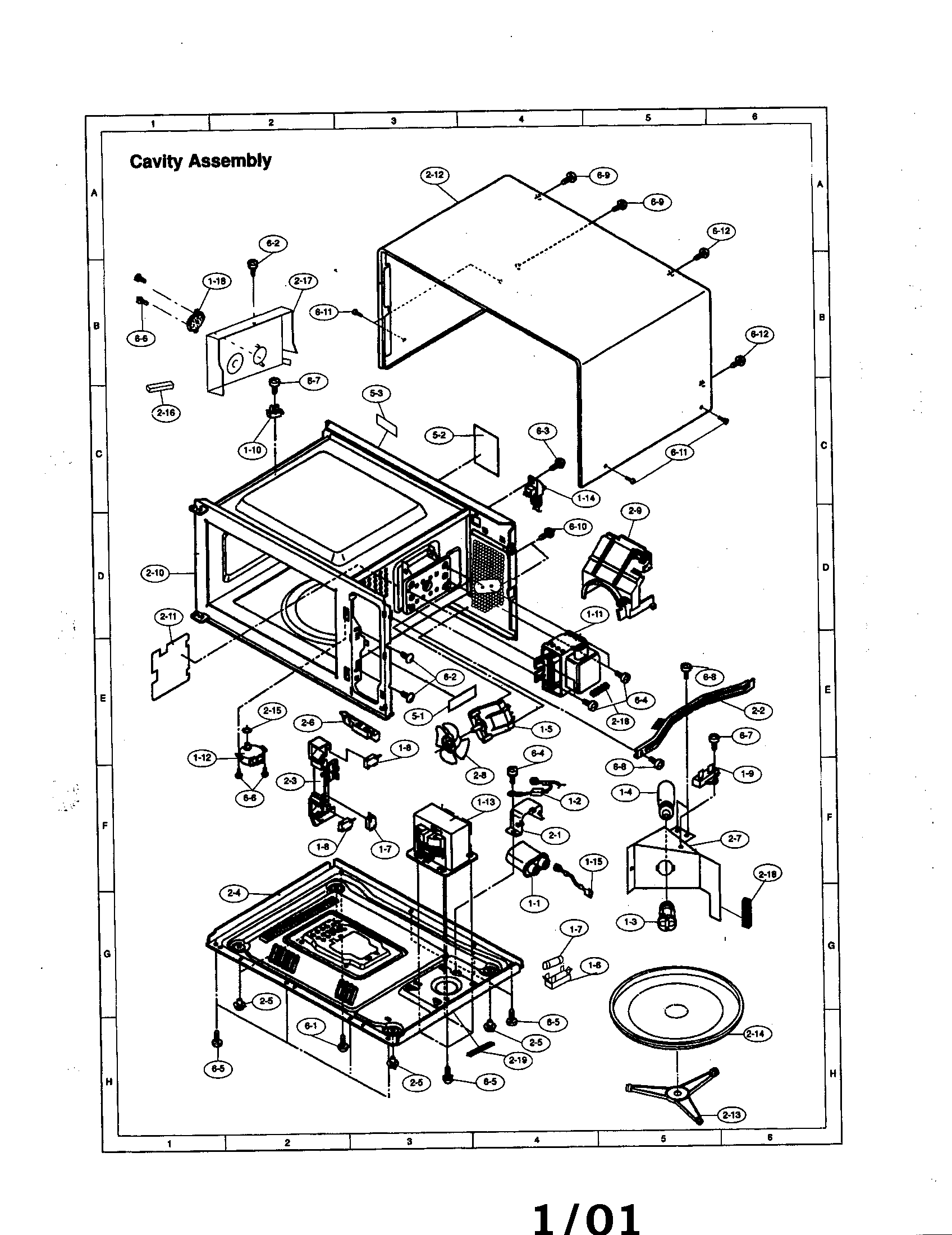

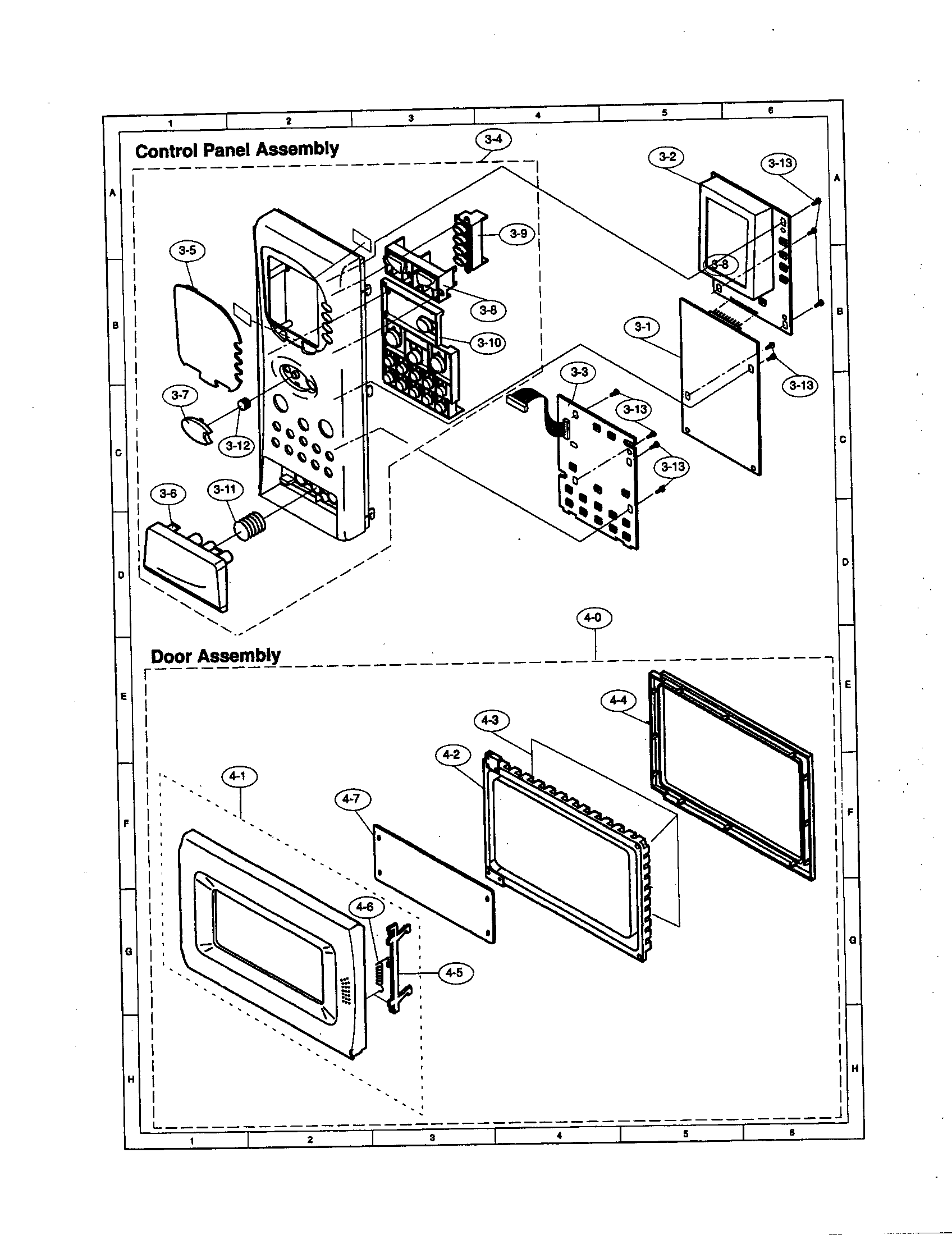

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Switch FFS-BA016/KIT

#1-07

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Door Film PSHEPB016MRE0

#4-03

All parts diagram

Door film

Part #PSHEPB016MRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA038WRE0

#6-09

All parts diagram

Screw

Part #LX-CZA038WRE0

The manufacturer no longer makes this part, and there's no substitute part

Door Panel FDORFB049MRT0

#4-02

All parts diagram

Door panel

Part #FDORFB049MRT0

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANPB001MRE0

#2-08

All parts diagram

Fan blade

Part #NFANPB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTDA186/KIT

#1-12

All parts diagram

Motor

Part #RMOTDA186/KIT

The manufacturer no longer makes this part, and there's no substitute part

Outer Case GCABUB083MRP0

#2-12

All parts diagram

Outer case

Part #GCABUB083MRP0

The manufacturer no longer makes this part, and there's no substitute part

Foot GLEGPB003MRF0

#2-05

All parts diagram

Foot

Part #GLEGPB003MRF0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZB011MRE0

#6-12

All parts diagram

Screw

Part #LX-CZB011MRE0

The manufacturer no longer makes this part, and there's no substitute part

Bracket LBNDKB007MRP0

#2-01

All parts diagram

Bracket

Part #LBNDKB007MRP0

The manufacturer no longer makes this part, and there's no substitute part
