Frigidaire
Electric Cooktop

Model # FEC26C2ASC Official Frigidaire electric cooktop

Here are the diagrams and repair parts for Official Frigidaire FEC26C2ASC electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

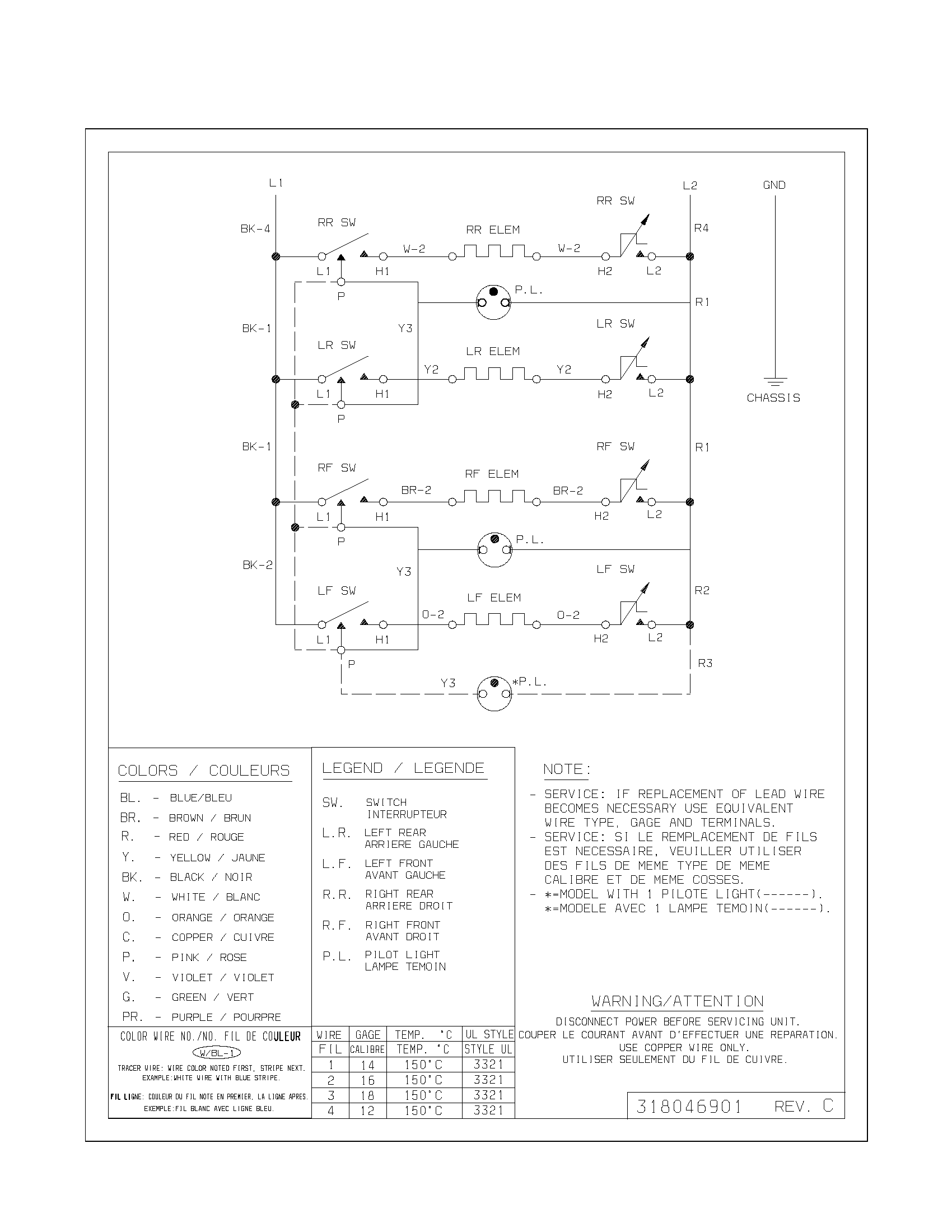

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Element 5303311320
#15

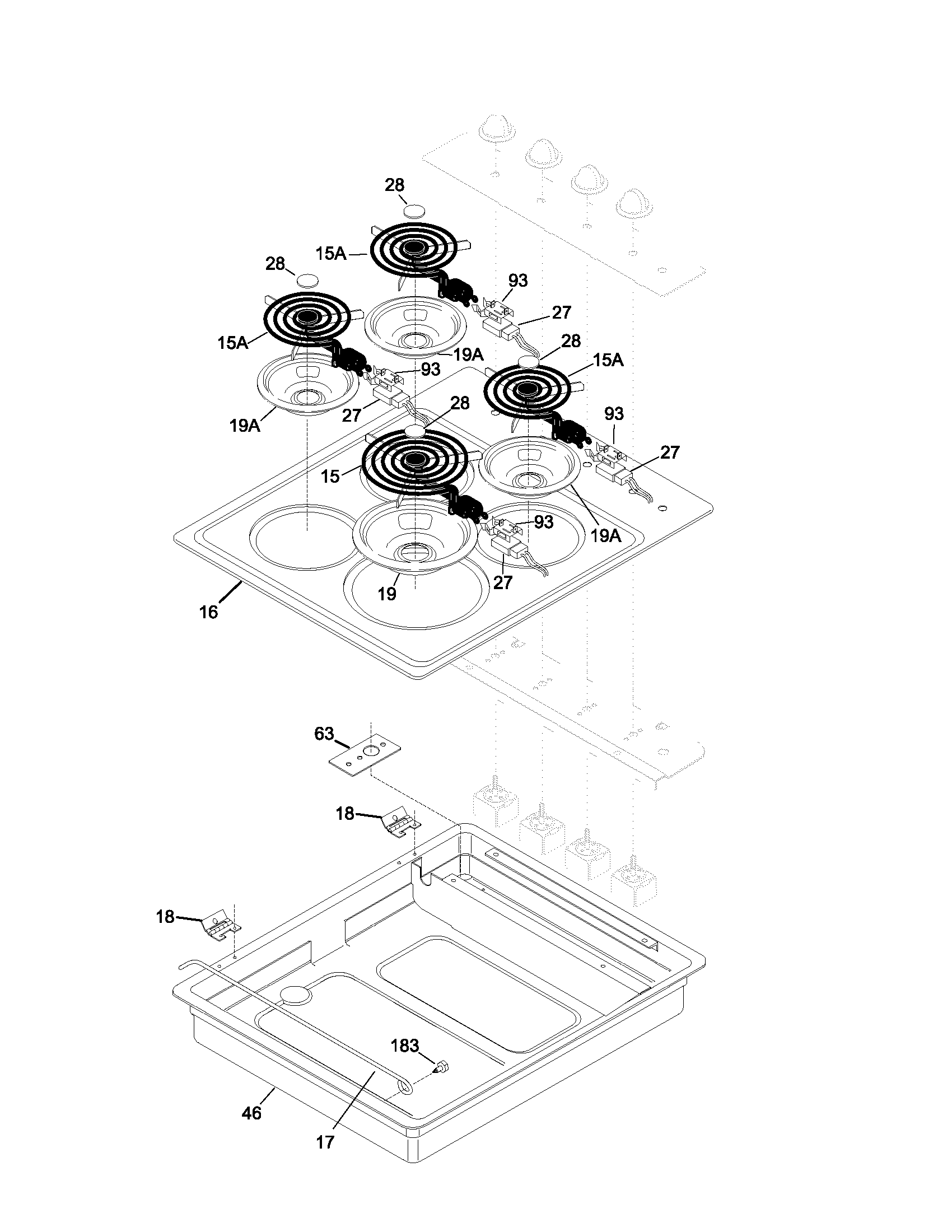

Maintop diagram

Element

Part #5303311320

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303311320. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Coil Surface Element, 6-in 5303015716
#15A

Maintop diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Range Screw 5303323134
#69

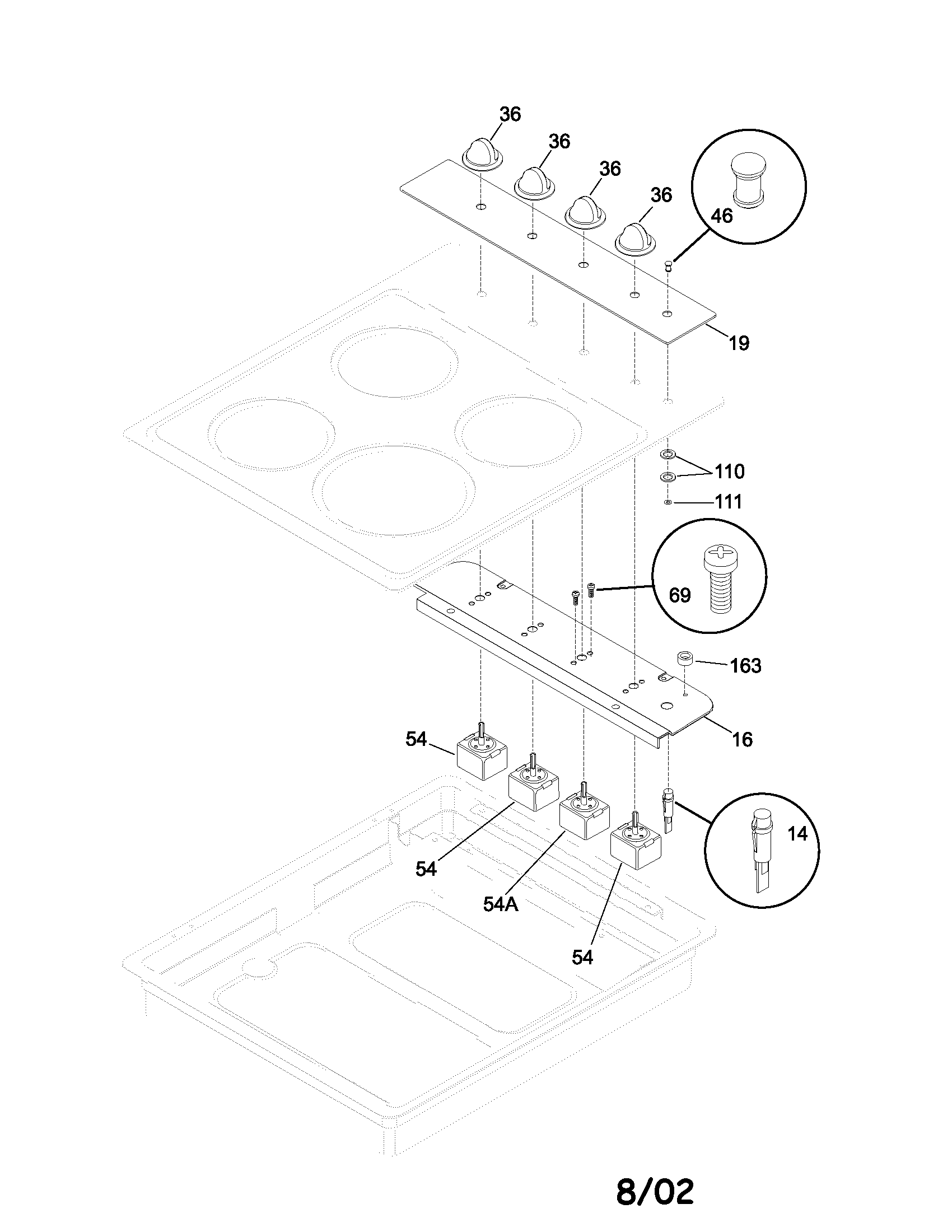

Controls diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Screw 3051070
#NI

Controls diagram

Screw

Part #3051070

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 3051070. Substitute parts can look different from the original.
$13.29
In Stock
Range Surface Burner Knob (replaces 318196603) 318196633
#36

Controls diagram

Range surface burner knob (replaces 318196603)

Part #318196633

$47.34 |
11% OFF Phone Price : $53.34
In Stock
Cooktop Element Control Knob Bushing 318146010
#NI

Controls diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Range Screw 5303323140
#NI

Controls diagram

Range screw

Part #5303323140

$11.17
In Stock
Range Surface Burner Knob 318196634
#36

Controls diagram

Range surface burner knob

Part #318196634

$52.80 |
10% OFF Phone Price : $58.80
Back Order
Range Surface Element Terminal Block 5303323704
#27

Maintop diagram

Range surface element terminal block

Part #5303323704

$39.11
In Stock
Pan Element 318067046
#19A

Maintop diagram

Pan element

Part #318067046

Replaced by #316048414

?
Manufacturer substitution
This part replaces 318067046. Substitute parts can look different from the original.
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
