Kenmore
Toaster

Model # 303481101 Official Kenmore toaster oven

Here are the diagrams and repair parts for Official Kenmore 303481101 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Guardwire 34-59-001
#10

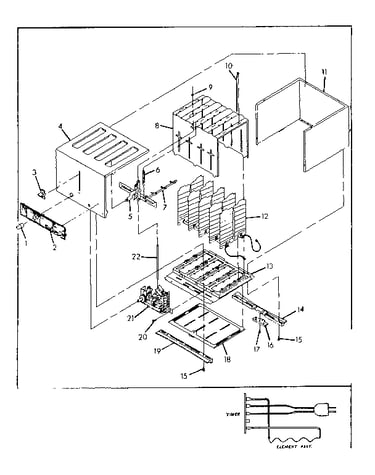

Replacement parts diagram

Guardwire

Part #34-59-001

The manufacturer no longer makes this part, and there's no substitute part

Instructions 22653A14

#NI

All parts diagram

Instructions

Part #22653A14

The manufacturer no longer makes this part, and there's no substitute part

Knob 22656A18
#1

Replacement parts diagram

Knob

Part #22656A18

The manufacturer no longer makes this part, and there's no substitute part

Screw, #5-40 X 7/16 1B115-04
#15

Replacement parts diagram

Screw, #5-40 x 7/16

Part #1B115-04

The manufacturer no longer makes this part, and there's no substitute part

Main Spring 19168A27
#6

Replacement parts diagram

Main spring

Part #19168A27

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 20294A1B

#NI

All parts diagram

Cord assembly

Part #20294A1B

The manufacturer no longer makes this part, and there's no substitute part

Handle Frt 19482A2A
#19

Replacement parts diagram

Handle frt

Part #19482A2A

The manufacturer no longer makes this part, and there's no substitute part

Handle 19481A11
#3

Replacement parts diagram

Handle

Part #19481A11

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 20272A24
#16

Replacement parts diagram

Terminal block

Part #20272A24

The manufacturer no longer makes this part, and there's no substitute part

Timer Assembly 8841A58
#21

Replacement parts diagram

Timer assembly

Part #8841A58

The manufacturer no longer makes this part, and there's no substitute part
