Model # SL-SX390P Official Panasonic portable cd player

Here are the diagrams and repair parts for Official Panasonic SL-SX390P portable cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Traverse D RAE0145Z
#1

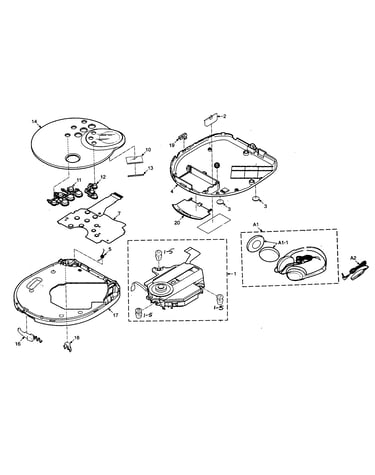

Cabinet parts diagram

Traverse d

Part #RAE0145Z

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit K5H1522A0004
#NI

Cabinet parts diagram

Integrated circuit

Part #K5H1522A0004

The manufacturer no longer makes this part, and there's no substitute part

Terminal RJC93020-1
#2

Cabinet parts diagram

Terminal

Part #RJC93020-1

The manufacturer no longer makes this part, and there's no substitute part

Bottom Cabinet RKS0322C-A
#4

Cabinet parts diagram

Bottom cabinet

Part #RKS0322C-A

The manufacturer no longer makes this part, and there's no substitute part

Operation Button(a) RGU2051-S
#11

Cabinet parts diagram

Operation button(a)

Part #RGU2051-S

The manufacturer no longer makes this part, and there's no substitute part

Multi Button Sw Unit K0RE00900006
#7

Cabinet parts diagram

Multi button sw unit

Part #K0RE00900006

The manufacturer no longer makes this part, and there's no substitute part

Lcd(lcd301) L5ACACC00004
#10

Cabinet parts diagram

Lcd(lcd301)

Part #L5ACACC00004

The manufacturer no longer makes this part, and there's no substitute part

Intermediate Cabinet RKM0411A-A
#17

Cabinet parts diagram

Intermediate cabinet

Part #RKM0411A-A

The manufacturer no longer makes this part, and there's no substitute part

Operation Button(b) RGU2052-A
#12

Cabinet parts diagram

Operation button(b)

Part #RGU2052-A

The manufacturer no longer makes this part, and there's no substitute part

Lid Ornament RYF0621-S
#14

Cabinet parts diagram

Lid ornament

Part #RYF0621-S

The manufacturer no longer makes this part, and there's no substitute part
