Model # 689797111 Official Craftsman low-voltage lighting system

Here are the diagrams and repair parts for Official Craftsman 689797111 low-voltage lighting system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 16 parts |

#11

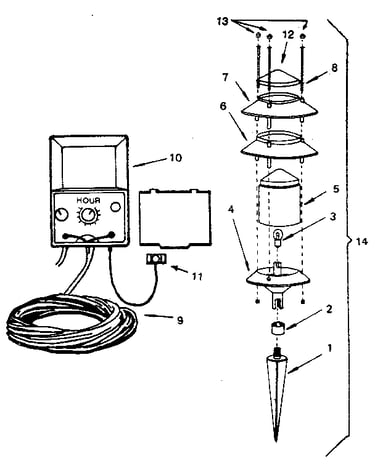

Unit parts diagram

Photocell

Part #SL-1102

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Bolt nut

Part #MSL-1006

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Fuse

Part #F-100

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Head

Part #MSL-1015-2

The manufacturer no longer makes this part, and there's no substitute part

#10

Unit parts diagram

Transformer

Part #SL-1104

The manufacturer no longer makes this part, and there's no substitute part

#14

Unit parts diagram

Comp lamp

Part #MSL-2000-2

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Bulb

Part #SL-1010

The manufacturer no longer makes this part, and there's no substitute part

#12

Unit parts diagram

Lamp cap

Part #MSL-1008

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Head

Part #MSL-1015A-2

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Cable-100ft

Part #SL-1001

The manufacturer no longer makes this part, and there's no substitute part
