Electric Walk-Behind Mower

Model # 247370601 Official Craftsman 16" electric rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 247370601 16" electric rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Knob 706-10488
#7

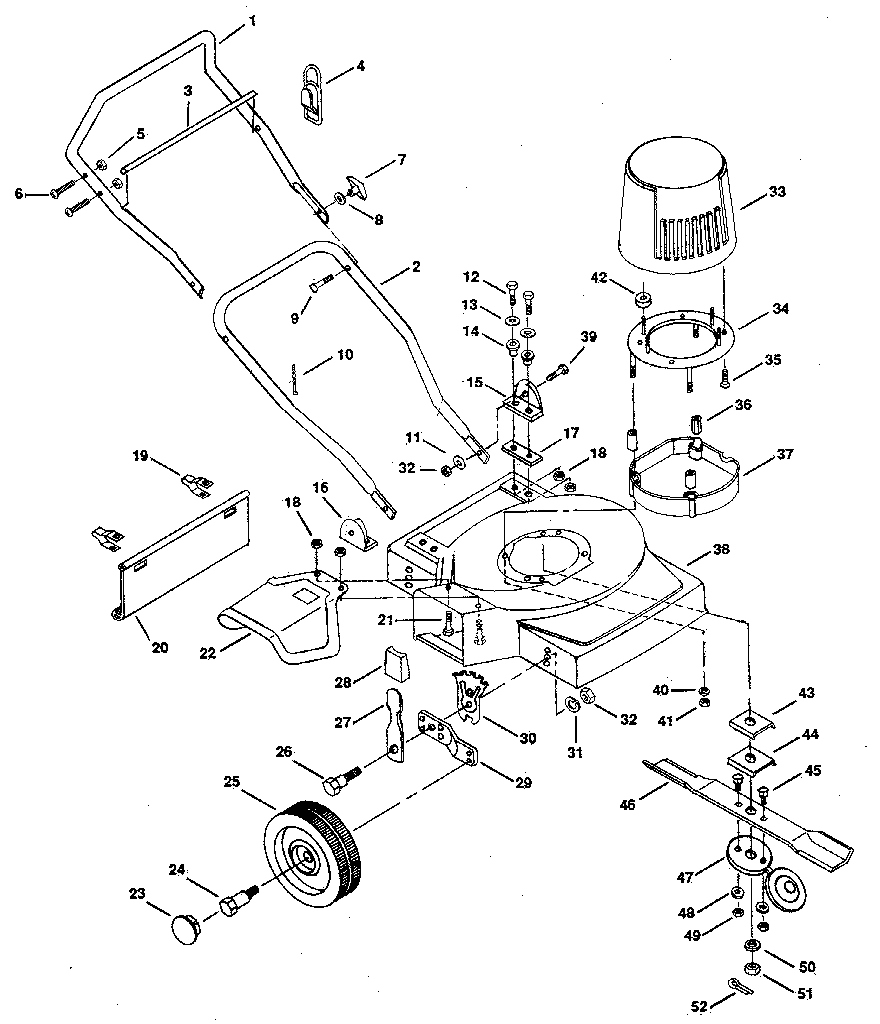

Mower deck diagram

Knob

Part #706-10488

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 706-10488. Substitute parts can look different from the original.
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Lock Nut STD541431
#41

Mower deck diagram

Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Saddle Bolt 706-10072-32
#9

Mower deck diagram

Saddle bolt

Part #706-10072-32

Replaced by #710-1174

?
Manufacturer substitution
This part replaces 706-10072-32. Substitute parts can look different from the original.
This item is not returnable
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Washer STD551025
Washer

Part #STD551025

Replaced by #STD551025

?
Manufacturer substitution
This part replaces STD551025. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Motor Corp 706-13844
#158

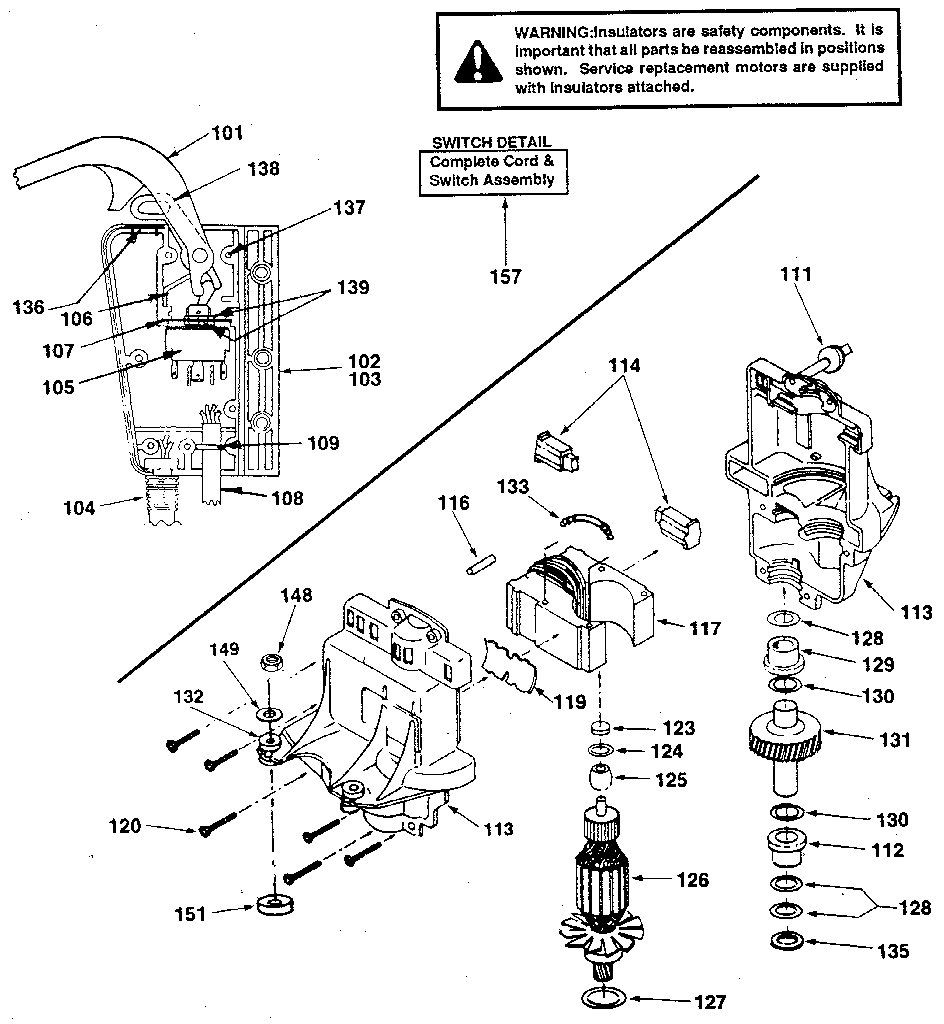

Motor & switch assembly diagram

Motor corp

Part #706-13844

The manufacturer no longer makes this part, and there's no substitute part

Pressure Pad 706-10053
#116

Motor & switch assembly diagram

Pressure pad

Part #706-10053

The manufacturer no longer makes this part, and there's no substitute part

Split Lock Washer STD551137
#31

Mower deck diagram

Split lock washer

Part #STD551137

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541437
#32

Mower deck diagram

Nut

Part #STD541437

The manufacturer no longer makes this part, and there's no substitute part

Housing 706-13869-01
#102

Motor & switch assembly diagram

Housing

Part #706-13869-01

The manufacturer no longer makes this part, and there's no substitute part

Plug Assembly 706-13838
#104

Motor & switch assembly diagram

Plug assembly

Part #706-13838

The manufacturer no longer makes this part, and there's no substitute part
