Model # 11074410600 Official Kenmore compact portable washer

Here are the diagrams and repair parts for Official Kenmore 11074410600 compact portable washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

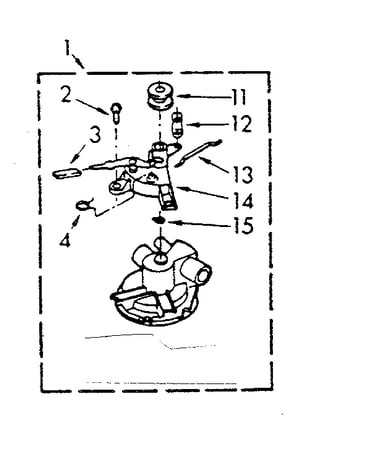

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Gasket 96690
#15

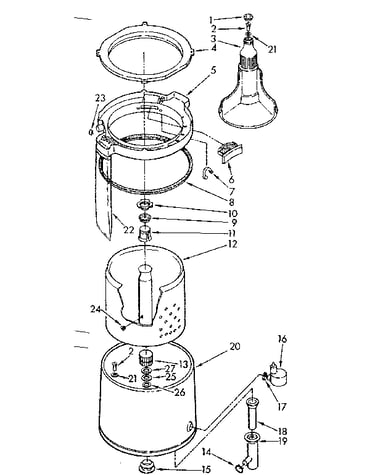

Tub and basket assembly diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Valve 370067
#25

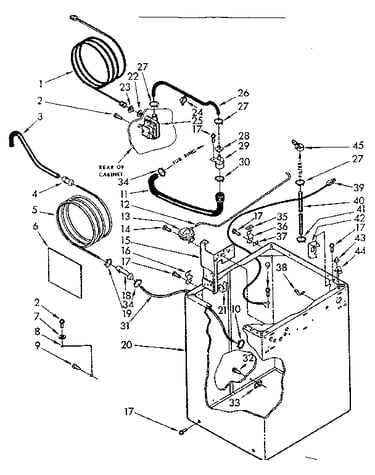

Cabinet parts diagram

Valve

Part #370067

Replaced by #285805

?
Manufacturer substitution
This part replaces 370067. Substitute parts can look different from the original.
BEST SELLER
$26.34 |
19% OFF Phone Price : $32.34
In Stock
Lid Switch 364090
#23

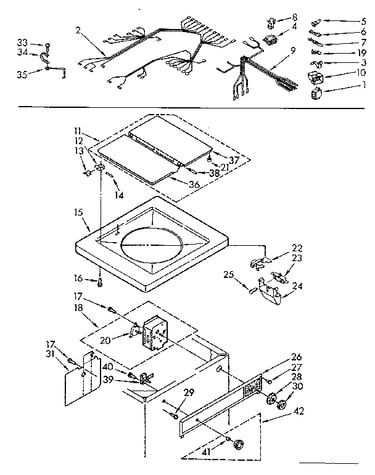

Top and control assembly diagram

Lid switch

Part #364090

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 364090. Substitute parts can look different from the original.
BEST SELLER
$24.22 |
20% OFF Phone Price : $30.22
In Stock
Hose 353162
#12

Cabinet parts diagram

Hose

Part #353162

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 353162. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Clamp 353097
Clamp

Part #353097

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 356138
#19

Cabinet parts diagram

Hose clamp

Part #356138

The manufacturer no longer makes this part, and there's no substitute part

Screw 343641
Screw

Part #343641

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 343641. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Siphon 356363
#29

Cabinet parts diagram

Siphon

Part #356363

Replaced by #WP356363

?
Manufacturer substitution
This part replaces 356363. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washing Machine Washer 16123
#22

Cabinet parts diagram

Washing machine washer

Part #16123

Replaced by #WP16123

?
Manufacturer substitution
This part replaces 16123. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bearing 54207
#34

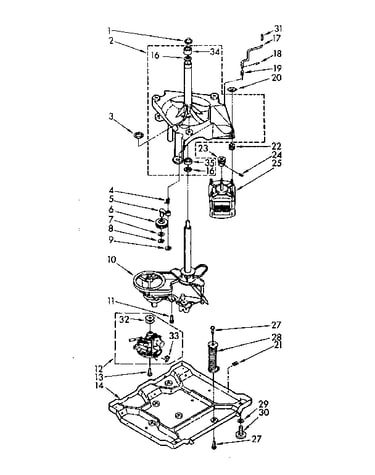

Drive system diagram

Bearing

Part #54207

Replaced by #WP8546455

?
Manufacturer substitution
This part replaces 54207. Substitute parts can look different from the original.
$16.59 |
11% OFF Phone Price : $18.59
In Stock
