Frigidaire
Bottom-Mount Refrigerator

Model # FFHG2250TD0 Official Frigidaire bottom-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFHG2250TD0 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

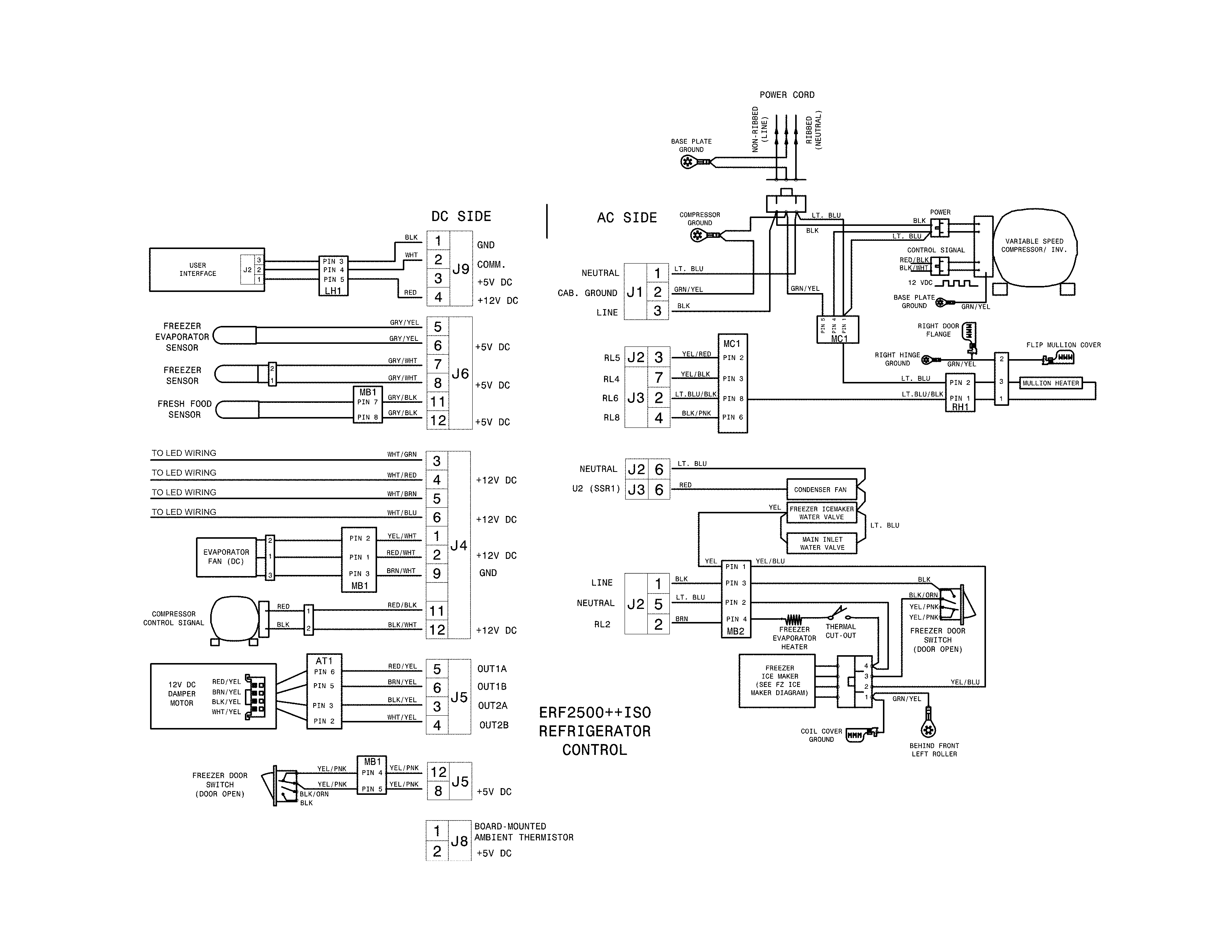

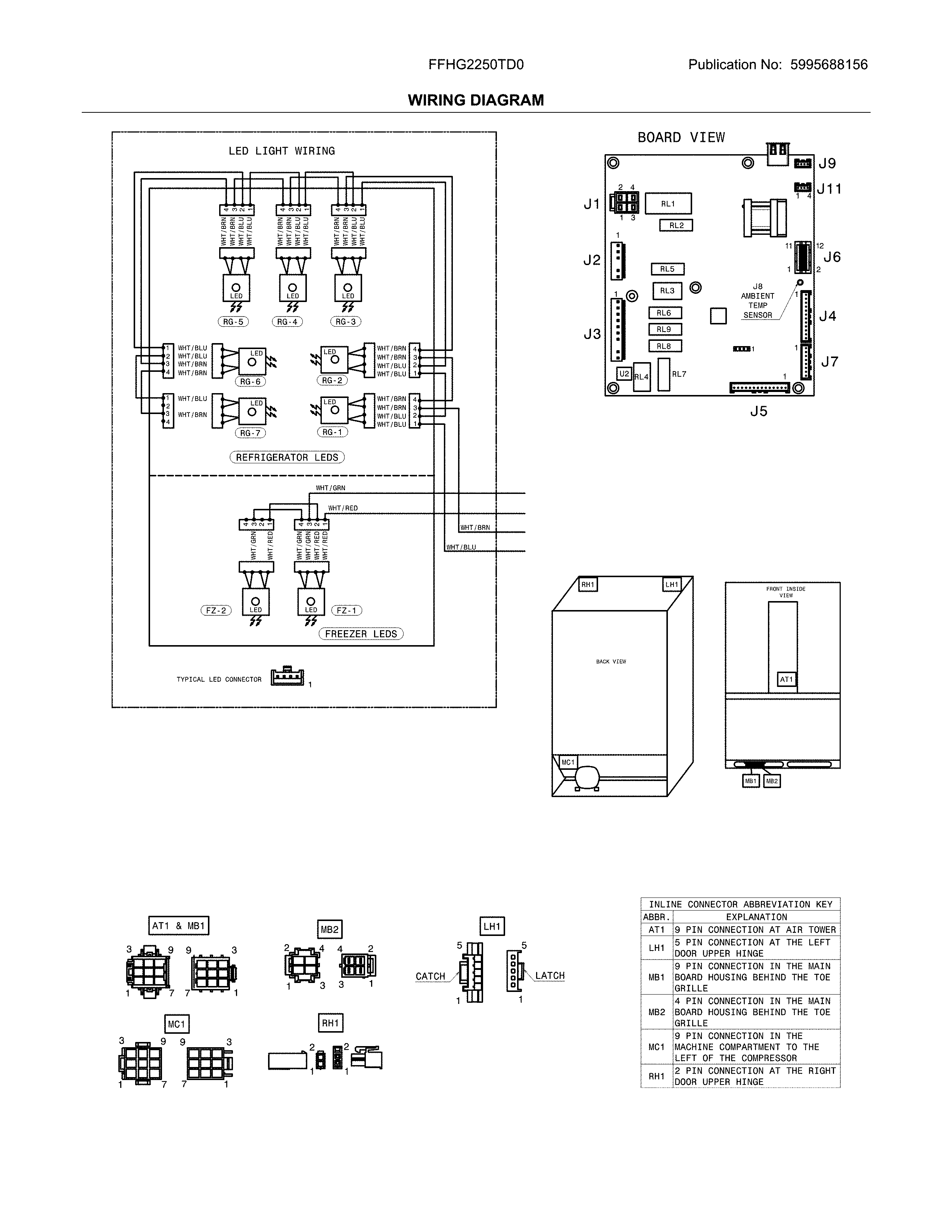

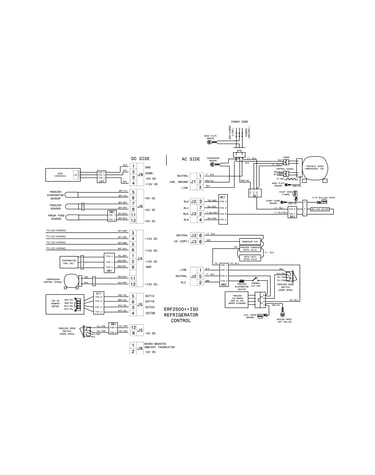

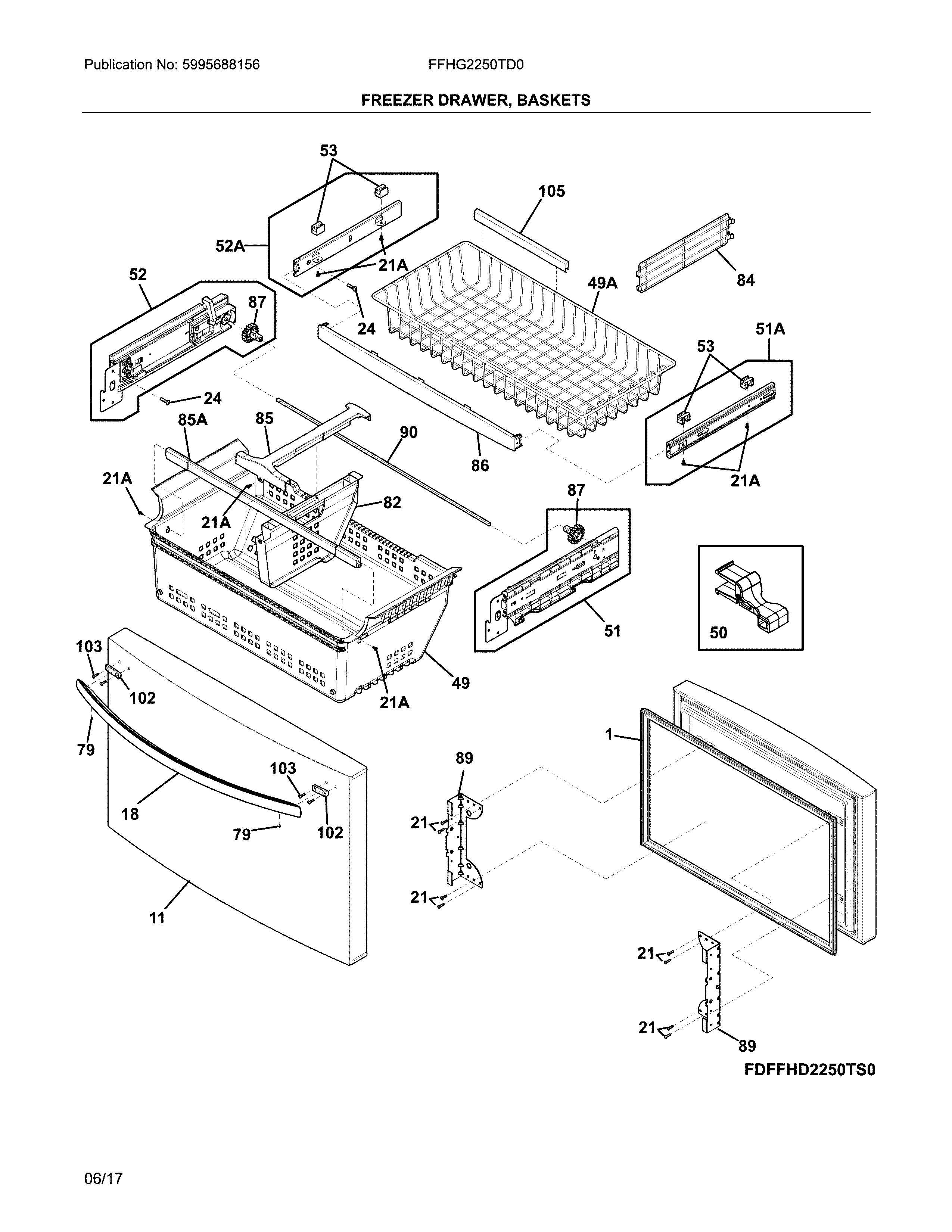

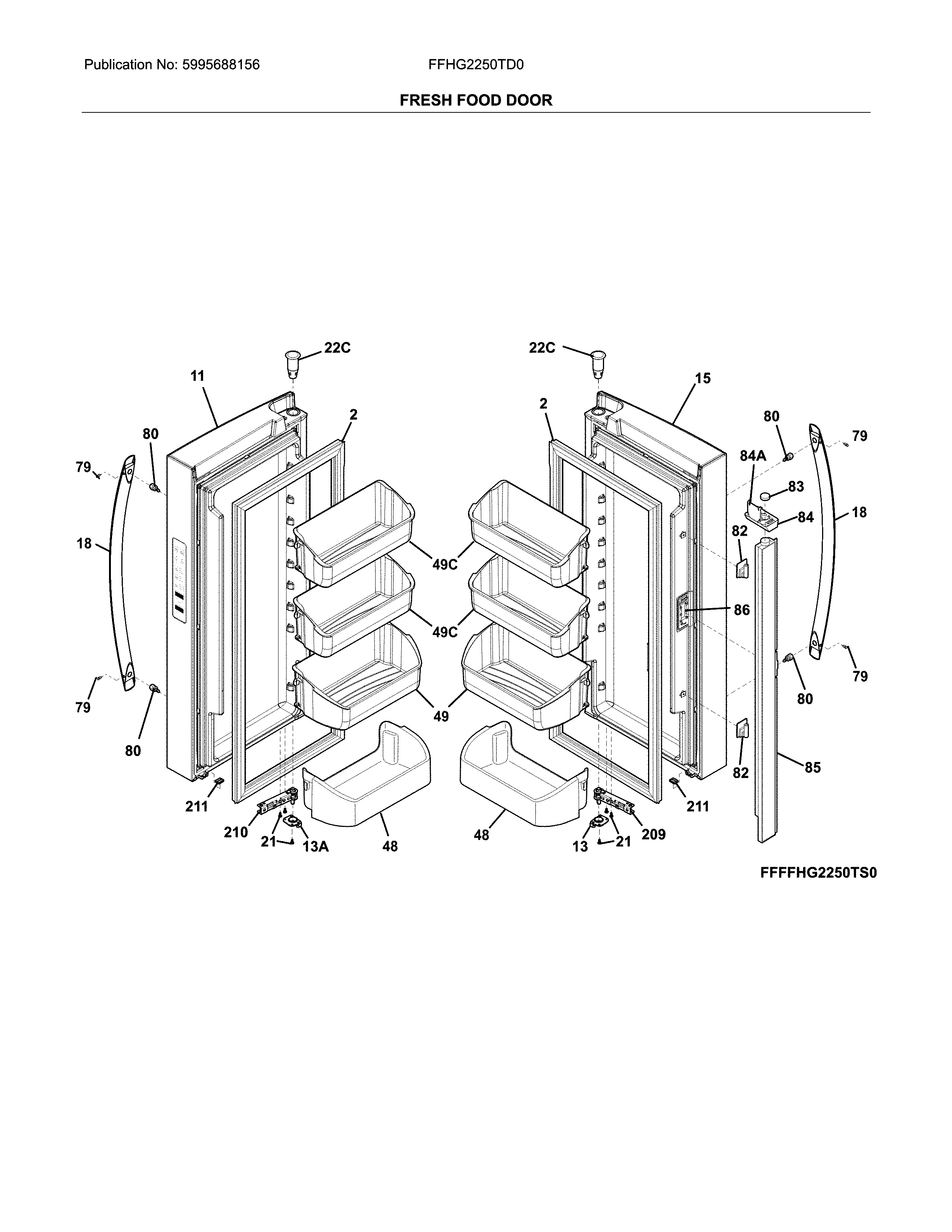

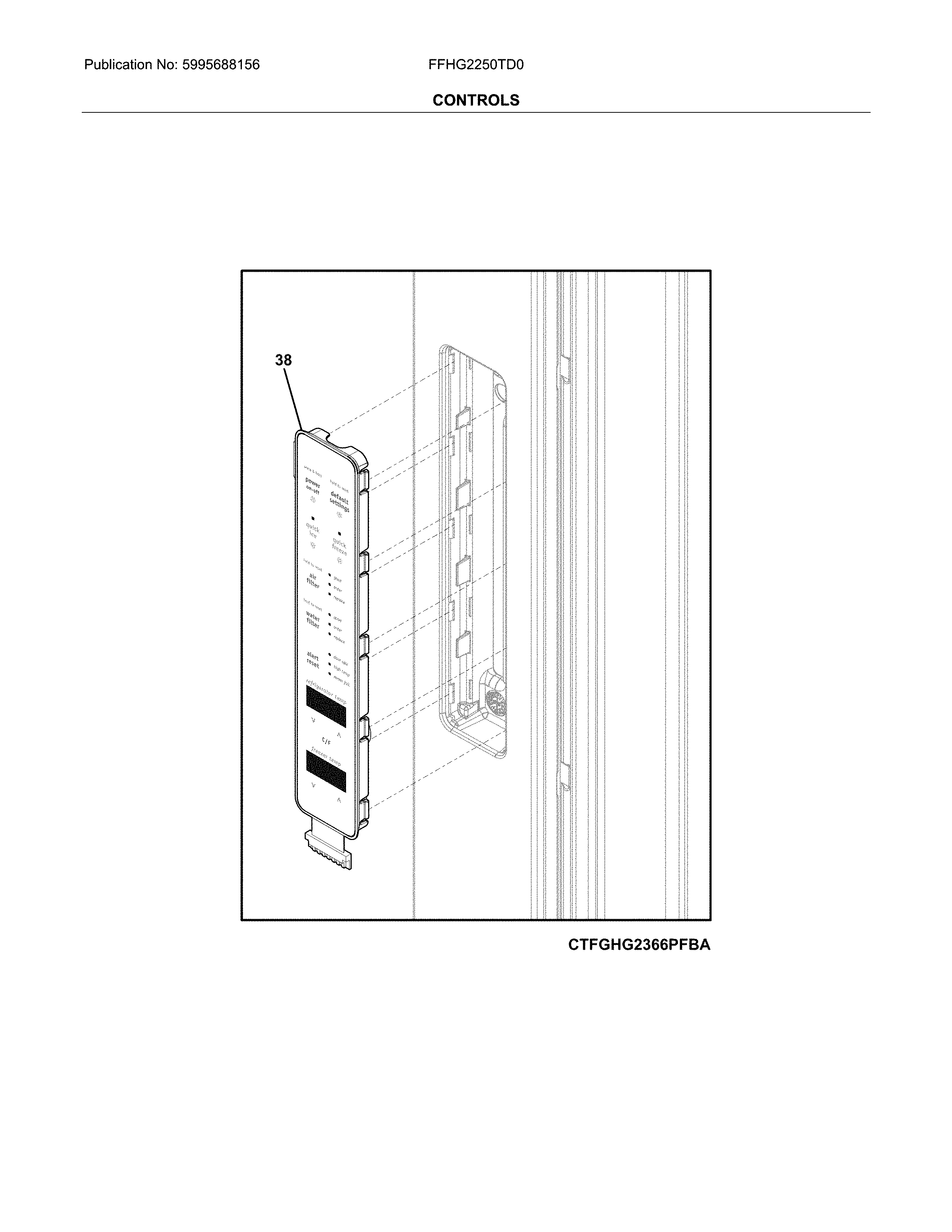

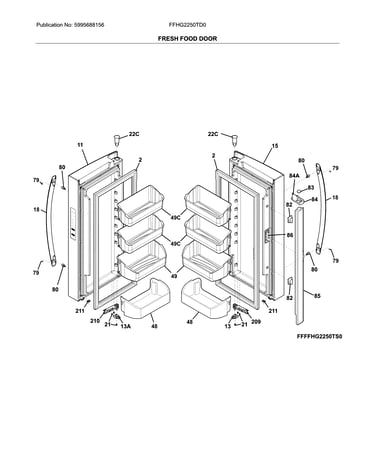

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Refrigerator Filter Dryer 242047603
#4

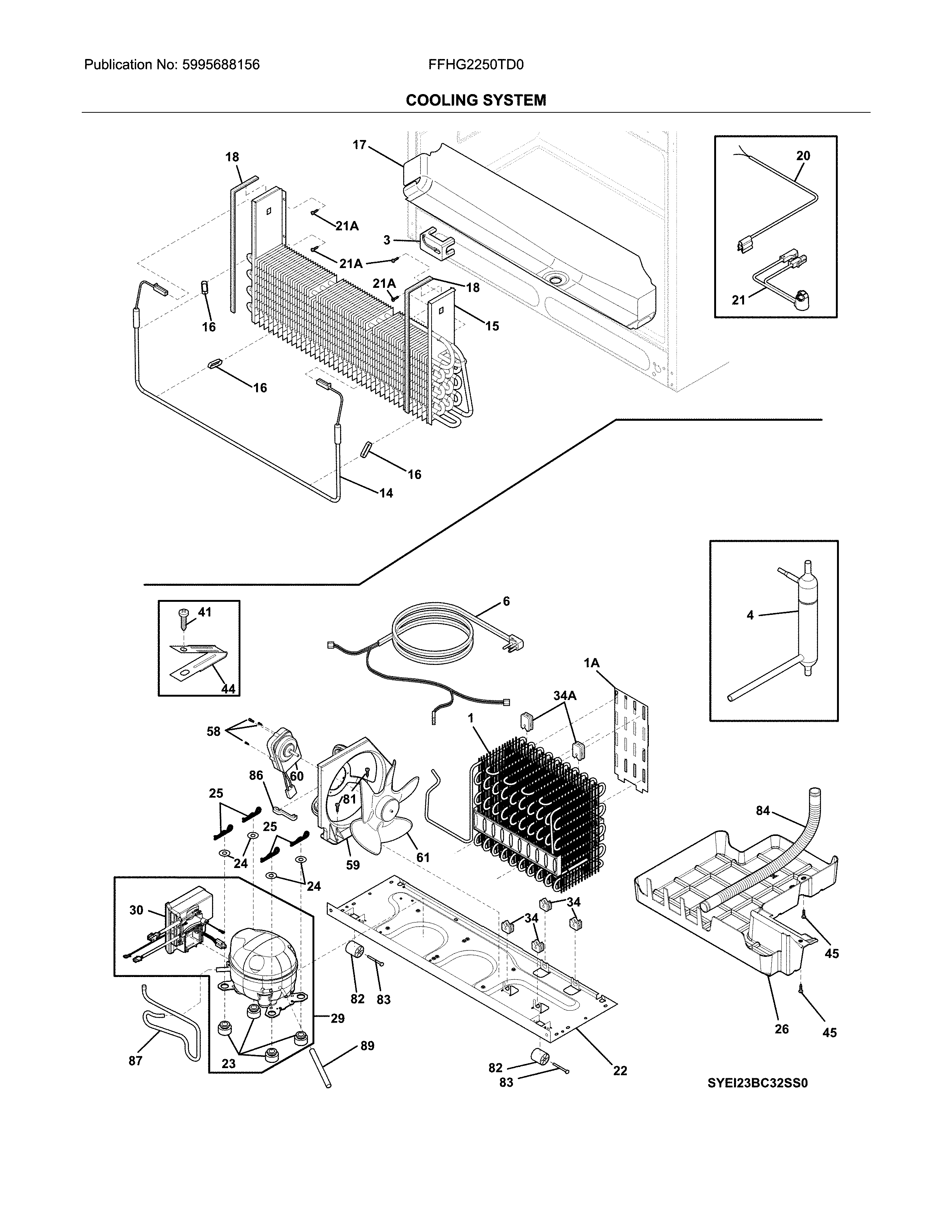

Cooling system diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Frigidaire Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

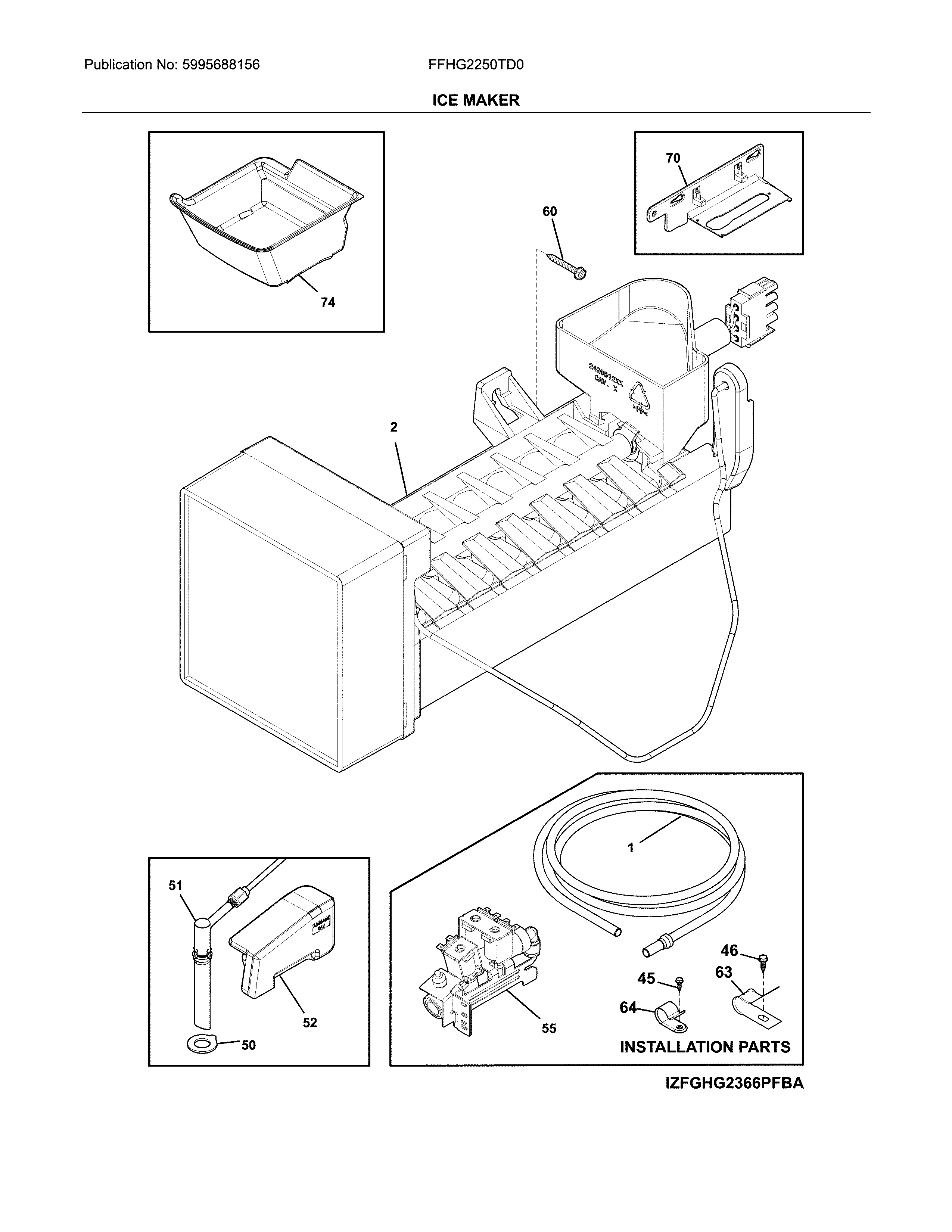

Ice maker diagram

Frigidaire refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
$76.44 |
7% OFF Phone Price : $82.44
In Stock
Refrigerator Temperature Sensor 5303918775
#94

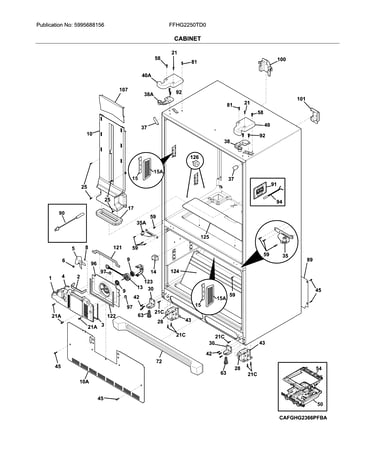

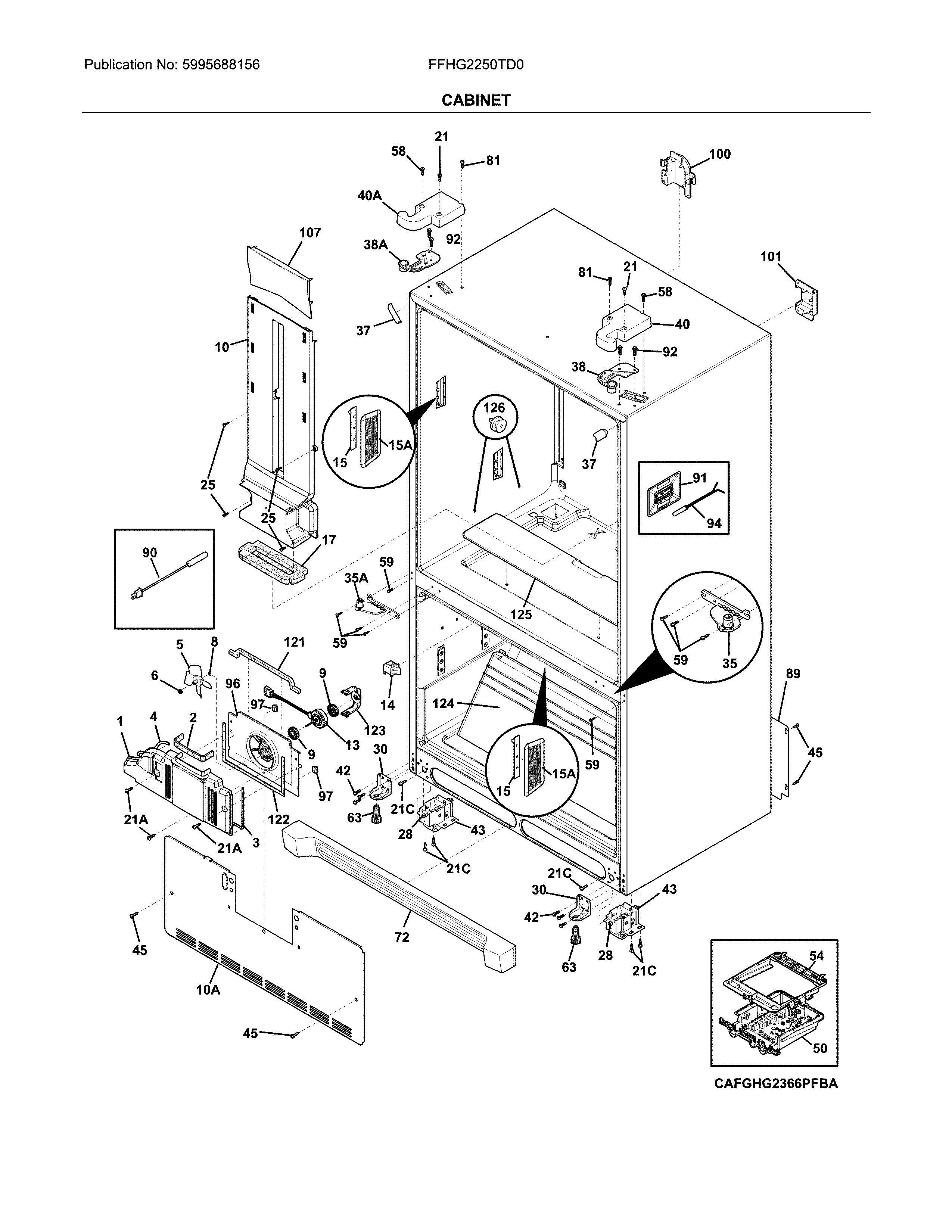

Cabinet diagram

Refrigerator temperature sensor

Part #5303918775

BEST SELLER
$19.74 |
9% OFF Phone Price : $21.74
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#90

Cabinet diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$41.65 |
13% OFF Phone Price : $47.65
In Stock

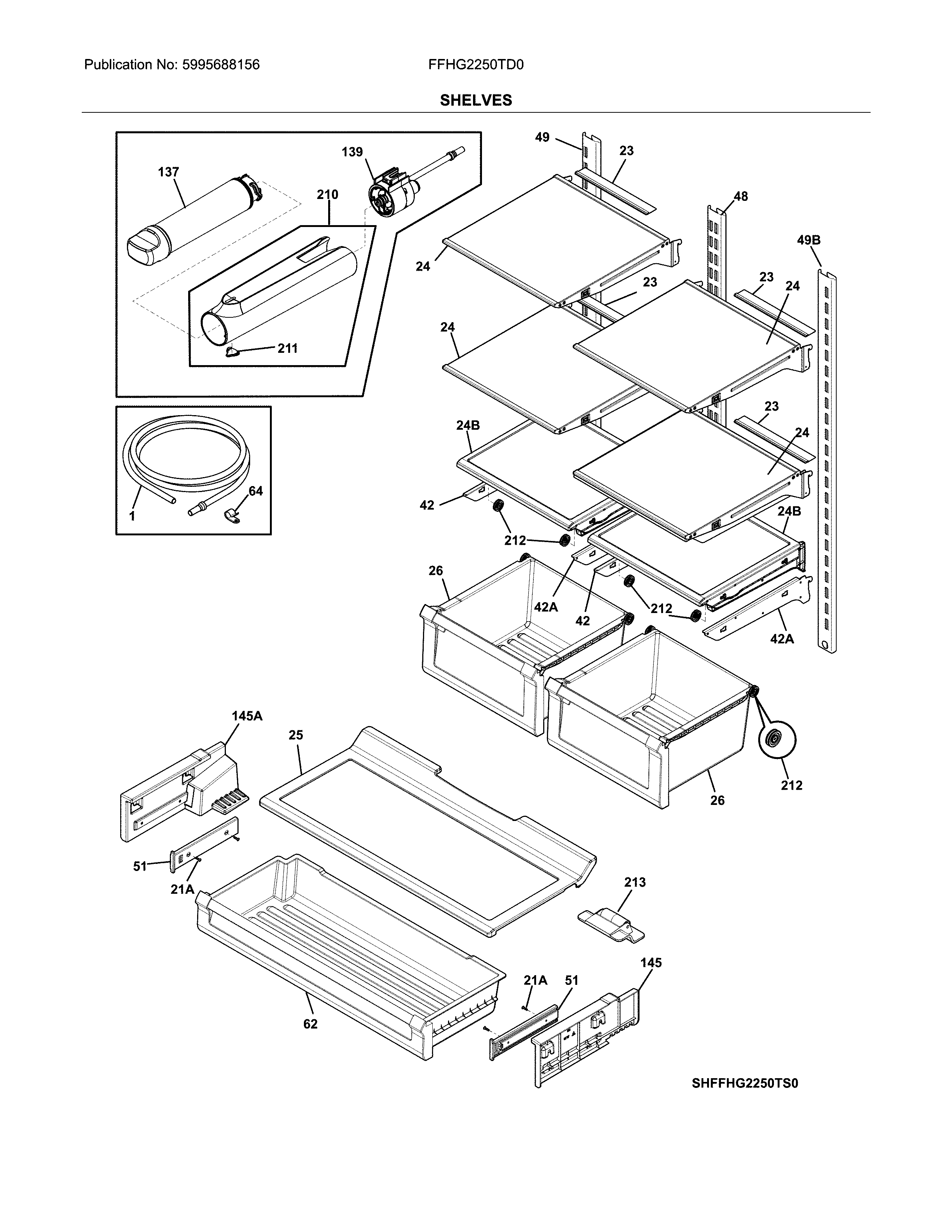

Electrolux Refrigerator Crisper Drawer Roller 5304508016
#212

Shelves diagram

Electrolux refrigerator crisper drawer roller

Part #5304508016

BEST SELLER
This item is not returnable
$2.78 |
26% OFF Phone Price : $3.78
In Stock
Refrigerator Evaporator Fan Motor 809069201
#13

Cabinet diagram

Refrigerator evaporator fan motor

Part #809069201

BEST SELLER
$102.31 |
10% OFF Phone Price : $114.31
In Stock
Refrigerator Defrost Bi-metal Thermostat 808062701
#21

Cooling system diagram

Refrigerator defrost bi-metal thermostat

Part #808062701

Replaced by #5304521781

?
Manufacturer substitution
This part replaces 808062701. Substitute parts can look different from the original.
BEST SELLER
$32.63 |
16% OFF Phone Price : $38.63
In Stock
Refrigerator Ice Maker 241798226
#2

Ice maker diagram

Refrigerator ice maker

Part #241798226

Replaced by #241798233

?
Manufacturer substitution
This part replaces 241798226. Substitute parts can look different from the original.
BEST SELLER
$131.98 |
8% OFF Phone Price : $143.98
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

Cooling system diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$88.64 |
6% OFF Phone Price : $94.64
In Stock
