Whirlpool
Side-By-Side Refrigerator

Model # WRS571CIHW01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRS571CIHW01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

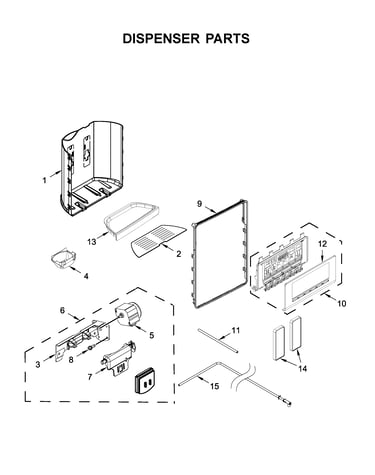

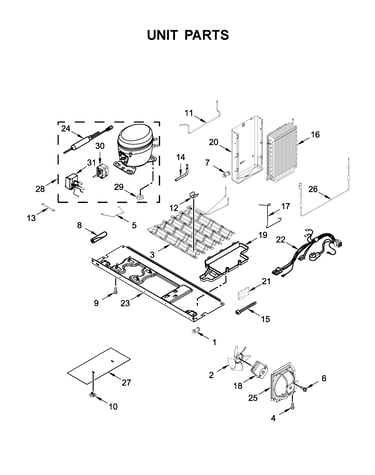

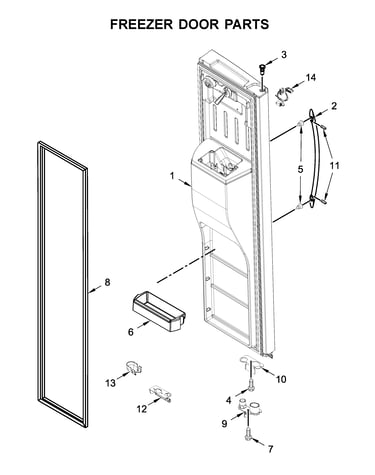

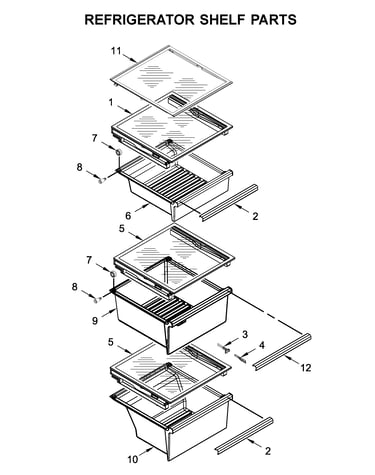

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Refrigerator Cartridge W10735398
#2

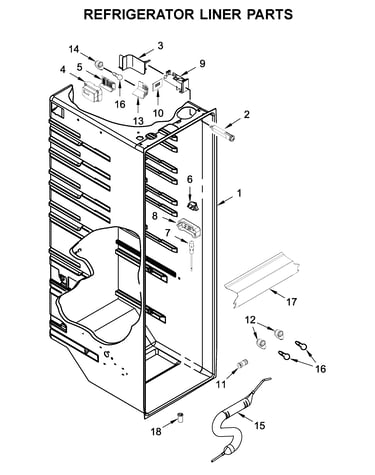

Refrigerator liner parts diagram

Refrigerator cartridge

Part #W10735398

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10735398. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Ice Maker W11130444
#21

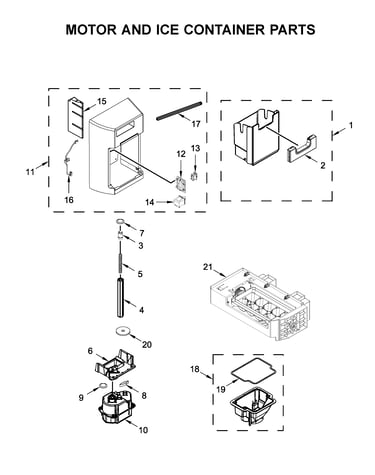

Motor and ice container parts diagram

Refrigerator ice maker

Part #W11130444

Replaced by #W10873791

?
Manufacturer substitution
This part replaces W11130444. Substitute parts can look different from the original.
BEST SELLER
$73.64 |
8% OFF Phone Price : $79.64
In Stock
Refrigerator Door Bin W10710203
#2

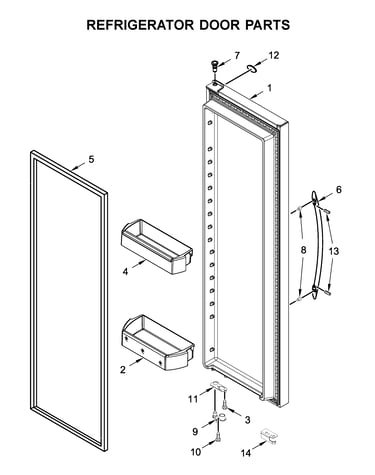

Refrigerator door parts diagram

Refrigerator door bin

Part #W10710203

Replaced by #WPW10710203

?
Manufacturer substitution
This part replaces W10710203. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$40.81 |
13% OFF Phone Price : $46.81
In Stock
Refrigerator Thermistor W10280386
#4

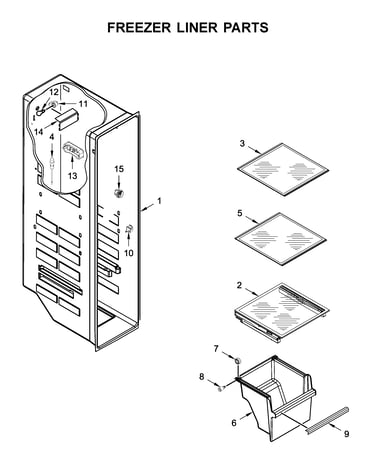

Freezer liner parts diagram

Refrigerator thermistor

Part #W10280386

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10280386. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Refrigerator Thermistor W10280385
#7

Refrigerator liner parts diagram

Refrigerator thermistor

Part #W10280385

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10280385. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Switch- Rock W10847853
#6

Refrigerator liner parts diagram

Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator Fan Motor 2315549
#7

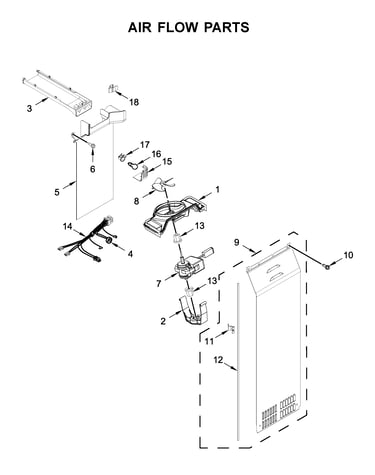

Air flow parts diagram

Refrigerator evaporator fan motor

Part #2315549

Replaced by #WP2315549

?
Manufacturer substitution
This part replaces 2315549. Substitute parts can look different from the original.
BEST SELLER
$138.86 |
8% OFF Phone Price : $150.86
In Stock
Refrigerator Inlet Valve W10498992
#11

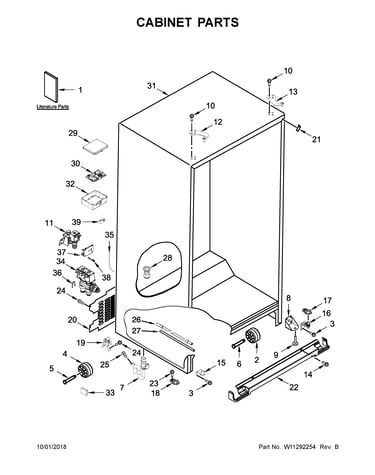

Cabinet parts diagram

Refrigerator inlet valve

Part #W10498992

Replaced by #WPW10238100

?
Manufacturer substitution
This part replaces W10498992. Substitute parts can look different from the original.
BEST SELLER
$104.37 |
10% OFF Phone Price : $116.37
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

Air flow parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Motor-dc,dis W11117906
#10

Motor and ice container parts diagram

Motor-dc,dis

Part #W11117906

Replaced by #W11202789

?
Manufacturer substitution
This part replaces W11117906. Substitute parts can look different from the original.
BEST SELLER
$113.06 |
10% OFF Phone Price : $125.06
In Stock
