Tappan
Gas Range

Model # TGF350MXDSC Official Tappan gas range

Here are the diagrams and repair parts for Official Tappan TGF350MXDSC gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

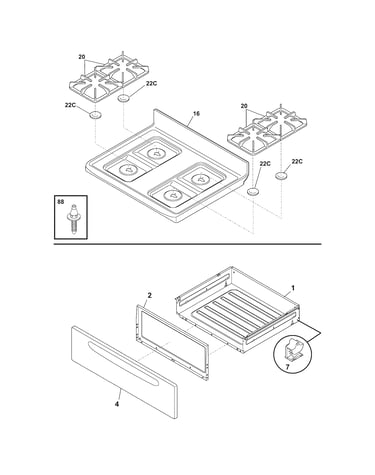

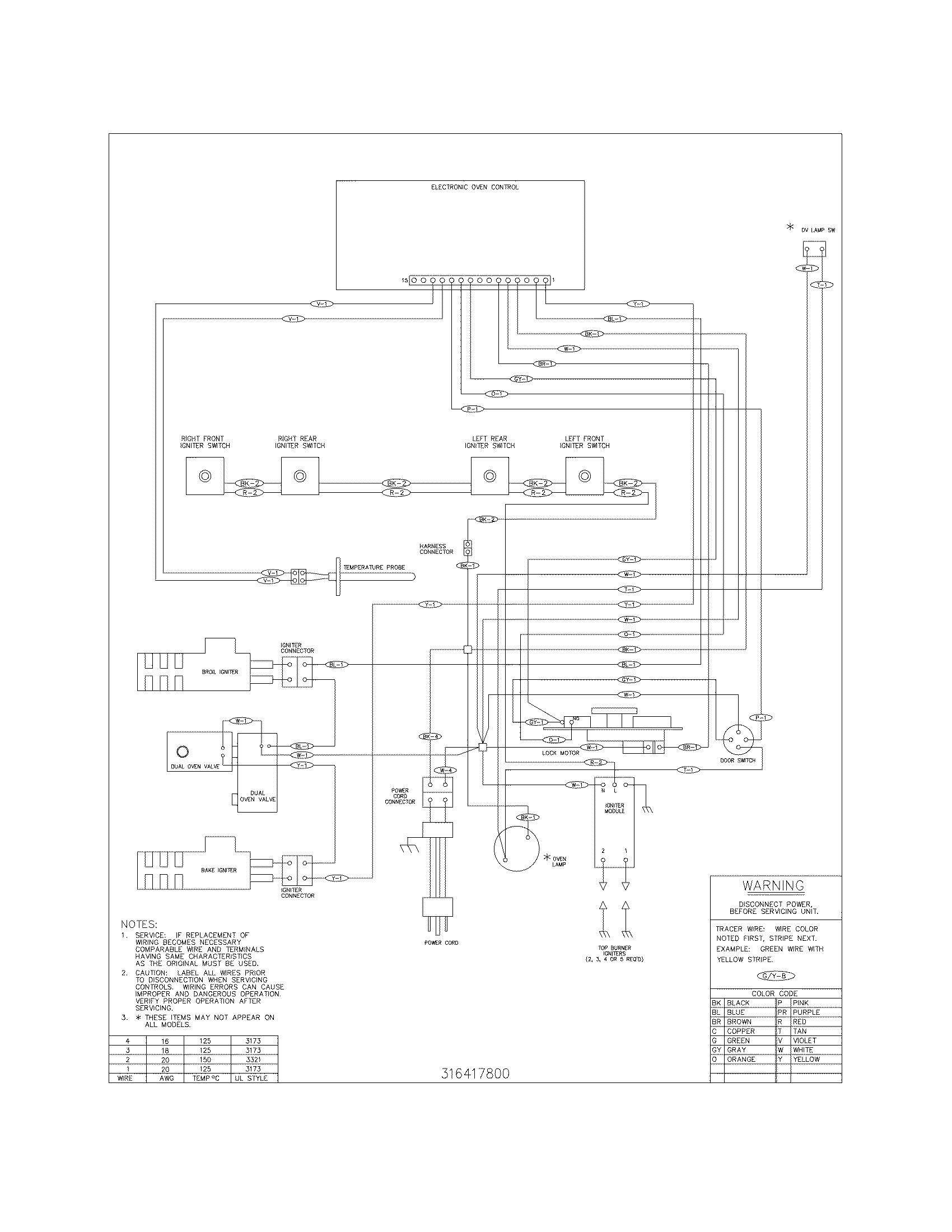

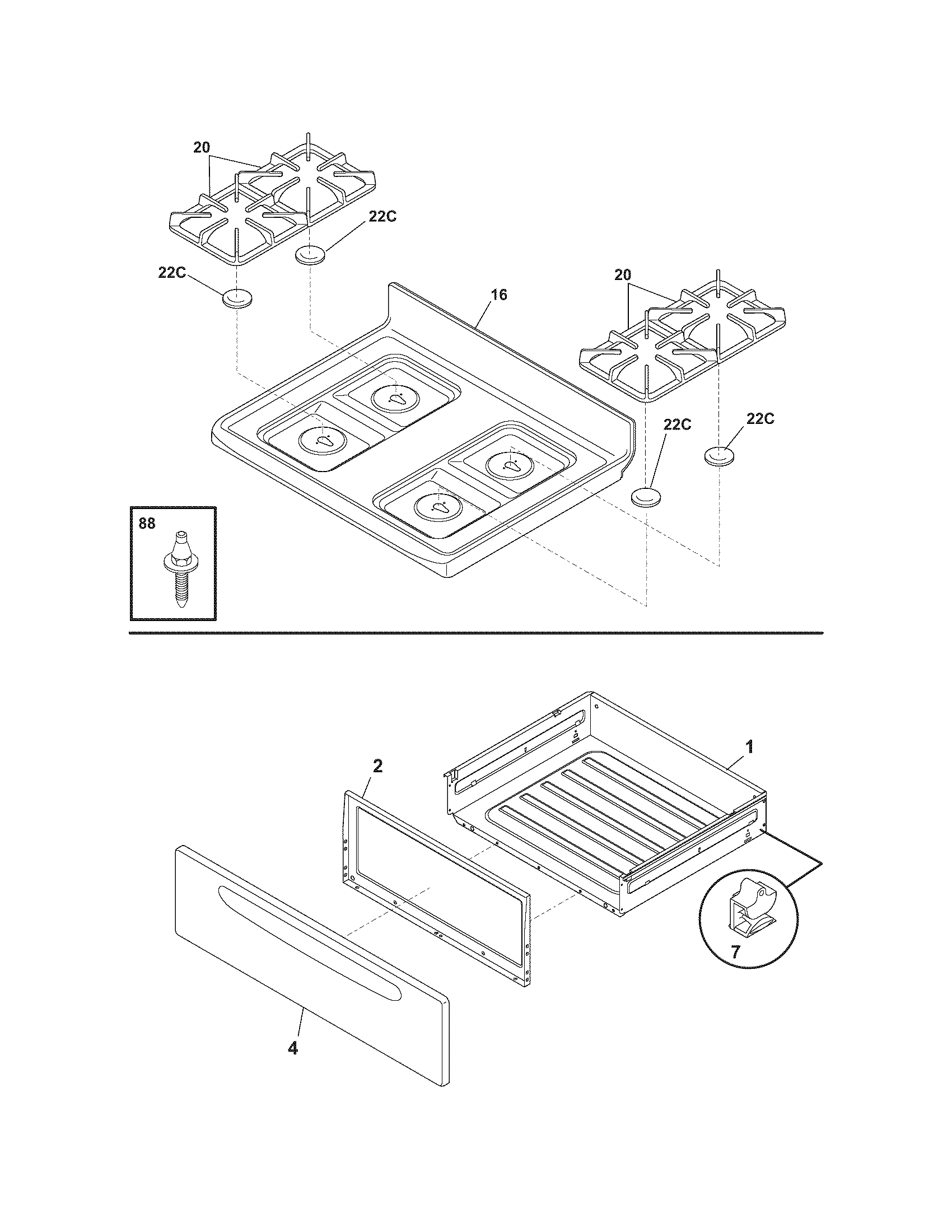

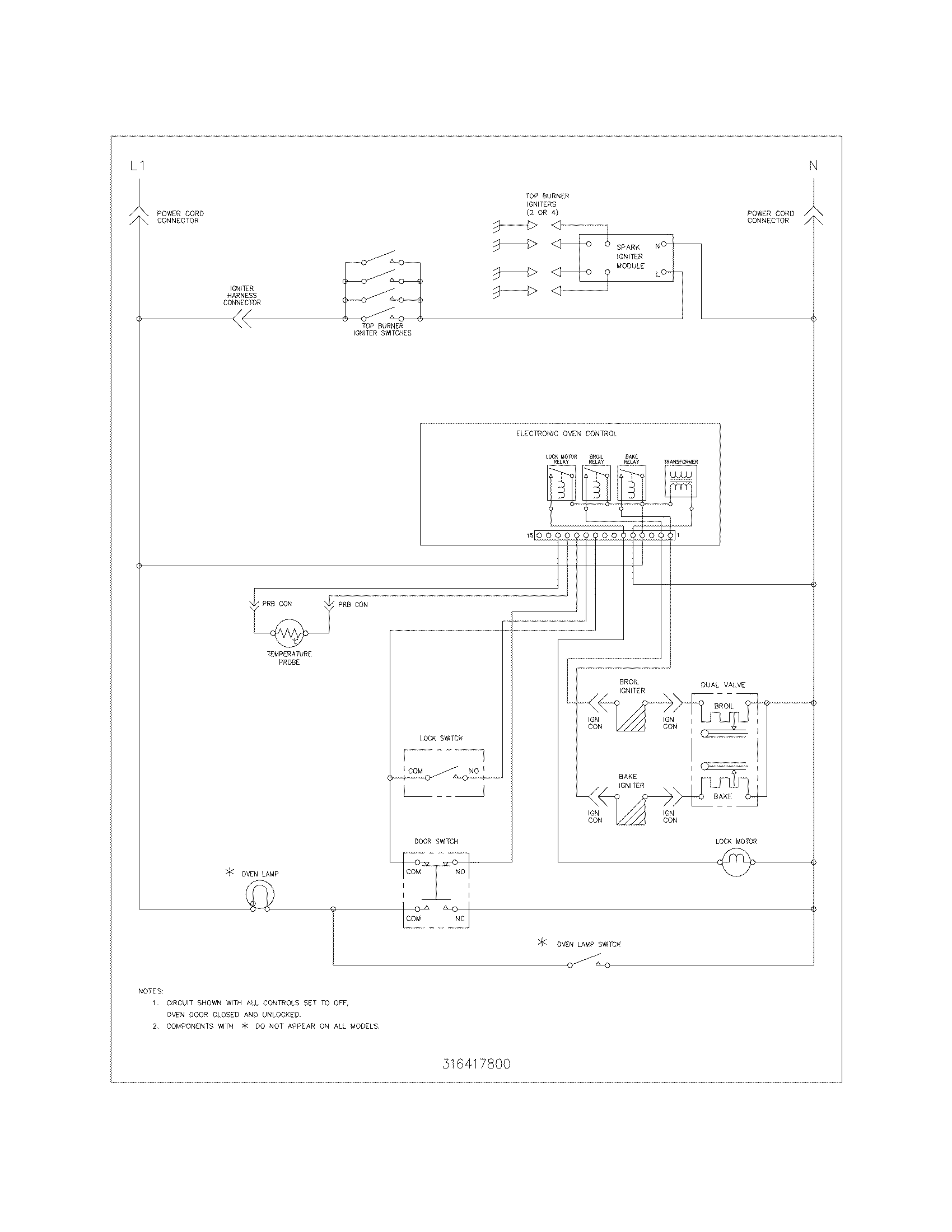

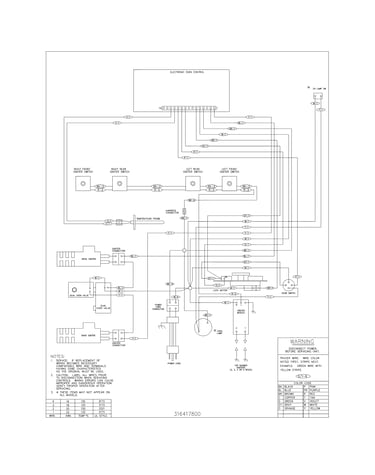

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

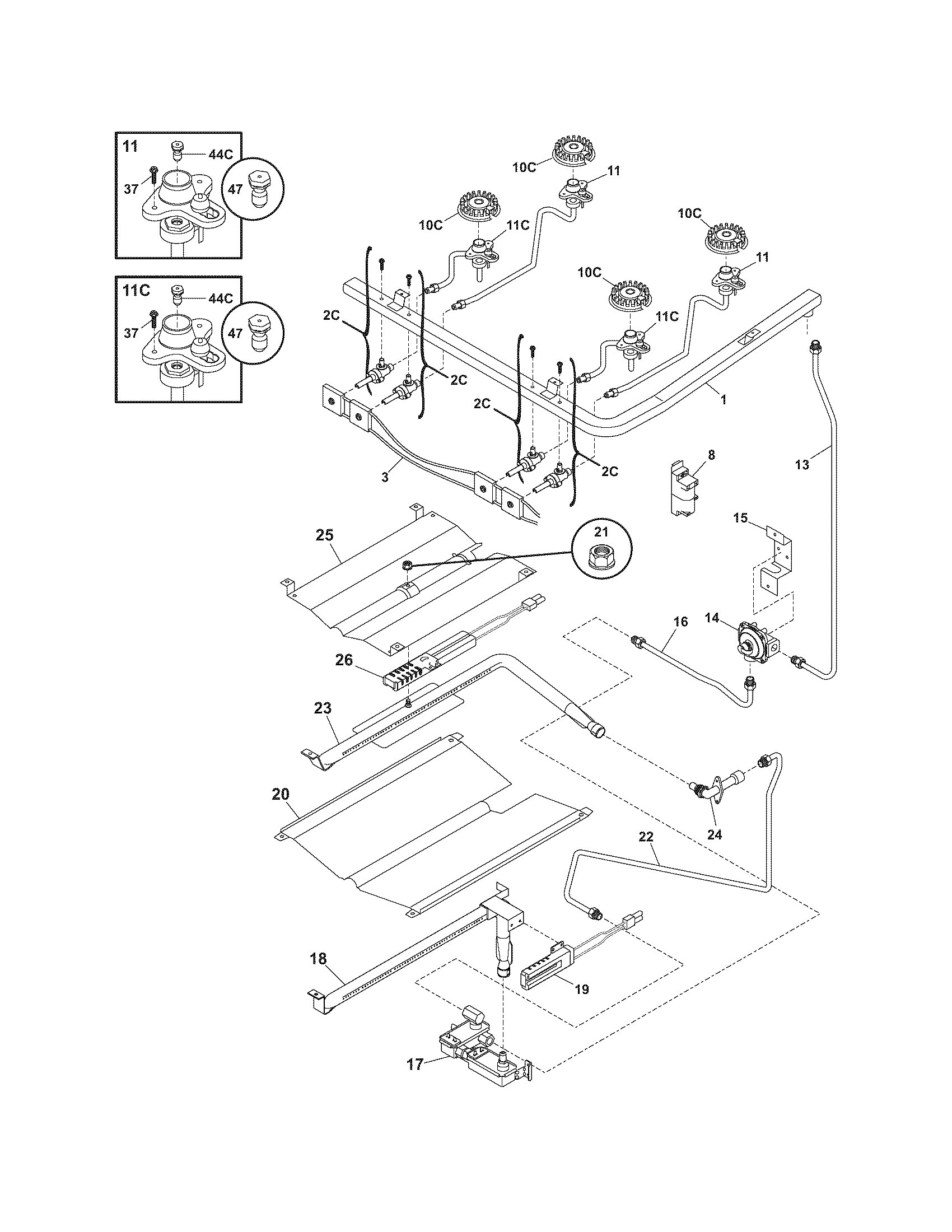

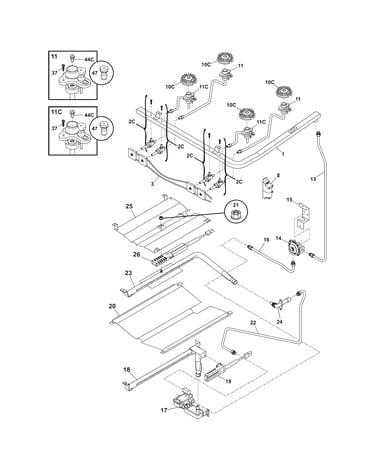

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Probe 316217001
#37

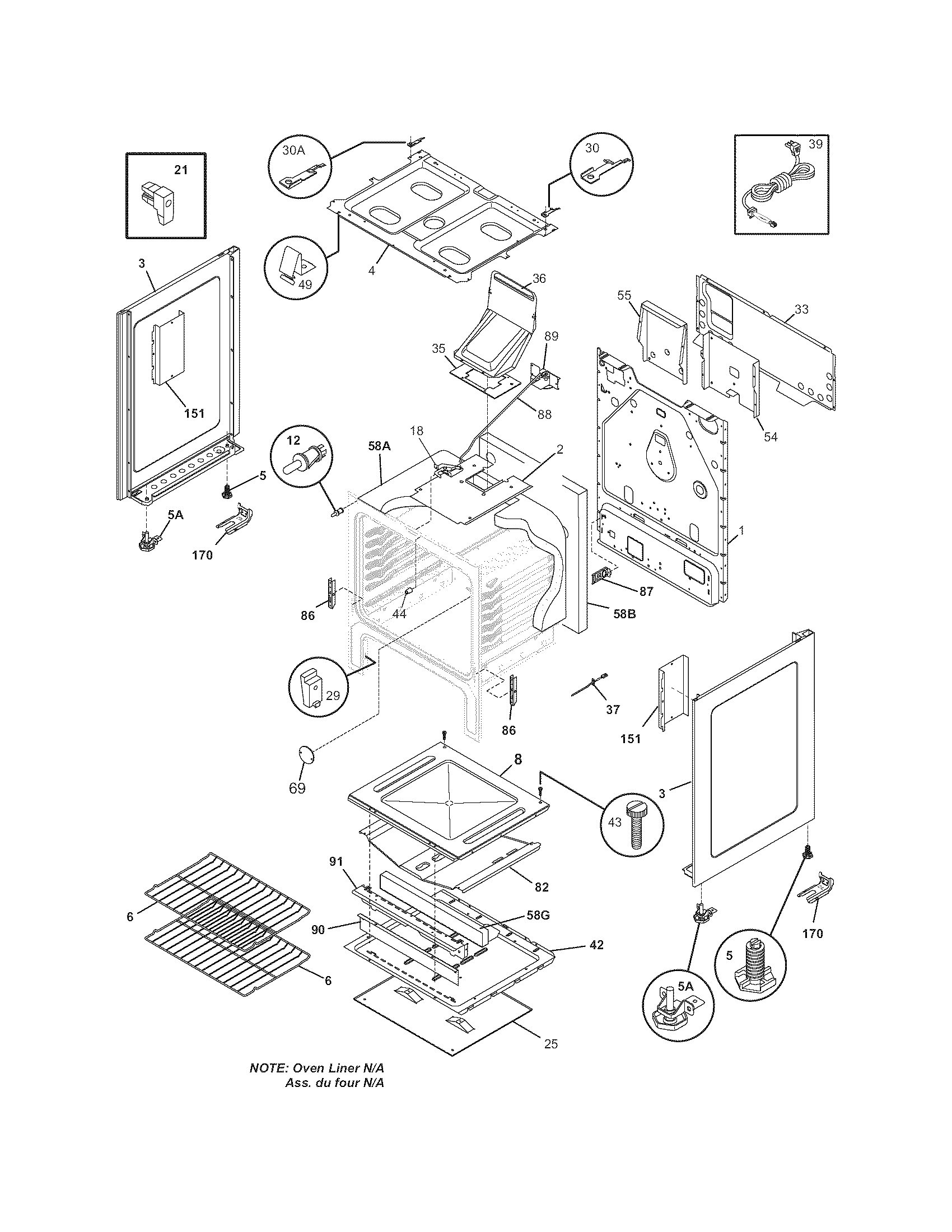

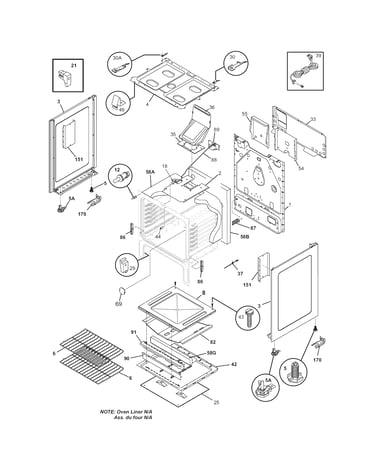

Body diagram

Probe

Part #316217001

Replaced by #316490001

?
Manufacturer substitution
This part replaces 316217001. Substitute parts can look different from the original.
BEST SELLER
$45.55 |
12% OFF Phone Price : $51.55
In Stock
Motor 316415400
#89

Body diagram

Motor

Part #316415400

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316415400. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$30.40 |
16% OFF Phone Price : $36.40
In Stock
Range Bake Burner (replaces 7316404400) 316404400
#18

Burner diagram

Range bake burner (replaces 7316404400)

Part #316404400

BEST SELLER
$90.07 |
6% OFF Phone Price : $96.07
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

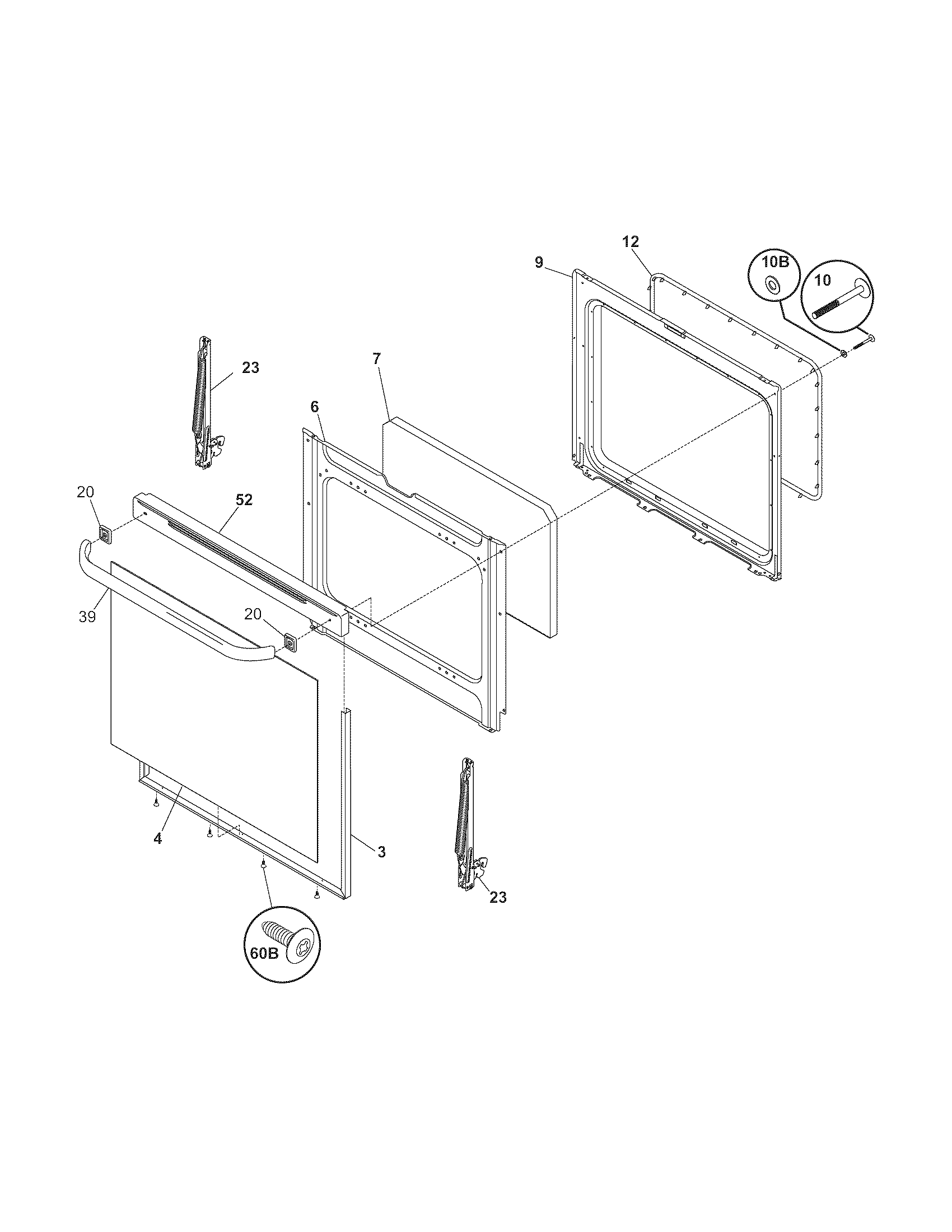

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Control Overlay 316419113
#20A

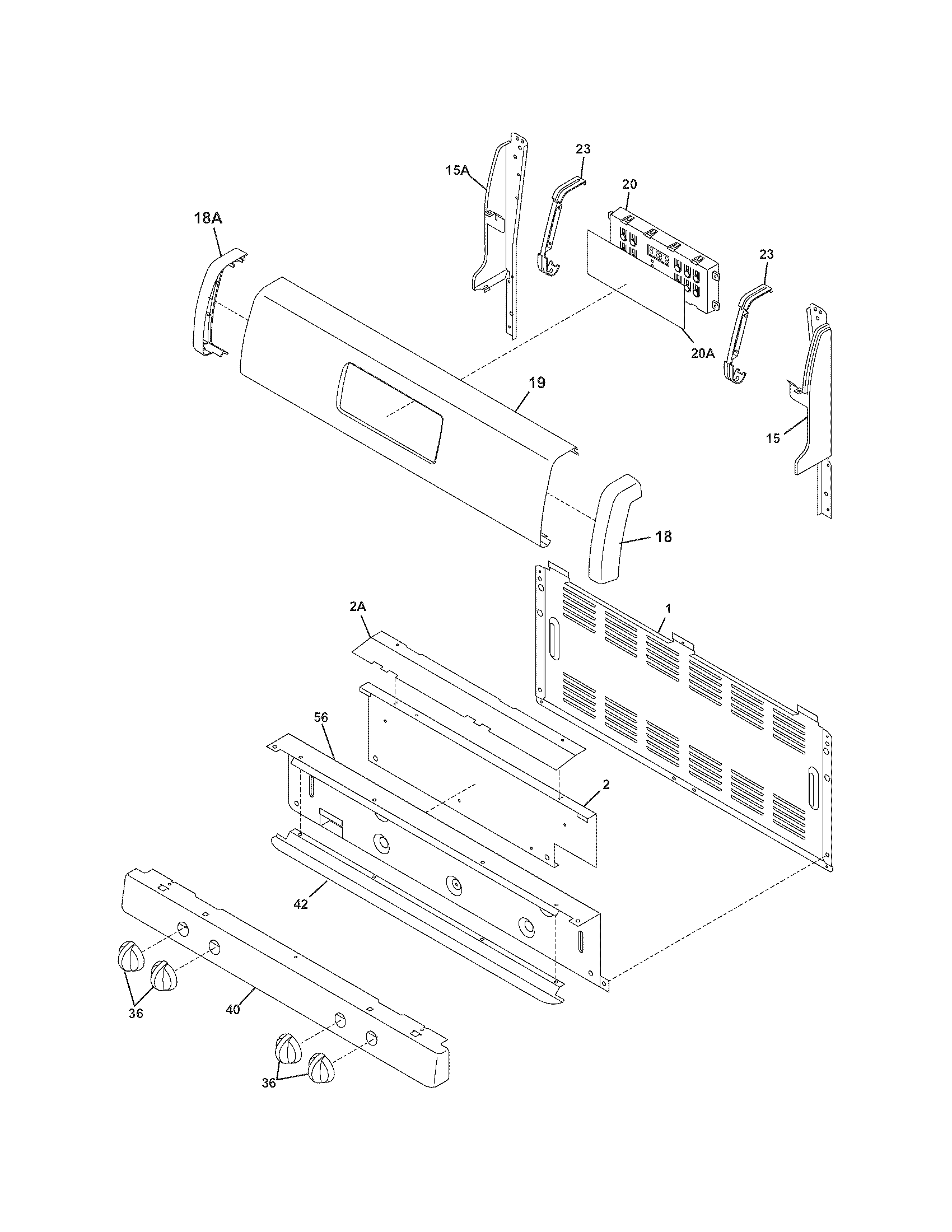

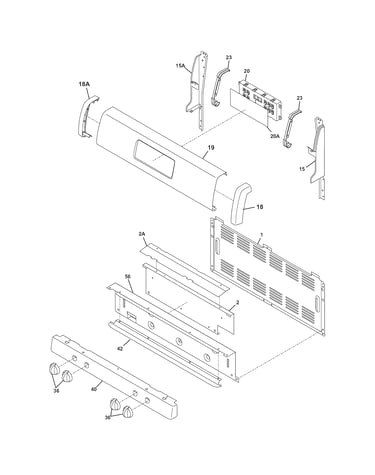

Backguard diagram

Range control overlay

Part #316419113

Replaced by #316419134

?
Manufacturer substitution
This part replaces 316419113. Substitute parts can look different from the original.
BEST SELLER
$32.96 |
15% OFF Phone Price : $38.96
In Stock
Range Oven Rack (replaces 316425801) 316404500
#6

Body diagram

Range oven rack (replaces 316425801)

Part #316404500

BEST SELLER
$86.38 |
6% OFF Phone Price : $92.38
In Stock
Igniter And Orifice Holder 316237701
#11

Burner diagram

Igniter and orifice holder

Part #316237701

Replaced by #316237704

?
Manufacturer substitution
This part replaces 316237701. Substitute parts can look different from the original.
BEST SELLER
$85.24 |
7% OFF Phone Price : $91.24
In Stock
Range Oven Bottom Panel (replaces 316400604) 316400603
#8

Body diagram

Range oven bottom panel (replaces 316400604)

Part #316400603

BEST SELLER
$158.36 |
7% OFF Phone Price : $170.36
In Stock
