Frigidaire
Electric Wall Oven

Model # FPEW2785KFA Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FPEW2785KFA wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

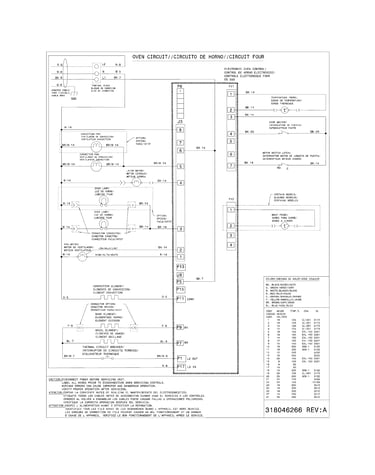

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Range Oven Light Bulb 5303013071
#15

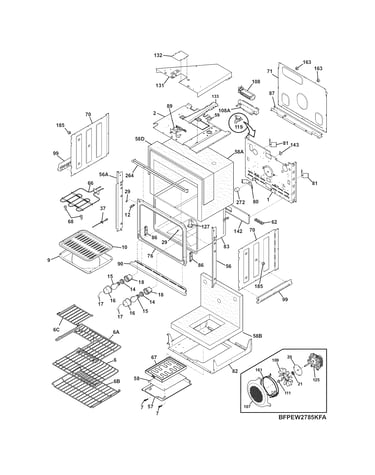

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Broil Element 318255601
#66

Body diagram

Range broil element

Part #318255601

Replaced by #318255606

?
Manufacturer substitution
This part replaces 318255601. Substitute parts can look different from the original.
$139.04 |
8% OFF Phone Price : $151.04
In Stock
Kenmore Pro Wall Oven Bake Element Wire Harness (replaces 318231838, 7318231870) 318231870
#NI

Body diagram

Kenmore pro wall oven bake element wire harness (replaces 318231838, 7318231870)

Part #318231870

$56.67 |
10% OFF Phone Price : $62.67
In Stock
Range Oven Door Glass Retainer 318382301
#42

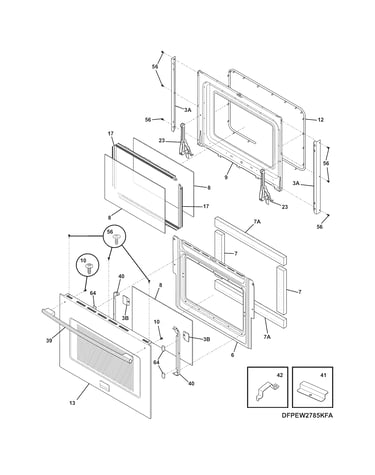

Door diagram

Range oven door glass retainer

Part #318382301

Replaced by #318382302

?
Manufacturer substitution
This part replaces 318382301. Substitute parts can look different from the original.
$43.42
In Stock
Universal/multiflex (frigidaire) Range Door Bumper 316517600
#29

Body diagram

Universal/multiflex (frigidaire) range door bumper

Part #316517600

This item is not returnable
$11.89
In Stock
Range Convection Fan Motor Seal 318389000
#21

Body diagram

Range convection fan motor seal

Part #318389000

$20.97
In Stock
Wall Oven Broil Element Support Hanger 5304403015
#68

Body diagram

Wall oven broil element support hanger

Part #5304403015

$26.80 |
18% OFF Phone Price : $32.80
In Stock
Wall Oven Control Board 316462867
#20

Control panel diagram

Wall oven control board

Part #316462867

$293.26 |
$12.00 OFF Phone Price : $305.26
In Stock
