Model # QS342WW Official Broan range hood

Here are the diagrams and repair parts for Official Broan QS342WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Spring R169016
#26

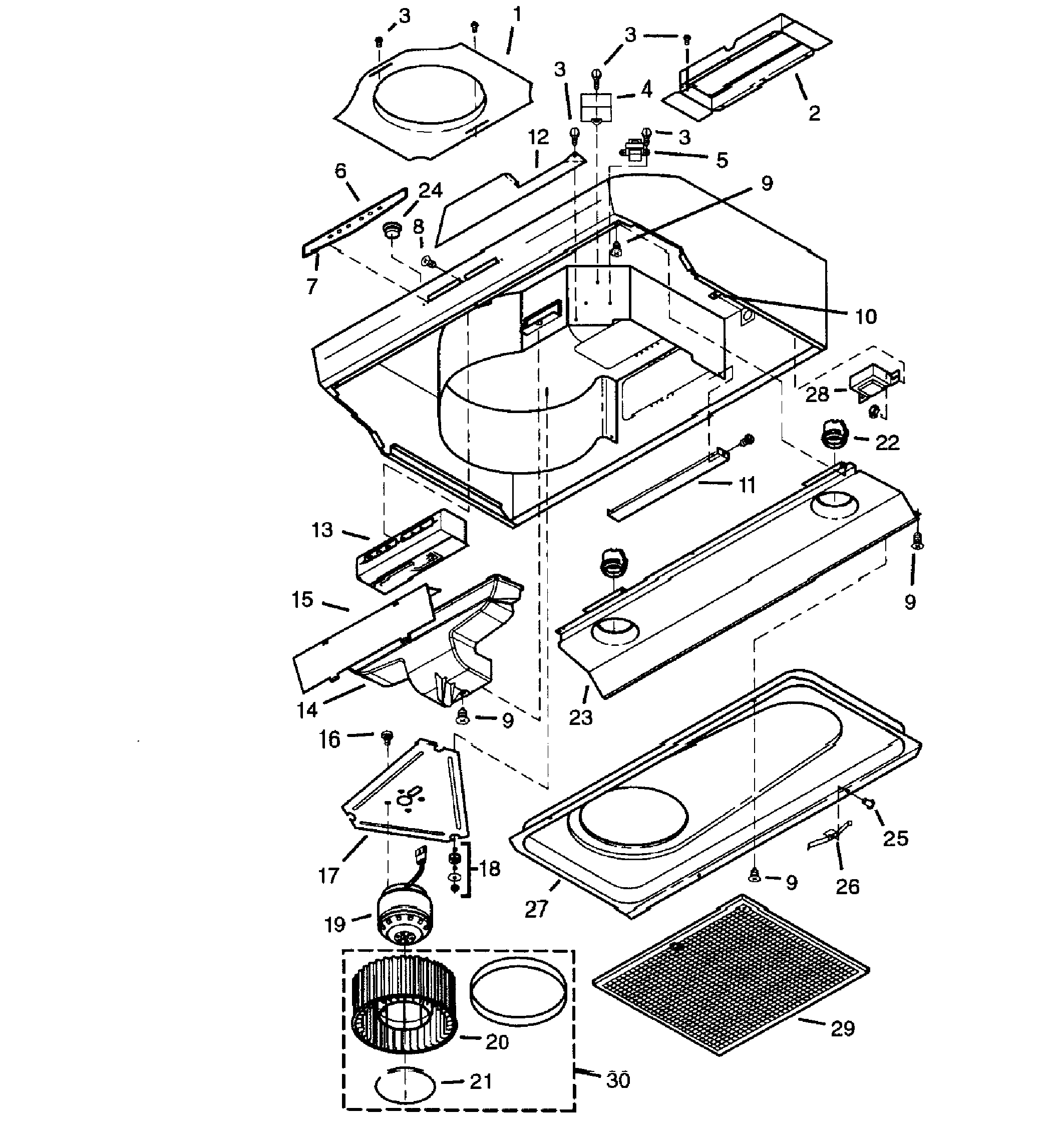

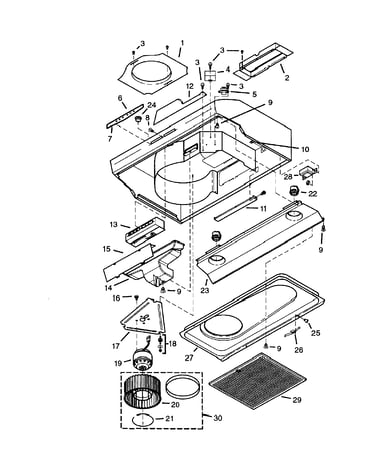

Range hood ass diagram

Spring

Part #R169016

Replaced by #SR169016

?
Manufacturer substitution
This part replaces R169016. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Vent Damper R740013
#2

Range hood ass diagram

Range hood vent damper

Part #R740013

Replaced by #SR740013

?
Manufacturer substitution
This part replaces R740013. Substitute parts can look different from the original.
$31.19 |
16% OFF Phone Price : $37.19
In Stock
Range Hood Screw R601535
#8

Range hood ass diagram

Range hood screw

Part #R601535

Replaced by #SR601535

?
Manufacturer substitution
This part replaces R601535. Substitute parts can look different from the original.
This item is not returnable
$5.46
In Stock
Range Hood Non-ducted Filter Kit 99010310
#NI

Range hood ass diagram

Range hood non-ducted filter kit

Part #99010310

$50.69 |
11% OFF Phone Price : $56.69
In Stock
Range Hood Screw R602017
#3

Range hood ass diagram

Range hood screw

Part #R602017

This item is not returnable
$4.88
Back Order
Cover R680528
#27

Range hood ass diagram

Cover

Part #R680528

Replaced by #SR680528

?
Manufacturer substitution
This part replaces R680528. Substitute parts can look different from the original.
$126.42
In Stock
Plug R607660
#24

Range hood ass diagram

Plug

Part #R607660

Replaced by #SR607660

?
Manufacturer substitution
This part replaces R607660. Substitute parts can look different from the original.
This item is not returnable
$5.83
In Stock
Gnd Screws R602533
#10

Range hood ass diagram

Gnd screws

Part #R602533

Replaced by #S99150471

?
Manufacturer substitution
This part replaces R602533. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Range Hood Transformer R501031
#5

Range hood ass diagram

Range hood transformer

Part #R501031

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel Retainer Ring R607215
#21

Range hood ass diagram

Range hood blower wheel retainer ring

Part #R607215

Replaced by #SR607215

?
Manufacturer substitution
This part replaces R607215. Substitute parts can look different from the original.
This item is not returnable
$6.28
In Stock
