Model # 917299370 Official Craftsman 6-hp tiller

Here are the diagrams and repair parts for Official Craftsman 917299370 6-hp tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Washer 19121414
#63

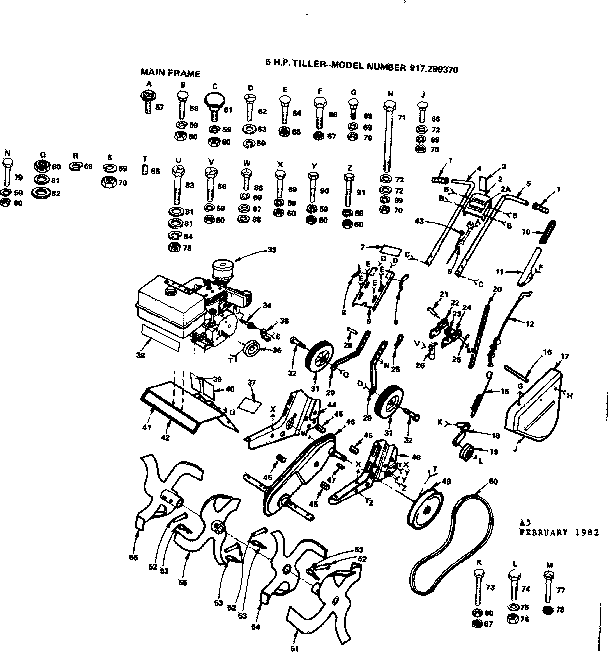

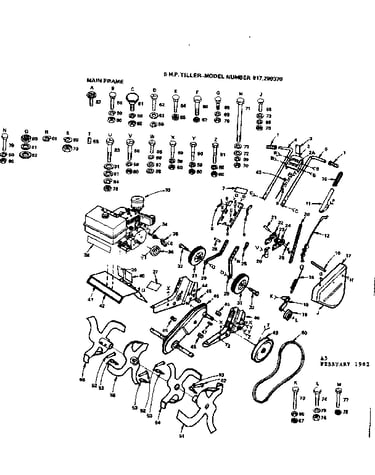

Main frame diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Spring Retainer 3146R
#53

Main frame diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Tiller Engine Sheave 9177R
#36

Main frame diagram

Tiller engine sheave

Part #9177R

Replaced by #592642101

?
Manufacturer substitution
This part replaces 9177R. Substitute parts can look different from the original.
This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Carriage Bolt, 5/16-18 X 3/4-in STD533107
#64

Main frame diagram

Carriage bolt, 5/16-18 x 3/4-in

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Nut 2628J
#8

Main frame diagram

Nut

Part #2628J

Replaced by #532183724

?
Manufacturer substitution
This part replaces 2628J. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Nut 98000129
#65

Main frame diagram

Nut

Part #98000129

Replaced by #585802801

?
Manufacturer substitution
This part replaces 98000129. Substitute parts can look different from the original.
$8.54
In Stock
Tine, Left 674H31
#54

Main frame diagram

Tine, left

Part #674H31

Replaced by #583854402

?
Manufacturer substitution
This part replaces 674H31. Substitute parts can look different from the original.
$66.64
In Stock
Tiller Handle Grip 8206H
#10

Main frame diagram

Tiller handle grip

Part #8206H

Replaced by #532008206

?
Manufacturer substitution
This part replaces 8206H. Substitute parts can look different from the original.
$17.11
In Stock
Tiller Clevis Pin 9194R
#28

Main frame diagram

Tiller clevis pin

Part #9194R

Replaced by #532443676

?
Manufacturer substitution
This part replaces 9194R. Substitute parts can look different from the original.
$20.54
In Stock
Spring 5388J
#26

Main frame diagram

Spring

Part #5388J

Replaced by #532446063

?
Manufacturer substitution
This part replaces 5388J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
