Jenn-Air
Electric Range

Model # H1500PRW Official Jenn-Air electric slide-in range

Here are the diagrams and repair parts for Official Jenn-Air H1500PRW electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

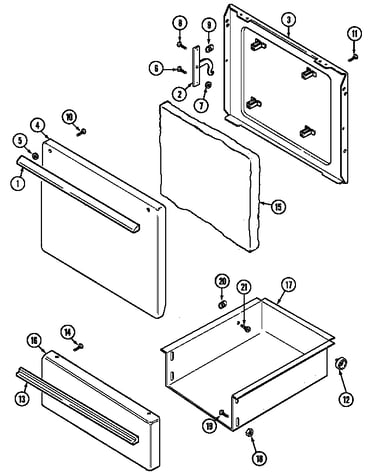

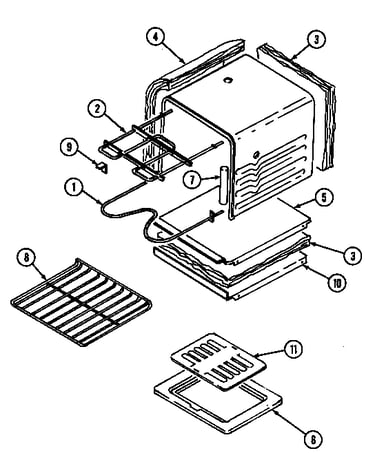

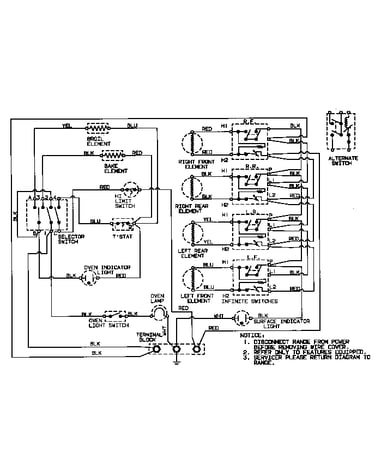

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Terminal Block 7401P039-60
#20

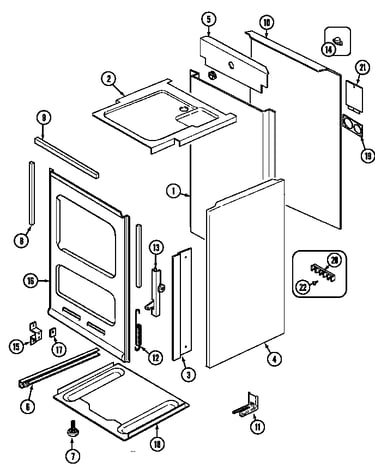

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Drip Bowl 7725P007-60
#13

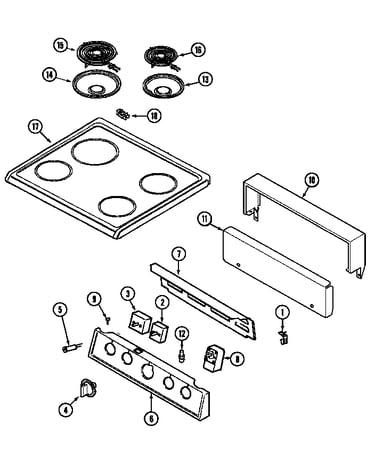

Top assembly diagram

Drip bowl

Part #7725P007-60

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces 7725P007-60. Substitute parts can look different from the original.
$7.46 |
12% OFF Phone Price : $8.46
In Stock
Receptacle 1430306K
#18

Top assembly diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Drip Bowl 7725P008-60
#13A

Top assembly diagram

Drip bowl

Part #7725P008-60

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 7725P008-60. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Terminal Nut 7103P027-60
#20A

Body diagram

Terminal nut

Part #7103P027-60

Replaced by #WP7103P027-60

?
Manufacturer substitution
This part replaces 7103P027-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
"bracket, Ant" 3801F218-51
#11

Body diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw (black) 7101P309-60
Screw (black)

Part #7101P309-60

Replaced by #WP7101P309-60

?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Element (8") 7406P040-60
#15

Top assembly diagram

Element (8")

Part #7406P040-60

Replaced by #WPY04000035

?
Manufacturer substitution
This part replaces 7406P040-60. Substitute parts can look different from the original.
$65.19 |
8% OFF Phone Price : $71.19
In Stock
Infinite Switch 7403P289-60
#3

Top assembly diagram

Infinite switch

Part #7403P289-60

Replaced by #WPW10179654

?
Manufacturer substitution
This part replaces 7403P289-60. Substitute parts can look different from the original.
$83.31
In Stock
Screw 7101P060-60
#22

Body diagram

Screw

Part #7101P060-60

Replaced by #W11684512

?
Manufacturer substitution
This part replaces 7101P060-60. Substitute parts can look different from the original.
$13.06
In Stock
