Model # DSC-WX70/W Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-WX70-W digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Screw 394750431
#176

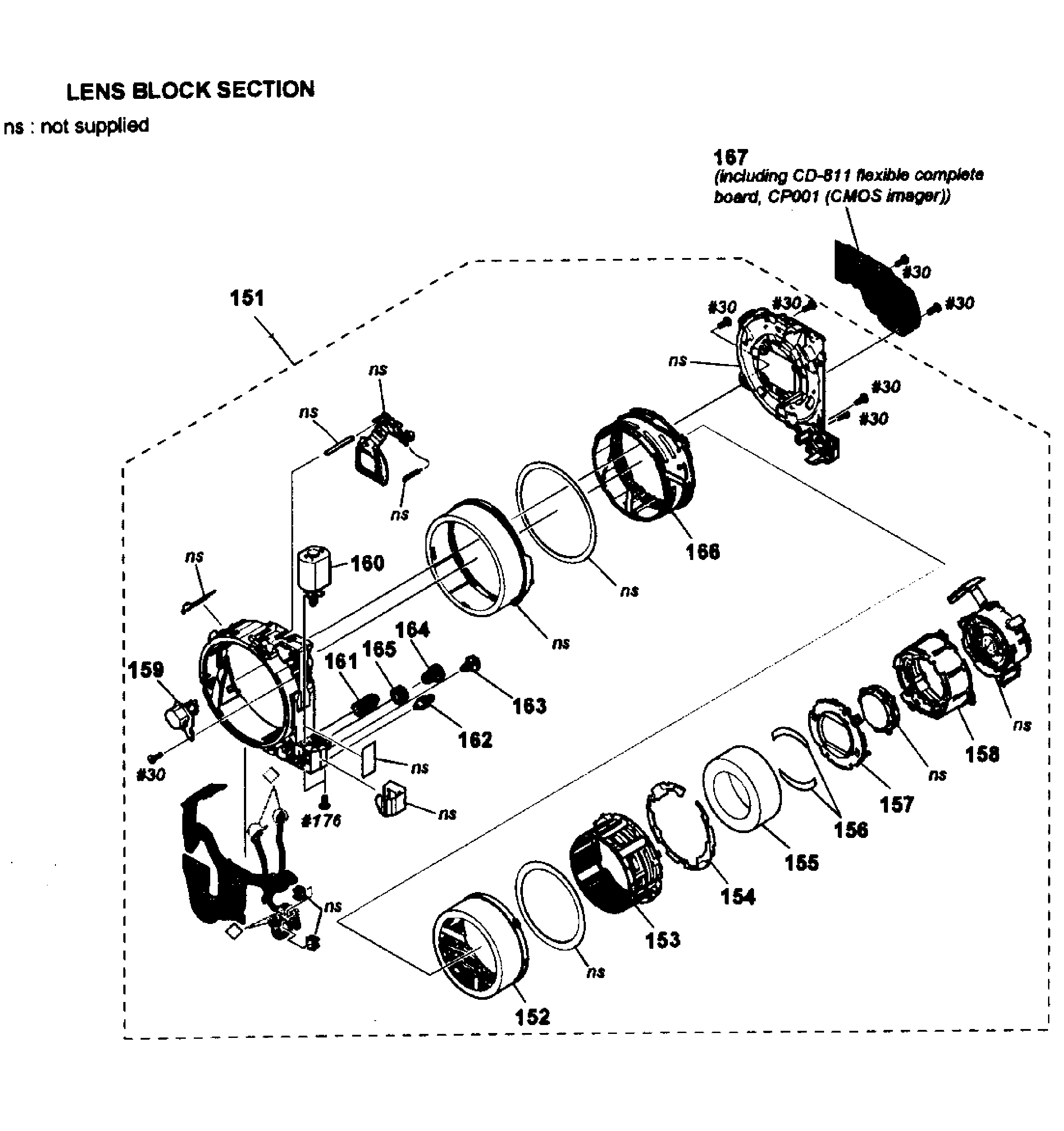

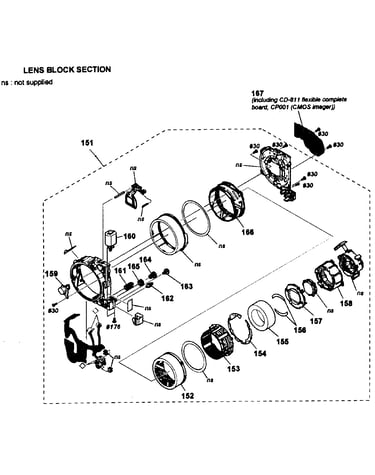

Lens block diagram

Screw

Part #394750431

$13.24
In Stock
Usb Plate 441164401
#107

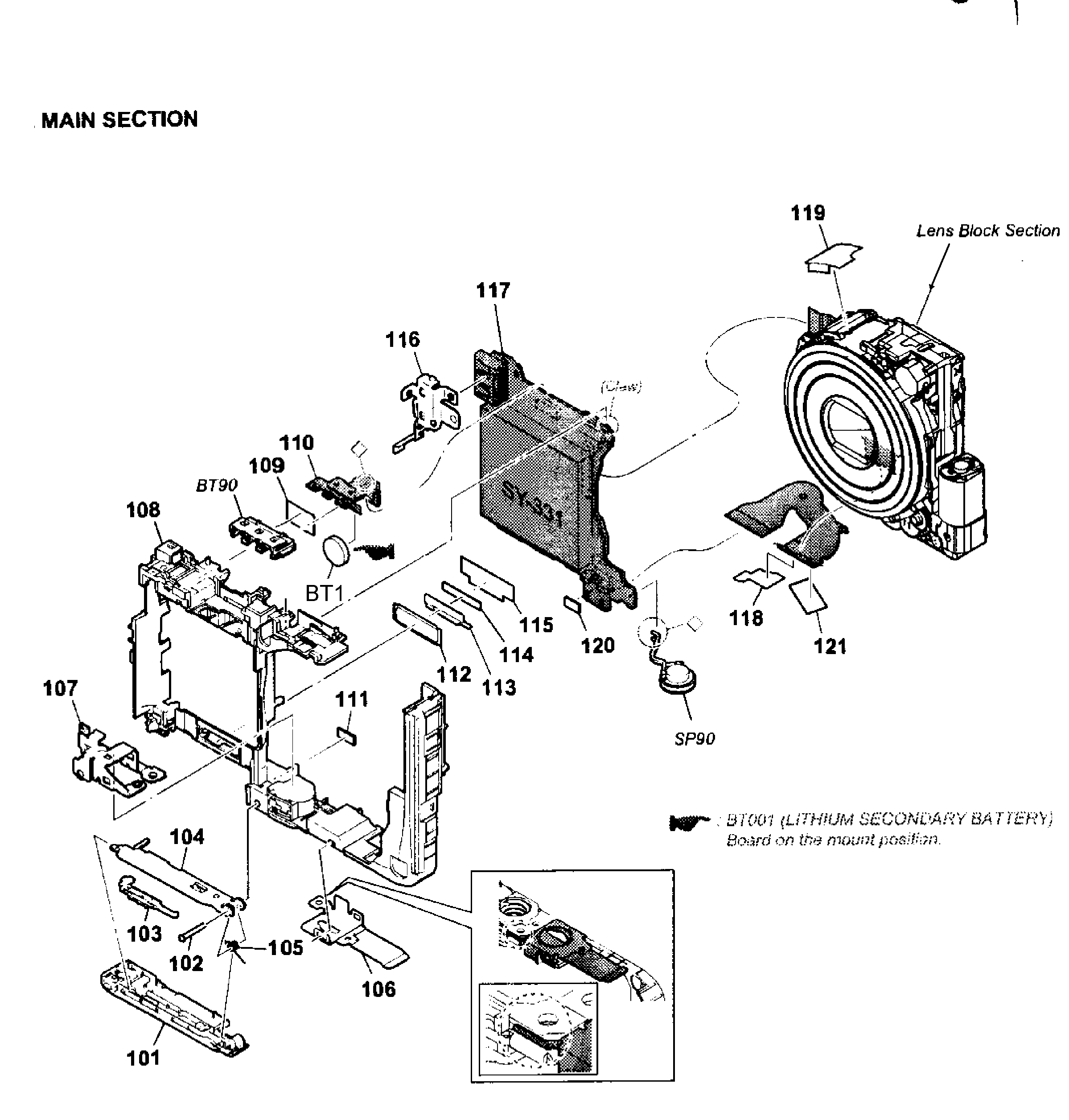

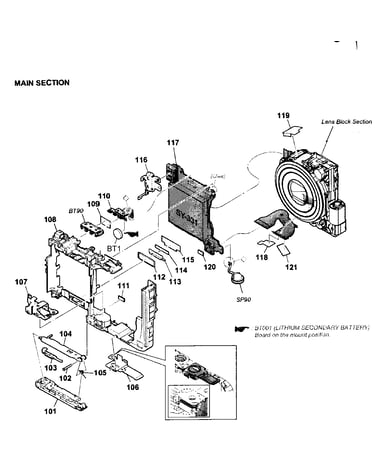

Main section diagram

Usb plate

Part #441164401

$18.61
In Stock
Cushion 429222301
#5

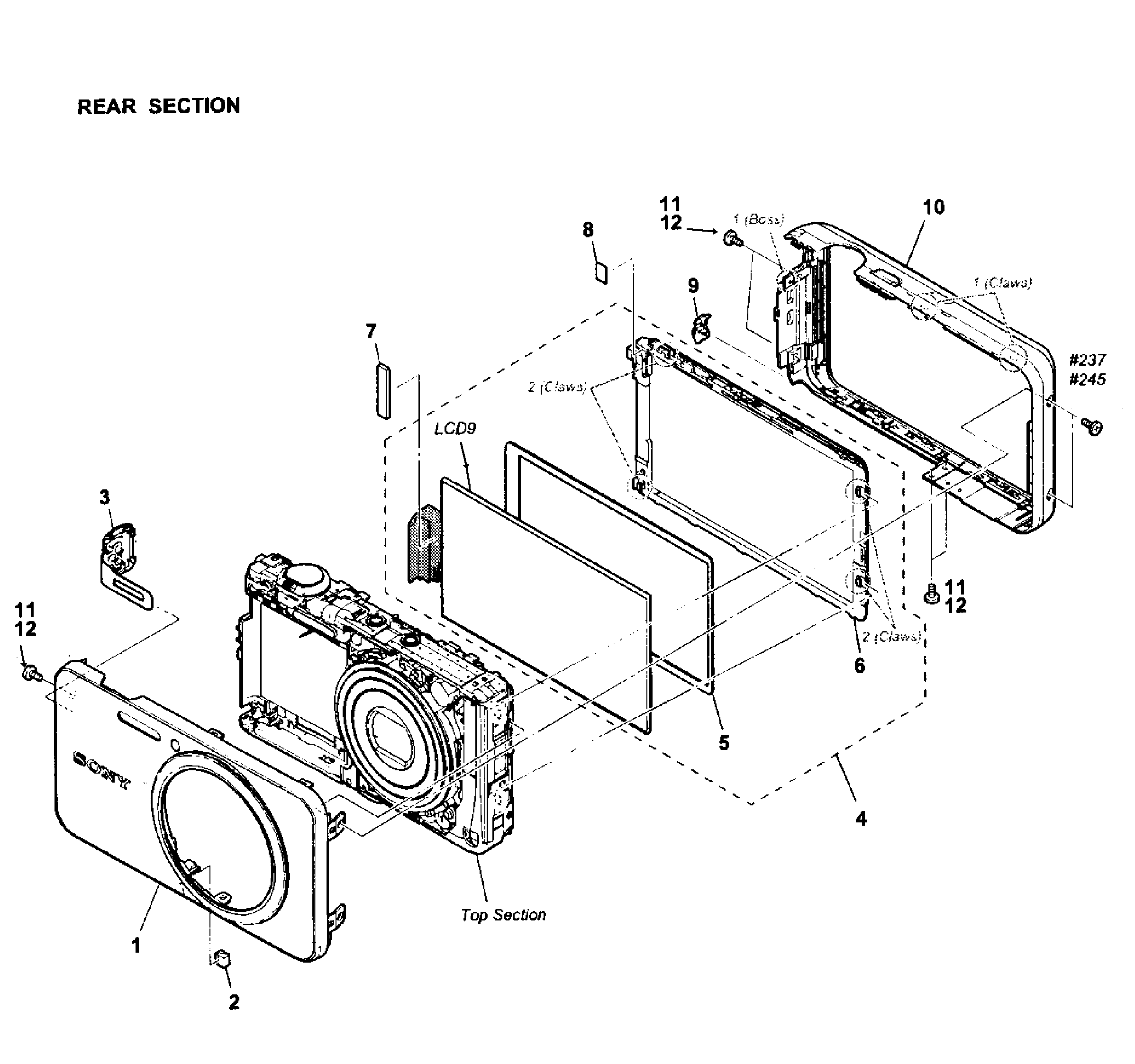

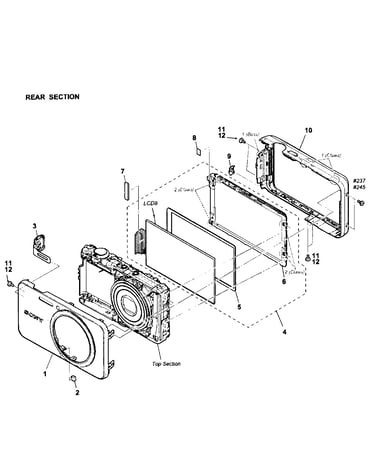

Rear section diagram

Cushion

Part #429222301

$35.98
In Stock
St Sheet 440986701
#54

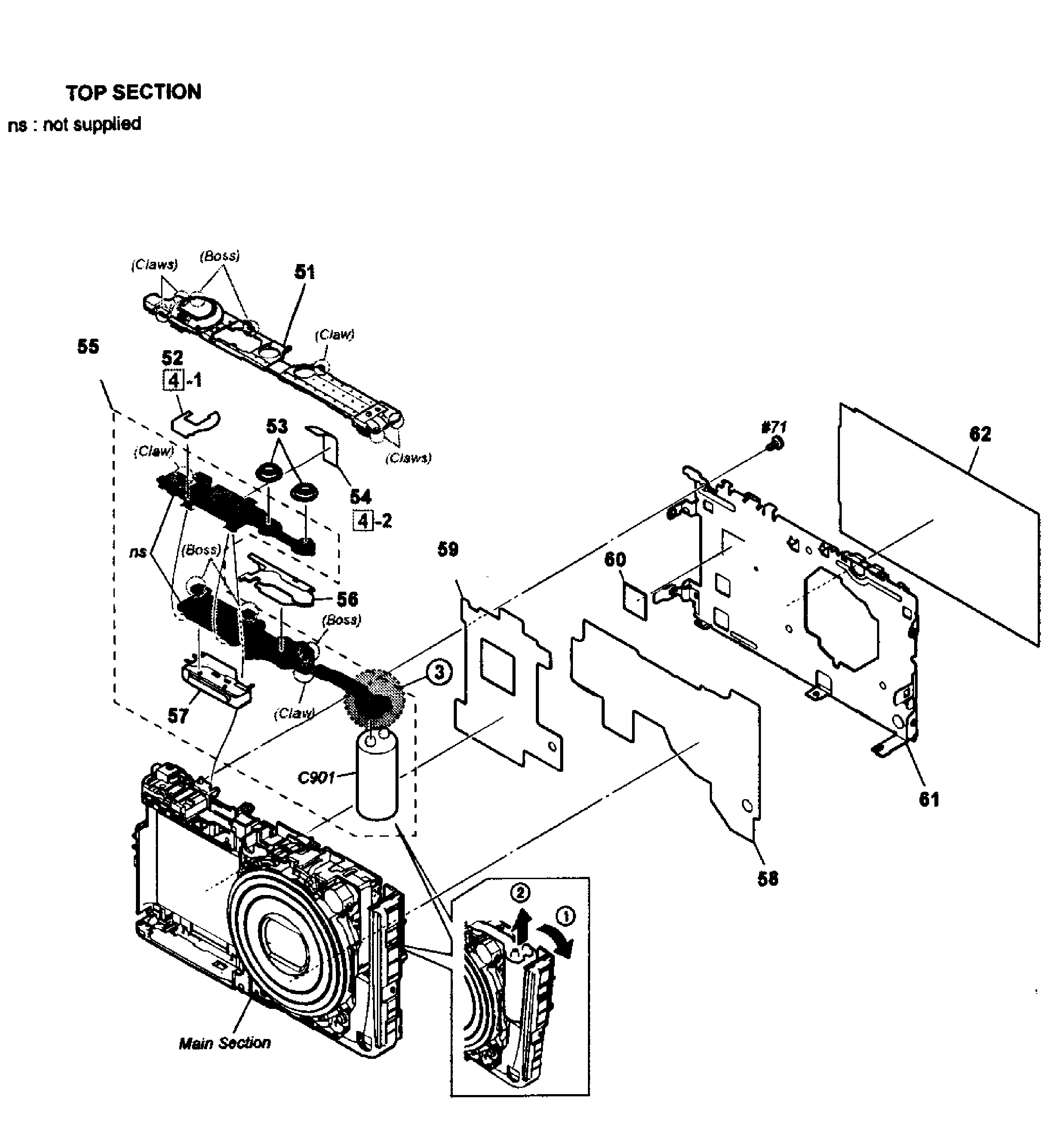

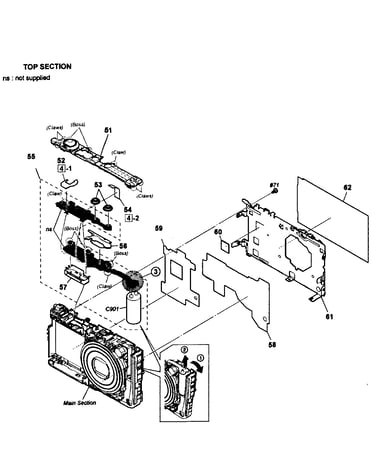

Top section diagram

St sheet

Part #440986701

This item is not returnable
$5.65
In Stock
Tube Block A1836366A
#152

Lens block diagram

Tube block

Part #A1836366A

$7.67
In Stock
Sy331 Pcb, A1860791A
#117

Main section diagram

Sy331 pcb,

Part #A1860791A

$151.27
In Stock
Frame,grou 418767001
#158

Lens block diagram

Frame,grou

Part #418767001

This item is not returnable
$3.93
In Stock
Sheet 427343701
#118

Main section diagram

Sheet

Part #427343701

$13.24
In Stock
Block Barr A1836375A
#157

Lens block diagram

Block barr

Part #A1836375A

$36.47
In Stock
Screw 442425001
#12

Rear section diagram

Screw

Part #442425001

This item is not returnable
$5.65
In Stock
