Kenmore
Electric Range

Model # 20215(1988) Official Kenmore electric slide-in range

Here are the diagrams and repair parts for Official Kenmore 202151988 electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

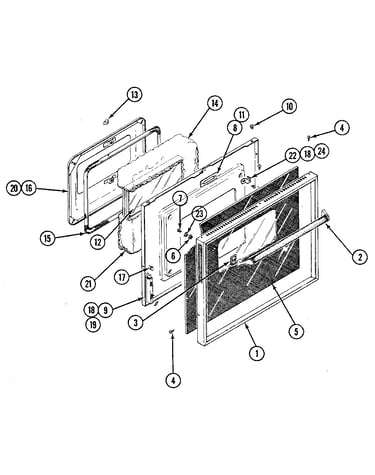

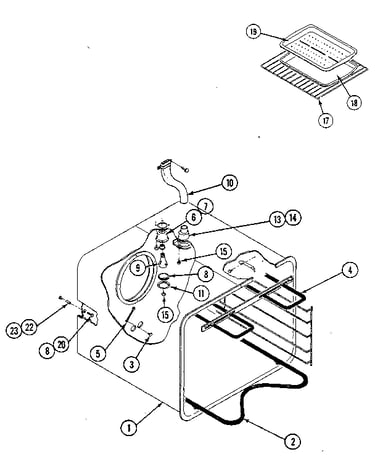

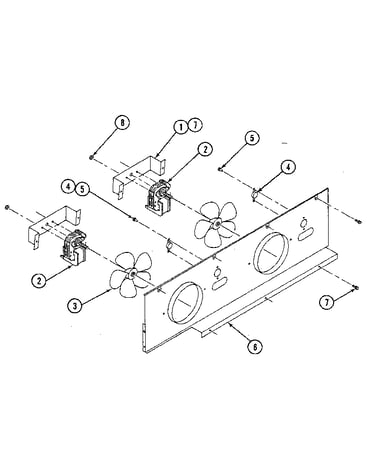

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Switch 703650
#4

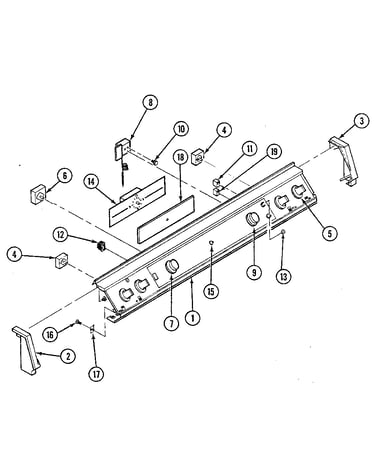

Control panel diagram

Switch

Part #703650

The manufacturer no longer makes this part, and there's no substitute part

Screw 707347
Screw

Part #707347

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 707347. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 708733
#42

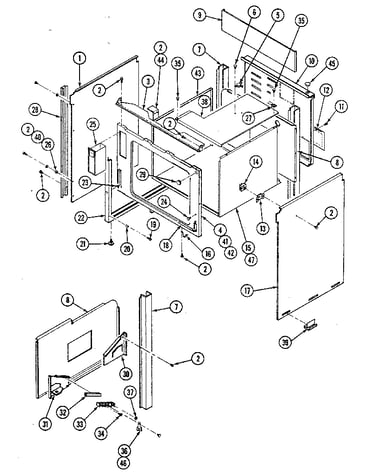

Basic body diagram

Screw

Part #708733

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 704237
#14

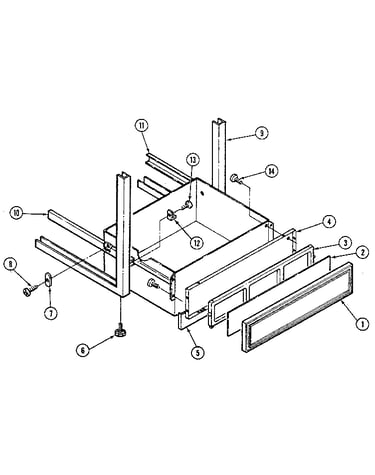

Drawer assembly diagram

Screw

Part #704237

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 704237. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Radiant Module A122B

#NI

All parts diagram

Radiant module

Part #A122B

Replaced by #A122BA

?
Manufacturer substitution
This part replaces A122B. Substitute parts can look different from the original.
$389.00 |
$12.00 OFF Phone Price : $401.00
In Stock
Radiant Module A122W

#NI

All parts diagram

Radiant module

Part #A122W

Replaced by #A122BA

?
Manufacturer substitution
This part replaces A122W. Substitute parts can look different from the original.
$389.00 |
$12.00 OFF Phone Price : $401.00
In Stock
Receptacle 702783
#11

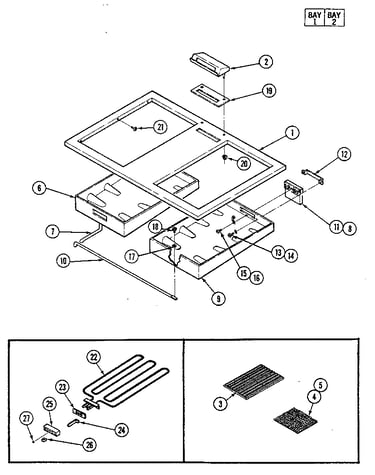

Top/grill pan diagram

Receptacle

Part #702783

Replaced by #WPY702434

?
Manufacturer substitution
This part replaces 702783. Substitute parts can look different from the original.
$43.33 |
12% OFF Phone Price : $49.33
In Stock
Screw 707341
#15

Top/grill pan diagram

Screw

Part #707341

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 707341. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Coil Module A100

#NI

All parts diagram

Coil module

Part #A100

Replaced by #JEA7000ADSA

?
Manufacturer substitution
This part replaces A100. Substitute parts can look different from the original.
$195.48 |
6% OFF Phone Price : $207.48
In Stock
Sensor Switch 702548
#5

Basic body diagram

Sensor switch

Part #702548

Replaced by #WP7403P899-60

?
Manufacturer substitution
This part replaces 702548. Substitute parts can look different from the original.
$88.32 |
6% OFF Phone Price : $94.32
In Stock
