Jenn-Air
Gas Cooktop

Model # JGCP536HL00 Official Jenn-Air gas counter unit

Here are the diagrams and repair parts for Official Jenn-Air JGCP536HL00 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Cleaner 31464
#NI

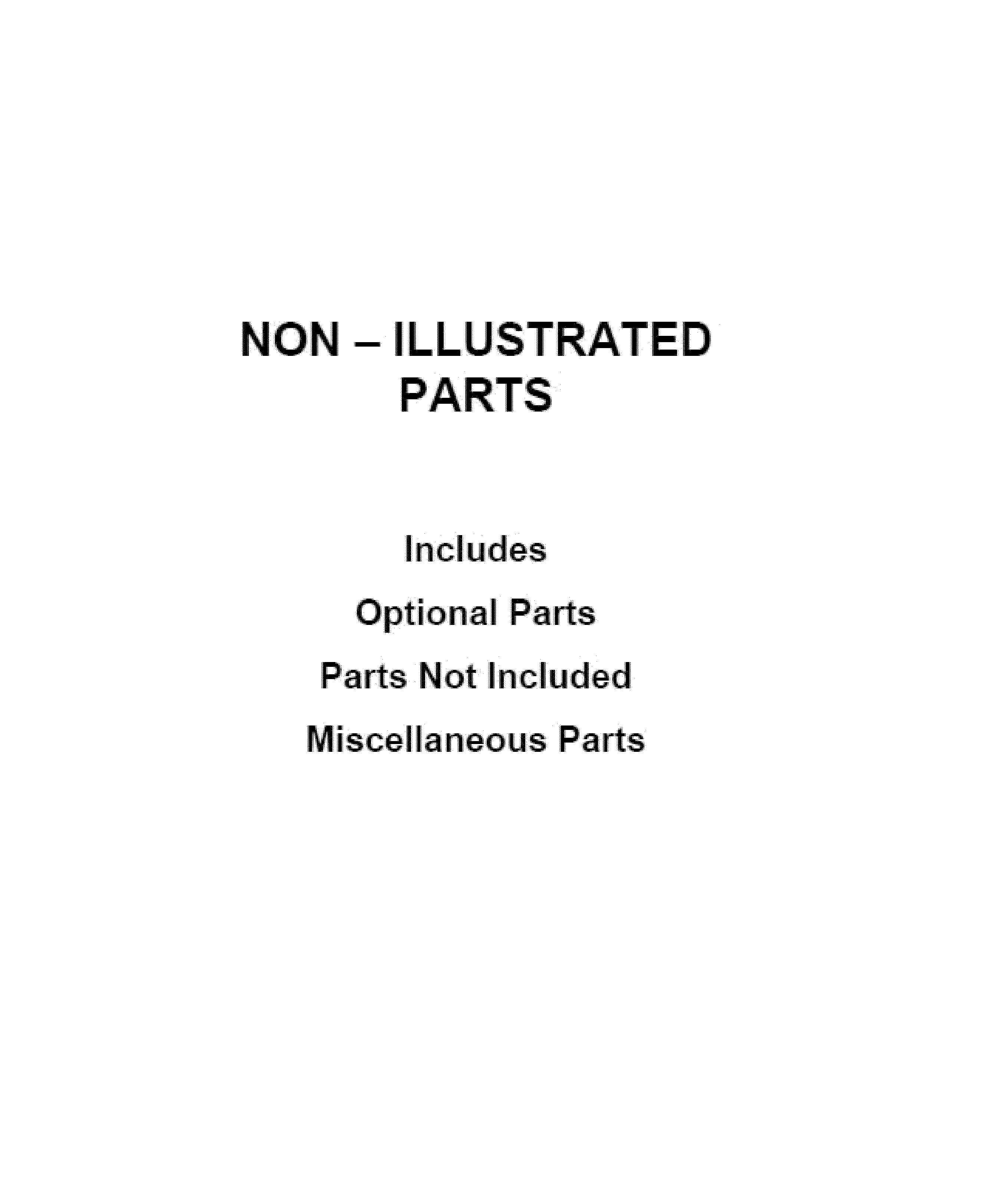

Optional parts (not included) diagram

Cleaner

Part #31464

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 31464. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Screw 3196176
#9

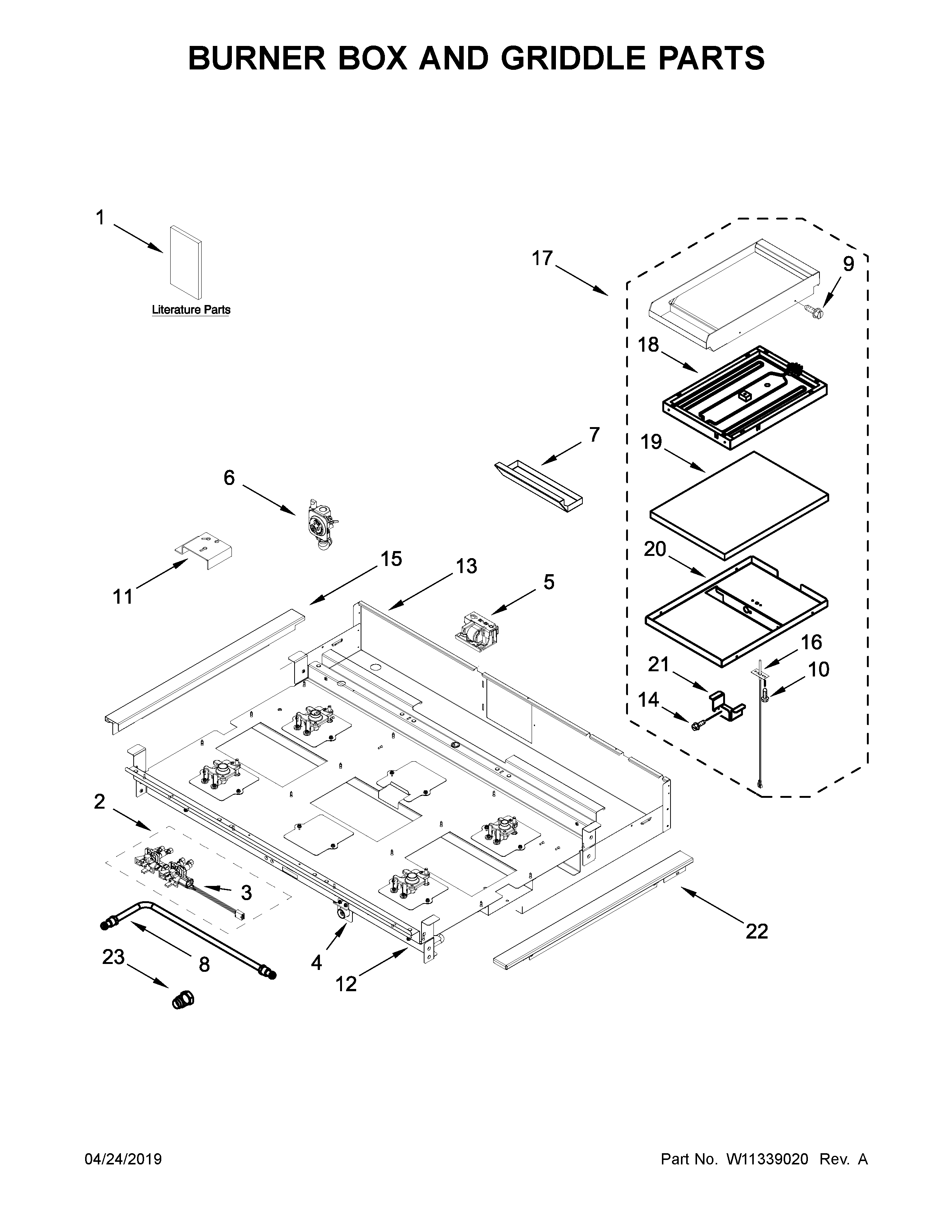

Burner box and griddle parts diagram

Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Screw 3196160
#10

Burner box and griddle parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P338-60
#20

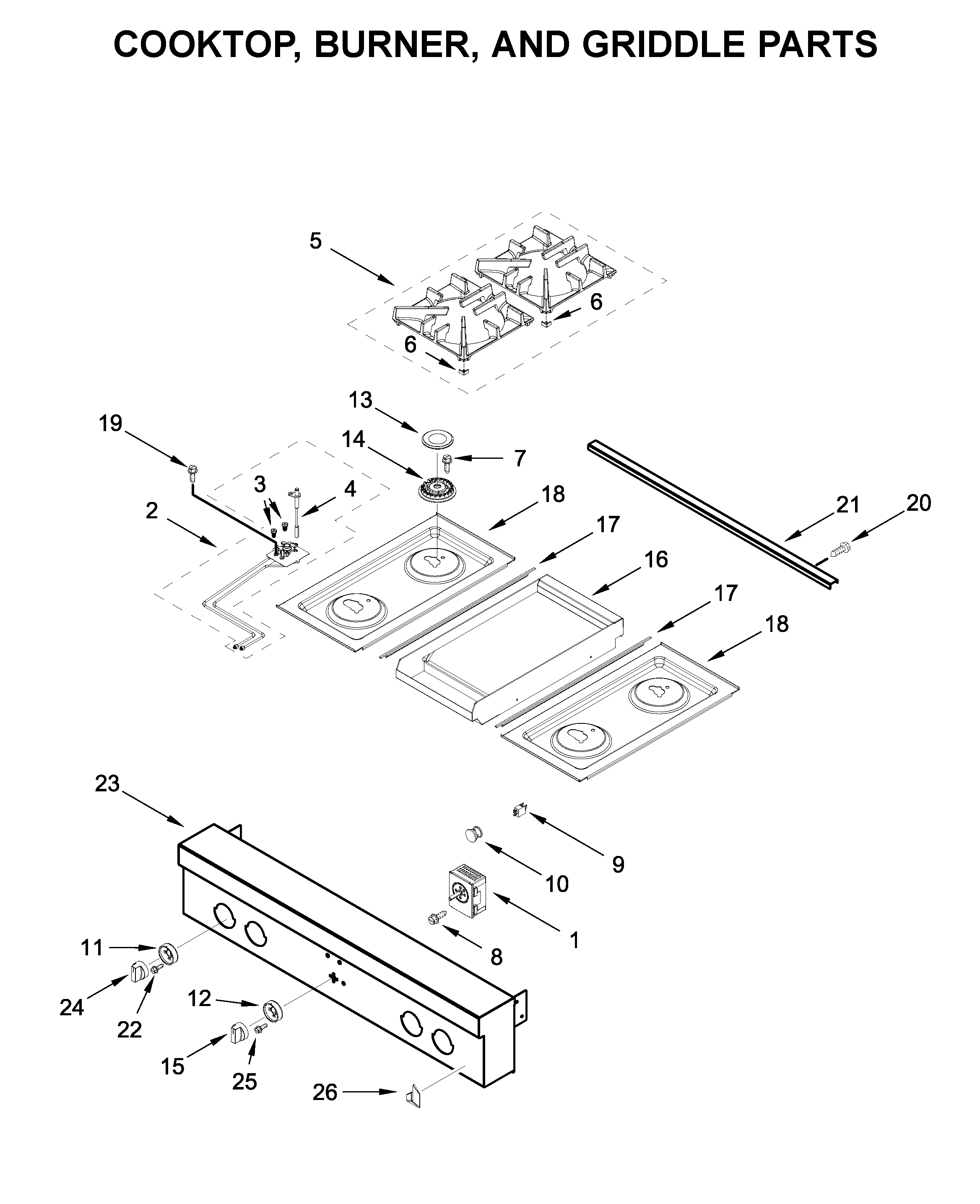

Cooktop, burner, and griddle parts diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooktop Burner Cap Set (brass) W11323012
#NI

Optional parts (not included) diagram

Cooktop burner cap set (brass)

Part #W11323012

$115.51 |
9% OFF Phone Price : $127.51
In Stock
Whirlpool Range Wok Ring W10216179
#NI

Optional parts (not included) diagram

Whirlpool range wok ring

Part #W10216179

$29.00 |
17% OFF Phone Price : $35.00
In Stock
Kitchenaid Trim, Island W11355760
#21

Cooktop, burner, and griddle parts diagram

Kitchenaid trim, island

Part #W11355760

$101.56
In Stock
Trim W10291193
#17

Cooktop, burner, and griddle parts diagram

Trim

Part #W10291193

$65.82
In Stock
Plug-supply W10892063
#23

Burner box and griddle parts diagram

Plug-supply

Part #W10892063

$27.51
In Stock
Range Surface Burner Cap Set (brass) W11323014
#NI

Optional parts (not included) diagram

Range surface burner cap set (brass)

Part #W11323014

$371.73 |
$12.00 OFF Phone Price : $383.73
In Stock
